C+L-Band ASE Broadband

The C+L band ASE Broadband Light Source uses spectral flat technology. It has high output power and operating wavelength coverage of the C-L  band, making suitable for fiber sensing and other applications. The RS-232 interface and upper computer software are available for easy monitoring of the status of the light source module.



Characteristics

-Flat Spectrum

-Adjustable Power

-High Stability Output Power


Applications

-Fiber Sensing

-Medical Imaging

-Fiber Device Testing





General Specifications

Optical indicators

Unit

Typical value

Remark

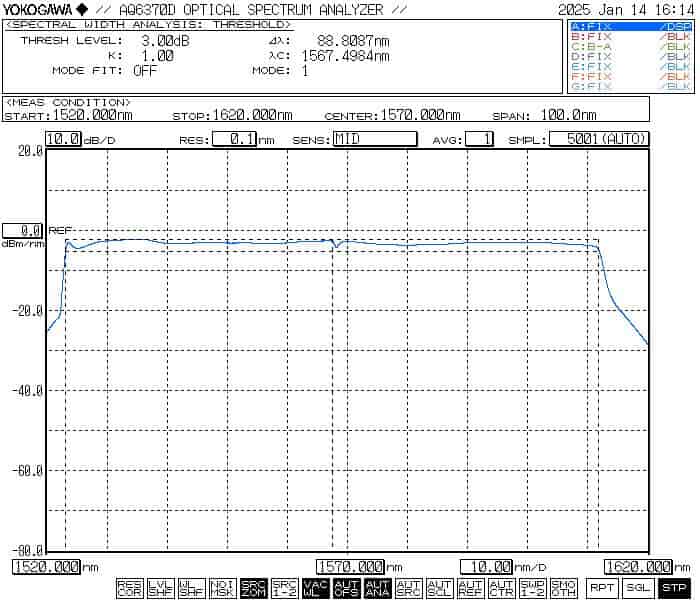

Spectral range

nm

1528~1603

The C-L band

Output optical power

mW

10/20/50/100

Irreconcilable

Power adjustable function (optional)

-

The adjustment range is 10% to 100%.

The spectral flatness remains the same when adjusted

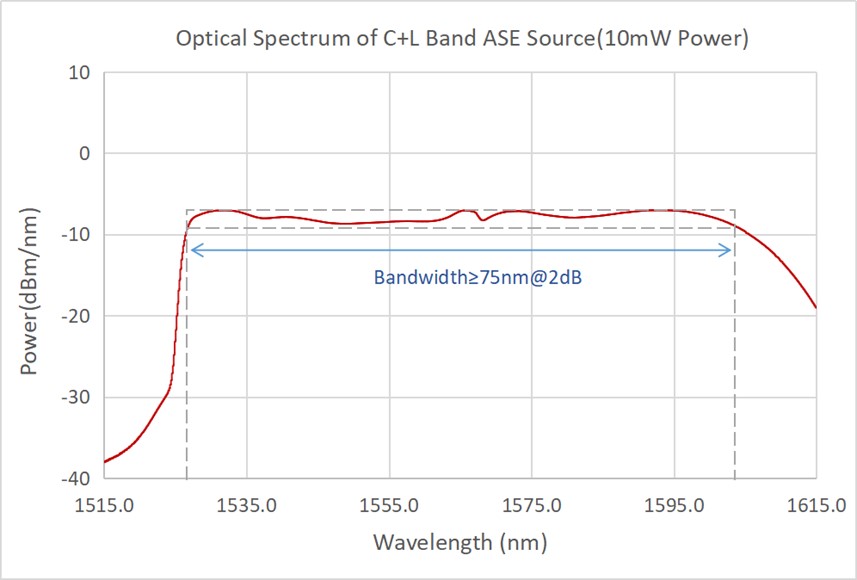

Spectral   flatness

dB

2.5(Type), 3(Max)


Output   isolation

dB

>35

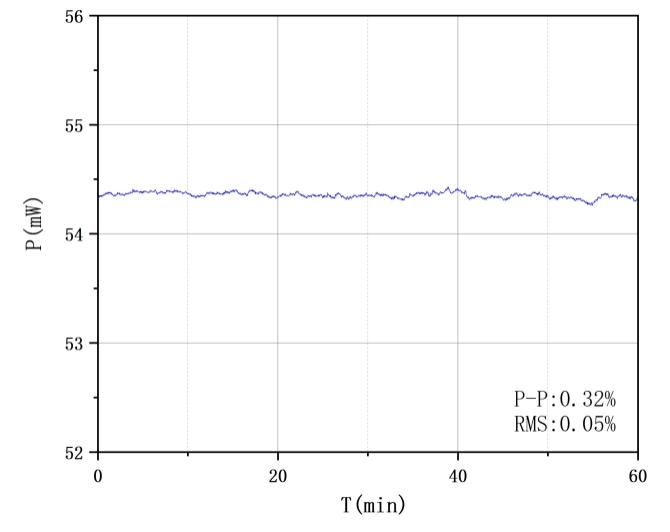

Short-term   stability (15 minutes).

dB

≤ ±0.02


Long-term   stability (8 hours).

dB

≤ ±0.05


Polarization   DOP

dB

≤ 0.2


Tail fiber type

-

SMF-28e single-mode fiber


Tail fiber connector type

-

FC/APC



Electrical and environmental Parameters

Desktop

Module

Control Method

keystroke

RS232 serial communication

The communication interface

:: Optional

DB9 Female

Power  supply

100~240V AC, <30W

5V DC, <15W

The size of the inch

260(W)×280(D)×120(H)mm

125(W)×150(D)×20(H)mm

Operating temperature range

-5~+55°C

Operating humidity range

0~70%


Order information / model number

ASE

The spectral range

Output   power (mW).

Power   adjustable (optional)

The   encapsulation form


CL

10/20/50/100

*T

B- Desktop

M - Module




Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Technical Assistance and Email Quotations (Recommended for Custom Orders, inquiries)

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


Local Same Day Service

SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.


International Inquiries

SIMTRUM provides worldwide shipping and inquiry management. Please contact us for more information.




Search Reset

ASE-CL-100-M - Parameter

Type
Module

Spectral Range (nm)
1528 to 1603

Operating Temperature (°C)
-5 to 55

Output Power (mW)
100

Dimensions (mm)
125 x 150 x 20

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Communication Interface
DB9 Female

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
2.5 (Type), 3 (Max)

Power Adjustment Range
10% to 100%

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-CL-50-M - Parameter

Type
Module

Spectral Range (nm)
1528 to 1603

Operating Temperature (°C)
-5 to 55

Output Power (mW)
50

Dimensions (mm)
125 x 150 x 20

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Communication Interface
DB9 Female

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
2.5 (Type), 3 (Max)

Power Adjustment Range
10% to 100%

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-CL-20-M - Parameter

Type
Module

Spectral Range (nm)
1528 to 1603

Operating Temperature (°C)
-5 to 55

Output Power (mW)
20

Dimensions (mm)
125 x 150 x 20

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Communication Interface
DB9 Female

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
2.5 (Type), 3 (Max)

Power Adjustment Range
10% to 100%

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-CL-10-M - Parameter

Type
Module

Spectral Range (nm)
1528 to 1603

Operating Temperature (°C)
-5 to 55

Output Power (mW)
10

Dimensions (mm)
125 x 150 x 20

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Communication Interface
DB9 Female

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
2.5 (Type), 3 (Max)

Power Adjustment Range
10% to 100%

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-CL-100-B - Parameter

Type
Desktop

Spectral Range (nm)
1528 to 1603

Operating Temperature (°C)
-5 to 55

Output Power (mW)
100

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Communication Interface
Optional

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
2.5 (Type), 3 (Max)

Power Adjustment Range
10% to 100%

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-CL-50-B - Parameter

Type
Desktop

Spectral Range (nm)
1528 to 1603

Operating Temperature (°C)
-5 to 55

Output Power (mW)
50

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Communication Interface
Optional

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
2.5 (Type), 3 (Max)

Power Adjustment Range
10% to 100%

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-CL-20-B - Parameter

Type
Desktop

Spectral Range (nm)
1528 to 1603

Operating Temperature (°C)
-5 to 55

Output Power (mW)
20

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Communication Interface
Optional

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
2.5 (Type), 3 (Max)

Power Adjustment Range
10% to 100%

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-CL-10-B - Parameter

Type
Desktop

Spectral Range (nm)
1528 to 1603

Operating Temperature (°C)
-5 to 55

Output Power (mW)
10

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Communication Interface
Optional

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
2.5 (Type), 3 (Max)

Power Adjustment Range
10% to 100%

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02
