Thulium-Doped Fiber Amplifier

The Thulium Doped fiber amplifier 2000 uses single mode all fiber amplifying technology. It features high average output power, broad gain bandwidth, low noise and is insensitive to polarization. It has many advantages over traditional bulk solid state systems for its compactness, high stability, ease of use and maintenance free. By choosing different amplifier types, the amplification requirement can be met in 1880~2050 nm wavelength. OEM option is available upon request.

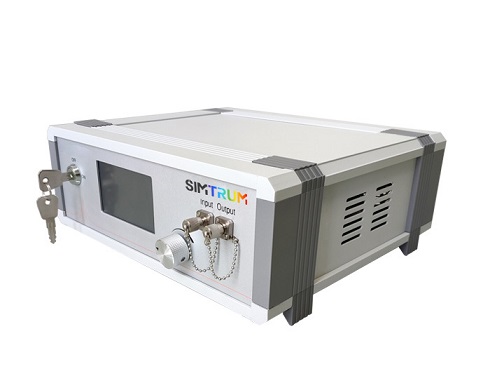

TDFA picture 1

Features:

- Wide Wavelength Bandwidth

- Low Noise

- Excellent Power Stability

- Diffraction Limited Beam

- Turn-Key System

Applications:

- Mid-IR Frequency Conversion

- Mid-IR Spectroscopy Analysis

- Silicon Photonics

- Mid-IR General Experiment Equipment

- Fiber Communication System


Laser Parameters

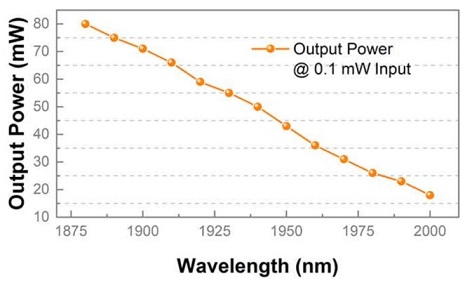

Operating Wavelength

nm

1800-2000

Gain Factor

dB

>20

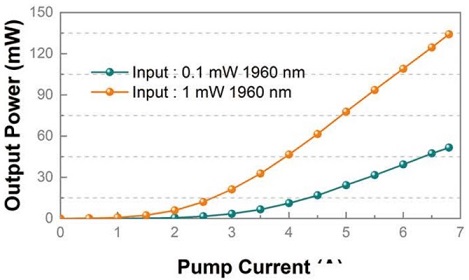

Average Power

mW

>100

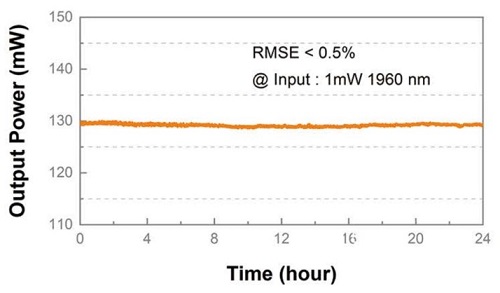

Average Power Stability

%RMS

<0.5 (12h@25°C)

Beam Quality


TEM00, M2<1.1

Output Polarization


Random/Linear Polarization

Output Type


SMF28e/PM1950 Fiber, FC/APC Connector

Electrical, Environmental and Mechanical Parameters

Supply Voltage

VAC

100-240 (50Hz/60Hz)

Operational Temperature Range

°C

15~35

Operational Humidity Range

%

20~80 (Non-condensing)

Storage Temperature Range

°C

-20~+50

Storage Humidity Range

%

20~80(Non-condensing)

Weight Laser Head

Kg

36

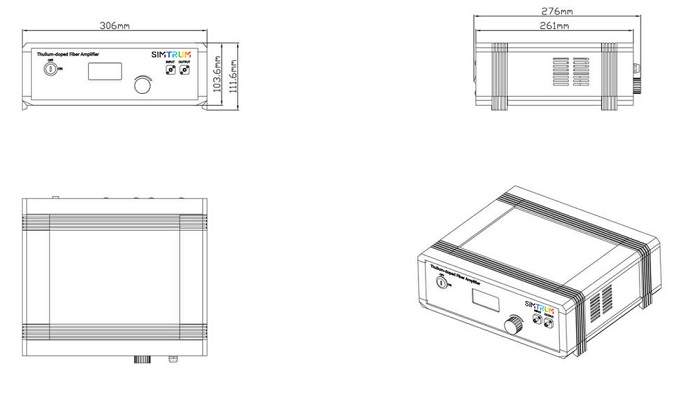

Dimensions Laser Head

mm(LxWxH)

293x240x107

Cooling


Air-cooled

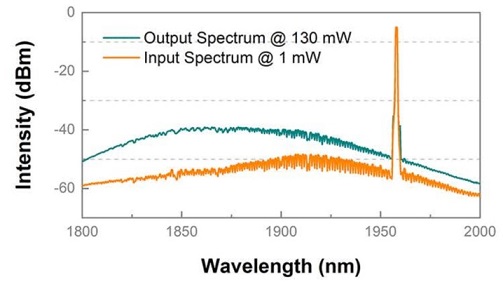

TDFA picture 2



The High-Power Thulium-Doped Fiber Amplifier(TDFA-HP) uses all-fiber amplification technology and features high output power, wide operating wavelength range and low noise. The amplifier wavelength and type is selectable to meet users’ power amplification requirements within wavelength range of 1880-2000nm. Polarization maintained version of the laser unit is also available. TDFA-HP can be widely used in scientific research, characterization etc., and provides a meaningful and valuable tool for the research and development of broader communication windows and future fiber communication systems


High-power TDFA picture 1

Features:

- Wide Wavelength Bandwidth

- Low Noise

- Excellent Power Stability

- Diffraction Limited Beam

- Turn-Key System

Applications:

- Mid-IR Frequency Conversion

- Mid-IR Spectroscopy Analysis

- Silicon Photonics

- Mid-IR General Experiment Equipment

- Fiber communication system


Laser Parameters

Operating Wavelength

nm

1900~2050

Input Power

mW

10

Average Power

W

1,3,5

Wavelength Tuning Accuracy

Nm

1950

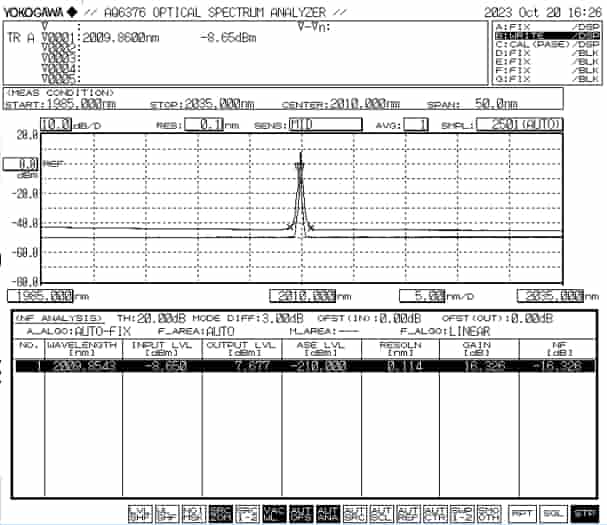

Noise Figure

dB

<8

Beam Quality


TEM00,M2<1.1

Output Type


SMF28e/2000 Single Mode Fiber,

1m Pigtail/FC/PC or Connector

Electrical, Environmental and Mechanical Parameters

Power Consumption

W

<20

Supply Voltage

VAC

100-240 (50Hz/60Hz)

Operational Temperature Range

°C

15~35

Operational Humidity Range

%

20~80 (Non-condensing)

Storage Temperature Range

°C

-20~+50

Storage Humidity Range

%

20~80(Non-condensing)

Weight Laser Head

Kg

4.6

Dimensions Laser Head

mm(LxWxH)

336x284x113

Cooling


Air-cooled

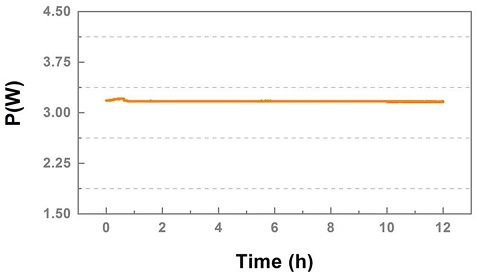

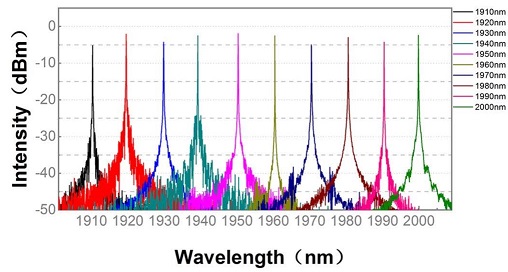

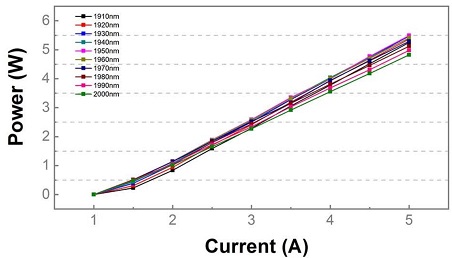

High-power TDFA picture 2
