Fluorescence Upright / Inverted Microscope

Upright Fluorescence Microscope STUY202i/STUY203i



The STUY202i/STUY203i Upright Fluorescence Microscope can be widely used in basic theoretical research and clinical diagnosis in various disciplines such as gene chips, biochips, medical research, biological sciences, pharmacology, etc., and is also widely used in the analysis and detection of industry, agriculture, animal husbandry, criminal investigation, forensic identification, environmental protection engineering, preventive medicine and other fields.



The excellent UCIS infinity chromatic aberration independent correction optical system, equipped with an ultra-long working distance and a higher numerical aperture objective, is of great significance in terms of optical performance improvement and function expansion. Humanized mechanical  design, compact structure, overall die-casting of the fuselage, more stable and reliable. It perfectly combines a variety of functions such as phase contrast, fluorescence, and simple polarization, and is more efficient. Excellent weak fluorescence imaging, using spinning disk fluorescence switching mode, can be equipped with B, G, U, V and other fluorescence excitation, can observe DAPI, FITC, TRITC, Alexa Fluor series, Cy3 series and other common fluorescent dyes, in CTC detection, FRET, cellular immunity and other fields are widely used.

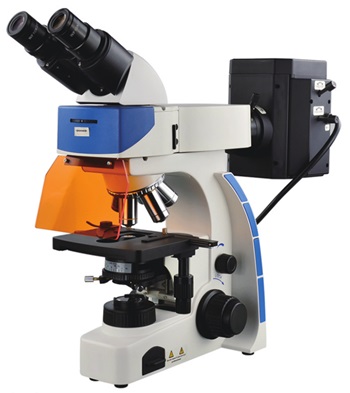

STUY202i



Features

  • High optical performance for detailed imaging.
  • Long working distance for versatile use.
  • Suitable for weak fluorescence imaging.
  • Capabilities for observing common fluorescent dyes.
  • Equipped with phase contrast, fluorescence, and polarization functions.



Applications

  • Medical research: for detailed cellular and molecular studies.
  • Biology: for observing biological samples with fluorescence.
  • Pharmacology: useful in drug discovery and testing.
  • Environmental analysis: for studying environmental samples.

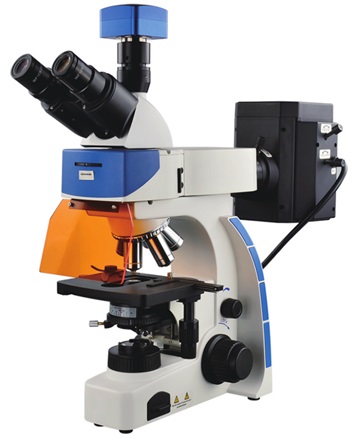

STUY203i







Standard Configuration Technical Parameters

Optical system UCIS infinite chromatic aberration independently corrected optical system
Frame Integrated structure, consistent with ergonomic principles, stable and reliable
Observation tube Hinged dual/trinocular observation tube, tilt angle 30°, 360° rotation, interpupillary distance 52-75mm, diopter-adjustable
Eyepieces High eye point wide field eyepiece WF10X/medium 20mm
Objective lens Infinity plan achromatic objective lens 4X, 10X, 40X(s), 100X(s) (oil)
Stage Mechanical mobile stage, size 156X138mm, stroke 76X54mm
Converter Inward-inclined five-hole internal positioning converter, ball bearing internal positioning, and anti-mildew device focusing
Mechanism Low hand position coarse and fine adjustment coaxial focusing handwheel, limit device and locking device, fine adjustment accuracy 0.001mm, coarse position adjustable up and down
Fluorescent device  Group B and G imported fluorescence excitation module
Condenser
Abbe condenser NA1.25
Camera interface
0.5X camera C-mount
Lighting system
Built-in aspherical lens, 6V/20WOsram halogen lamp, wide voltage 110~240V, 50/60Hz; 100W DC Osram mercury lamp, 100W DC mercury lamp power box

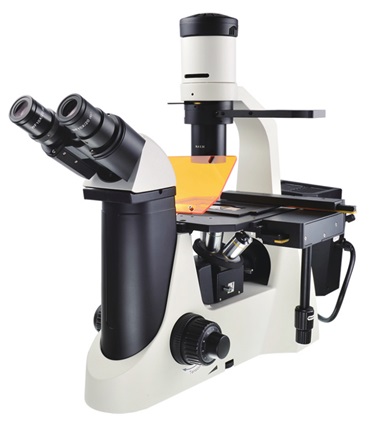

Inverted Fluorescence Microscope STDSY2000X



The STDSY2000X inverted fluorescence microscope can be widely used in basic theoretical research and clinical diagnosis in various disciplines such as gene chips, biochips, medical research, biological sciences, pharmacology, etc., and is also widely used in the analysis and detection of industry, agriculture, animal husbandry, criminal investigation, forensic identification, environmental protection engineering, preventive medicine and other fields.



The excellent UCIS infinity chromatic aberration independent correction optical system, equipped with an objective lens with an ultra-long working distance and a higher numerical aperture, is of great significance in terms of optical performance improvement and function expansion. Humanized mechanical design, compact structure, overall die-casting of the fuselage, more stable and reliable. It perfectly combines a variety of functions such as phase contrast, fluorescence, simple polarization, digital photography, etc., and is more efficient to use. Excellent weak fluorescence imaging, using push-pull fluorescence switching mode, can be equipped with B, G, U, V and other fluorescence excitation, can observe DAPI, FITC, TRITC, Alexa Fluor series, Cy3 series and other common fluorescent dyes, in CTC detection, FRET, cellular immunity and other fields are widely used.



Features

  • UCISS achromatic and corrected optical system.
  • Ergonomically integrated structure.
  • High eyepoint optics with adjustable interpupillary distance.
  • Advanced objective lenses for clear imaging.
  • Capable of weak fluorescence imaging.



Applications

  • Basic research in genetics, biochemistry, and pharmacology.
  • Industrial applications including agriculture and environmental engineering.
  • Medical fields like pathology and cell biology.



Standard Configuration Technical Parameters

Optical system UCIS infinite chromatic aberration independently corrected optical system
Frame Integrated structure, consistent with ergonomic principles, stable and reliable
Observation tube Hinged trinocular observation tube, tilt angle 30°, interpupillary distance 48~75mm, adjustable diopter
Eyepieces High eye point wide field eyepiece WF10X/medium 20mm, pupil observation distance 21mm, centering telescope
Objective lens Infinity long distance plan achromatic objective lens 10X, 20X, 40X, infinity long distance plan achromatic objective lens 20X
Stage Fixed stage + moving ruler, size 266X200mm, multi-functional slide holder (Φ54), water drop slide (Φ110)
Converter Five-hole internal positioning converter, ball bearing internal positioning, anti-mildew device
Focusing Mechanism Low hand position coarse and fine adjustment coaxial focusing handwheel, equipped with limit device and locking device, fine adjustment accuracy 0.001mm
Fluorescent device  Group B and G imported fluorescence excitation modules, 100W DC Osram mercury lamp, 100W DC mercury lamp power box
Condenser
Ultra-long working distance condenser 72mm, numerical aperture N.A0.30, equipped with three-hole phase contrast ring plate
Camera interface
1X camera C-mount
Lighting system
Built-in aspherical lens, 6V/20WOsram halogen lamp, wide voltage 110~240V, 50/60Hz; 100W DC Osram mercury lamp, 100W DC mercury lamp power box
Color filter
Blue filter set, green filter set, yellow filter set

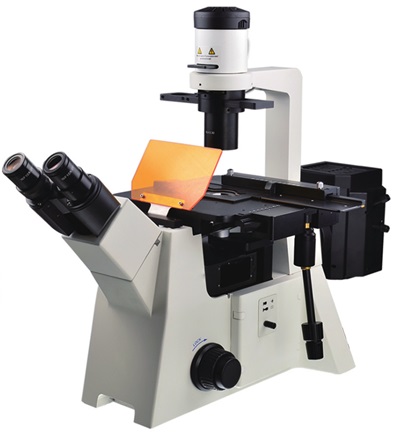

Inverted Fluorescence Microscope STDSY5000X



The DSY5000X fluorescence microscope can be widely used in basic theoretical research and clinical diagnosis in various disciplines such as gene chips, biochips, medical research, biological sciences, pharmacology, etc., and is also widely used in analysis and detection in the fields of industry, agriculture, animal husbandry, criminal investigation, forensic identification, environmental protection engineering, and preventive medicine.



The excellent UCIS infinity chromatic aberration independent correction optical system, equipped with an objective lens with an ultra-long working distance and a higher numerical aperture, is of great significance in terms of optical performance improvement and function expansion. Humanized mechanical design, compact structure, overall die-casting of the fuselage, more stable and reliable. It perfectly combines a variety of functions such as phase contrast, fluorescence, simple polarization, digital photography, etc., and is more efficient to use. Excellent weak fluorescence imaging, using spinning disk fluorescence switching mode, can be equipped with B, G, UV, V and other fluorescence excitation, can observe DAPI, FITC, TRITC, Alexa Fluor series, Cy3 series and other common fluorescent dyes, in CTC detection, FRET, cell immunity and other fields are widely used.





Standard Configuration Technical Parameters

Optical system UCIS infinite chromatic aberration independently corrected optical system
Frame It adopts aluminum alloy overall die-casting integrated frame, and the frame is designed with a dedicated digital camera device interface
Observation tube Hinge-type binocular observation head, high eye point, observation split ratio 0/100, adjustable diopter, inclination angle 45°, interpupillary distance 48~75mm
Eyepieces Infinity long-distance plan achromatic objective lens 10X, 20X, 40X; infinity long-distance plan achromatic objective lens 20X
Objective lens Flat field wide-angle eyepiece, pupil observation distance 21mm, with eyecup; WF10X/Φ22mm; CTE centering telescope
Stage Fixed stage, size 240×257mm, movement range 133×90mm (X, Y axis); water droplet slide (Φ118), multi-functional slide holder (76x26mm, Φ54)
Converter Five-hole internal positioning converter, ball positioning, structure tilted to the left, with anti-mildew device
Focusing Mechanism Fine-tuning accuracy is 0.001mm, the image is clearer and the focus is more precise
Fluorescent device  Imported professional fluorescence excitation modules (Group B, Group G), rotating turntable excitation module, convenient, accurate and fast
Condenser
Ultra-long working distance condenser 72mm, numerical aperture N.A0.30, equipped with yellow, green and blue color filters, diameter Φ34mm
Phase Contrast Device
The three-hole phase contrast ring plate makes it easy to switch between phase contrast objectives and brightfield observation. The pre-adjusted centers of various objective lenses can be used for phase contrast observation at various magnifications without adjustment, making it easy to use
Lighting system
Built-in aspherical lens, bright field lighting uses imported 6V/30W Osram halogen lamp, fluorescent lighting uses imported 100W fluorescent mercury lamp, making the lighting brighter and more uniform, with adjustable brightness
Power Box
Adopt independent separate UOP dedicated power box connection, wide voltage 110~220V, 50/60Hz




Application

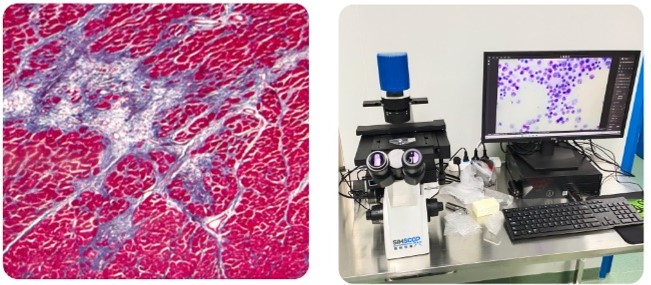

Living tissue observation

Generally,small pieces of diseased tissues,body fluids,and cells of animals are obtained by

surgical cutting,clamping,or scraping and aspiration.After pathological tissue or cytological

methods are made into thin sections,the pathological diagnosis can be made by observing
under a microscope.

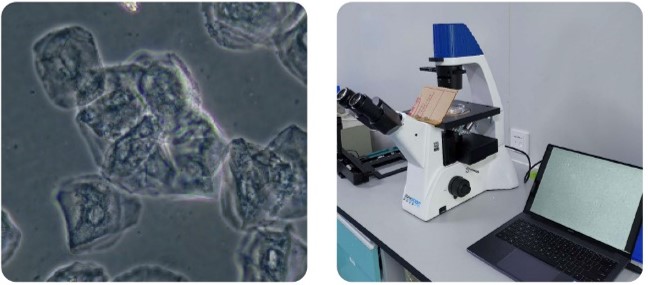

Bio-pharmacy

Biopharmaceuticals are the research results of microbiology,biology,medicine,and biochemis-

try.A class of products used for prevention, treatment and diagnosis made from organ-isms,

 biological tissues, cells, organs, and body fluids using scientific principles and methods.

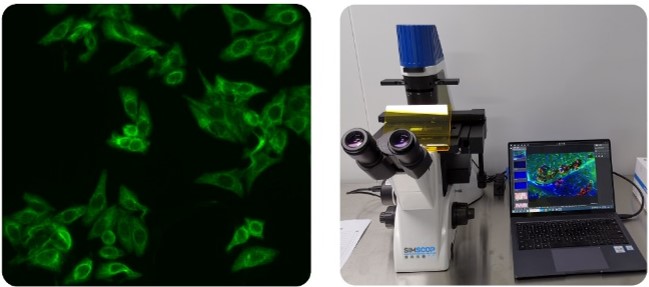

Medical diagnosis

Medical diagnosis is the examination of mate-rials taken from the human body. Through

microbiology,immunology,biochemistry,genetics,hematology,biophysics, cytology, etc,

provide information for the prevention, diagnosis, treatment of human diseases and

assessment of human health.

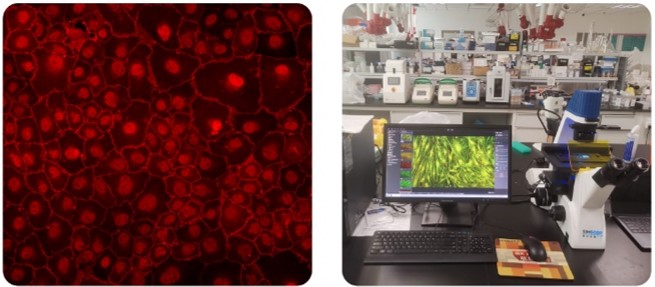

Prevent disease

Conduct epidemiological monitoring of the occurrence, development and distribution of major

diseases, and propose prevention and control countermeasures. Such as infectious diseases,

parasitic diseases, chronic non-communicable  diseases, public hazards, food-borne diseases,

poisoning, etc.








XY Microscope Piezo Stages
Model ST-XY3-11075 ST-XY2-7550
Stroke(mm) 110 X 75 75 X 50
Driver Piezoelectric Motor Piezoelectric Motor
Maximum Load Capacity(KG) 1 1
Maximum Speed(mm/s) 100 100
Minimum Step Size(nm) 20 (50, 100nm for option) 50
Repeatability(nm) +/-200 +/-200
Position Sensor Grating Grating
Material Aluminum Alloy Aluminum Alloy
Weight(KG) 3.3 2.5
