Femtosecond Tunable Lasers(650 - 2600nm)| SIMTRUM Photonics Store

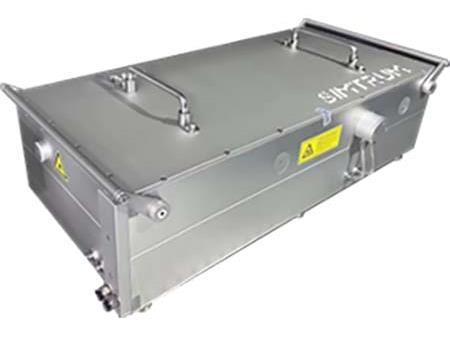

Femtosecond OPA (650 - 2600nm)

The Femtosecond Optical Parametric Amplifier-STAR001 based on a stable optical and mechanical design, offers flexible, tunable femtosecond laser pulse output, covering a wavelength range from ultraviolet (as short as 210nm) to mid-infrared (up to 10μm).

The femtosecond optical parametric amplifier-STAR001 is compatible with market-standard fiber and solid-state Yb ultrafast lasers, accepting pump energies ranging from 10μJ to 2mJ, and compatible with pulse widths from 100fs to 1.5ps. Without the need for complex manual adjustments, users can accurately tune to the desired central wavelength with a single click, and comprehensive customization options are available to meet customer needs.


  • Tuning Range Of 210nm-16μm
  • Compatible With Up To 2mJ Of Pump Energy
  • Up to >9% Conversion Efficiency
  • High Output Stability
  • CEP Stability Option
  • Integrated Electromechanical Design


  • Transient Absorption Spectroscopy
  • Nonlinear Optics
  • Two-Dimensional Infrared Spectroscopy
  • Fluorescence Spectroscopy
  • Sum Frequency Generation Spectroscopy
  • Stimulated Raman Scattering
  • High Harmonic Generation and X-ray Light Sources
  • Attosecond Science


Product Specifications and Brochures

Product Brochure Link:

Module STAR001 STAR001-HP STAR001-HE
 Tuning Range 650–1030nm (Signal light)
1030– 2600nm (Idler light)
 Maximum Pump Power 40W 60W
 Pump Pulse Energy 10-40uJ 40-500uJ 500-2000uJ
 Peak Conversion Efficiency >4.5%(Signal) > 9% (Signal) > 9% (Signal)
> 2% (Idler) > 4% (Idler) > 4% (Idler)
 Pulse Width 120~250fs
 Spectral Bandwidth 100cm-1-150cm-1
 Long-term Power Stability < 2% RMS@ 750 nm
 Pulse Energy Stability < 2% RMS@ 750 nm
 Polarization Linear polarization
Expandable Options
  Wavelength Tuning Range Peak Conversion Efficiency
 Second Harmonic Generation Module 325-650nm ≥2.4%
 Third Harmonic Generation Module 210-325nm ≥0.8%
 Mid-infrared Extension Module 2500-10000nm >3%@3000nm


Near-field spot


Far-field spot

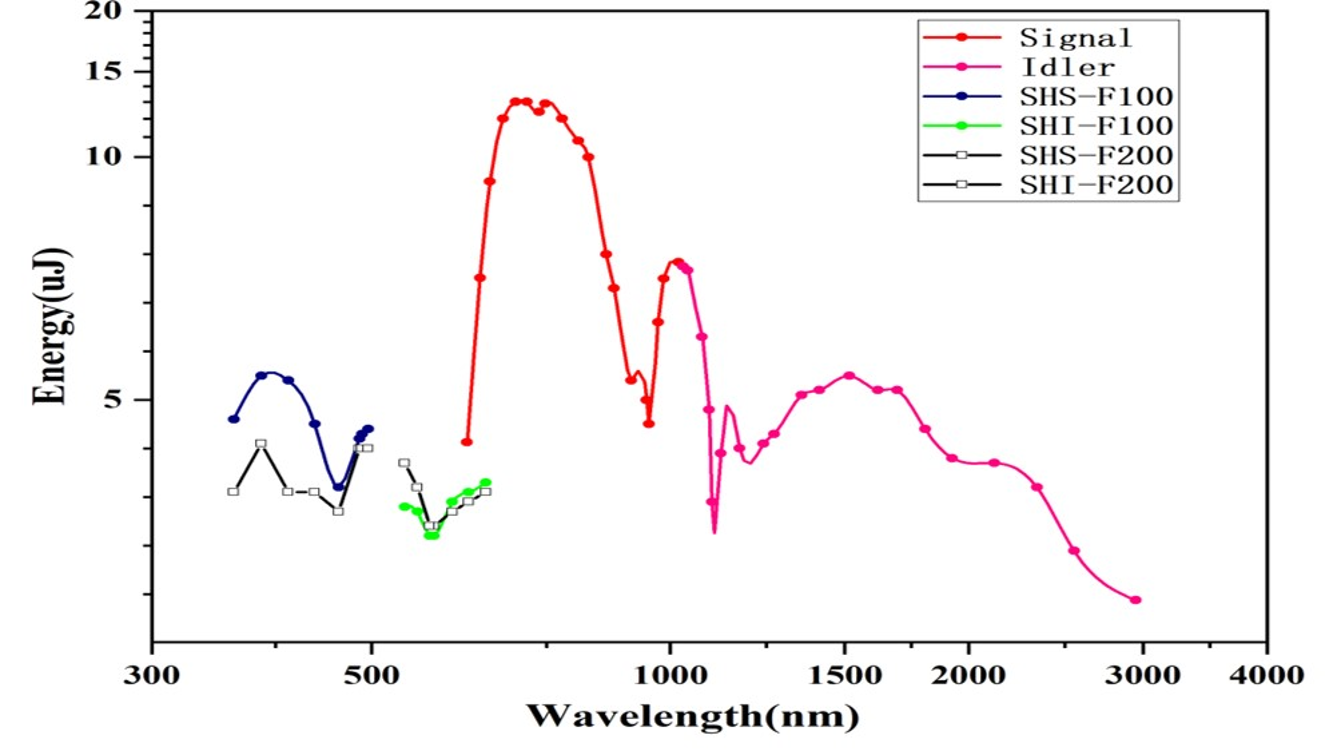

210uJ Pumped OPA+SHG Module Output Energy Curve

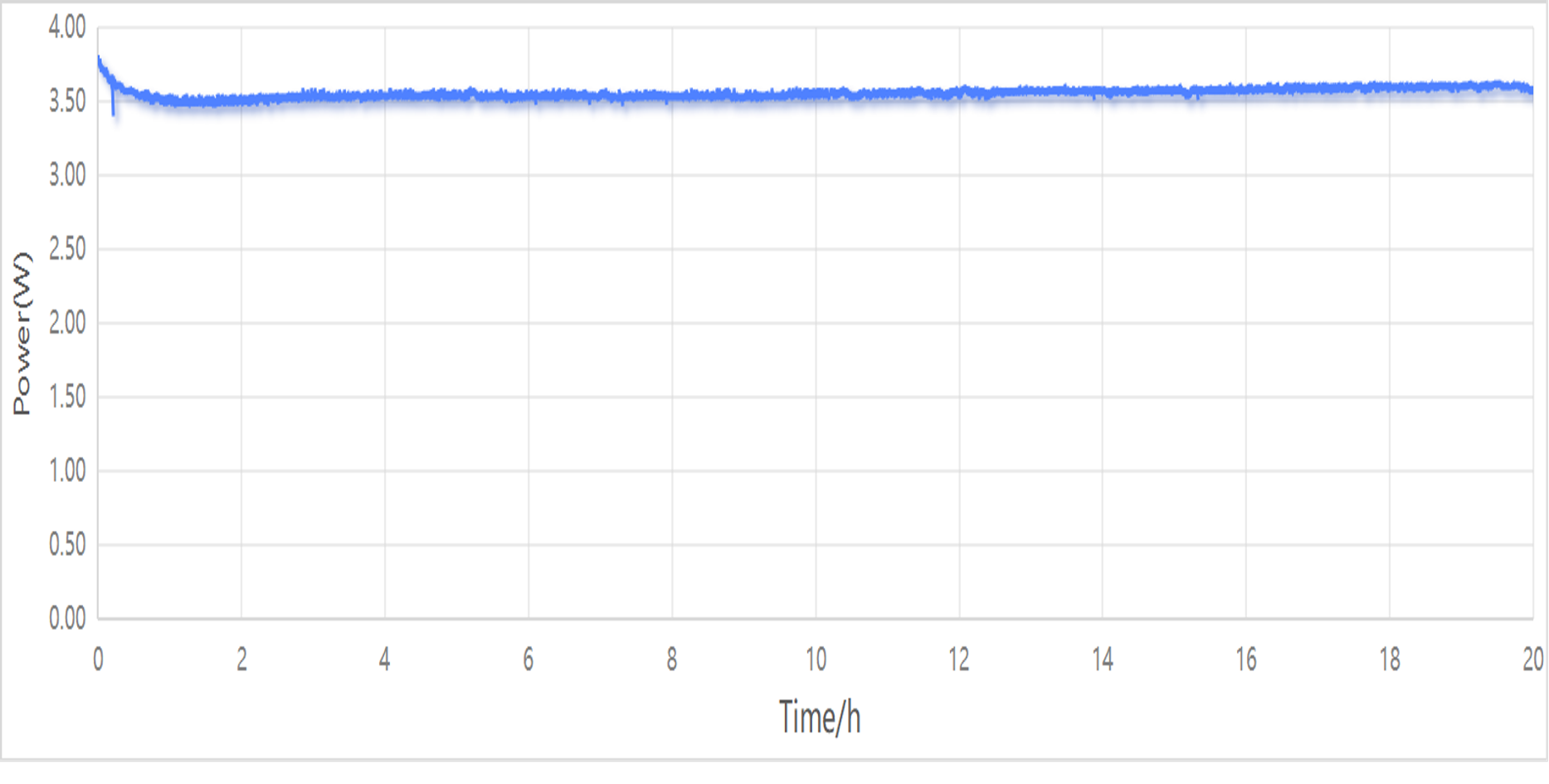

Power Stability (*Measured with a 50W/50μJ/1030nm/300fs laser as the pump source for 20 hours)

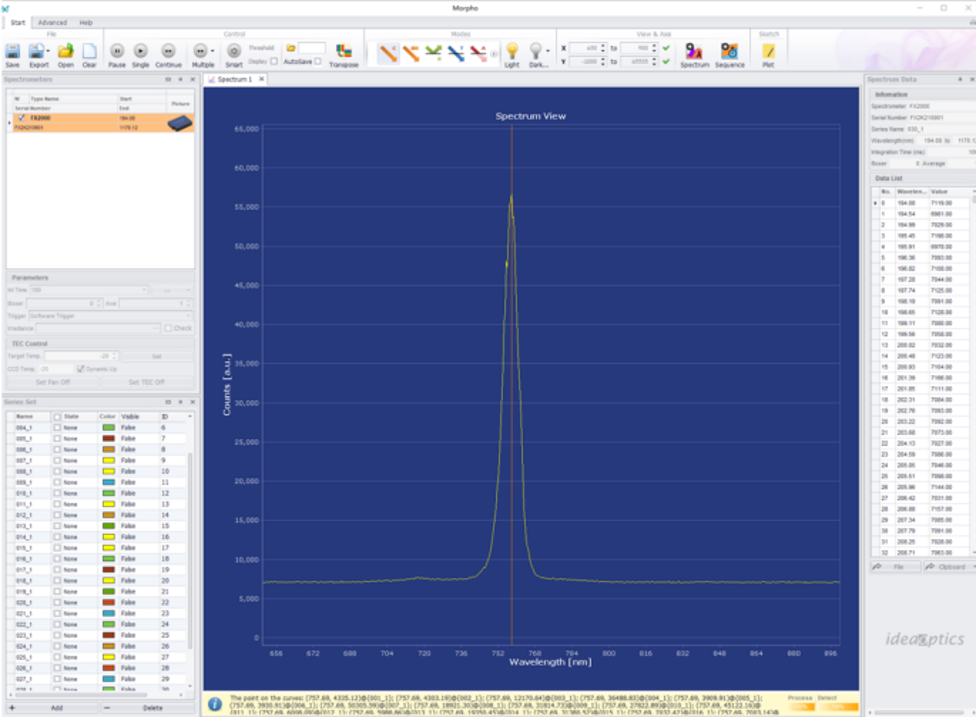

STAR001 software interface (wavelength tuning accuracy up to ±1nm)


Wavelength(nm) Type Output Power
C-band Tunable Laser 1529.16~1567.13 CW Up to 200mW
L-band Tunable Laser 1554.94~1607.46 CW Up to 200mW
Supercontinuum Fiber Lasers 450-2300nm 450-2300 PS Pulse 1W Average
Femtosecond Optical Parametric Amplifier (650 - 2600nm)
650-2600 FS Pulse
Hybrid Optical Parametric Amplifier(650 - 2600nm)
FS Pulse
Broadband Femtosecond Laser 950 -1150nm
FS Pulse
150mW Average
2000nm Widely Tunable Laser
