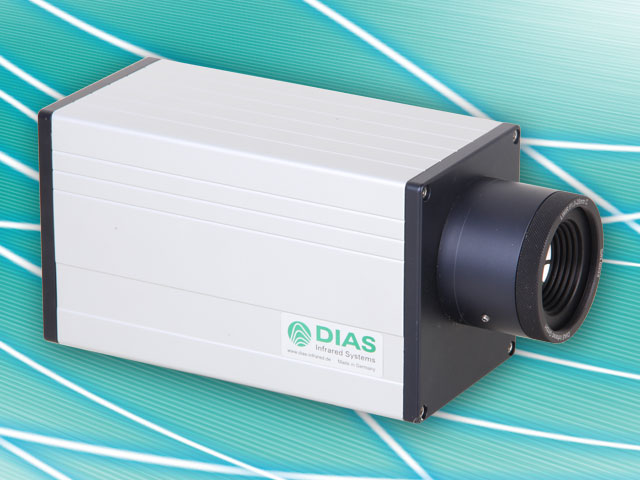

Infrared Line Array Camera

Depending on the application our infrared line cameras PYROLINE are available with different temperature ranges and spectral ranges as well as with different housing variants. The cameras have depending on the type 128, 256 or 512 measurement points. In addition there are numerous motor fokus infrared lenses, including tele photo and wide angle lenses, up to 90° aperture angle to enable an optimal adjustment of the camera to different measurement objects and measurement object sizes at different measurement distances. The measurement frequency is 256 Hz, 512 Hz or 2000 Hz (response time 8 ms, 4 ms or 1 ms, 2/measurement frequency each). Here is a detailed overview of our infrared line camera series and models.

Camera typePixelTemperature range1,2NETD3Spectral range
128LS/256 Hz128 × 10°C to 80°C0.2 K/0.5 K8 µm to 14 µm
    Wood, paper, plastics, gum,
    bulk materials, building material, textiles, food
128L/256 Hz128 × 150°C to 550°C0.5 K/1.5 K
256L/256 Hz256 × 150°C to 550°C0.5 K/1.5 K
128LS/512 Hz128 × 150°C to 550°C0.5 K/2 K
256L/512 Hz256 × 1150°C to 800°C0.5 K/2 K
                                    Optics with motor focus: 40°, 60°, 90°
128G/256 Hz128 × 1450°C to 1250°C1 K/3 K4.8 µm to 5.2 µm
    Glasses: float glass, container glass, glass bottles, glass melts
256G/256 Hz256 × 1450°C to 1250°C1 K/3 K
128GS/256 Hz128 × 1250°C to 800°C1 K/3 K
Optics with motor focus: 40°, 60°, 90°
128M/256 Hz128 × 1450°C to 1250°C0.5 K/1.5 K3 µm to 5 µm
    Building materials (clay, brick), metals
    (non-ferous metals, rolled steel)
256M/256 Hz256 × 1450°C to 1250°C0.5 K/1.5 K
128MS/256 Hz128 × 1200°C to 800°C0.5 K/1.5 K
Optics with motor focus: 40°, 60°, 90°
512N/256 Hz512 × 1600°C to 1500°C,
    1400°C to 3000°C4
< 1 K (600°C)40.8 µm to 1.1 µm
    Metals in high temperature range
    (steel, stainless steel, steel melts)
    ≈ 2 K (1400°C)4
HS 512N/2 kHz512 × 1650°C to 1500°C,
    1400°C to 3000°C4
< 1 K (600°C)4
    ≈ 2 K (1400°C)4
Optics with motor focus: 9°, 13°, 19°, 36°, 51°, 90°
    4 ... or 0.15 % of measured value in °C at 256 Hz respectively 2 kHz.
