Full Frame In-vacuum CCD Cameras
Overview Selection Guide LOTTEs Selection Guide LOTTEi Order Now!

Full-Frame Deep CoolingIn-vacuum Scientific CCD Camera-

LOTTEs Series for Spectroscopy

LOTTEi Series for Imaging

These full-frame deep cooling in-vacuum scientific CCD camera are the LOTTES series  (including LOTTESs and LOTTESi). It is suitable for Photon Energy Range 5 eV - 20 keV.


LOTTE can be submerged, operated and positioned freely inside a vacuum chamber.Utilising scientific-grade back-illuminated CCD sensors for the detection of EUV, VUV and X-ray signals, LOTTE is equipped with a novel and advanced cooling concept enabling detector temperatures as low as -100 °C. It is furthermore driven by the most powerful and versatile true 18-bit electronic platform available for in-vacuum use. This guarantees ultra low noise performance. One key feature that differentiates LOTTE from its nearest rivals is an innovative encapsulated stainless-steel housing, assuring extremely low outgassing at all times. The special design and unprecedented performance make the LOTTE a unique companion for demanding low-light scientific research applications. Additional handy features are further improving the user experience and adding true value.








Camera Common Feature



-Ultra deep TE cooling to -100 °C

 Lowest dark current for better detection limit

-GigE data interface

 Local or remote network operation – your choice

-Fast readout speeds up to 5 MHz

 Fast frame rates paired with low-noise electronics


-High QE up to 98%

 Very sensitive sensors for low light applications

-UHV Compatibility

  Encapsulated design delivers the lowest outgassing rate

-Flexible software options

  Camera software and SDKs available


Application

LOTTEs series for spectroscopy
 LOTTEi series for imaging

-Soft X-ray spectroscopy

-Plasma emission spectroscopy

-High harmonic generation spectroscopy

-NEXAFS spectroscopy

-Resonant inelastic X-ray scattering


-EUV lithography

-X-ray tomography / fluoroscopy

-Fourier transform holography

-X-ray diffraction

-X-ray phase contrast imaging

-Ptychographic spectromicroscopy

-Grazing-incidence small-angle X-ray scattering

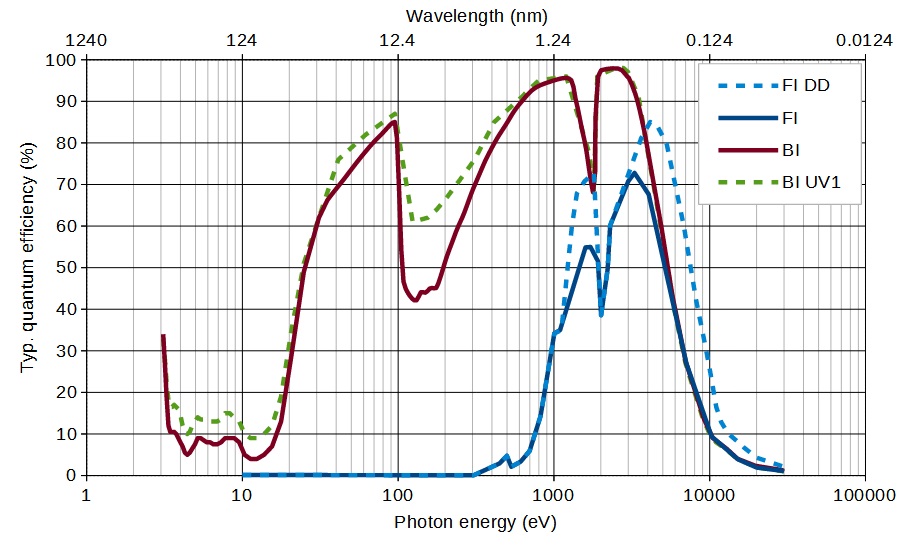

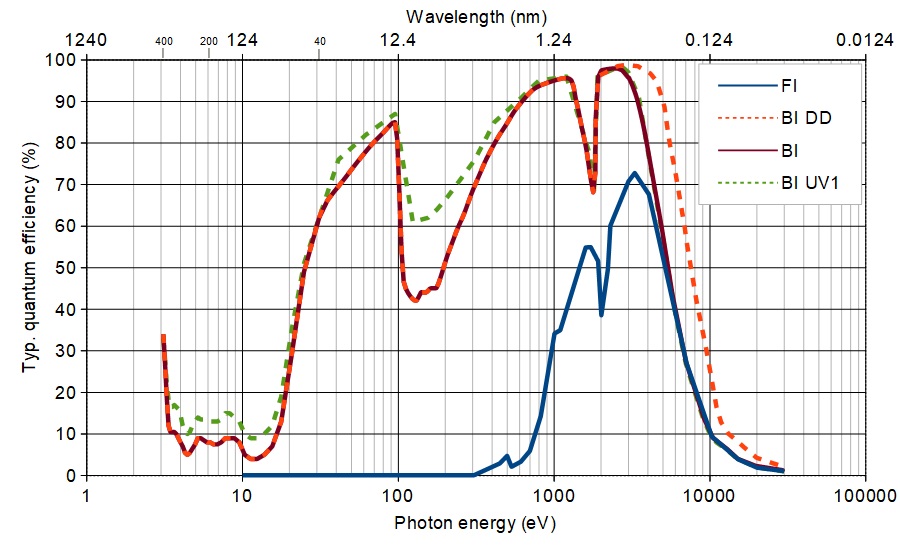

Quantum efficiency curves


                            LOTTEs series for spectroscopy LOTTEi series for imaging





The mean energy of a photon to generate an

 electron-hole pair in silicon is 3.66 eV


Product specifications and Brochures

Product Brochure Link:

For more information on LOTTEs series for spectroscopy and LOTTEi series for imaging,please go to Selection Guide LOTTEs and Selection Guide LOTTEi.

ParameterLOTTEs  series for spectroscopyLOTTEi series for imaging
Pixel readout frequency50/100/250/500 kHz, 1 MHz, 3 MHz (5 MHz visualization mode;
up to 20 MHz by multi-output)		50/100/250/500 kHz, 1 MHz, 3 MHz (5 MHz visualization mode;
up to 20 MHz by multi-output)
Readout modes/2 output nodes for 1k1k & 2k2k cameras, 4 output nodes for 2k2k plus & 4k4k cameras
AD converter resolution18-bit
LinearityBetter than 99%
CCD epitaxial thickness15 μm standard, 40 μm for deep depletion (FI DD) models15 μm standard, 40 μm for deep depletion (BI DD) models
Feedthrough FlangeCF DN100 flange with D-sub electrical feedthrough connectors and 6 mm liquid feedthrough tubes (airside: G 1/4 fitting female, vacuum side: VCR 1/4 fitting female
Vacuum compatibility10-9 mbar (UHV capability)
Bakeout temperatureMax. +80 °C
Flange - focal plane6 mm (can be customised)1k1k camera: 6 mm; 2k2k, 2k2k plus & 4k4k cameras: 5 mm
 (all distances can be customised)
CCD sensor cooling-100 ° C to 20 °C (liquid cooling only)-100 ° C to 20 °C( 1k1k camera),
-80°C to 20 °C(LOTTE-i 2k2k,LOTTE-i 2k2k plus andLOTTE-i 4k4k cameras)
Temperature monitoringTwo thermistors at CCD sensor and thermoelectric cooler (hot side)
Data linkGigabit Ethernet
SoftwareVision software for Windows 7 / 10
SDK and driversDLL for Windows; LabVIEW, EPICS, Linux, Python, Tango driver (optional)
TTL interface signals1 Exposure out, 1 Trigger in
Power supply

80-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60), max.

1.1 A (230 V) / 1.9 A (115 V)

1k1k & 2k2k: 80-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60),
max. 1.1 A (230 V) / 1.9 A (115 V)
2k2k plus & 4k4k: 85-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60),
max. 1.9 A (230 V) / 3.8 A (115 V)
CertificationCE
Dimensions(W × H × L)

rc version: 98 mm × 90 mm × 235 mm |

 sc version: 90 mm × 127 mm × 189 mm

rc versions: 98 × 90 × 235 (1k1k, 2k2k & 2k2k plus cameras) /
98 × 90 × 236 (4k4k cameras)
sc versions: 90 × 127 × 189 (1k1k, 2k2k & 2k2k plus cameras) /
94 × 127 × 190 (4k4k cameras)
Weightrc version: 4.9 kg | sc version: 5.0 kgrc versions: 4.9 kg (1k1k, 2k2k & 2k2k plus) / 5.1 kg (4k4k) | sc versions: 5.0 kg / 5.1 kg
Blemish specificationsGrade 0 or grade 1 (standard) as specified by sensor manufacturer


Items delivered together with each camera
CodeDescriptionCodeDescription
GE-InFl02CF DN100 flange with electrical & liquid feedthroughsGE-GigE10m10m Ethernet cable
GE-VacP012 × in-vacuum hoses for coolingGE-StoB2m2m SMB to BNC connection cable × 2
GE-VacCab2 × in-vacuum PTFE D-sub cablesGE-POW01Camera power supply with cabling
GE-VI01Vision software (Windows)GE-ManCamCamera instruction manual
GE-SDK01SDK for Windows (C/C++ based)//


Vision Software

Vision software suite provides access to all camera functionalities. It includes comprehensive visualization, analysis and storage options and supports important features such as wavelength and geometric calibration, crop and burst modes and various file formats. The software runs on 32/64-bit Windows systems. For integration into other systems, a software development kit and drivers are available.


Software Features



- Supports crop and burst readout modes for higher frame rates and precise time resolution

- Various file formats: JPG, BMP, TXT, TIFF (16-bit), DAT raw data

- Comprehensive visualization and image manipulation routines

- Supports flexible horizontal and vertical binning


- Many drivers available for integration into other systems

- Runs on 32/64-bit Windows systems

- Wavelength and geometric calibration

- Language support in English and German




Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for spectroscopy-LOTTEs Series



Choose your camera model

Image show in this chart is the sc version,choose rc or sc version for your camera design before ordering

Model Image area(mm) Pixel format Pixel size(µm) Gain(counts/e-) CCD sensor type Typ. read noise (e¯) Full well capacity( ke-) Register well capacity Dark current @ -100°C Quantum efficiency Sensitive  range
Standard mode High capacity mode @ 50
kHz		 @ 1
MHz		 @ 3
 MHz
 LOTTE-s 1k256 LOTTE-s 1k256 FI 26,6×6,7 1024×255 26×26 0.4 / FSI 4.2 12 25.0  500 ke¯ 1 000 ke¯ 0.0004e¯/pixel/s Up to 72% X-ray 500 eV up to 10 keV
LOTTE-s 1k256 FI DD 0.4 / FSI, Deep depletion fringe suppression 5.4 12.3 25 700 ke¯ 1 400 ke¯ 0.005e¯/pixel/s Up to 85% X-ray 500 eV to 20 keV
LOTTE-s 1k256 BI UV1 0.4 / BSI, enhanced process 6 13.1 26 500 ke¯ 1 000 ke¯ 0.0004e¯/pixel/s Up to 96% VUV to X-ray

LOTTE-s 2k512

 LOTTE-s 2k512 FI 27.6×6.9 2048×512 13.5×3.5 1 0.34 FSI 3.5 6.8 10.7 100 ke¯ 400 ke¯ 0.00025e¯/pixel/s Up to 72% X-ray 500 eV up to 10 keV
LOTTE-s 2k512 BI 1 0.34 BSI 3.5 6.8 10.7 100 ke¯ 400 ke¯ 0.00025e¯/pixel/s Up to 98% VUV to X-ray max. 10 keV
LOTTE-s 2k512 BI UV1 1 0.34 BSI, enhanced process 3.5 6.8 10.7 100 ke¯ 400 ke¯ 0.00025e¯/pixel/s / VUV to X-ray up to 10 keV

Note:BSI=back-side illumination,FSI=front-side illumination



 1ms Exposure Time, 5MHz Digitisation, 1-port
Sensor Sensor Format Full Frame FVB Crop 32 lines Crop 16 lines

1k x 256 17.1 221.8 624 709
2k x 512 2.7 98.6 456 511





Choose your camera model



rc Version

Order code: LOTTE-s 2k512 BIUV1 rc

sc Version

Order code: LOTTE-s 1k256 FI DD sc

Compact in diameter, camera body fits into 6 inch tube

Electrical and water connectors on the rear side

Weight:4.9 kg

Dimensions:98 mm × 90 mm × 235 mm(W × H × L)

Camera length only 189 mm

Electrical and water connectors on the bottom side

Weight:5.0 kg

Dimensions:90 mm × 127 mm × 189 mm



Choose your accessories and software
Order code Description
A) Accessories for imaging purposes
GE-SR35 35mm in-vacuum shutter, including shutter driver module
B) Accessories for cooling performance (LOTTE series can only be cooled by liquid cooling)
GE-CR01 Compact liquid cooling, circulating the coolant at room temperature for deep camera cooling
GE-CR02 Recirculating water chiller, PID control with temp. from 5°C to 30°C for ultra-deep camera cooling
GE-VacP01 2 × in-vacuum hoses, formed bellow 1/4“, VCR male/female, 305 mm (standard accessory)
GE-VacP02 2 × in-vacuum hoses, formed bellow 1/4“, VCR male/female, 1200 mm (upon request)
C) Soft ware development kit (SDK) and drivers
GE-LX01 SDK for Linux (C/C++ based)
GE-PYT01 Python driver
GE-LAB01 LabVIEW driver
GE-EP EPICS driver
GE-TAN Tango driver




Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imaging-LOTTEi Series



Choose your camera model

Image show in this chart is the sc version,choose rc or sc version for your camera design before ordering

Model Image area(mm) Pixel format Pixel size(µm) Gain(counts/e-) CCD sensor type Typ. read noise (e¯) Full well capacity( ke-) Register well capacity Output node( ke¯) Dark current(e¯/pixel/s)
@ -80 °C		 Quantum efficiency Sensitive  range
Standard mode High capacity mode @ 50
kHz		 @ 1
MHz		 @ 3
MHz

LOTTE-i 1k1k

 LOTTE-i 1k1k FI 13,3 ×13,3 1024× 024 13 ×13 1 / FSI 2.8 6.4 10.9 100 ke¯ 400 ke¯ / 0.0003 Up to 72% X-ray 500 eV to 10 keV
LOTTE-i 1k1k BI 1056×1027 1 / BSI 2.8 6.4 10.9 100 ke¯ 400 ke¯ / 0.0003 Up to 98% VUV to X-ray
LOTTE-i 1k1k BI UV1 1 / BSI, enhanced process 2.8 6.4 10.9 100 ke¯ 400 ke¯ / 0.0003 Up to 98% VUV to X-ray
LOTTE-i 1k1k BI DD 1 / BSI, Deep depletion, fringe suppression 2.8 6.4 10.9 120 ke¯ 400 ke¯ / 0.015 Up to 98% VUV to X-ray,up to 20 keV

LOTTE-i 2k2k

 LOTTE-i 2k2k FI 27.6 × 27.6 2048×2052 13.5×13.5 1 0.34 FSI 3.4 7.0  13.6 100 ke¯ 400 ke¯ / 0.0003 Up to 72% X-ray 500 eV to 10 keV
LOTTE-i 2k2k BI 1 0.34 BSI 3.4 7.0  13.6 100 ke¯ 400 ke¯ / 0.0003 Up to 98% VUV to X-ray
LOTTE-i 2k2k BI UV1 1 0.34 BSI, enhanced process 3.4 7.0  13.6 150 ke¯ 600 ke¯ / 0.015 Up to 96% VUV to X-ray
LOTTE-i 2k2k BI DD 1 0.34 BSI, deep depletion, fringe suppression 3.4 7.0  13.6 150 ke¯ 600 ke¯ / 0.015 Up to 98% VUV to X-ray,up to 20 keV

LOTTE-i 2k2k plus

 LOTTE-i 2k2k plus BI 30.7 × 30.7 2048×2064 15 ×15 0.6 0.2 BSI 4.6 8.5 17.0  150 ke¯ / 900 ke¯ 0.0001 Up to 96% VUV to X-ray

LOTTE-i 4k4k

 LOTTE-i 2k2k plus BI 61.4 × 61.7 4096×4096 15 ×15 0.6 0.2 BSI 4.6 8.5 17.0  150 ke¯ / 900 ke¯ 0.0001 Up to 98% VUV to X-ray
LOTTE-i 4k4k BI UV1 1 0.34 Enhanced BSI 2.8 5.8 10.4 350 ke¯ / 600 ke¯ 0.006 Up to 98% VUV to X-ray
LOTTE-i 4k4k BI DD 1 0.34 BSI, deep depletion 2.8 5.8 10.4 350 ke¯ / 600 ke¯ 0.006 Up to 98% VUV, EUV, soft X-ray

Note:BSI=back-side illumination,FSI=front-side illumination





1ms Exposure Time, 6MHz Digitisation, 2-port
Sensor Binning Full Frame 1k x 1k 512 x 512 256 x 256

CCD 42-40 (2kx2k)
 1 x 1 1 2.1 4.2 8.3
2 x 2 1.7 3.4 6.9 13.6
4 x 4 2.6 5.1 10 19.9
8 x 8 3.3 6.6 13.2 25.8
16 x 16 4 7.9 15.5 30.4



1ms Exposure Time, 10MHz Digitisation, 2-port
Sensor
 Binning Full Frame 512k x 512k 256 x 256 128 x 128



CCD 47-10 (1kx1k)

 1 x 1 8.5 16.9 33.1 63.6
2 x 2 16.3 32 62.1 116.1
4 x 4 30.1 58.3 110 195.3
8 x 8 52.1 98.5 177.5 296.4
16 x 16 81.9 150.1 257.3 399.9





Choose your camera model



rc Version

Order code:LOTTE-i 2k2k BI UV1 rc

sc Version

Order code:LOTTE-i 1k1k BI DD sc

Compact in diameter, camera body fits into 6 inch tube

Electrical and water connectors on the rear side

Weight:4.9 kg (1k1k, 2k2k & 2k2k plus) / 5.1 kg (4k4k)

Dimensions(W × H × L):

98 × 90 × 235mm (1k1k, 2k2k & 2k2k plus cameras) /

 98 × 90 × 236mm (4k4k cameras)

Camera length only 189 mm

Electrical and water connectors on the bottom side

Weight:5.0 kg / 5.1 kg

Dimensions(W × H × L):

90 × 127 × 189mm (1k1k, 2k2k & 2k2k plus cameras) /

 94 × 127 × 190mm (4k4k cameras)



Choose your accessories and software
Order code Description
A) Accessories for imaging purposes
GE-SR35 35mm in-vacuum shutter, including shutter driver module
GE-SR45 45mm in-vacuum shutter for 2k2k & 2k2k plus cameras, including shutter driver module
B) Accessories for cooling performance (LOTTE series can only be cooled by liquid cooling)
GE-CR01 Compact liquid cooling, circulating the coolant at room temperature for deep camera cooling
GE-CR02 Recirculating water chiller, PID control with temp. from 5°C to 30°C for ultra-deep camera cooling
GE-VacP01 2 × in-vacuum hoses, formed bellow 1/4“, VCR male/female, 305 mm (standard accessory)
GE-VacP02 2 × in-vacuum hoses, formed bellow 1/4“, VCR male/female, 1200 mm (upon request)
C) Soft ware development kit (SDK) and drivers
GE-LX01 SDK for Linux (C/C++ based)
GE-PYT01 Python driver
GE-LAB01 LabVIEW driver
GE-EP EPICS driver
GE-TAN Tango driver




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Series


Search Reset
Compare Model Drawings & Specs Series Availability Reference Price
(USD)
LOTTE-s-1k256-FI
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for spectroscopy, Image Area 26,6 mm × 6,7 mm, Pixel Format 1024 × 255 Pixels, Pixel Size 26 µm × 26 µm, Gain 0.4 counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 500,000 e-, Sensitive X-ray Range 500 eV up to 10 keV, Up to 72% Quantum Efficiency 		LOTTEs 6-8 weeks Request for quote
LOTTE-s-1k256-FIDD
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for spectroscopy, Image Area 26,6 mm × 6,7 mm, Pixel Format 1024 × 255 pixels, Pixel Size 26 µm × 26 µm, Gain 0.4 Counts/e-, CCD Sensor Type Front-illuminated, Deep Depletion Fringe Suppression, Full Well Capacity 700ke-,Sensitive X-ray Range 500 eV to 20 keV, Up to 85% Quantum Efficiency 		LOTTEs 6-8 weeks Request for quote
LOTTE-s-1k256-BIUV1
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for spectroscopy, Image Area 26,6 mm × 6,7 mm, Pixel Format 1024 × 255 Pixels, Pixel Size 26 µm × 26 µm, Gain 0.4 Counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Full Well Capacity 500 ke-, Up to 96% Quantum Efficiency 		LOTTEs 6-8 weeks Request for quote
LOTTE-s-2k512-FI
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for spectroscopy,Image Area 27.6 mm × 6.9 mm, Pixel Format 2048 × 512 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 100ke-, Sensitive X-ray Range 500 eV to 10 keV, Up to 72% Quantum Efficiency 		LOTTEs 6-8 weeks Request for quote
LOTTE-s-2k512-BI
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for spectroscopy, Image Area 27.6 mm × 6.9 mm, Pixel Format 2048 × 512 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Full Well Capacity 100 ke-, Up to 98% Quantum Efficiency, Sensitive Range VUV to X-ray max. 10 keV 		LOTTEs 6-8 weeks Request for quote
LOTTE-s-2k512-BIUV1
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for spectroscopy, Image Area 27.6 mm × 6.9 mm，Pixel Format 2048 × 512 pixels，Pixel Size 13.5 µm × 13.5 µm，Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-，CCD Sensor Type Back-illuminated, Enhanced Process，Full Well Capacity 100 ke-,Sensitive Range from VUV to X-ray up to 10 keV 		LOTTEs 6-8 weeks Request for quote
LOTTE-i-1k1k-FI
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imaging, Image Area 13,3 mm × 13,3 mm, Pixel Format 1024 × 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 Counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 100ke-, Sensitive X-ray Range 500 eV to 10 keV, Up to 72% Quantum Efficiency 		LOTTEi 6-8 weeks Request for quote
LOTTE-i-1k1k-BI
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imaging, Image Area 13,3 mm × 13,3 mm, Pixel Format 1056 × 1027 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 Counts/e-, CCD Sensor Type Back-Illuminated, Full Well Capacity 100 ke-, Up to 98% Quantum Efficiency, Back-illuminated CCD, VUV to X-ray Range 		LOTTEi 6-8 weeks Request for quote
LOTTE-i-1k1k-BIUV1
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imaging, Image Area 13,3 mm × 13,3 mm, Pixel Format 1056 × 1027 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Full Well Capacity 100ke-, Up to 98% Quantum Efficiency, Back-illuminated CCD for VUV to X-ray Range 		LOTTEi 6-8 weeks Request for quote
LOTTE-i-1k1k-BIDD
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imagin, Image Area 13,3 mm × 13,3 mm, Pixel Format 1056 × 1027 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 Counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion, Fringe Suppression, Full Well Capacity 120ke-, Sensitive Range VUV to X-ray Range up to 20 keV, Up to 98% Quantum Efficiency 		LOTTEi 6-8 weeks Request for quote
LOTTE-i-2k2k-FI
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Front-illuminated, Full Well capacity 100 ke-, Sensitive X-ray Range 500 eV to 10 keV, Up to 72% Quantum Efficiency 		LOTTEi 6-8 weeks Request for quote
LOTTE-i-2k2k-BI
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-Illuminated Full Well Capacity 100ke-, Up to 98% Quantum Efficiency 		LOTTEi 6-8 weeks Request for quote
LOTTE-i-2k2k-BIUV1
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imagin, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Full Well Capacity 150Ke-, Up to 96% Quantum Efficiency 		LOTTEi In Stock Request for quote
LOTTE-i-2k2k-BIDD
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion, Fringe Suppression, Full Well Capacity 150ke-, Sensitive Range VUV to X-ray Range up to 20 keV, Up to 98% Quantum Efficiency 		LOTTEi 6-8 weeks Request for quote
LOTTE-i-2k2kplus-BI
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imaging, Image Area 30.7 mm × 30.7 mm, Pixel Format 2048 × 2064 Pixels, Pixel Size, 15 µm × 15 µm, Gain 0.6 (Standard Mode) / 0.2 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Full Well Capacity 150ke-, Up to 96% Quantum Efficiency, VUV to X-ray Range 		LOTTEi 6-8 weeks Request for quote
LOTTE-i-4k4k-BI
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imagining, Image Area 61.4 mm × 61.7 mm, Pixel Format 4096 × 4096 Pixels, Pixel Size 15 μm × 15 μm, Gain 0.6 (Standard Mode) / 0.2 (High Capacity Mode), CCD Sensor Type Back-illuminated, Full Well Capacity 150,ke-, Up to 98% Quantum Efficiency, VUV to X-ray Range 		LOTTEi 6-8 weeks Request for quote
LOTTE-i-4k4k-BIUV1
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imaging, Image Area 61.4 mm × 61.7 mm, Pixel Format 4096 × 4096 Pixels, Pixel Size 15 μm × 15 μm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Enhanced Back-illuminated, Full Well Capacity 350ke-, Up to 98% Quantum Efficiency, VUV to X-ray Range 		LOTTEi 6-8 weeks Request for quote
LOTTE-i-4k4k-BIDD
Full-Frame Deep Cooling In-vacuum Scientific CCD Camera for imaging, Image Area 61.4 mm × 61.7 mm, Pixel Format 4096 × 4096 Pixels, Pixel Size 15 μm × 15 μm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion, Full Well Capacity 350ke-, Up to 98% Quantum Efficiency 		LOTTEi 6-8 weeks Request for quote

LOTTE-i-4k4k-BIDD - Parameter

Series
LOTTEi

LOTTE-i-4k4k-BIUV1 - Parameter

Series
LOTTEi

LOTTE-i-4k4k-BI - Parameter

Series
LOTTEi

LOTTE-i-2k2kplus-BI - Parameter

Series
LOTTEi

LOTTE-i-2k2k-BIDD - Parameter

Series
LOTTEi

LOTTE-i-2k2k-BIUV1 - Parameter

Series
LOTTEi

LOTTE-i-2k2k-BI - Parameter

Series
LOTTEi

LOTTE-i-2k2k-FI - Parameter

Series
LOTTEi

LOTTE-i-1k1k-BIDD - Parameter

Series
LOTTEi

LOTTE-i-1k1k-BIUV1 - Parameter

Series
LOTTEi

LOTTE-i-1k1k-BI - Parameter

Series
LOTTEi

LOTTE-i-1k1k-FI - Parameter

Series
LOTTEi

LOTTE-s-2k512-BIUV1 - Parameter

Series
LOTTEs

LOTTE-s-2k512-BI - Parameter

Series
LOTTEs

LOTTE-s-2k512-FI - Parameter

Series
LOTTEs

LOTTE-s-1k256-BIUV1 - Parameter

Series
LOTTEs

LOTTE-s-1k256-FIDD - Parameter

Series
LOTTEs

LOTTE-s-1k256-FI - Parameter

Series
LOTTEs

LOTTE-i-4k4k-BIDD - Download

LOTTE-i-4k4k-BIUV1 - Download

LOTTE-i-4k4k-BI - Download

LOTTE-i-2k2kplus-BI - Download

LOTTE-i-2k2k-BIDD - Download

LOTTE-i-2k2k-BIUV1 - Download

LOTTE-i-2k2k-BI - Download

LOTTE-i-2k2k-FI - Download

LOTTE-i-1k1k-BIDD - Download

LOTTE-i-1k1k-BIUV1 - Download

LOTTE-i-1k1k-BI - Download

LOTTE-i-1k1k-FI - Download

LOTTE-s-2k512-BIUV1 - Download

LOTTE-s-2k512-BI - Download

LOTTE-s-2k512-FI - Download

LOTTE-s-1k256-BIUV1 - Download

LOTTE-s-1k256-FIDD - Download

LOTTE-s-1k256-FI - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
