Wide Field /Confocal Raman Microscope | SIMTRUM Photonics

Confocal Raman Microscope

Confocal Raman Microscopy (CRM) combines Raman spectroscopy and confocal microscopy techniques. This advanced analytical instrument utilizes Raman scattering to obtain Raman information from samples while achieving high spatial resolution imaging through the confocal system.



SIMSCOP's Raman microscope series employs a modular design concept, featuring numerous external interfaces. By integrating different modules, the system achieves multi-functionality, greatly enhancing flexibility and expandability. The system not only enables Raman spectra and image acquisition from samples but also supports 3D confocal imaging acquisition with the SIMSCOP confocal module. Users can flexibly connect external laser sources, spectrometers, and various sample stages according to experimental or application needs to achieve multiple functionalities.



SIMSCOP Dual-Optical Raman & PL Confocal Upright Microscope



SIMSCOP Raman Confocal Inverted Microscope





Features

  • Upright and inverted microscope structures Adapts to various experimental needs.
  • Multi-wavelength lasers Supports 405nm, 532nm, 638nm, 785nm, and 1064nm, meeting diverse experimental requirements.
  • Modular design Connects external laser sources and spectrometers, easily upgradable.
  • Customizable sample stages Suitable for stretching, high/low-temperature, in-situ, and vacuum stages.
  • Electric / Manual stages Offers high precision with various configurations.
  • Non-coaxial optical measurement support Broadens measurement options and flexibility.



Applications

  • Biology and Life Sciences
  • Material Science
  • Graphene and Carbon Nanotubes
  • Nanomaterials
  • Catalysts
  • Semiconductors
  • Process Contamination Analysis
  • Pharmaceutical Quality Control

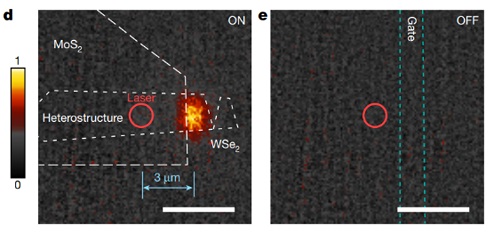

Non-coaxial measurement

Laser excitation on Point A

Raman detection on point B

High Flexibility in Multiple Microscope Modes

Our microscope systems offer versatile spectral imaging capabilities for a variety of cutting-edge research needs:



  • Ultraviolet (UV) and infrared (NIR) spectral imaging
  • Darkfield (DF) and differential interference contrast (DIC) imaging
  • Kerr microscopy imaging
  • Widefield Raman microscopy imaging
  • Confocal Raman microscopy imaging
  • Multi-channel widefield fluorescence microscopy imaging
  • Multi-channel photoluminescence microscopy imaging



Get the Perfect Custom Combination! Contact us now for Various Sample Stage:

High Temperature Stage 1200~1800 C

High Temperature Stage

1200 ~ 1800 ˚C

Electrical Probe Temperature Stage -190 ~ 600 ˚C

Electrical Probe Temperature Stage

-190 ~ 600 ˚C

In-situ Tensile Heating & Cryo stage

In-situ Tensile Heating & Cryo stage

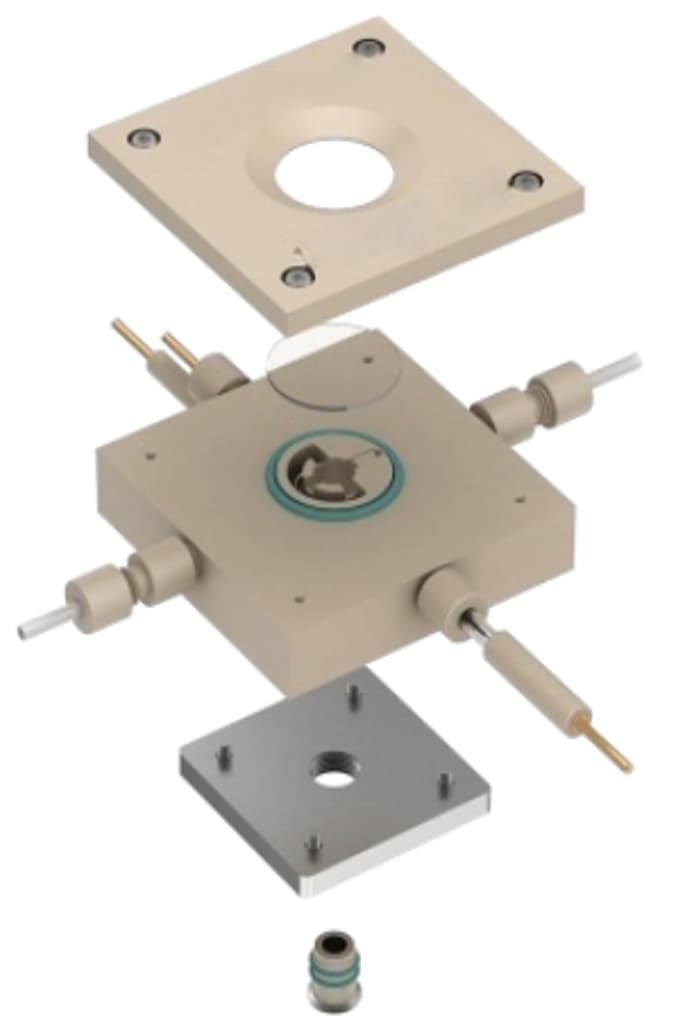

Electrochemical In-situ Cell

Electrochemical In-situ Cell




Standard System specifications and Brochures

Product Brochure Link:



Model SIMSCOP-RAMAN-S1 SIMSCOP-RAMAN-S2
Laser Single-channel laser: 1 channel
Wavelengths: 532 nm, 638 nm, 785 nm optional
Power: 100mW, Linewidth: 0.003nm, Power stability: 1%
Multi-channel laser: Up to 5 channels
Wavelengths: 405nm, 532 nm, 638 nm, 785 nm, 1064 nm
Power: 100mW, Linewidth: 0.001nm, Power stability: 1%
Near-infrared spectrum support
Compatible Spectrometers Fiber spectrometer / Third-party spectrograph/monochromator (Horiba, Andor, etc.)
Spectral Resolution Fiber spectrometer: ≤4cm⁻¹ / Third-party spectrograph/monochromator: ≤1.23cm⁻¹
Spectral Range 100 cm⁻¹ – 15,000 cm⁻¹ (customizable)
Fiber Spectrometer Detector Options Option 1: M Series - Hamamatsu S10420 2048 x 64 pixels, Cooled BSI
Option 2: MC Series - Hamamatsu S7031-1006S  1044 x 64 pixels, Cooled BSI CCD
Option 3: HiNA Series - E2V  2000 x 264 Pixel -70°C Cooled BSI CCD
Dark Current <0.001e⁻/pixel/s
Wide-field Camera CMOS back-illuminated camera
15FPS@5440x3648; 50FPS@2736x1824; 60FPS@1824x1216
Confocal Mode Manual pinhole Electric continuously variable speed pinhole
Confocal Imaging Resolution ~200nm @100x objective
Spot Size ~1um @50x
Sample Stage XY electric (manual optional),
Z manual (upgradeable to electric),
Repeat positioning accuracy: ±0.25μm
XYZ electric, Repeat positioning accuracy: ±0.25μm
Travel Distance XY: 50mm*50mm, Z: 150mm (customizable)
Load Capacity 10KG
Sample Stage Compatibility Compatible with standard stretching stages, high-temperature or cryo stages,
in-situ stages, and vacuum stages
Microscope Compatibility Compatible with upright/inverted microscopes
Objectives (Optional) Long working distance 10X objective NA: ≥0.25; WD: ≥30mm; Resolution: ≤1um
Long working distance 20X objective NA: ≥0.40; WD: ≥20mm; Resolution: ≤0.80um
Long working distance 50X objective NA: ≥0.50; WD: ≥10mm; Resolution: ≤0.60um
Software Standard Software Features Advanced Features
1.Z-axis Autofocus
2.Confocal Adaptive Pinhole
3.3D Scanning Imaging
4.Advance Raman Spectroscopy data analysis

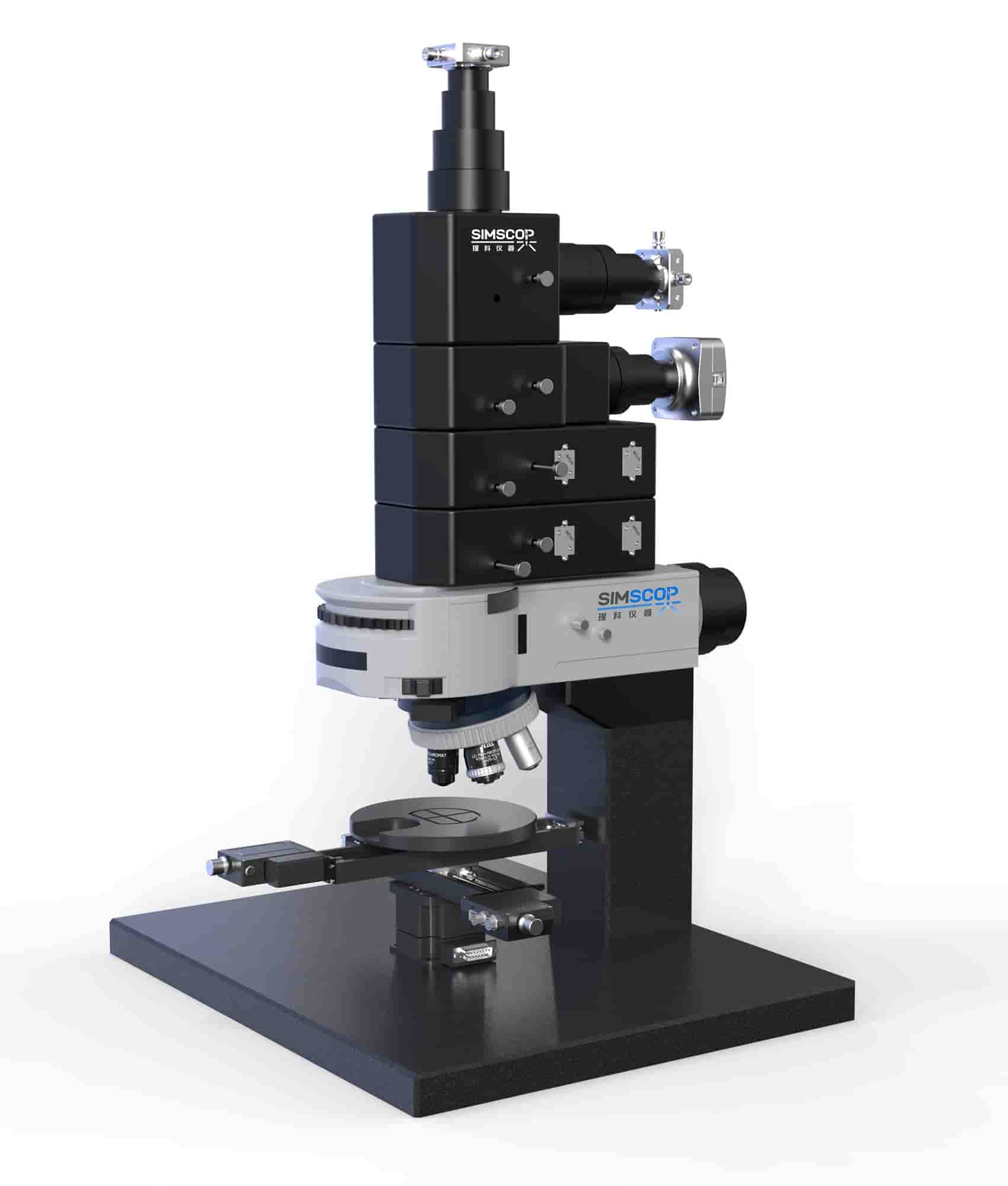

Upright Confocal Raman / Fluorescence Microscope-SIMSCOP Raman S1

SIMSCOP_Raman_S1-Upright Confocal Raman / Fluorescence Microscope

SIMSCOP Raman S1

Upright Confocal Raman/Fluorescence Microscope

SIMSCOP_Raman_S1 - Optical Path

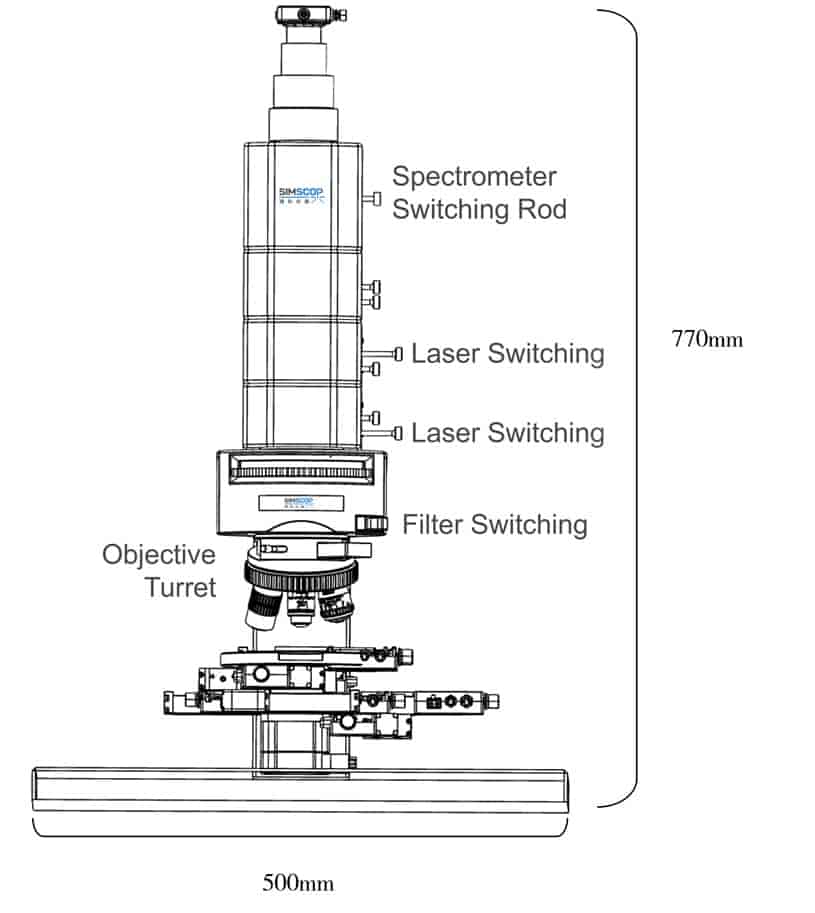

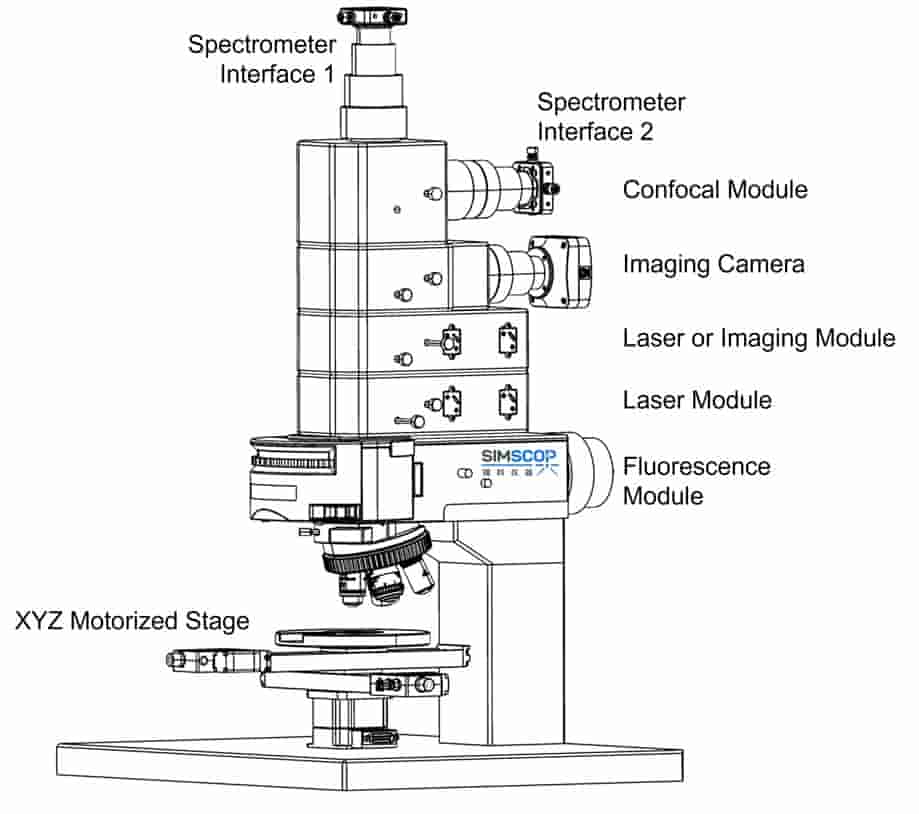

SIMSCOP_Raman_S1-Side View SIMSCOP_Raman_S1-Front View

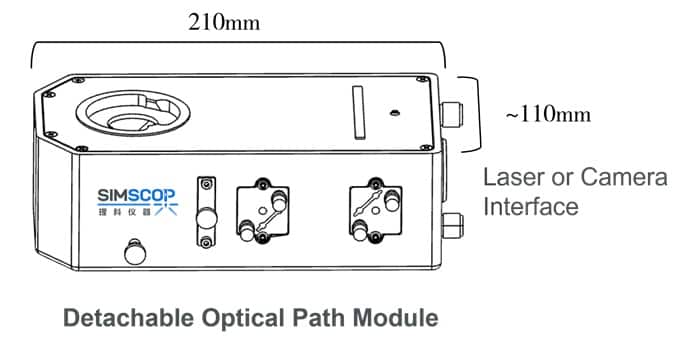

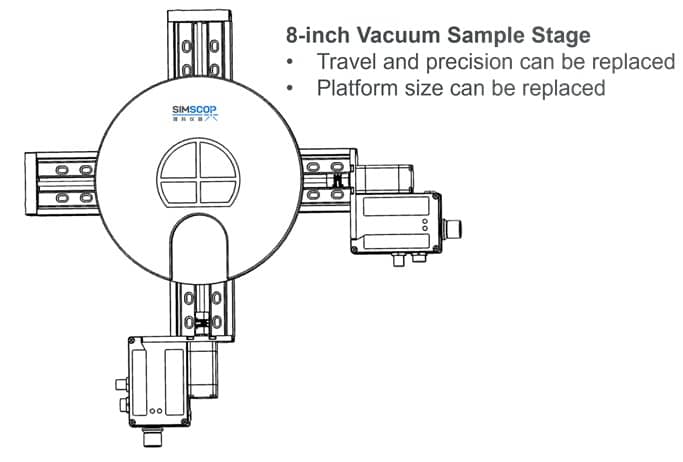

8-inch Vacuum Sample Stage Detachable Optical Path Module

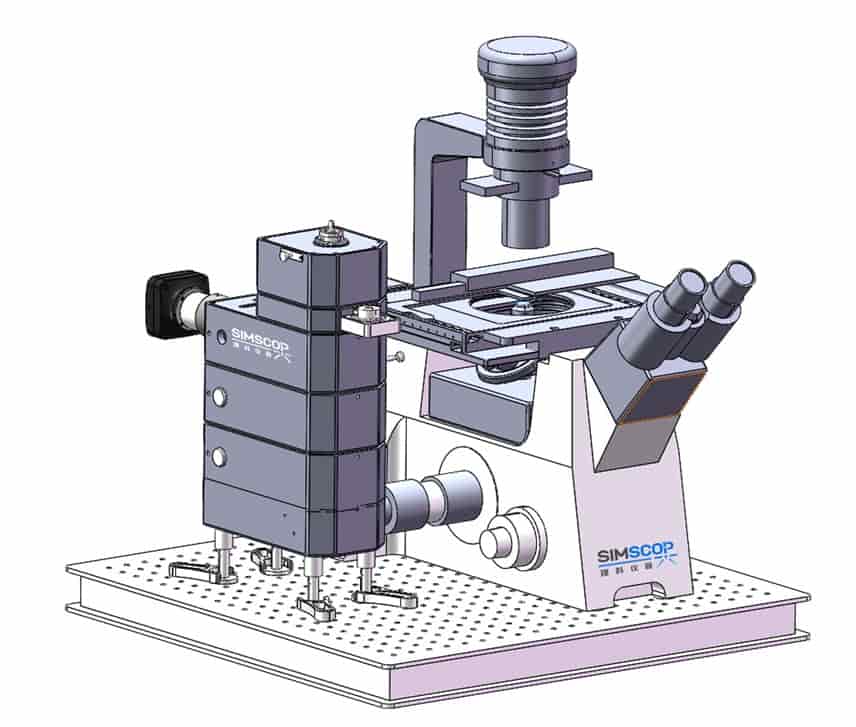

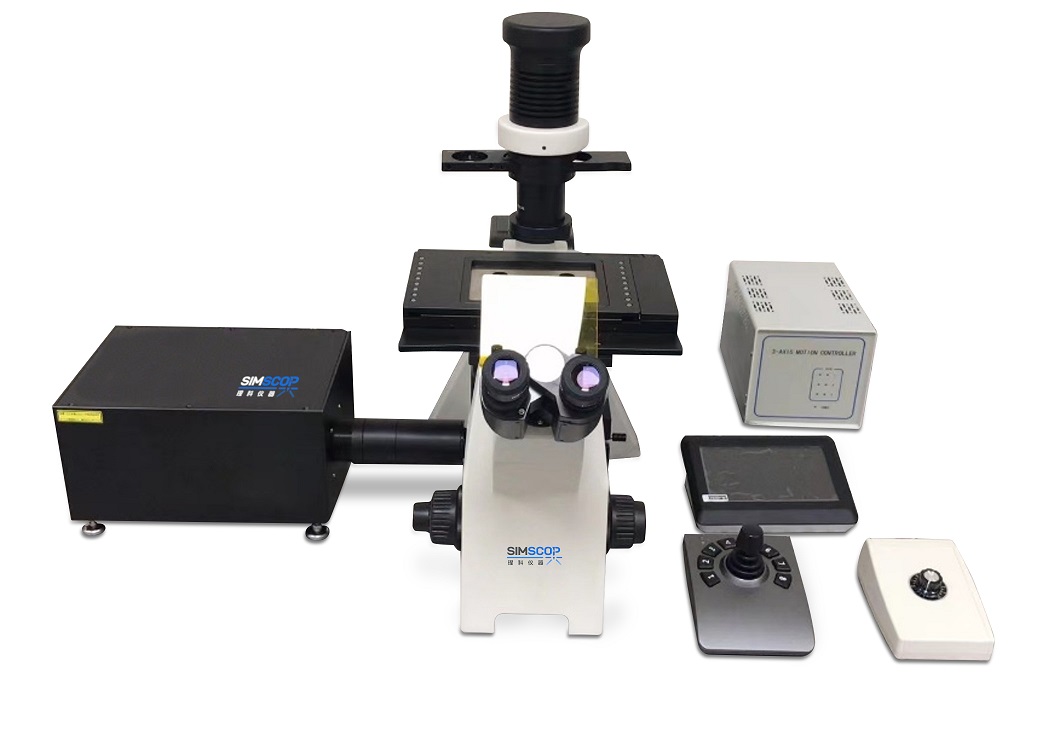

Inverted Confocal Raman / Fluorescence Microscope - SIMSCOP Raman S2

SIMSCOP_Raman_S2-Inverted Confocal Raman / Fluorescence Microscope

SIMSCOP Raman S2

Inverted Confocal Raman/Fluorescence Microscope

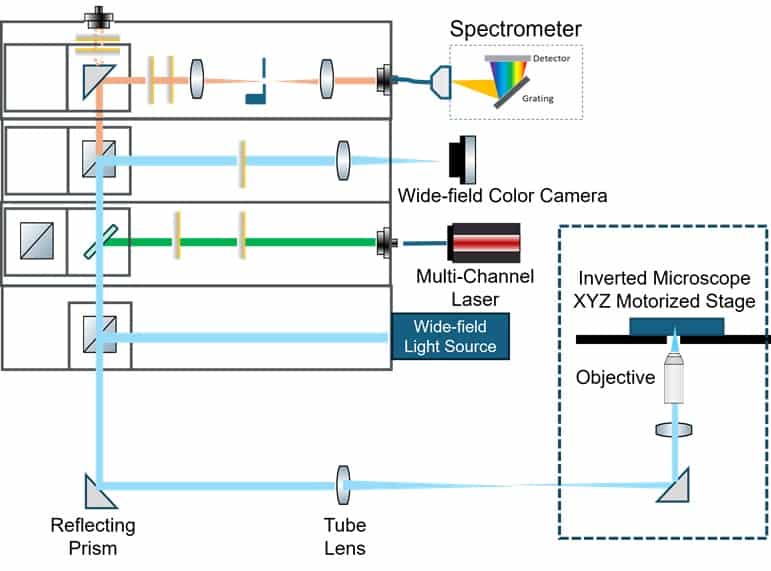

SIMSCOP_Raman_S2 - Optical Path

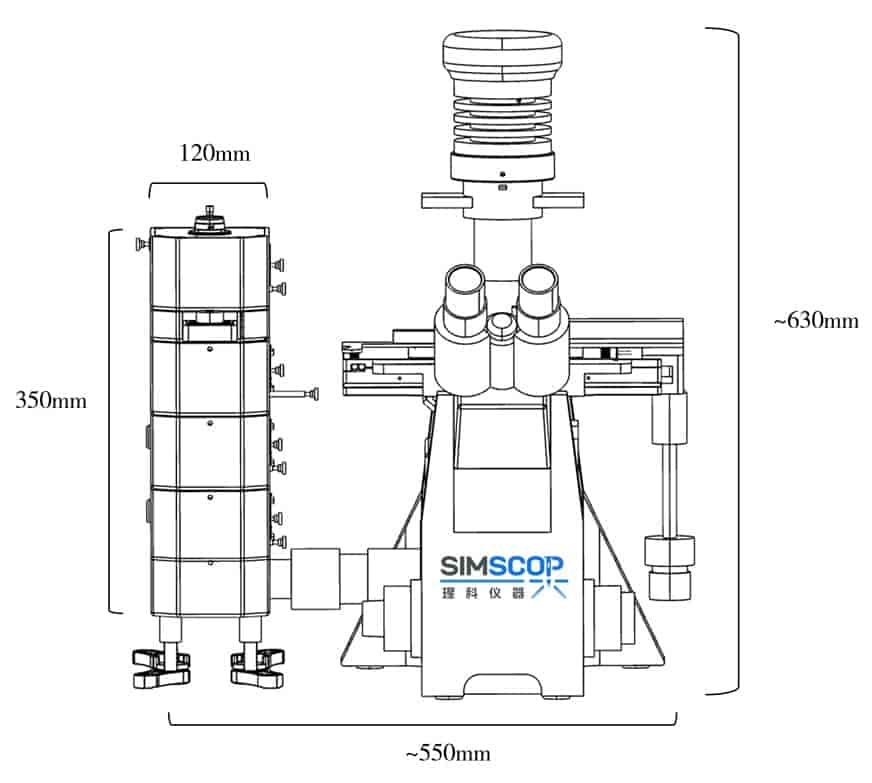

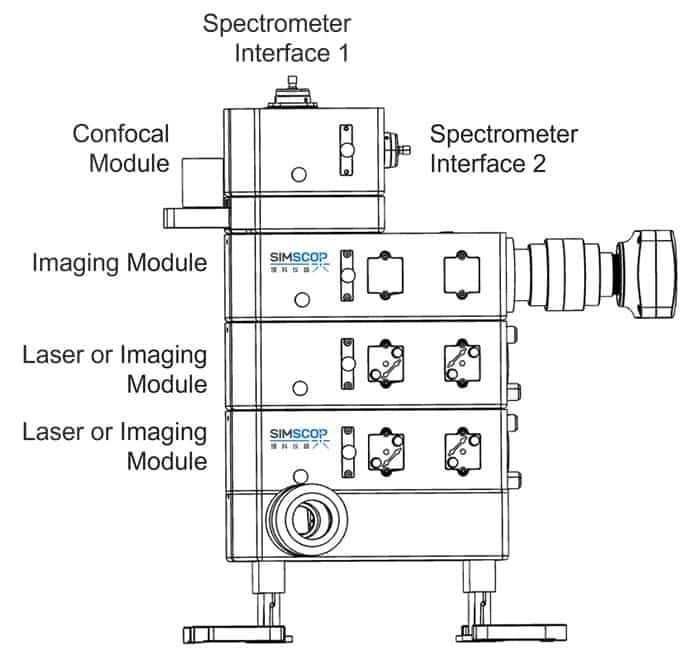

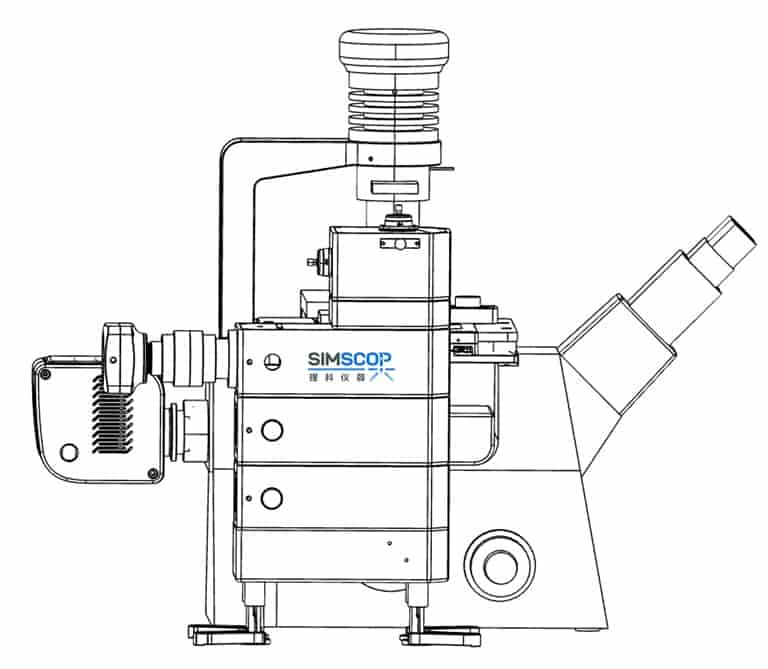

SIMSCOP_Raman_S2-Front View SIMSCOP_Raman_S2-Module

Optimized Multi-Fluorescence Channels for Biological Users

  • Supports multi-channel laser sources or imaging cameras
  • Allows the use of multiple cameras for fluorescence imaging and image integration
  • Simultaneously collects single-point spectra/Raman signals while acquiring fluorescence images
  • Users can freely add multiple modules
SIMSCOP_Raman_S2-Side View Detachable Optical Path Module



Applications

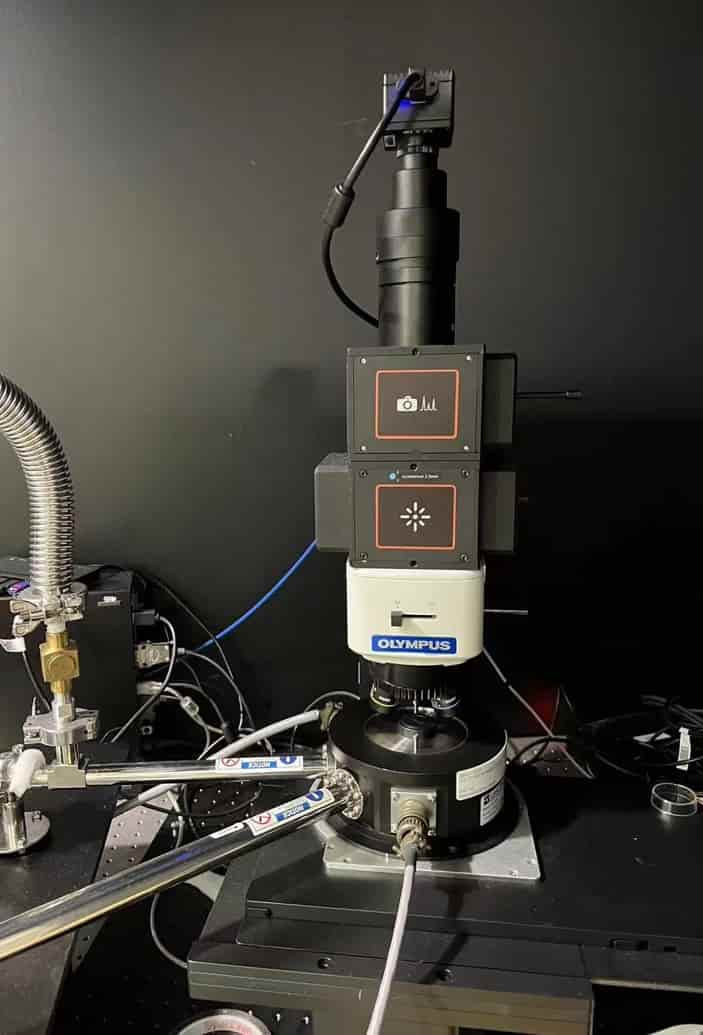

Singapore IMRE Ultra-Low Temperature Raman System

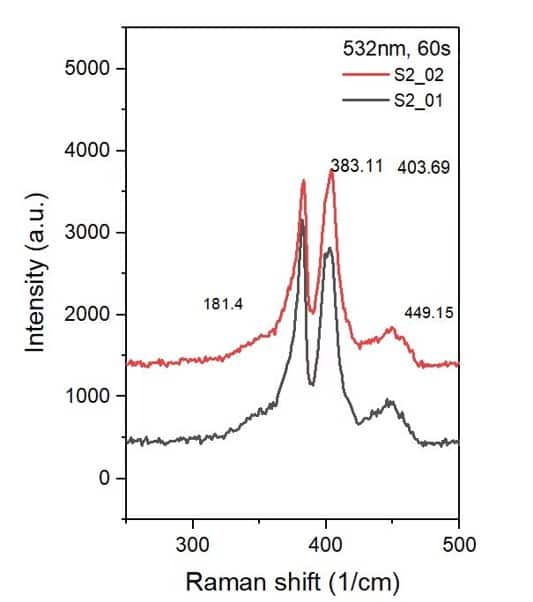

IMRE Raman Test Results, 532nm Raman

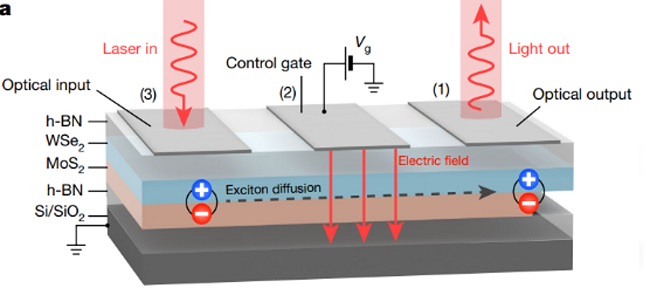

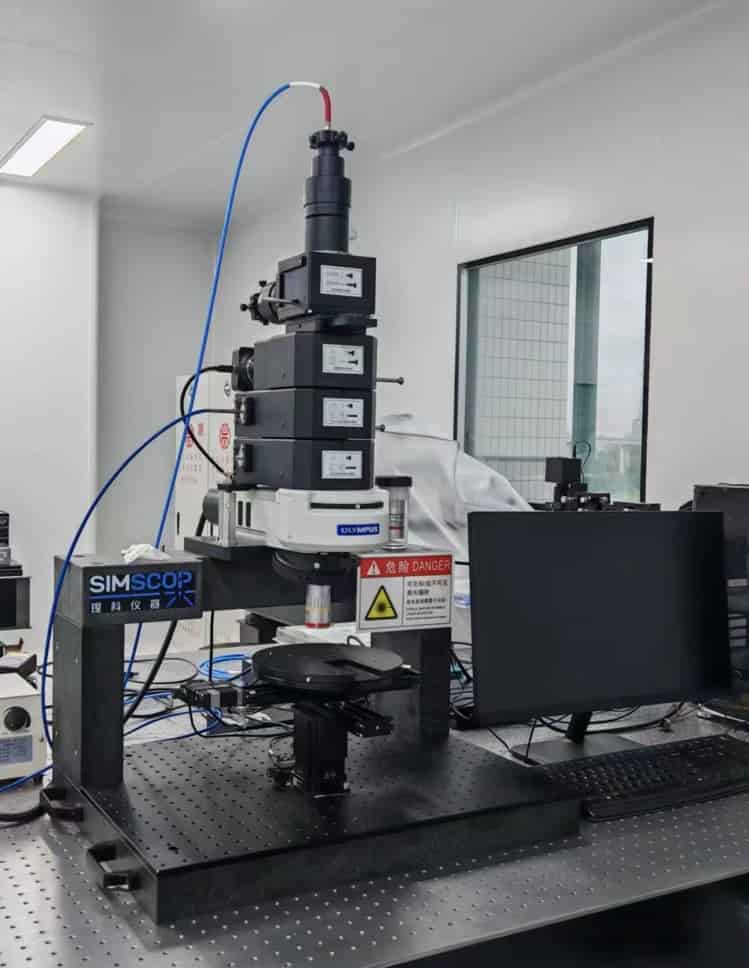

Sun Yat-sen University Dual Optical Path PL Test System

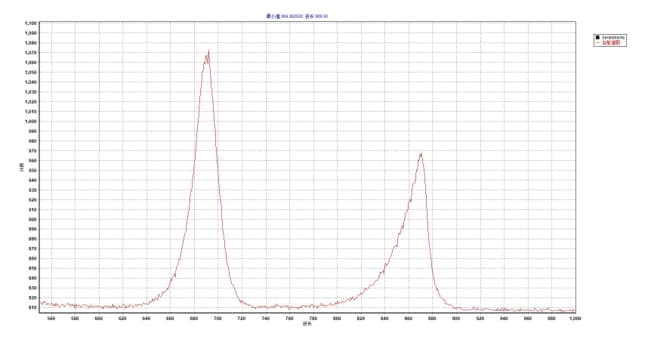

Sun Yat-sen University PL Test Results



Get the Perfect Custom Combination! Contact us now for Various Sample Stage:

High Temperature Stage 1200~1800 C

High Temperature Stage

1200 ~ 1800 ˚C

Electrical Probe Temperature Stage -190 ~ 600 ˚C

Electrical Probe Temperature Stage

-190 ~ 600 ˚C

In-situ Tensile Heating & Cryo stage

In-situ Tensile Heating & Cryo stage



Electrochemical In-situ Cell

Electrochemical In-situ Cell

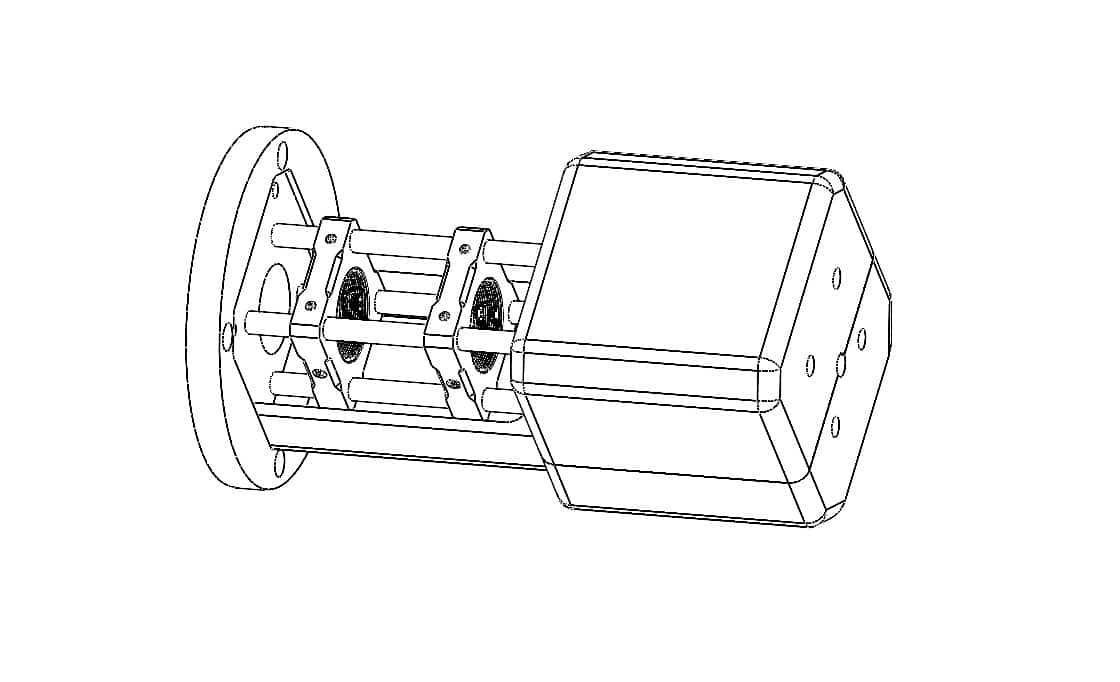

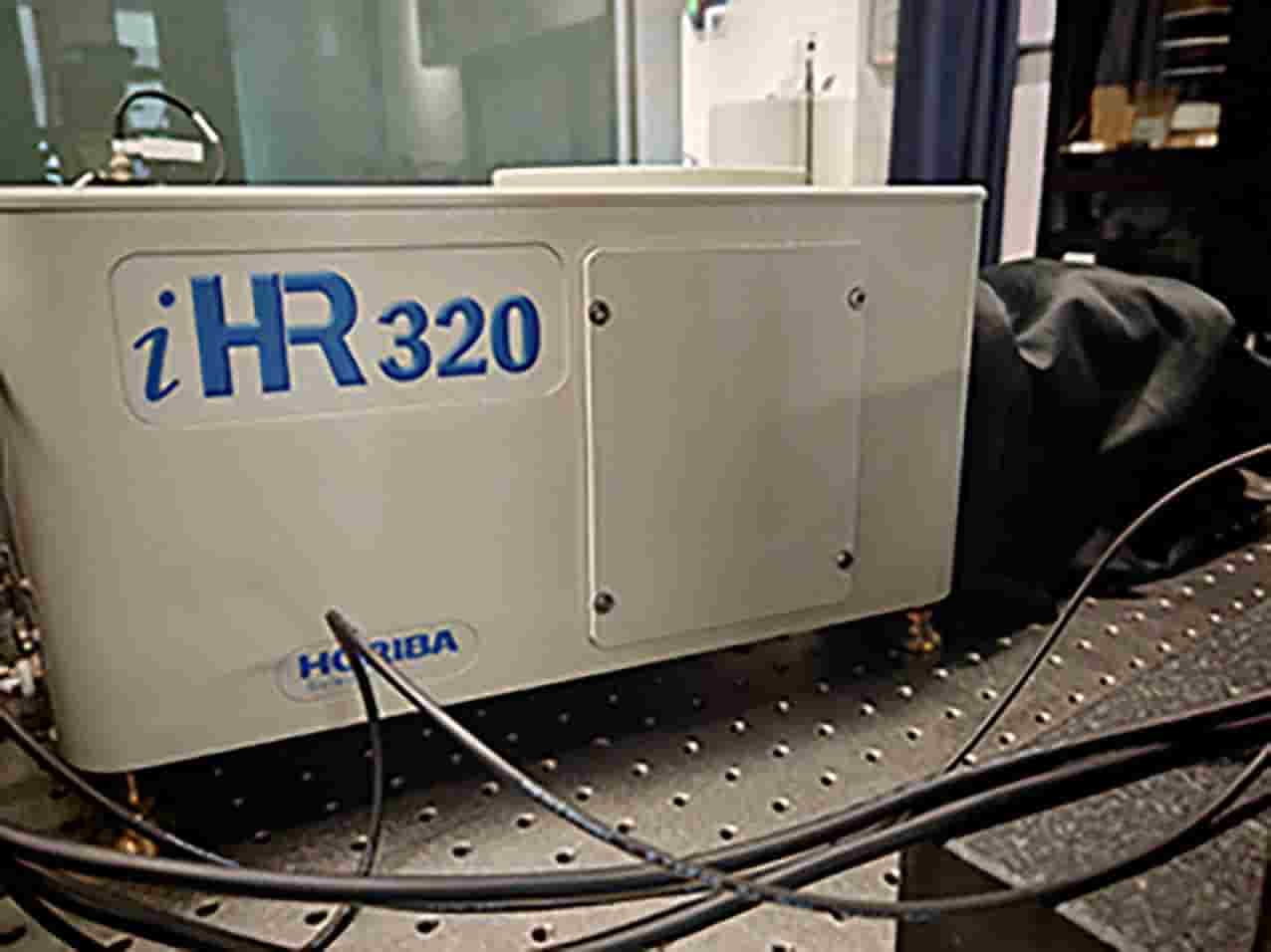

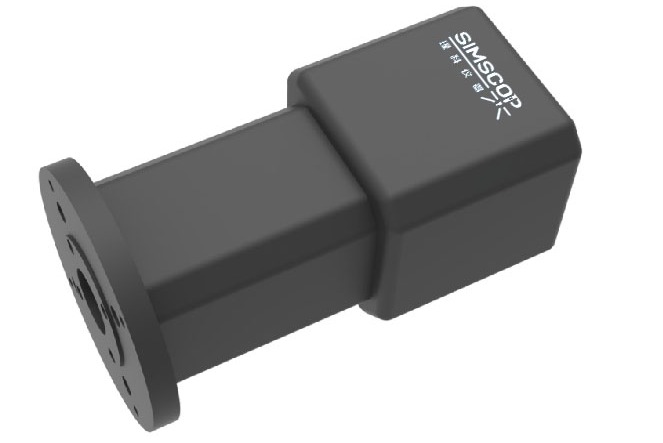

The SFOA-091 fiber optic adapter kit is designed for Horiba's iHR, MicroHR, and FHR series spectrometers. It includes lenses with focal lengths of 60 mm and 40 mm. The kit features a central mounting frame that allows lateral/longitudinal adjustments and rotation of the fiber position.

Once the adapter is mounted on the instrument's slit, the lenses match the fiber aperture to the instrument's aperture, maximizing fiber usage and reducing stray light. The optical mounts at both ends of the adapter can hold optional 25 mm filters. This adapter is designed for fibers with a numerical aperture of 0.22 (f/2.3).



Features

  • High Precision Alignment: Simscop's fiber optic adapter minimizes light loss and reflection for stable signals.
  • Broad Compatibility: Supports multiple interfaces (FC-PC, FC-APC, SMA905) for various systems.
  • Stability and Durability: Built for frequent use while maintaining performance.
  • Low Insertion and Return Loss: Reduces both for improved system performance.
  • Easy Installation: Quick fiber connections with no complex adjustments needed.







Application

  • Spectroscopy: The SFOA-091 fiber optic adapter transmits light from samples to spectrometers for high-resolution measurements.
  • Sensors: It distributes light signals to various sensors or collects feedback signals in fiber sensor systems.
  • Communication: The adapter allocates or combines light signals in fiber optic communication, supporting multi-channel routing.
  • Laser Systems: It couples laser beams into fibers or directs light from fibers to other devices.
  • Medical Devices: In medical imaging, the fiber coupler transmits light to detectors or laser sources for accurate detection and imaging.

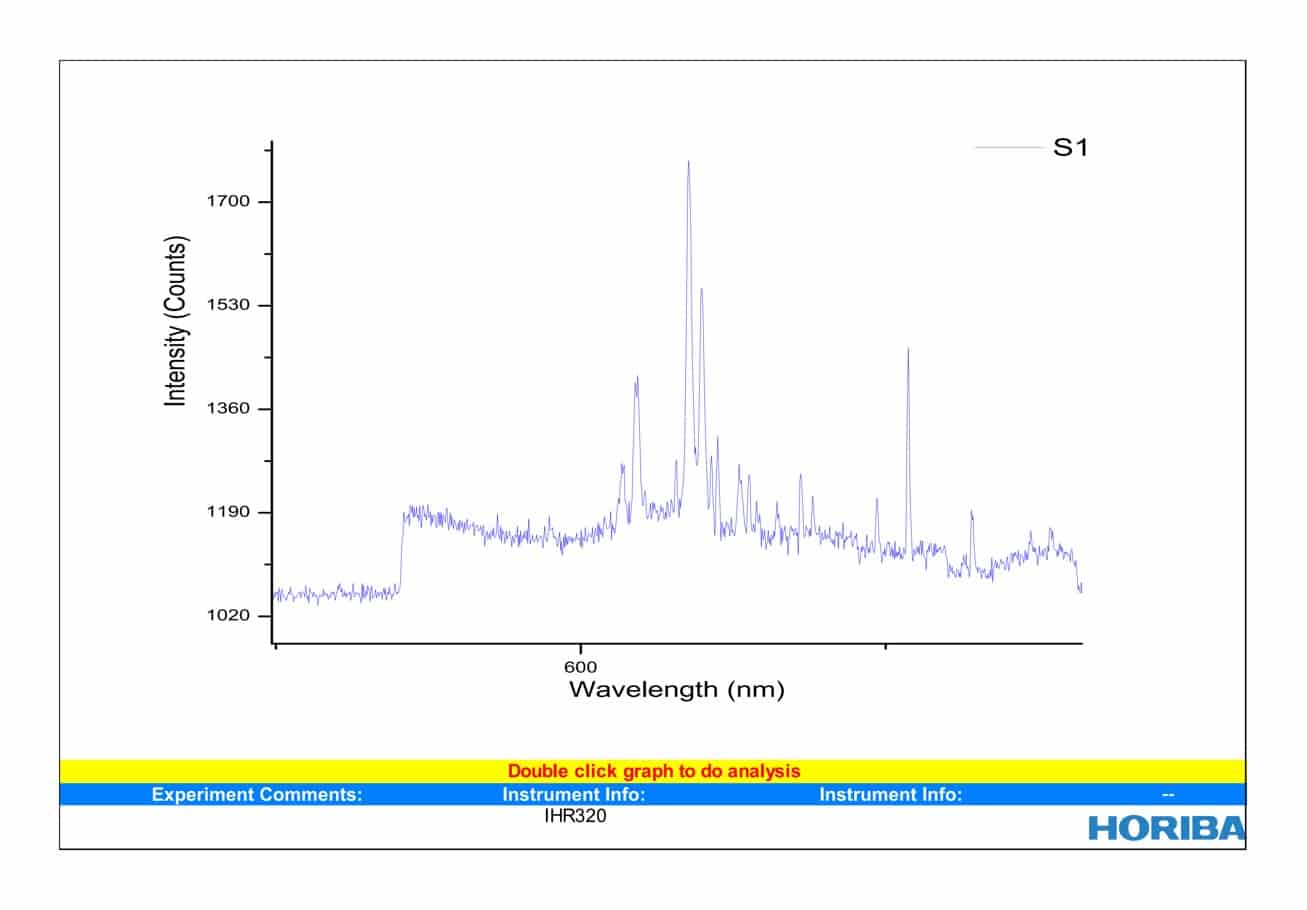

Raman signals from ibuprofen at room temperature with 532 nm excitation and 0.1 s exposure

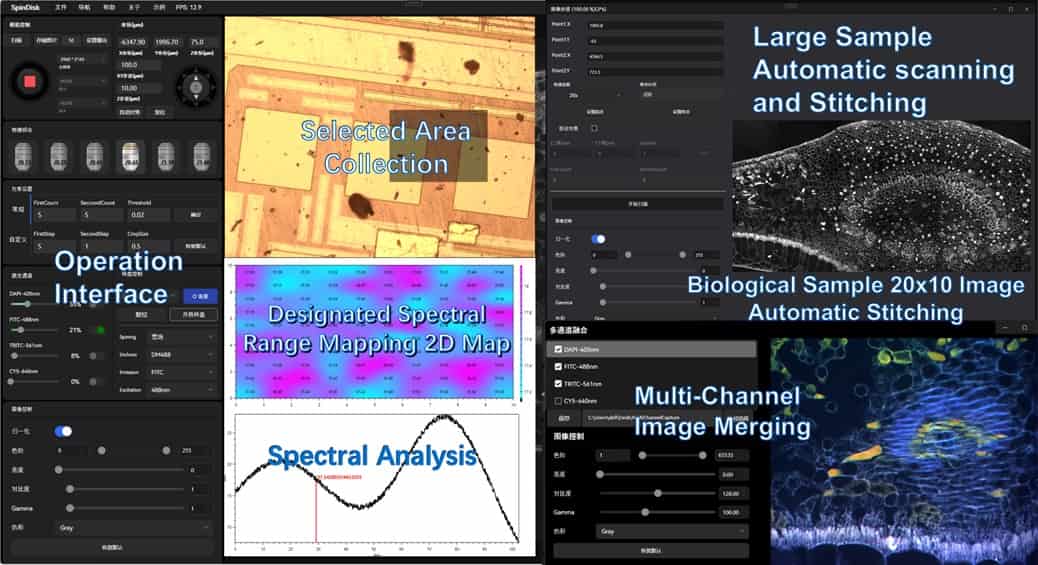

SIMSCOP_Raman_Software_UI



Core Software Features

1. Raman Confocal Image Acquisition Software

  • Supports real-time control and synchronization of hardware devices like motorized stages, lasers, cameras, and spectrometers.
  • Allows flexible setting of Raman spectroscopy parameters, such as exposure time, averaging, and wavelength range, to meet different experimental needs.

2. Confocal 3D Scanning and Raman Mapping Function

  • Users can define the scanning range and points on the XY plane and achieve automated scanning through motorized stages.
  • The software records Raman spectral data at each point, supports selecting Raman peaks to generate Raman characteristic maps, facilitating the analysis and comparison of the sample's Raman characteristics.
  • Supports point, line, and area 3D tomography imaging, and 3D image stitching.
  • Provides intuitive 3D video images and Raman spectra display, helping users fully understand the structural and chemical characteristics of the samples.

3. Professional Raman Spectroscopy Acquisition and Processing Software

  • Includes complete instrument control, data acquisition, and processing functions, such as Raman peak matching, automatic fluorescence background correction, auto exposure, averaging, noise reduction, and filtering.
  • Supports advanced data analysis functions like FWHM measurement and signal integration, providing comprehensive data processing solutions.

4. Third-Party Spectrometer Support

  • The software supports common third-party spectrometers, facilitating microscope upgrades for existing spectrograph/monochromator.

Name Model Wavelength Range Detector Resolution Noise Ratio Dynamic Range

High Resolution Spectrometer

L Sereis 200-1100nm Hamamatsu,S11639,2048 pixels <1nm customizable 500:1 2000:1

High Resolution Spectrometer

H Series 200-1100nm Hamamatsu,S11639,2048 pixels <1nm customizable 500:1 2000:1

Back Illuminated Spectrometer

M Series 200-1100nm Hamamatsu,S10420,64×2048 pixels <1nm customizable 800:1 5000:1

Hi Sensitivity Cooled Spectrometer

MC Serie 200-1100nm Hamamatsu,S7031,64×1044 pixels <1nm customizable 1000:1 10000:1

Handheld Raman System

RM 785/1064nm

Band Range

200-3200cm-1/ 200-2500cm-1

6 - 8 cm-1

Portable Tabletop Raman System

RMT EZ 785nm Band Range  200-3200cm-1
7 cm-1  typical

Portable Tabletop Raman System

RMT 532/785/1064nm

Band Range

200-3200cm-1/200-1800cm-1

8 - 9 cm-1 typical




SIMSCOP_P_Series Laser Scanning Confocal Microscope,
High Speed Line Scan Confocal Microscope
Fluorescence / Photoluminescence Microscope
Time Correlated Single Photon Counting (Solution)





XY Microscope Piezo Stages
Model ST-XY3-11075 ST-XY2-7550
Stroke(mm) 110 X 75 75 X 50
Driver Piezoelectric Motor Piezoelectric Motor
Maximum Load Capacity(KG) 1 1
Maximum Speed(mm/s) 100 100
Minimum Step Size(nm) 20 (50, 100nm for option) 50
Repeatability(nm) +/-200 +/-200
Position Sensor Grating Grating
Material Aluminum Alloy Aluminum Alloy
Weight(KG) 3.3 2.5

We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
SIMSCOP Raman S1
SIMSCOP Confocal/PL Raman Microscope , Single-channel laser, wavelengths 532nm/638nm/785nm optional, Laser power 100mW, linewidth 0.003nm, Raman range typical 150~3200cm-1, Confocal image resolution ~200nm @100x objective, manual pinhole mode, spot size ~1um@50x, Compatible with upright/inverted microscopes,Compatible with standard stretching stages, high/low-temperature stages, in-situ stages, and vacuum stages
6-8 weeks Request for quote
SIMSCOP Raman S2
SIMSCOP Confocal/PL Raman Microscope , Multi-channel laser up to 5 channels, wavelengths 405nm/532nm/638nm/785nm/1064nm, Laser power 100mW, linewidth 0.001nm, Near-infrared spectrum support, Raman range typical 150~3200cm-1, Confocal image resolution ~200nm @100x objective, Electric continuously variable speed pinhole mode, spot size ~1um@50x, Compatible with upright/inverted microscopes, Compatible with standard stretching stages, high/low-temperature stages, in-situ stages, and vacuum stages
6-8 weeks Request for quote

SIMSCOP Raman S2 - Parameter

SIMSCOP Raman S1 - Parameter

SIMSCOP Raman S2 - Download

SIMSCOP Raman S1 - Download
