Solid Vibration Isolation Table


• Vibration Isolation damping optical breadboard for surface resonance    elimination

• High density honeycomb structure breadboard

• Isolators require less maintenance than the air spring pneumatic

  isolators

• Comes with either round shape isolator or square shape isolator

• Manual levelling adjustment

• Optional ordering for castors



 Inherent FrequencyVertical: 1.0-2.0Hz Horizontal: 1.0-2.0Hz
 Vibration Isolating TypeAir Springs & Vibration Damping Rubber Plates
 Leveling TypeAutomatic
 Vibration Damping TypeMulti air streams laminar flow vibration isolation damping
 Total Table Height800mm
 Working Air Pressure0.2-0.4MPa
 Compressed Air SourceSilent Compressor ( Noisy Level)<50dB
 Vibration Isolating Efficiency

Vertical: 5Hz 82-88% 10Hz 86-95%

Horizontal: 5Hz 78-86% 10Hz 84-92%

 Re-leveling Accuracy ±0.1mm
 Table Top Flatness 0.05mm/m2
 Surface Roughness
0.8μm
 Isolator Height Adjustment Range±10mm



Choosing the right type of optical table


In research laboratories, it is often necessary to conduct experiments and take measurements in vibration-free environments. Many types of experiments are hindered or even made impossible to perform in the presence of small vibrations. Air conditioners, building ventilation fans and many appliances around a building as well as foot traffic from building users all contribute to vibrations contribute to the vibrations that could have an adverse effect on the experiments conducted with the laboratories. To prevent such undesirable effects from occurring, Simtrum’s optical tables, or table supports specifically, are designed to dampen vibrations to varying degrees based on needs and requirements.  Simtrum offers three levels of optical table supports: rigid, passive, and active.


Rigid Optical Table Supports


Simtrum’s Solid Vibration Isolation Damping Optical Tables utilizes rigid optical table supports which are used predominately when experiments do not need to require the optical table to be isolated from vibrations. Instead, the main purpose of the optical table is to provide a flat and rigid surface for experiments to be carried out. The advantages include high load capacity, excellent horizontal and vertical stability.


Passive Optical Table Supports

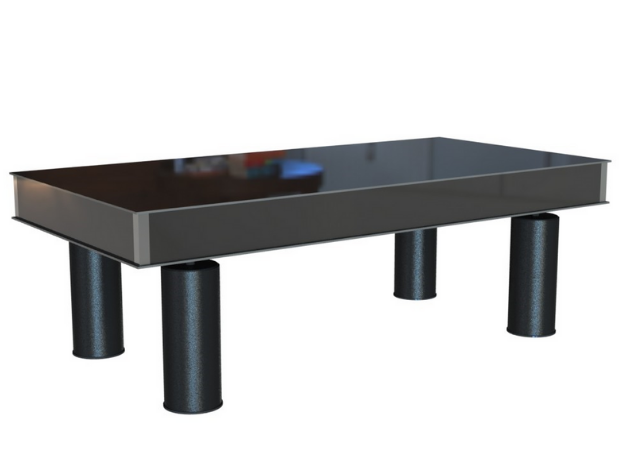

Simtrum’s Solid Vibration Isolation Table with Hollow Cone structure Isolators utilize passive optical table supports suitable for environments which require minimal vibrations. The deformable air reservoir in the passive optical table supports isolates the optical table from background vibrations. The advantages are effective vertical vibration isolation as well as stability. While the supports are not able to dampen vibrations as well as the active optical table supports, there is also the advantage of requiring less maintenance.


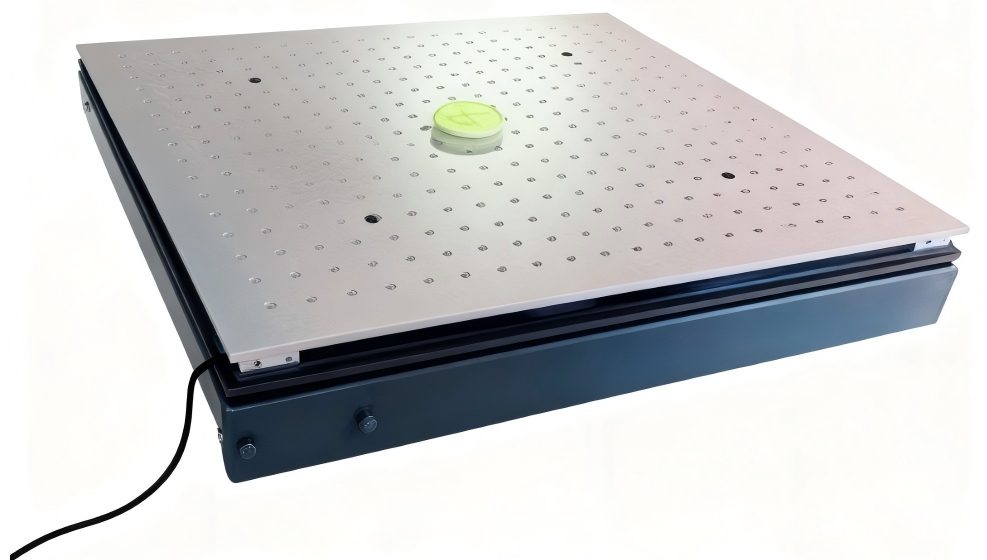

Active Optical Table Supports


Simtrum’s Pneumatic Air Spring Vibration Isolation Optical Tables make use of active optical table supports that should be used for vibration-sensitive applications and in environments where there is significant vibrations, for instance in labs of upper floors of buildings, which encounter more horizontal and vertical vibrations. Vertical damping is achieved by the pneumatic air springs. The air spring isolators also feature auto levelling and inflating characteristics. The Pneumatic Air Spring Vibration Isolation Optical Tables with Pendulum Rod can achieve much lower inherent frequency in horizontal direction and better load capacity. Overall, the advantages are superior vertical and horizontal vibration isolation, self-leveling features as well as excellent horizontal and vertical stability.



Simtrum Part No.Optical Breadboard Dimension(mm)Hole TypeDescription
SVIH0606600×600×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH075075750×750×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm

, M6 tapped holes with 25mm hole grid

SVIH0906900×600×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH10071000×700×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH10081000×800×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH12081200×800×100(50/80)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH15091500×900×150(50/80/100)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH15101500×1000×150(50/80/100)M6,  with 25mm hole grid

Total Table Height: 800mm

, M6 tapped holes with 25mm hole grid

SVIH16091600×900×150(50/80/100)M6,  with 25mm hole grid

Total Table Height: 800mm

, M6 tapped holes with 25mm hole grid

SVIH18121800×1200×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH20102000×1000×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH20122000×1200×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH24122400×1200×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH30103000×1000×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH30123000×1200×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH30153000×1500×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH35123500×1200×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVIH35153500×1500×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

The information in the chart above is a general guide to choosing the suitable solid vibration isolation optical tables  for your optomechanical setup.

Other variations of optical breadboard heights are  available and are shown in bold.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.
