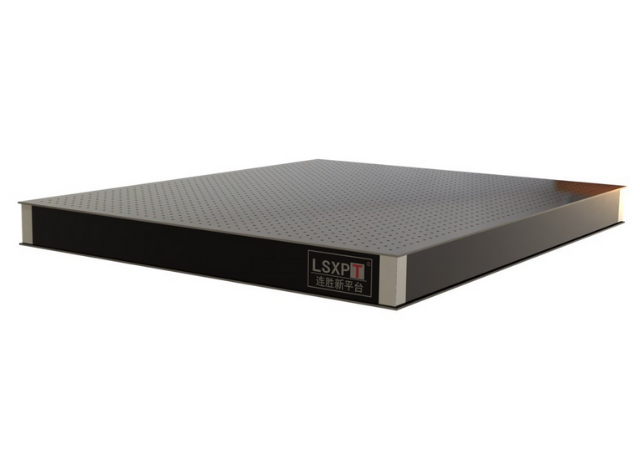

Honeycomb Optical Breadboard


Broad-band vibration damping top to eliminate surface synchronized

  vibrations

• Honeycomb core structure

• High density with high rigidity

• Long lasting service life without surface deflections due to residual

  stress

• Easy installation and simple to use without persistent maintenance



 Breadboard Thickness
80-250 ( 80, 100, 150, 200, 250) ( Breadboard dimensions are customizable)
 Surface Plate430 stainless steel, thickness:5mm
 Damping Type Broad-band
 Honeycomb Core Density250kg/
 Mounting Holes TypeM6 tapped holes @ 25mmx25mm grid
 Surface Flatness≤0.05mm/
 Surface Roughness≤0.8μm




Features of the High Density Honeycomb Core Optical Breadboard


The purpose of optical breadboards is to reduce or eliminate vibrations from the ambient background or from moving parts of experiments set up on the table top. While tabetops used to be constructed from concrete, granite  and many other materials in attempts to improve the overall performance while maintaining weight at an acceptable level to ensure good mobility, it was eventually decided that the optimal performance was achieved by having a structure of top and bottom skins made up of hoghly conductive stainless steel (430) with a clad metal honeycomb and sealed cups sandwiched in between.


The High Density Honeycomb Core Optical Breadboard is extremely user-friendly for mounting of experimental equipment. Below shows how each feature of the breadboard contributes to its overall performance in being user-friendly and fulfiling the purpose of minimizing vibrations.


430 Stainless Steel

The stainless steel material that form the top and bottom skin of the breadboard prevents the breadboard from getting rusty.


Sealed Cups

The sealed cups are made of stretching aluminium and they can effectively eeliminate synchronized vibrations within the breadboard, which may be detrimental to the results of experiments and measurements. Another advantage is the prevention of dusts, liquids that may contaminate the breadboard if they were to drip inside the core of breadboards.


Honeycomb Core Design

The honeycomb core design reduced the weight of the breadboard while maximizing rigidity

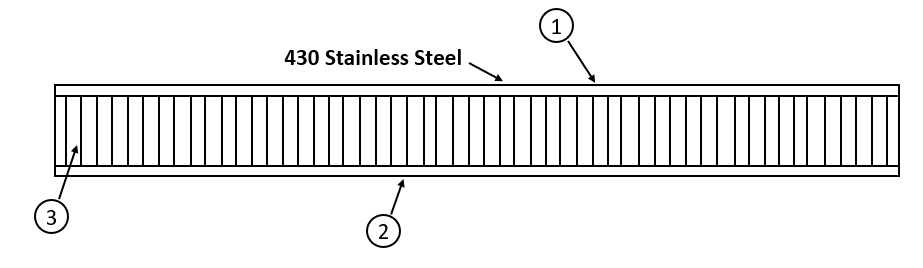

Figure 1: Breadboard cross-section, showing (1) top skin, (2) bottom skin,  both made up of 430 stainless steel and (3) honeycomb core

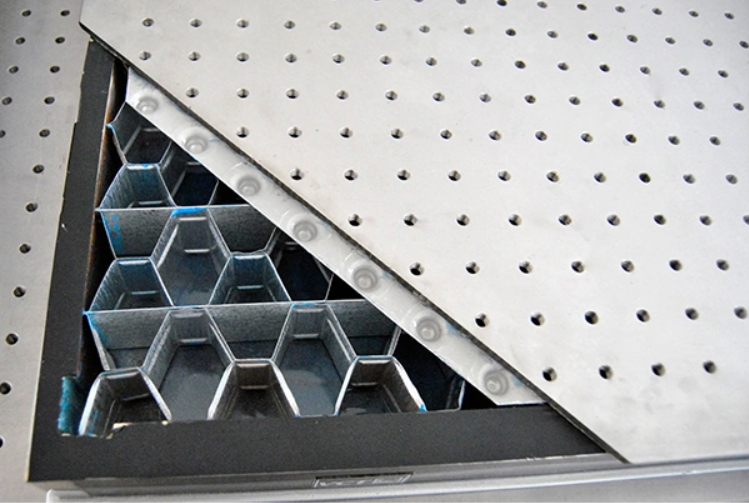

Figure 2: Honeycomb core design


Rigidity analysis

Analysis when an optical breadboard of dimensions 600mmx600mmx50mm is placed under a 100kg load.

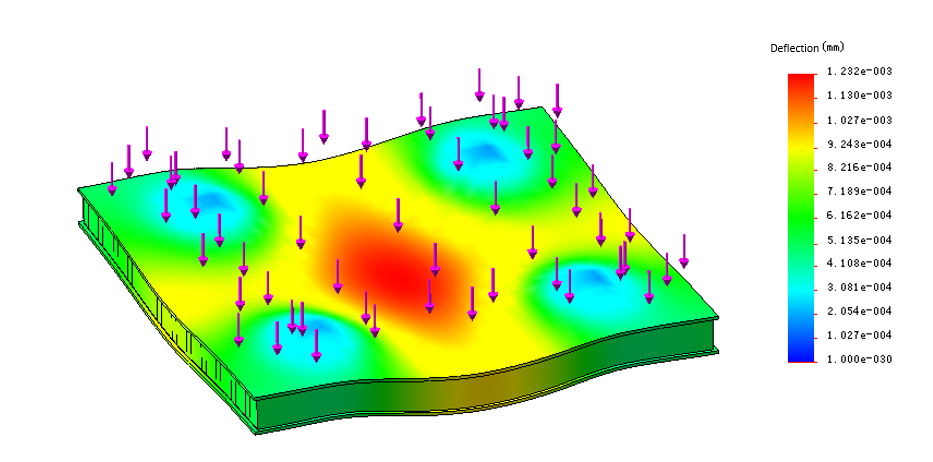

Figure 3: Map of deflection across the surface area of an optical breadboard of dimensions 600mm x 600mm x 50mm.








Simtrum Part No.Optical Breadboard Dimension(mm)Hole TypeDescription
HB06045600*450*80M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB0606600*600*80M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB0906900*600*80M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB075075750*750*80M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB10081000*800*80M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB12081200×800×100M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB15091500×900×150M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB15101500×1000×150M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB16091600×900×150M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB18121800×1200×200M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB20102000×1000×200M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB20122000×1200×200M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB24122400×1200×200M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB30123000×1200×250M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB30153000×1500×250M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB35123500×1200×250M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid
HB35153500×1500×250M6,  with 25mm hole gridM6 tapped holes with 25mm hole grid

The information in the chart above is a general guide to choosing the suitable optical breadboards for your optomechanical setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.














Optomechanics



Optical Breadboard Dimension (mm)


Search Reset
Compare Model Drawings & Specs Hole Type Optical Breadboard Dimension (mm) Availability Reference Price
(USD)
HB06045
600x450x80mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $260.00
HB0606
600x600x80mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $518.33
HB0906
900x600x80mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $888.33
HB075075
750x750x80mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $740.00
HB1008
1000x800x80mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $1240.00
HB1208
1200x800x100mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $1518.33
HB1509
1500x900x150mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $2000.00
HB1510
1500x1000x150mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $2221.67
HB1609
1600x900x150mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $2130.00
HB1812
1800x1200x200mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $3406.67
HB2010
2000x1000x200mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $3148.33
HB2012
2000x1200x200mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $3778.33
HB2412
2400x1200x200mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $4260.00
HB3012
3000x1200x250mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $5000.00
HB3015
3000x1500x250mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $6260.00
HB3512
3500x1200x250mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $5833.33
HB3515
3500x1500x250mm Optical Breadboard, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid 2-3 Weeks $7296.67
