2000nm Widely Tuneable Laser

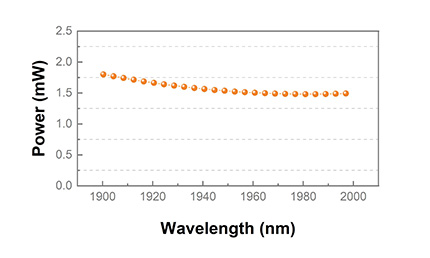

Supertune-2000 is a super-continuum laser specially designed for the testing of optical components made for 2um wavelength. Supertune-2000 covers wavelength range of 1900~2500nm, with good price-performance ratio, and bridged a gap in MIR and LIR wavelength range, which current MIR super-continuum laser can’t cover. Supertune-2000 can be also combined with TDFAs to achieve higher power output. Supertune-2000 is widely used in the testing of passive-fiber, optical coating, optical detectors and integrated optical parts. With the simple and smart design, it is a good platform for applications such industrial detection, optical testing and optical imaging. image.png


Features

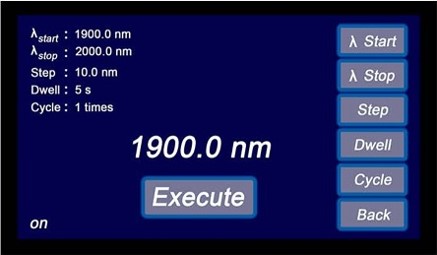

-Fast wavelength sweep

-High spatial resolution

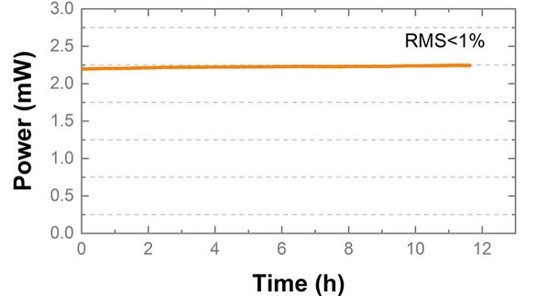

-Excellent power stability

-Diffration limited beam

-Turn-key system


Application

-Gas sensing

-Spectroscopy

-Biomedical analysis

-Test and measurement

-Silicon Photonics





Laser Parameters

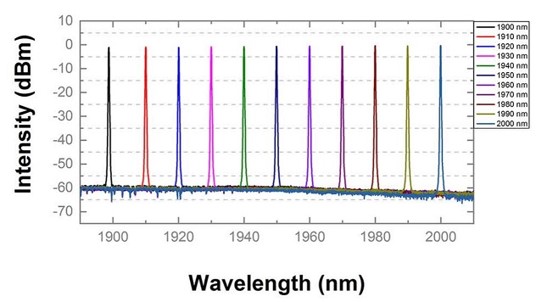

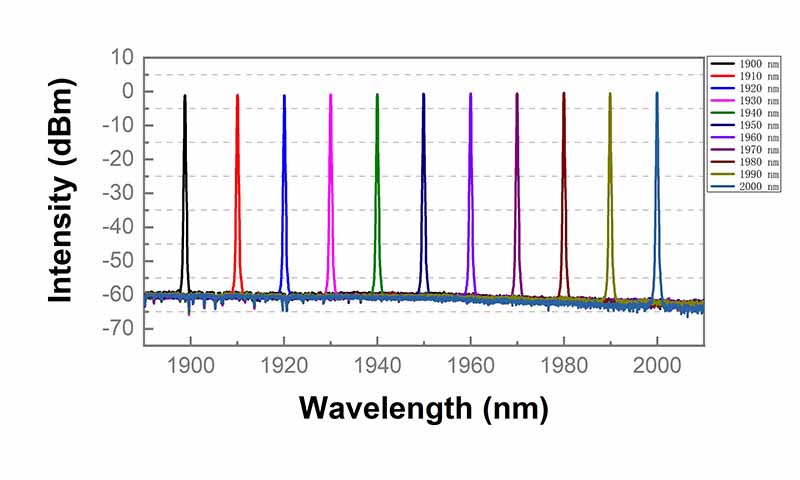

Tuning Range

Nm

1900-2000

Output Bandwidth

Nm

0.1

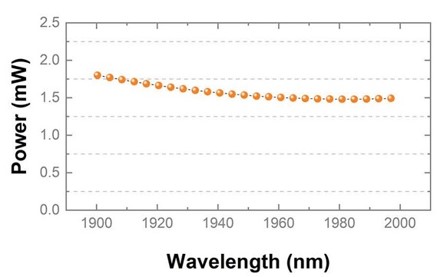

Average Power

mW

>1

Beam Diameter

Mm

2

Beam Quality


TEM00, M2<1.2

Output Fiber


SM2000/Nufern PM1950 Fiber

Fiber Connector


FC/PC or FC/APC Connector

Electrical, Environmental and Mechanical Parameters

Supply Voltage

VAC

100-240 (50Hz/60Hz)

Operational Temperature Range

°C

15~35

Operational Humidity Range

%

20~80 (Non-condensing)

Storage Temperature Range

°C

-20~+50

Storage Humidity Range

%

20~80(Non-condensing)

Weight Laser Head

Kg

17

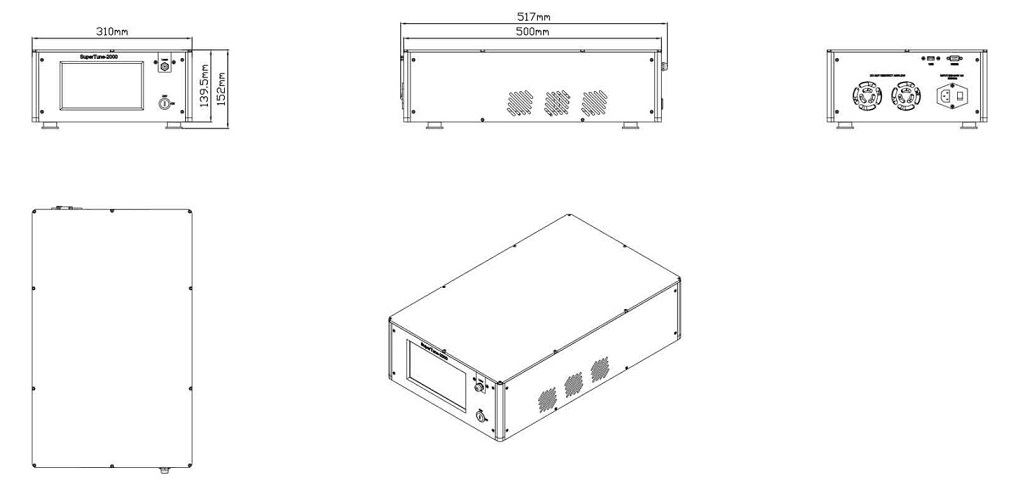

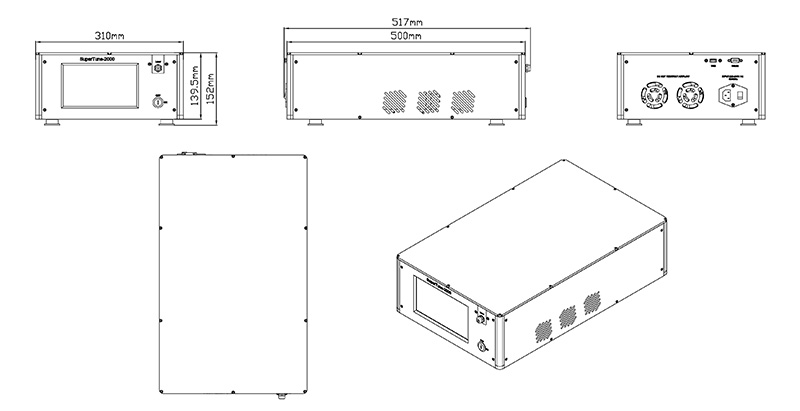

Dimensions Laser Head

mm(LxWxH)

436x260x146

Cooling


Air-cooled





Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Technical Assistance and Email Quotations (Recommended for Custom Orders, inquiries)

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


Local Same Day Service

SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.


International Inquiries

SIMTRUM provides worldwide shipping and inquiry management. Please contact us for more information.



Search Reset

SPT-TME-SM-PC - Parameter

Average Power (mW)
> 1

Tail Fiber Connector Type
FC/PC

Beam Quality
TEM00

Working Wavelength (nm)
1900 to 2000

Supply Voltage (VDC)
100 to 240(50Hz/60Hz)

Operating Temperature Range (°C)
15 to 35

Storage Temperature Range (°C)
-20 to 50

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
17

Dimension Of Laser Head (mm)
436 x 260 x 146

Cooling
Air-Cooled

Operating Humidity Range (%)
20 to 80

Output Bandwith (nm)
0.1

Beam Diameter (nm)
2

Output Fiber
SM2000

SPT-M²-N-APC - Parameter

Average Power (mW)
> 1

Tail Fiber Connector Type
FC/APC Connector

Beam Quality
M2<1.2

Working Wavelength (nm)
1900 to 2000

Supply Voltage (VDC)
100 to 240(50Hz/60Hz)

Operating Temperature Range (°C)
15 to 35

Storage Temperature Range (°C)
-20 to 50

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
17

Dimension Of Laser Head (mm)
436 x 260 x 146

Cooling
Air-Cooled

Operating Humidity Range (%)
20 to 80

Output Bandwith (nm)
0.1

Beam Diameter (nm)
2

Output Fiber
Nufern PM1950 Fiber

SPT-M²-SM-APC - Parameter

Average Power (mW)
> 1

Tail Fiber Connector Type
FC/APC Connector

Beam Quality
M2<1.2

Working Wavelength (nm)
1900 to 2000

Supply Voltage (VDC)
100 to 240(50Hz/60Hz)

Operating Temperature Range (°C)
15 to 35

Storage Temperature Range (°C)
-20 to 50

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
17

Dimension Of Laser Head (mm)
436 x 260 x 146

Cooling
Air-Cooled

Operating Humidity Range (%)
20 to 80

Output Bandwith (nm)
0.1

Beam Diameter (nm)
2

Output Fiber
SM2000

SPT-M²-N-PC - Parameter

Average Power (mW)
> 1

Tail Fiber Connector Type
FC/PC

Beam Quality
M2<1.2

Working Wavelength (nm)
1900 to 2000

Supply Voltage (VDC)
100 to 240(50Hz/60Hz)

Operating Temperature Range (°C)
15 to 35

Storage Temperature Range (°C)
-20 to 50

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
17

Dimension Of Laser Head (mm)
436 x 260 x 146

Cooling
Air-Cooled

Operating Humidity Range (%)
20 to 80

Output Bandwith (nm)
0.1

Beam Diameter (nm)
2

Output Fiber
Nufern PM1950 Fiber

SPT-M²-SM-PC - Parameter

Average Power (mW)
> 1

Tail Fiber Connector Type
FC/PC

Beam Quality
M2<1.2

Working Wavelength (nm)
1900 to 2000

Supply Voltage (VDC)
100 to 240(50Hz/60Hz)

Operating Temperature Range (°C)
15 to 35

Storage Temperature Range (°C)
-20 to 50

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
17

Dimension Of Laser Head (mm)
436 x 260 x 146

Cooling
Air-Cooled

Operating Humidity Range (%)
20 to 80

Output Bandwith (nm)
0.1

Beam Diameter (nm)
2

Output Fiber
SM2000

SPT-TME-N-APC - Parameter

Average Power (mW)
> 1

Tail Fiber Connector Type
FC/APC Connector

Beam Quality
TEM00

Working Wavelength (nm)
1900 to 2000

Supply Voltage (VDC)
100 to 240(50Hz/60Hz)

Operating Temperature Range (°C)
15 to 35

Storage Temperature Range (°C)
-20 to 50

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
17

Dimension Of Laser Head (mm)
436 x 260 x 146

Cooling
Air-Cooled

Operating Humidity Range (%)
20 to 80

Output Bandwith (nm)
0.1

Beam Diameter (nm)
2

Output Fiber
Nufern PM1950 Fiber

SPT-TME-SM-APC - Parameter

Average Power (mW)
> 1

Tail Fiber Connector Type
FC/APC Connector

Beam Quality
TEM00

Working Wavelength (nm)
1900 to 2000

Supply Voltage (VDC)
100 to 240(50Hz/60Hz)

Operating Temperature Range (°C)
15 to 35

Storage Temperature Range (°C)
-20 to 50

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
17

Dimension Of Laser Head (mm)
436 x 260 x 146

Cooling
Air-Cooled

Operating Humidity Range (%)
20 to 80

Output Bandwith (nm)
0.1

Beam Diameter (nm)
2

Output Fiber
SM2000

SPT-TME-N-PC - Parameter

Average Power (mW)
> 1

Tail Fiber Connector Type
FC/PC

Beam Quality
TEM00

Working Wavelength (nm)
1900 to 2000

Supply Voltage (VDC)
100 to 240(50Hz/60Hz)

Operating Temperature Range (°C)
15 to 35

Storage Temperature Range (°C)
-20 to 50

Storage Humidity Range (%)
20 to 80

Weight Of Laser Head (kg)
17

Dimension Of Laser Head (mm)
436 x 260 x 146

Cooling
Air-Cooled

Operating Humidity Range (%)
20 to 80

Output Bandwith (nm)
0.1

Beam Diameter (nm)
2

Output Fiber
Nufern PM1950 Fiber
