Electrically Adjustable Optical Delay Line | SIMTRUM Photonics Store

Products / Optics /Fiber Optics /Electrically Adjustable Optical Delay Line /

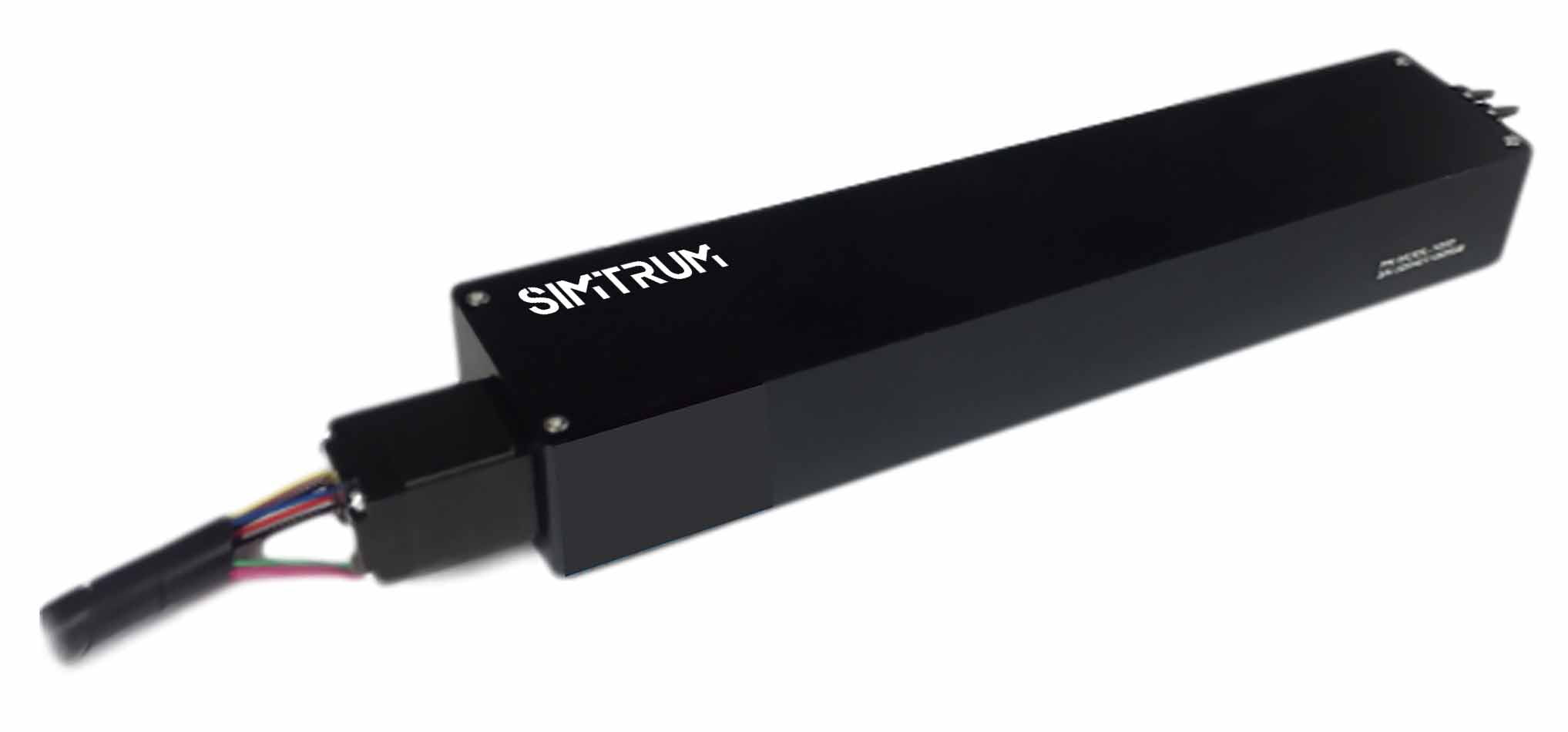

Electrically Adjustable Optical Delay Line
Overview & Specifications Related Product Order Now!

SIMTRUM's  electric optical adjustable delay device is an electronic control, accurate adjustment of optical delay device, with the characteristics of high integration and low cost. The device can provide 300ps, 660ps, 1000ps optical delay. Four-wire accurate delay control is controlled remotely via RS-232, RS485, or RS422 interfaces, and a portable LCD controller is also available for user convenience.

Features

  • Low insertion loss
  • High integration, electric control
  • Stable and reliable

Application

  • Optical interferometer
  • Optical coherence tomography
  • Optical coherence communication
  • Radar calibration


Product specifications

Optical delay range（ps） 0~300 0~660 0~1000
  Delay minimum resolution（fs） 4.2 4.2 4.2
  Optical delay accuracy（fs） 34
  Insertion loss <1.5 dB <1.5 dB <2 dB
  Change in insertion loss ±0.5 dB
  Return loss >55 dB
  Operating wavelength 1310 nm\1550 nm\1310nm&1550nm
  Optical power threshold 300 mW
  Electrical interface RS-485(RS232、422 must be stated at the time of ordering)
  Operating temperature 0~50℃(Below 0 degrees need to be screened)
  Storage temperature -20~70℃
  Dimension(mm) 110*45*29 160*45*29 210*45*29
  Pigtail type SMF-28、Panda PM





Femtosecond Pulse Fiber Laser

Product Wavelength Range Pulse Width Average Power Rep Rate Pulse Energy
  780nm Femtosecond Laser   780±10 nm <100 fs >30 mW 80 MHz >0.4 nJ
  780/1560nm Dual Output FS Laser 780/1560±10 nm <100 fs >100mW 80 Mhz >1.25 nJ
  1030nm Femtosecond Laser   1030±5 nm >200 fs >60 mW 25 MHz >4 nJ
  1040/50nm Femtosecond Laser   1040/50nm <150 fs 5 - 10 W 80 Mhz >80 nJ
  1560nm Femtosecond Laser   1560±10 nm 50 - 500 fs 1 mW - 1 W 80 Mhz - 200 MHz >10 nJ
  2000nm Femtosecond Laser  1970±10 nm 200 fs 200 mW 80 MHz >2.5 nJ





Mirror Mounts

 Kinematic Mirror Mounts
Fixed Mirror Mounts
Gimbal Mirror Mounts

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
OE-CQ01-MODL-300-SM
OE-CQ01-MODL-300-SM，Operating wavelength：1550nm&1310nm，Optical delay range：0~300 ps，Minimum resolution ：4.2 fs，Accuracy：34 fs，Insertion loss ：<1.5 dB 		4-6week $2002.16
OE-CQ01-MODL-300-PM
OE-CQ01-MODL-300-PM，Operating wavelength：1550nm，Optical delay range：0~300 ps，Minimum resolution ：4.2 fs，Accuracy：34 fs，Insertion loss ：<1.5 dB 		4-6week $2803.03
OE-CQ01-MODL-600-SM
OE-CQ01-MODL-600-SM，Operating wavelength：1550nm&1310nm，Optical delay range：0~660 ps，Minimum resolution ：4.2 fs，Accuracy：34 fs，Insertion loss ：<1.5 dB 		4-6week $2402.59
OE-CQ01-MODL-600-PM
OE-CQ01-MODL-600-PM，Operating wavelength：1550nm，Optical delay range：0~660 ps，Minimum resolution ：4.2 fs，Accuracy：34 fs，Insertion loss ：<1.5 dB 		4-6week $3203.46
OE-CQ01-MODL-1000-SM
OE-CQ01-MODL-1000-SM，Operating wavelength：1550nm&1310nm，Optical delay range：0~1000 ps，Minimum resolution ：4.2 fs，Accuracy：34 fs，Insertion loss ：<1.5 dB 		4-6week $2602.81
OE-CQ01-MODL-1000-PM
OE-CQ01-MODL-1000-PM，Operating wavelength：1550nm，Optical delay range：0~1000 ps，Minimum resolution ：4.2 fs，Accuracy：34 fs，Insertion loss ：<1.5 dB 		4-6week $3603.89

OE-CQ01-MODL-1000-PM - Parameter

OE-CQ01-MODL-1000-SM - Parameter

OE-CQ01-MODL-600-PM - Parameter

OE-CQ01-MODL-600-SM - Parameter

OE-CQ01-MODL-300-PM - Parameter

OE-CQ01-MODL-300-SM - Parameter

OE-CQ01-MODL-1000-PM - Download

OE-CQ01-MODL-1000-SM - Download

OE-CQ01-MODL-600-PM - Download

OE-CQ01-MODL-600-SM - Download

OE-CQ01-MODL-300-PM - Download

OE-CQ01-MODL-300-SM - Download
