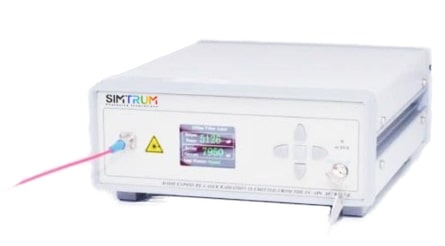

C-Band Tunable Fiber Laser

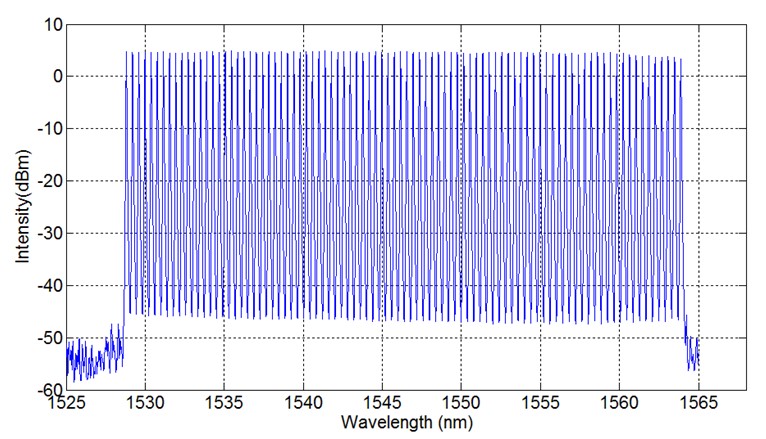

The C-band Tunable Fiber Laser covers the C-band for continuous laser output of up to 89 wavelengths (ITU-T standard wavelength, wavelength interval  50GHz). The adjustable filter and high gain chip are integrated and have the characteristics of high output optical power, narrow line width and high wavelength accuracy. Equipped with a dedicated drive control circuit, high-definition color LCD screen, and optional on-board software, users can easily make precise tuning of wavelengths. The series can also be used in DWDM system development, fiber laser, fiber link, optical device testing and other fields.



Characteristic

-89 Wavelengths Available

-High Power Stability

-High Supression Ratio


Applications

-DWDM System

-Fiber Link

-Optical Device Testing





General Specifications

Optical indicators

Unit

Typical value

Remark

Wavelength   tuning range

nm

1528.77~1563.86

ITU standard C61 to C17

Frequency   tuning range

THz

191.7~196.1


Channel   interval

GHz

50

Equivalent to 0.4nm

Edge   mode suppression ratio

dB

>50


The   number of wavelength channels

-

89


Output   optical power

mW

10/20


Short-term   stability (15 minutes).

dB

≤ 0.02

Single wavelength full temperature

Long-term   stability (8 hours).

dB

≤ 0.05

Single wavelength full temperature

Tail fiber type

-

SMF-28e or PM1550


Tail fiber connector type

-

FC/APC



Electrical and environmental parameters

Desktop

Module

The way of control

keystroke

RS232 serial communication

The communication interface

:: Optional

DB9 Female

Power  supply

100~240V AC, <30W

5V DC, <15W

The size of the inch

260(W)×280(D)×120(H)mm

125(W)×150(D)×20(H)mm

Operating temperature range

-5~+55°C

Operating humidity range

0~70%


Order information / model number

TFL

The spectral range

Output   power (mW).

Output   tail fiber type

The   encapsulation form


The C-C band

10/20

SM - Single-mode fiber

PM - Secure fiber

B- Desktop

M - Module




Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Technical Assistance and Email Quotations (Recommended for Custom Orders, inquiries)

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


Local Same Day Service

SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.


International Inquiries

SIMTRUM provides worldwide shipping and inquiry management. Please contact us for more information.




Search Reset

TFL-C-10-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
10

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28e or PM1550

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Communication Interface
Optional

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Wavelength Tuning Range (nm)
1528.77 to 1563.86

Frequency Tuning Range (THz)
191.7 to 196.1

Channel Interval (GHz)
50

Edge Mode Suppression Ratio (dB)
> 50

No. Of Wavelength Channels
89

Polarization DOP (dB)
≤ 0.02

TFL-C-10-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
10

Dimensions (mm)
125 x 150 x 20

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28e or PM1550

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Communication Interface
DB9 Female

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Wavelength Tuning Range (nm)
1528.77 to 1563.86

Frequency Tuning Range (THz)
191.7 to 196.1

Channel Interval (GHz)
50

Edge Mode Suppression Ratio (dB)
> 50

No. Of Wavelength Channels
89

Polarization DOP (dB)
≤ 0.02

TFL-C-20-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Saturated Output Power (dBm)
20

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28e or PM1550

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Communication Interface
Optional

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Wavelength Tuning Range (nm)
1528.77 to 1563.86

Frequency Tuning Range (THz)
191.7 to 196.1

Channel Interval (GHz)
50

Edge Mode Suppression Ratio (dB)
> 50

No. Of Wavelength Channels
89

Polarization DOP (dB)
≤ 0.02

TFL-C-20-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
20

Dimensions (mm)
125 x 150 x 20

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28e or PM1550

Operating Humidity (%)
0 to 70

Communication Interface
DB9 Female

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Wavelength Tuning Range (nm)
1528.77 to 1563.86

Frequency Tuning Range (THz)
191.7 to 196.1

Channel Interval (GHz)
50

Edge Mode Suppression Ratio (dB)
> 50

No. Of Wavelength Channels
89

Polarization DOP (dB)
≤ 0.02
