Manually Adjustable Optic Delay Line
Overview & Specifications Related Product Order Now!

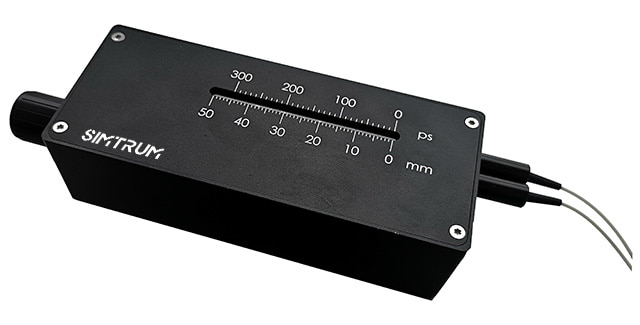

SIMTRUM's manual adjustable delay line is a portable device for adjusting optical delays, characterized by its high integration and low cost. This device can provide an optical delay of up to 300 picoseconds, with precise delay control achieved by rotation. The accurate delay information can be instantly read in millimeters or picoseconds using the length scale marked on the panel.



Feature

  • Low insertion loss
  • High integration, electrically controlled
  • Stable and reliable

Application

  • Optical Interferometer
  • Optical Coherence Tomography (OCT) Imaging
  • Coherent Optical Communication
  • Radar Calibration

 Product specifications

Parameter OP-CQ01-ODL-300 OP-CQ01-ODL-600
  Optical delay range（ps） 0~333ps(100mm) 0~660ps(200mm)
  Delay minimum resolution（fs） 0.17ps(50μm)
  Optical delay accuracy（fs） 3.4ps(0.1mm)
  Insertion loss <1.2dB
  Change in insertion loss ±0.3dB
  Return loss >55dB
  Operating wavelength 1060/1310/1550nm
  Optical power threshold 300mW
  Operating temperature 0~50℃
  Storage temperature -20~70℃
  Dimension(mm) 110*45*29mm 160*45*29mm
  Pigtail type SMF-28、PandaPM
