Power Meter Console

Product Brochure:

OPM150_Console. PDF  | Sensor Head Summary.PDF | Integrating-sphere_Polymer.PDF

Power Meter Console Comparison

Input

OPM 150

OPM 200

OPM 500

Detector Heads

Free Beam / Fibre Heads

Fibre Heads

USB Port

Yes

No

Yes

Output

Digital & Analogue

Analogue

Digital & Analogue

Power Range

nW - kW

µW - mW

pW - mW

Accuracy

± 4

± 5

Reproducibility

± 1

± 0.5

Linearity

± 0.2

The OPM150

is low cost, versatile and small enough to fit into your pocket, it is designed for use with a PC only, thus eliminating the

need for a display making it very economical. It also has a response time of 100µs and sampling rates up to 600S/s

with no thermal drift to worry about and customizable wavelength range.



Characteristics

-Interfaces: USB measurement rate: 30ms to 999s

-Minimum measurable power: 1nW (photodiode)

-Maximum measurable power: 5kW (Integrating sphere)

-Gain control: 5 gain ranges

-Functions: Graph and digital display modes, averaging



Applications

- Laboratory

- Laser Servicing

-OEMs


 ItemOPM150 - 10kHzOPM150 - 100kHzOPM150 - 5HzUnits
 Order Code
30.070.0000230.070.0005830.070.0012
 Application
CW and Pulse source >300kHzCWCW and Pulse source >500kHz
 Input
 Max. Current
12412mA
 Output
 Connectors
DB9 (detector head) and USBDB9 (detector head) BNC and USBDB9 (detector head) and USB
 Bandwidth
10 000100 0005Hz
 Sampling RateGUI-Control303030S/s
Direct polling600600600
 Gain Stages
1, 10, 100, 1000, 100001, 10, 100, 1000, 100001, 10, 100, 1000, 10000V/mA
 AccuracyDetector±   4±   4±   4%
 AccuracyBase Unit±   1±   1±   1%
 ReproducibilityDetector±   1±   1±   1%
 LinearityDetector±   0.2±   0.2±   0.2%
 Power supply




 Type
USBUSBUSB
 Dimensions

Base module60   x 81 x 36 mm   (W   x L x H)60   x 81 x 36 mm   (W   x L x H)60   x 81 x 36 mm   (W x L x H)mm
Head35   x 30 (Φ x L)35   x 30 (Φ x L)35   x 30 (Φ x L)



Product Brochure:

OPM200englRevB-1  | Sensor Head Summary.PDF | Integrating-sphere_Polymer.PDF

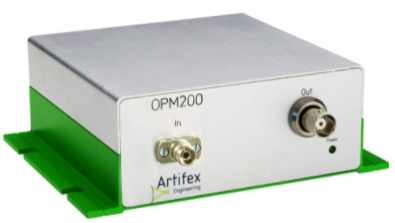

The OPM200

employs high quality photodiodes and precision transimpedance input stages to provide for low offset and high linearity throughout the full dynamic range. It is particularly useful for the measurement of rapidly changing optical signals as this units have a particularly high bandwidth of 10MHz allowing monitoring of high frequency noise components of many light sources. The output is a voltage linearly proportional to input power. The fast response time at high signal-noise-ratio makes the OPM200 series particularly useful in systems control feedback loops. The OPM200 series is insensitive to electromagnetic interference by design, an important factor when working in “dirty” industrial environments.

Characteristics:

-Interfaces: DB9 (Analog Outputs)

Rise time: 35ns(10MHz)

-Noise equivalent power: 1µW (RMS)

-Gain control: none

Applications:

-industrial

-OEMS



                                                                                                                                              Input

Wavelength range

UV-Si

200 – 950

800 – 1600

nm

VIS-InGaAs

400 – 1600

x2.0-InGaAs

500 – 2000

x2.2-InGaAs

800 – 2200

Power ranges (full scale)


4.51

452

mW

Noise equivalent power (NEPRMS )


0.3 (max)

3 (max)

µW

Polarization Dependant Loss (PDL)


0.1

0.1

dB

Fibre Type


single mode, multi mode

single mode, multi mode


(Ø core ≤ 62.5µm; NA ≤ 0.275)

(Ø core ≤ 62.5µm; NA ≤ 0.275)

Receptacles


FC, SMA, free beam

FC, SMA, free beam


Output

Function


Linear analogue : Vout = scale faktor x Iin

Linear analogue : Vout = scale faktor x Iin


Output scale


1

0.1

V/mW

Output range (full scale)


4.4 – 4.63


V

Connectors


BNC4 and DB9

BNC4 and DB9


Rise / Fall time (10% – 90%)


35 (max)

35 (max)

ns

Setting time (1%)


100 (max)

100 (max)

ns

Accuracy


± 5 (min)

± 5 (min)

%

Reproducibility


± 0.5 (min)

± 0.5 (min)

%

Linearity


± 0.1 (typ)

± 0.1 (typ)

dB

± 0.2 (max)

± 0.2 (max)

Output Impedance


50 (max)

50 (max)

Ω

Power supply

Type


wall plug (supplied)

wall plug (supplied)


Dimensions


30 x 50 x 60

30 x 50 x 60

mm

Dimensions


1 channel

1055 x 45 x 116 (w x h x l)

1055 x 45 x 116 (w x h x l)

mm


2 channels

1055 x 66 x 116 (w x h x l)

1055 x 66 x 116 (w x h x l)

mm


4 channels

1055 x 106 x 116 (w x h x l)

1055 x 106 x 116 (w x h x l)

mm



Product Brochure:

OPM500Eng.PDF  | Sensor Head Summary.PDF | Integrating-sphere_Polymer.PDF

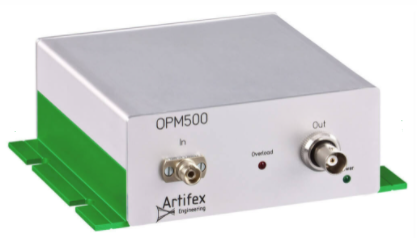

The OPM500

is designed for the precise measurement of power, from pW to mW with the output being a voltage linearly proportional to the input power. The OPM500 is very flexible with USB and hard-wire interface control of gain, bandwidth, and polarity.

Characteristics

-Interfaces: USB and hard-wire (DB25)

-Rise time: 45µs

-Noise equivalent current: 30 PW(RMS)

-Gain bandwidth & polarity control: 6 gain ranges; 4 bandwidths; polarity inversion

-Auto-null function: up to 10V offset nulling

Applications

- Industrial

-OEMs



                                                                                                                                                                                                             Input

Wavelength range

extended InGaAs

950 – 2100

800 – 1500

dBm


InGaAs

800 – 1650


dBm


visible enhanced InGaAs

400 – 1600


dBm


UV-Si

190 – 950


dBm

Power ranges (full scale)


51

15

dBm

0

10

– 10

0

– 20

– 10

– 30

– 20

– 40

– 30

Noise equivalent power (NEPRMS )

Range 1 – 5

full scale – 45 (max)

full scale – 32 (max)

dB

Range 6

– 75 (max)

– 62 (max)

dBm

Polarization Dependant Loss (PDL)


0.02 – 0.1

0.02 – 0.1

dB

Fibre type


single mode, multi-mode

single   mode, multi-mode (core Φ ≤ 62.5 μm; NA ≤ 0.275)


(Core Φ ≤ 62.5 μm; NA ≤ 0.275)

Receptacles


FC, SMA, free   beam

FC, SMA, free beam


Output

Function


Linear analogue : Vout = scale factor x Pin

Linear analogue : Vout = scale factor x Pin


Output scale

Range 1

11

0,1

V/mW

Range 2

10

1

V/mW

Range 3

100

10

V/mW

Range 4

1

0,1

V/µW

Range 5

10

1

V/µW

Range 6

100

10

V/µW

Output range (full scale)


10 (max)

10   (max)

V

Connectors


BNC and DB25 (Adapters for other connector systems available)

BNC and DB25 (Adapters for other connector systems available)


Rise / Fall time (10%   – 90%)

Small signal (-1 →   +1V)

45 (max)

45   (max)

µs

Large signal (-10 →  +10V)

65 (max)

65   (max)

Accuracy


± 5 (min)

±   5 (min)

%

Reproducibility


± 0.5 (min)

±   0.5 (min)

%

Linearity


± 0.1 (typ)

±   0.1 (typ)

dB

± 0.2 (max)

±   0.2 (max)

Output impedance

BNC-Output

50

50

Ω

DB25-Output

0

0

Logic

Current required for   switching


– 10 (min)

–   10 (min)

µA

0.01 (typ)

0.01 (typ)

10 (max)

10 (max)

Switching time


1502 (max)

1502 (max)

µs

Power supply

Type


Wall plug (supplied)

Wall plug (supplied)


Dimensions


30 x 50 x 60

30 x 50 x 60

mm

Dimensions



1053 x 45 x 116 (B x H x L)

1053 x 45 x 116 (B x H x L)

mm



Choose the Power Sensor based on wavelength (Click Here)

SIMTRUM offers two types of sensor head Free beam and Fiber coupled, Wtih various diode materials allow measurement from 250nm to 2500nm. Silicon sensor wavelength range covers 250nm -110nm , Gemanium sensor wavelength range covers 800nm-1500nm, InGaAs sensor wavelength range covers 400-2500nm. The calibration file of each head is stored into its connector. Thus, changing wavelength range is as simple as swapping heads.



Optical Density Filter Choice

We offer caliberated attenuation filters which extend the range of free beam heads by up to three orders of magnitude. Power range cover from 1nW to 300mW



For High Power sensing combime sensor with integrating sphere. Click here

We offer integrating sphere which can extend your high power measurement from 2uW to 100W.With a response time tof 100us and sampling rates up to 600S/s, there is much more to see than with a thermopile sensor. And no thermal drift to worry about either!



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
OPM 150 Power Meter Console 12mA
Max Current 12 mA Measurement bandwidth: 10kHz , Interfaces: USB, Compatible with full range power meter sensor
In Stock $360 - 450
OPM 150 Power Meter Console 4mA
Max Current 4 mA Measurement bandwidth: 100kHz , Interfaces: USB, Compatible with full range power meter sensor
In Stock $370 - 480
OPM 500 Power Meter Console
Compatible with SI, InGaAs, Ge power detector, Only suitable for Fiber input power meter, Power Range pW to mW
In Stock Request for quote
OPM 200 Power Meter Console
Compatible with SI, InGaAs, Ge power detector, Only suitable for Fiber input power meter, only Analogue output, Power Range uW to mW
In Stock Request for quote

OPM 200 Power Meter Console  - Parameter

OPM 500 Power Meter Console  - Parameter

OPM 150 Power Meter Console 4mA  - Parameter

OPM 150 Power Meter Console 12mA  - Parameter

OPM150 Retainer Ring - Parameter

OPM150 Lens Tube Adapter (external, male) - Parameter

OPM150 Lens Tube Adapter (internal, female) - Parameter

OPM150 Filter OD2 Absorbing - Parameter

OPM150 Filter OD1 Absorbing - Parameter

OPM150 Filter Mount - Parameter

OPM150 Fibre Adapter LC - Parameter

OPM150 Fibre Adapter SMA - Parameter

OPM150 Fibre Adapter FC - Parameter

OPM150 Fibre Adapter 1.25 mm - Parameter

OPM150 C-Mount-Adapter (internal, male) - Parameter

OPM150 C-Mount-Adapter (internal, female) - Parameter

OPM150 Aperture 7mm - Parameter

OPM150 Adapter Mounting Tool - Parameter

OPM 200 Power Meter Console  - Download

OPM 500 Power Meter Console  - Download

OPM 150 Power Meter Console 4mA  - Download

OPM 150 Power Meter Console 12mA  - Download

OPM150 Retainer Ring - Download

OPM150 Lens Tube Adapter (external, male) - Download

OPM150 Lens Tube Adapter (internal, female) - Download

OPM150 Filter OD2 Absorbing - Download

OPM150 Filter OD1 Absorbing - Download

OPM150 Filter Mount - Download

OPM150 Fibre Adapter LC - Download

OPM150 Fibre Adapter SMA - Download

OPM150 Fibre Adapter FC - Download

OPM150 Fibre Adapter 1.25 mm - Download

OPM150 C-Mount-Adapter (internal, male) - Download

OPM150 C-Mount-Adapter (internal, female) - Download

OPM150 Aperture 7mm - Download

OPM150 Adapter Mounting Tool - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
OPM150 Adapter Mounting Tool
Two pin type mounting tool , 1.2mm pins at 20mm spacing , 16mm free aperture tube
In Stock Request for quote
OPM150 Aperture 7mm
Reduces the input aperture of a detector to 7mm diameter , External (male) M23.2 x 0.75 thread , 7.0 ±0.05mm free aperture
In Stock Request for quote
OPM150 C-Mount-Adapter (internal, female)
Accepts C-mount (1”x32TPI) external (male) threaded parts such as lens tubes and camera optics , External (male) M23.2 x 0.75 thread , Internal (female) C-mount (1”x32TPI) thread
In Stock Request for quote
OPM150 C-Mount-Adapter (internal, male)
Accepts C-mount (1”x32TPI) internal (female) threaded parts such as lens tubes and camera optics , External (male) M23.2 x 0.75 thread , Extermal (male) C-mount (1”x32TPI) thread
In Stock Request for quote
OPM150 Fibre Adapter 1.25 mm
1.25mm ferruled fibres , External M23.2 x 0.75 thread
In Stock Request for quote
OPM150 Fibre Adapter FC
FC-PC and FC-APC connectorized fibres , External M23.2 x 0.75 thread
In Stock Request for quote
OPM150 Fibre Adapter SMA
SMA connectorized fibres , External M23.2 x 0.75 thread
In Stock Request for quote
OPM150 Fibre Adapter LC
LC connectorized fibres , External M23.2 x 0.75 thread
In Stock Request for quote
OPM150 Filter Mount
Accepts plano optics and mechanics up to 9mm thickness , External (male) M23.2 x 0.75 thread , Internal (female) M23.2 x 0.75 thread
In Stock Request for quote
OPM150 Filter OD1 Absorbing
Extends power range by approximately 10x , Absorbing type neutral density filter , Maximum power handling: 1W CW in at least 5mm diameter beam , External (male) M23.2 x 0.75 thread
In Stock Request for quote
OPM150 Filter OD2 Absorbing
Extends power range by approximately 100x , Absorbing type neutral density filter , Maximum power handling: 1W CW in at least 5mm diameter beam , External (male) M23.2 x 0.75 thread
In Stock Request for quote
OPM150 Lens Tube Adapter (internal, female)
Accepts 1.035”x40TPI external (male) threaded parts such as lens tubes , External (male) M23.2 x 0.75 thread , Internal (female) 1.035”x40TPI thread
In Stock Request for quote
OPM150 Lens Tube Adapter (external, male)
Accepts 1.035″x40TPI internal (female) threaded parts such as lens tubes , External (male) M23.2 x 0.75 thread , External (male) 1.035”x40TPI thread
In Stock Request for quote
OPM150 Retainer Ring
Allows mounting plano optics and mechanics of up to 7mm thickness , External (male) M23.2 x 0.75 thread , 16mm free aperture
In Stock Request for quote
