Hybrid Fiber Components | SIMTRUM Photonics Store

Hybrid Fiber Components

Hybrid Fiber Components devices integrating different fiber types, enabling enhanced performance and functionality in fiber optic systems.

Parameters Stage Wavelength(nm) Excess Loss @23(dB) Extinction Ratio @23(dB)

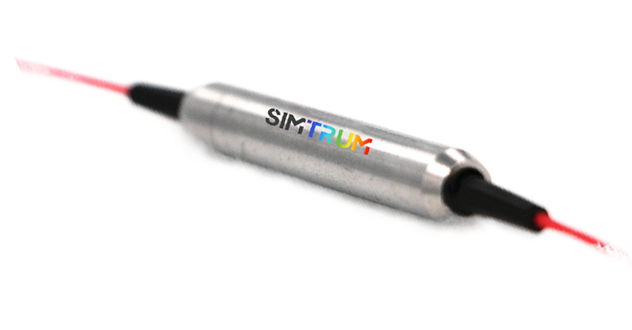

1064-2050nm PM Tap Isolator Hybrid (Faraday Based) Single/Dual 1950/ 2000/2050 1-3.5 18-20
PM Isolator & WDM Hybrid (Faraday Based) Single/Dual 1064/1550/2000 - 18-20
1064-2050nm Optical Isolator & Bandpass Filter Single/Dual 1064/2000 - 18-20
1064-2050nm Isolator & Polarization Beam Splitter/Combiner Single/Dual 1064/1310/1550/2000 - 18-22
PM Isolator & Tap & WDM Hybrid (Faraday Based) Single/Dual 1064/1550/2000 1.3-3.5 18-20
1064-2050nm PM Isolator & Tap & Bandpass Filter Single/Dual 1064/1550/2000 - 18-20
PM Isolator & Tap & WDM & Bandpass Filter (Faraday Based) Single/Dual 1064/1550/2000 - 18-20
PM Tap Coupler & WDM Hybrid Single 980/1064/1480/1550/2000 1-1.5 18
780-1080nm High Power Tap Isolator Hybrid (TGG Based) Single 780/850/980/1030/1064/1080 - 20
High Power Isolator & WDM Hybrid (TGG Based) Single 1030/1064 - 20/18
980-1080nm Optical Isolator & Bandpass Filter (TGG Based) Single 980/1030/1064 - -
980-1080nm Isolator & Tap & Bandpass Filter (TGG Based) Single 980/1030/1064 - -
High Power Isolator & Tap & WDM Hybrid (TGG Based) Single 1020-1080 1,2 20
High Power Isolator & Tap & WDM & Bandpass Filter Hybrid Single 1020-1080 1.3 20

Technical Support Available: Contact us  You can download our full Product Line Card Click Here
