Infrared Pyrometers

Each series of our PYROSPOT range is characterized by a variety of technical features. The matrix gives you a quick overview of the most important main features. Different housing shapes allow you to optimally adapt to the environmental conditions prevailing on site.

PYROSPOT SeriesTemperature RangeSpectral RangeInterfaceAiming and Targeting Aid
Series 1x0 °C to 3000 °C0.7 µm to 14 µmRS-485LED or Laser-Aiming light adapter,
    Through-lens sighting, Color video camera
Series 2x and 3xSeries 2x: –20 °C to 700 °C,
 Series 3x: 600 °C to 1800 °C
Series 2x: 8 µm to 14 µm,
   Series 3x: 0.8 µm to 1.1 µm
Parameter InterfaceLaser-Aiming light adapter
Series 4x–40 °C to 2500 °C0.7 µm to 14 µmUSB, RS-485, Ethernet

Laser-Aiming light adapter, LED aiming light

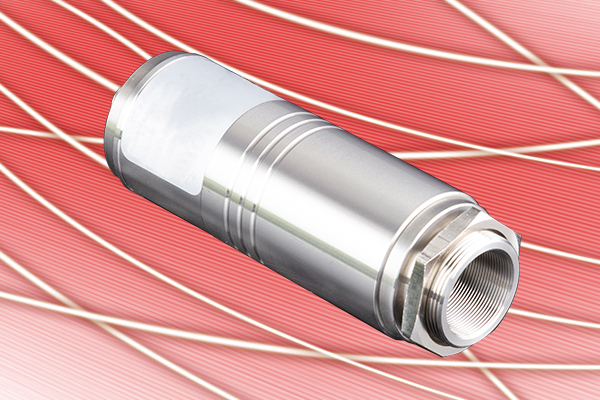

Series 5x–40 °C to 3000 °C0.7 µm to 2.6 µmRS-485

Through-lens sighting, Laser, Video

Series 8x200 °C to 3000 °C0.7 µm to 1.8 µmUSBTFT color display, laser
