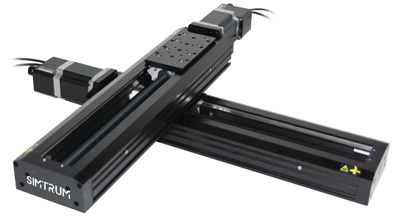

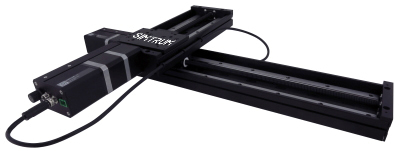

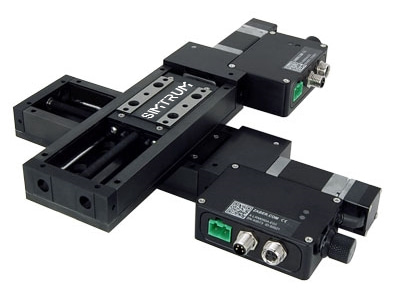

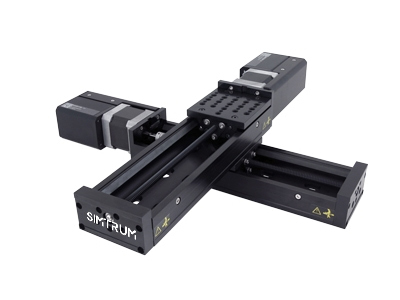

XY Stepper Motor Stages
Overview Specifications Model comparison Controllers Accessories Related Products Order Now！

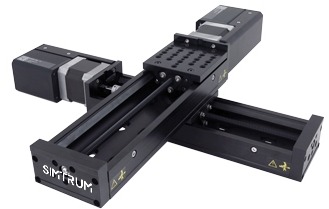

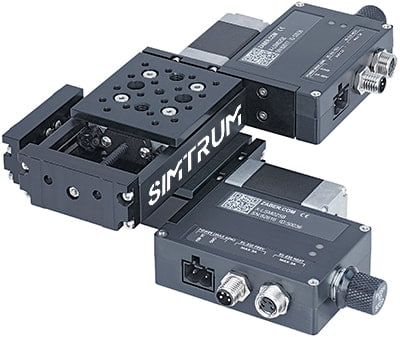

SIMTRUM's XY Stepper Motor Stages  is a highly integrated and convenient motorized Stages with built-in controller, designed to enhance the accuracy and responsiveness of the system for superior performance.


Features

  • Built-in controller simplifies system configuration and installation
  • Available in various speed / resolution options
  • Optimized for precision, performance, and reliability
  • The device can be connected to a computer via a USB or RS-232 port. Additionally, multiple units can be daisy-chain to share data and power, reducing wiring and simplifying setup.



 Applications
  • Laser marking/engraving system
  • 3D printing
  • Optical microscope
  • Electronic component patch


ST-XY-LSQ

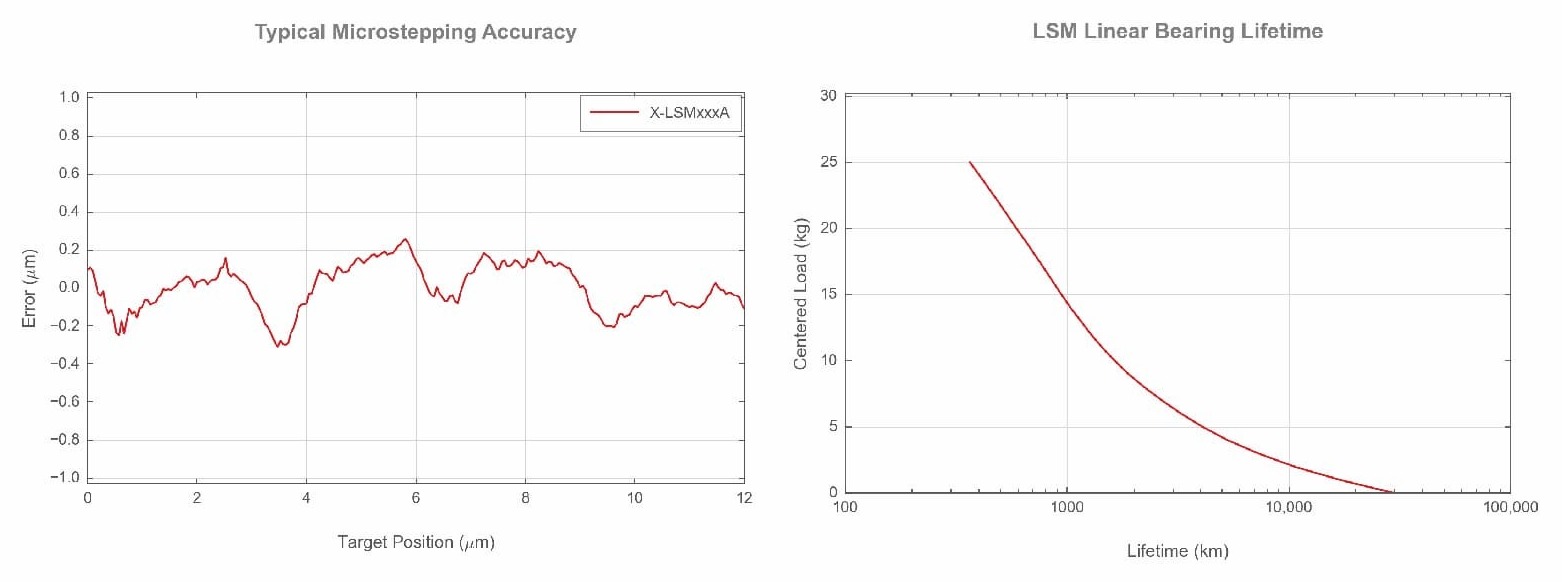

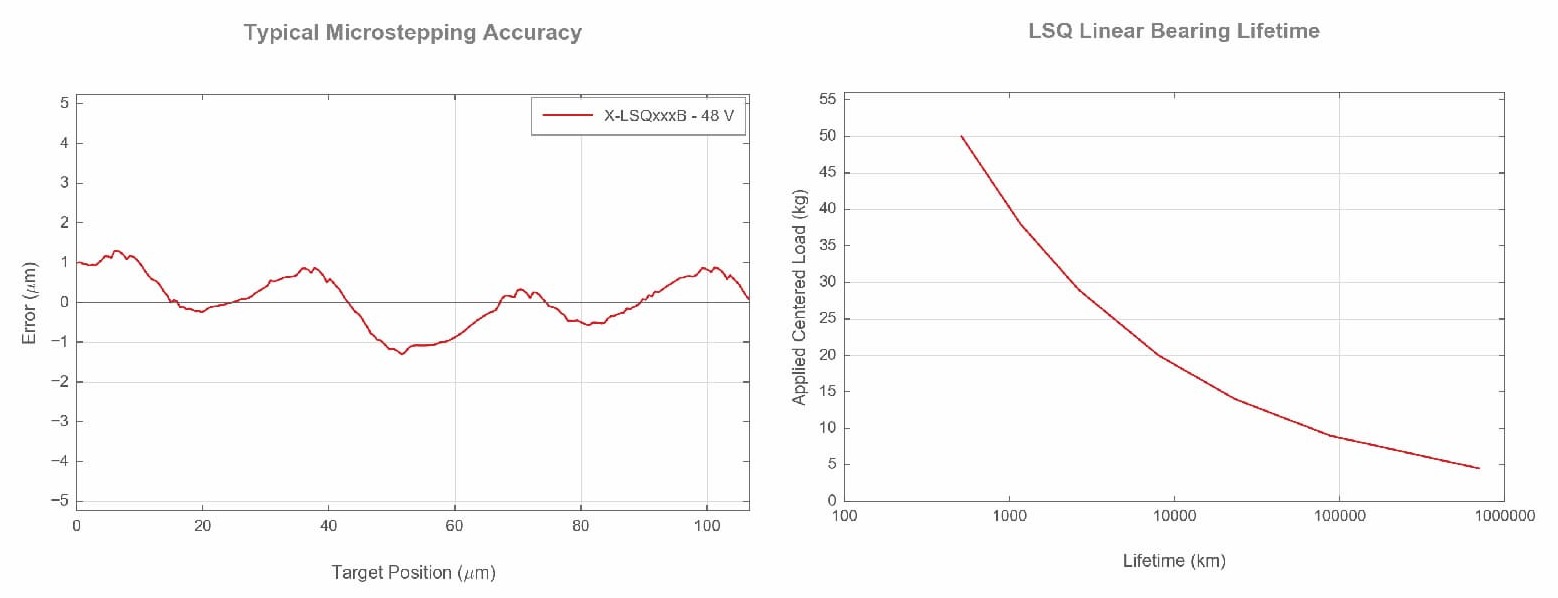

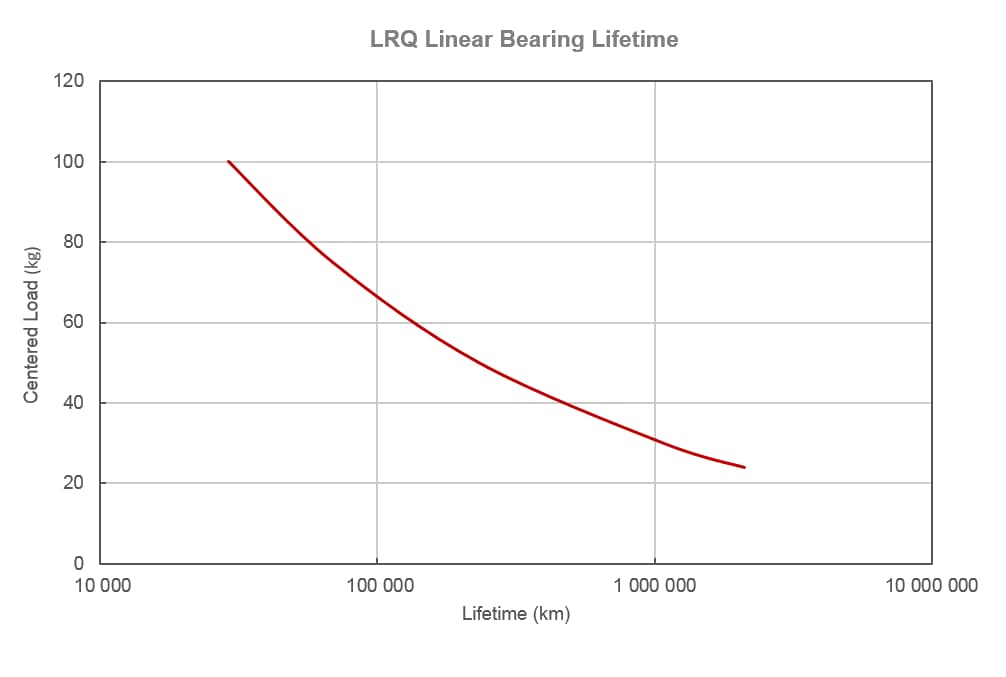

Specification Charts

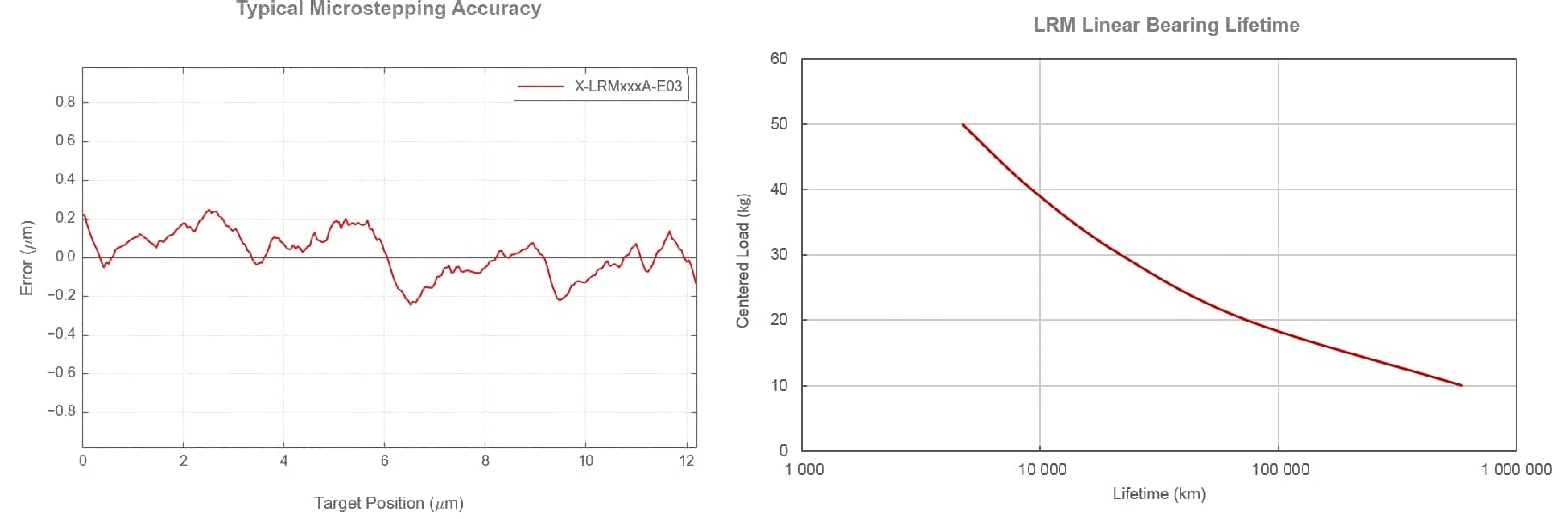

ST-XY-LRM

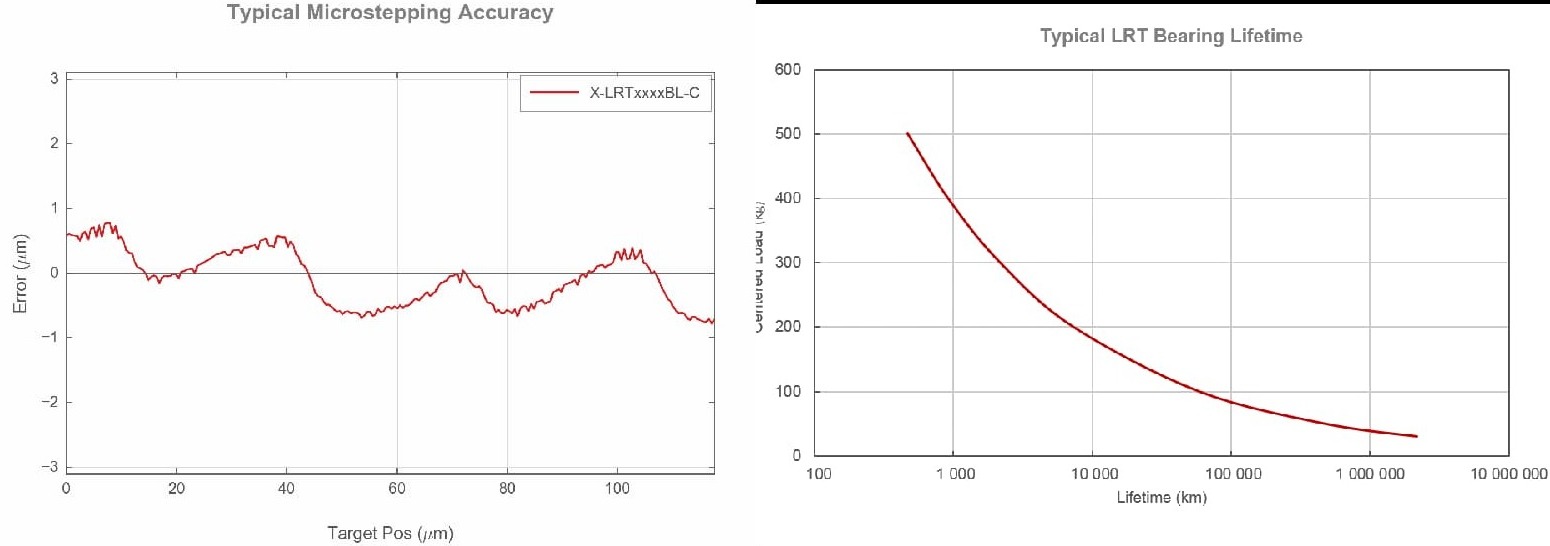

ST-XY-LRT

ST-XY-LSM
ST-XY-LSQ
ST-XY-LRQ

Specifications
Model ST-XY-LRT ST-XY-LRQ ST-XY-LSQ ST-XY-LRM ST-XY-LSM
  Travel（mm） 100-1000 75-600 75-300 25-200 25-200
  Best LoadCapacity(kg) 500 100 50 50 25
  Highest Speed（mm/s） 175 270 280 25 26
  Best Accuracy（μm） 25 15 45 8 15
  Best Repeatability（μm） <4 <2.5 <3 <4 <3
  Default Resolution（μm） 0.496 0.496 0.496 0.047 0.047

Drawings（mm）

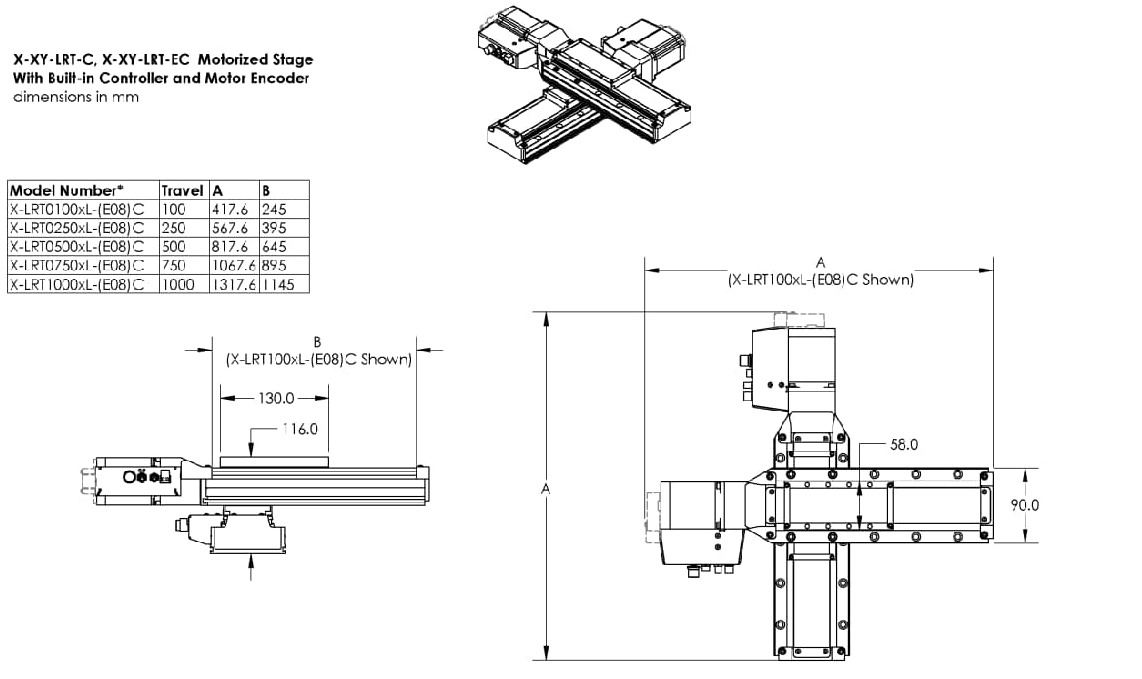

ST-XY-LRT

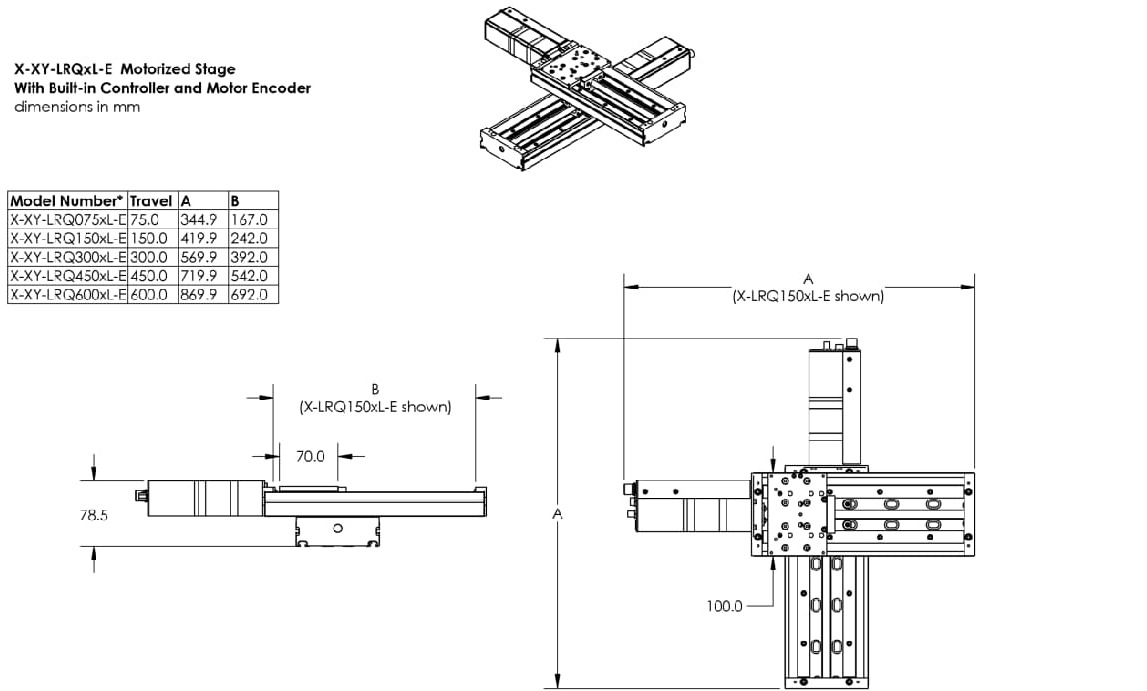

ST-XY-LRQxL（Lnline Drive）

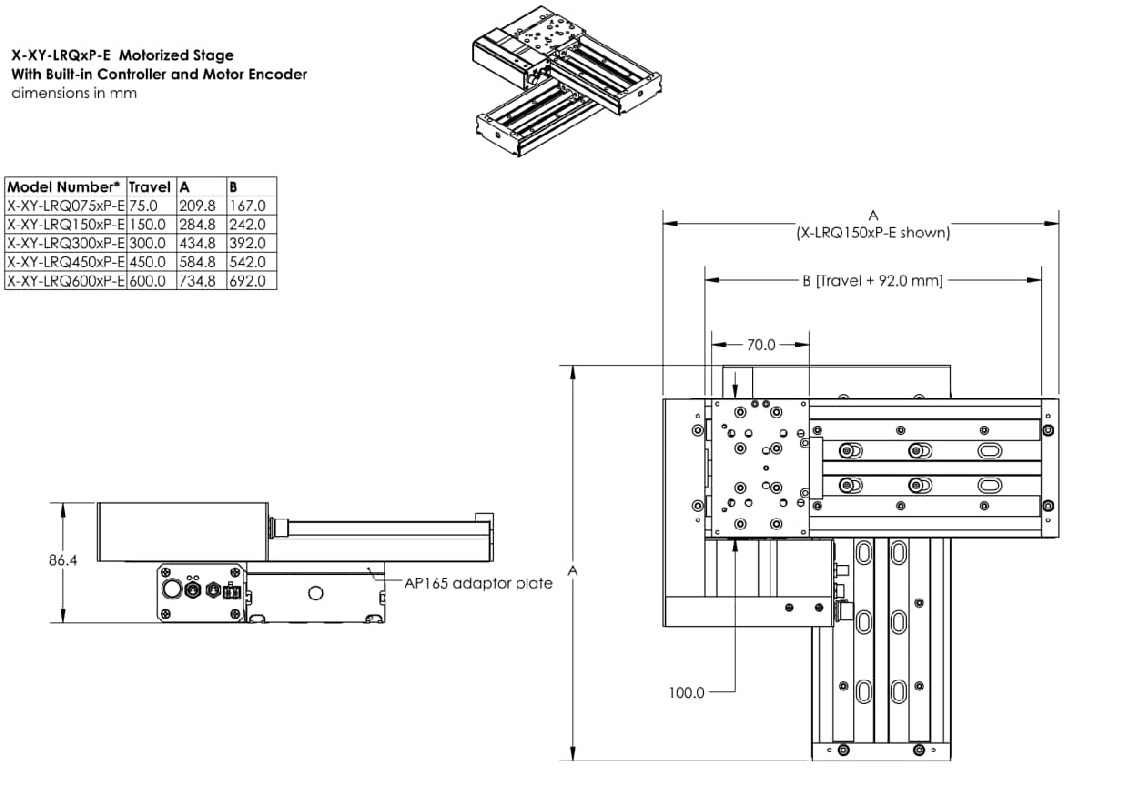

ST-XY-LRQxP（Parallel Drive）

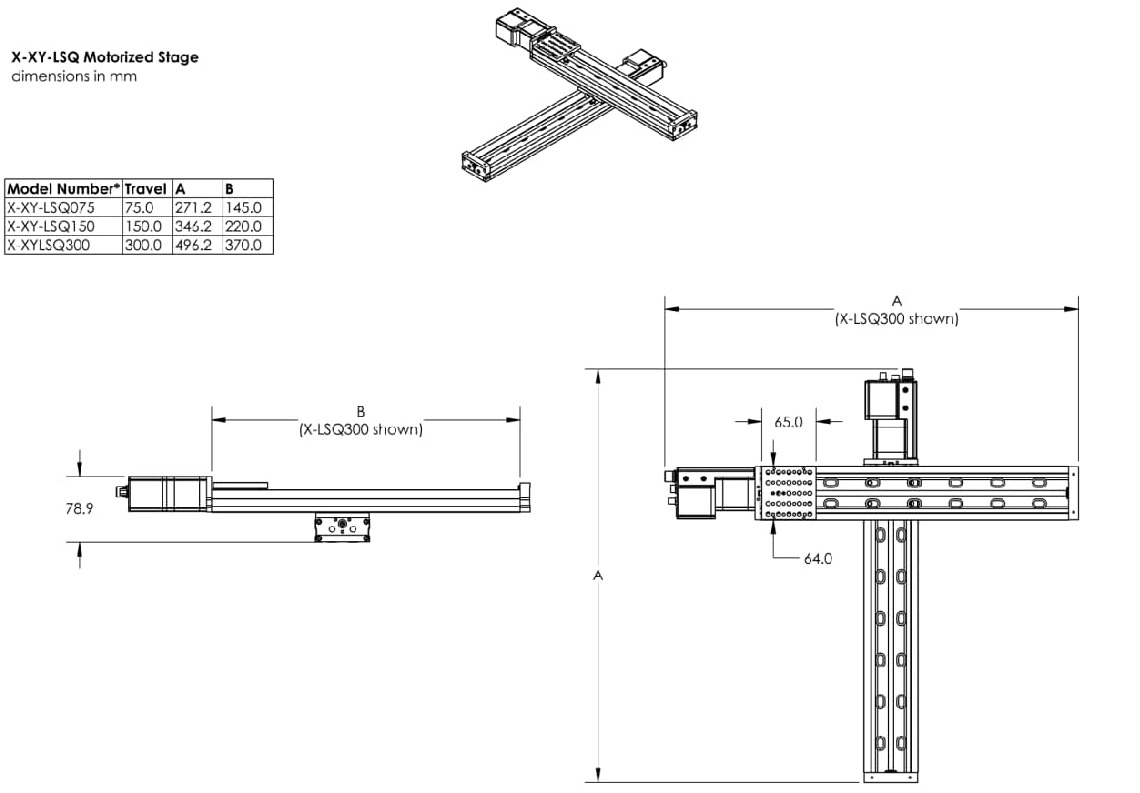

ST-XY-LSQ

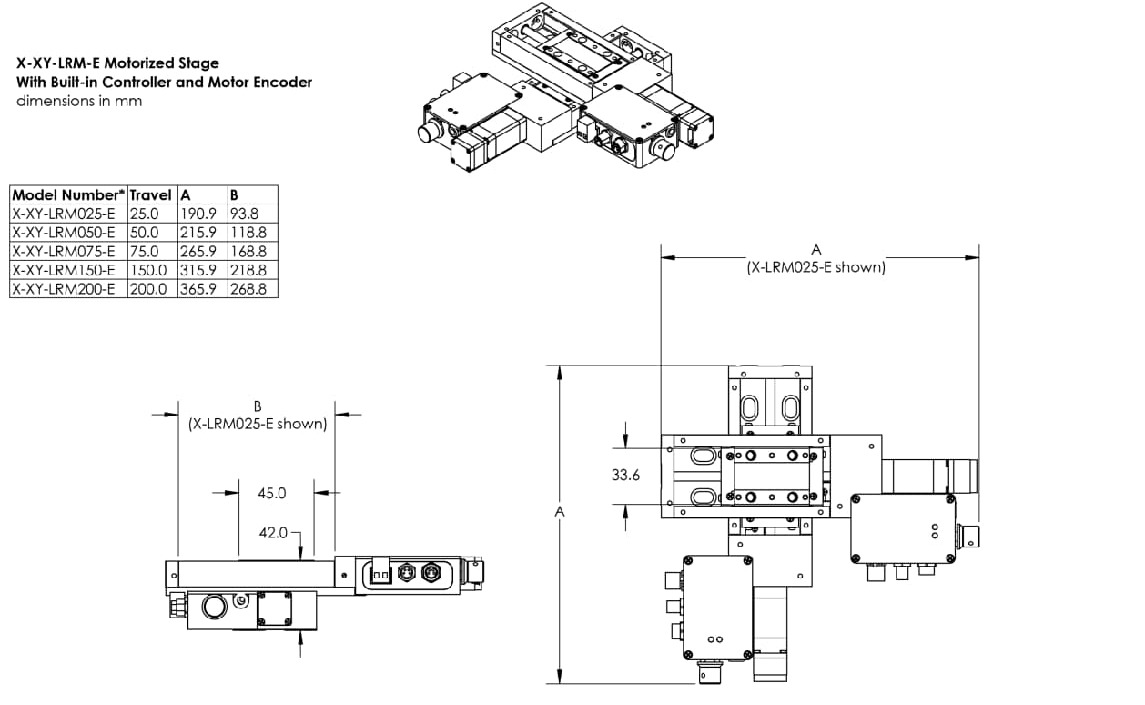

ST-XY-LRM

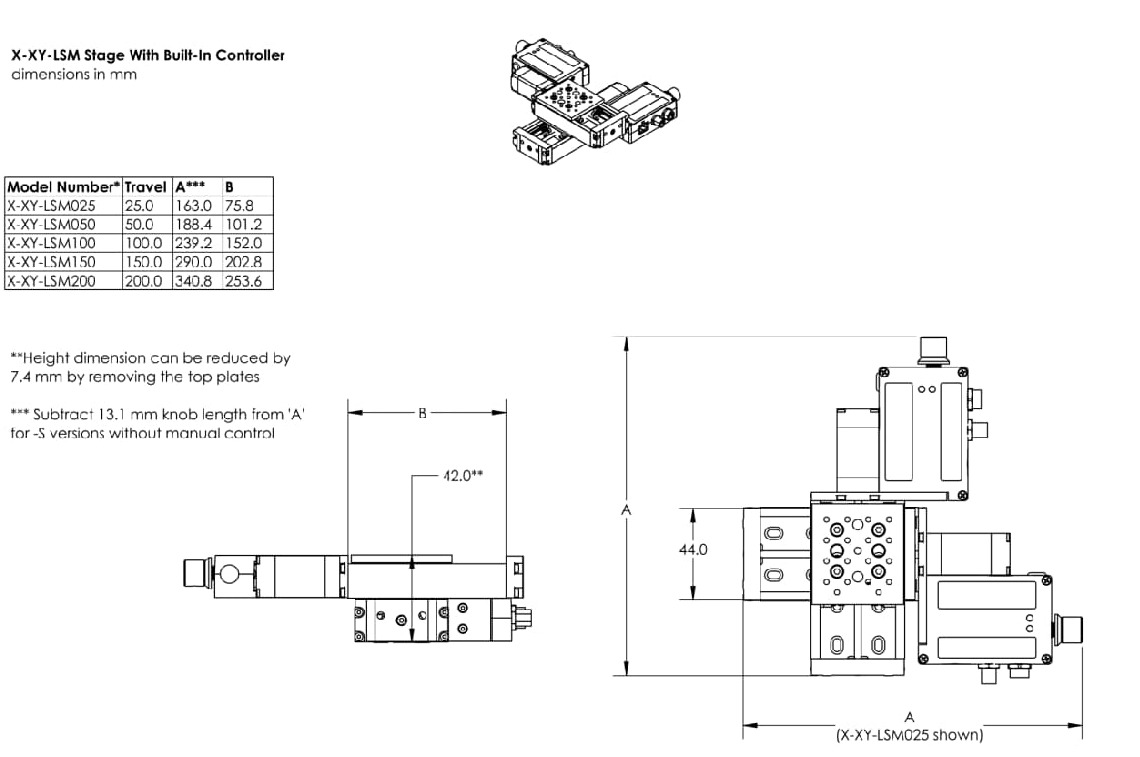

ST-XY-LSM



Model comparison
Model comparison Travel（mm） Load Capacity(kg） Resolution(µm) Accuracy(µm) Repeatability（μm） Maximum Continuous Thrust(N) Peak Thrust(N) Backlash（μm）
ST-XY-LRT
  ST-XY-LRT0100 100 500 0.496 25 <4 600 600 <45
  ST-XY-LRT0250 250 500 0.496 63 <4 600 600 <45
  ST-XY-LRT0500 500 500 0.496 125 <4 600 600 <45
  ST-XY-LRT0750 750 500 0.496 188 <4 600 600 <45
  ST-XY-LRT1000 1000 500 0.496 250 <4 600 600 <45
ST-XY-LRQ
  ST-XY-LRQxL0075 75 100 0.496 15 <2.5 100 150 <21
  ST-XY-LRQxL0150 150 100 0.496 25 <2.5 100 150 <21
  ST-XY-LRQxL0300 300 100 0.496 35 <2.5 100 150 <21
  ST-XY-LRQxL0450 450 100 0.496 60 <2.5 100 150 <21
  ST-XY-LRQxL0600 600 100 0.496 90 <2.5 100 150 <21
  ST-XY-LRQxP075 75 100 0.496 15 <2.5 100 150 <27
  ST-XY-LRQxP0150 150 100 0.496 25 <2.5 100 150 <27
  ST-XY-LRQxP0300 300 100 0.496 35 <2.5 100 150 <27
  ST-XY-LRQxP0450 450 100 0.496 60 <2.5 100 150 <27
  ST-XY-LRQxP0600 600 100 0.496 90 <2.5 100 150 <27
ST-XY-LSQ
  ST-XY-LSQ0075 75 50 0.496 45 <3 75 120 <18
  ST-XY-LSQ0150 150 50 0.496 50 <3 75 120 <18
  ST-XY-LSQ0300 300 50 0.496 65 <3 75 120 <18
ST-XY-LRM
  ST-XY-LRM0025 25 50 0.047 8 <4 25 50 <5
  ST-XY-LRM0050 50 50 0.047 15 <4 25 50 <5
  ST-XY-LRM0100 100 50 0.047 30 <4 25 50 <5
  ST-XY-LRM0150 150 50 0.047 45 <4 25 50 <5
  ST-XY-LRM0200 200 50 0.047 60 <4 25 50 <5
ST-XY-LSM
  ST-XY-LSM0025 25 25 0.047 15 <3 25 55 <12
  ST-XY-LSM0050 50 25 0.047 20 <3 25 55 <12
  ST-XY-LSM0100 100 25 0.047 35 <3 25 55 <12
  ST-XY-LSM0150 150 25 0.047 50 <3 25 55 <12
  ST-XY-LSM0200 200 25 0.047 60 <3 25 55 <12

X-MCC Multi-axis universal motor controllers

User Manual:



Note：SIMTRUM motorized stages feature built-in controllers and support daisy-chaining multiple devices(you can choose whether to additionally configure an X-MCC controller), enabling them to share a single power supply and a single data connection to the computer, simplifying setup and management.

Universal drive allows control of 1, 2, 3, or 4 axes, including bipolar stepper motors, linear motors, or voice coil motors with up to 6 Arms (10 A peak) per phase.

Allows different control modes, including independent axis control with trapezoidal velocity profiles or interpolated multi-axis control with line, arc, or circle primitives.

Multiple communications options: Ethernet, USB, and RS-232.

Designed for easy mounting to panels, breadboards, lab benches, and enclosures.

Axes can be locked together to move simultaneously as if they were a single axis, carrying out all motion in parallel.

The X-MCC series is compatible with all of motorized stages products. When daisy-chained with several units, the X-MCC can also share a single power supply with multiple motorized stages products.
Initial Set-up

  1. 1.Connect peripheral(s) to the desired axes of your X-MCC, while unpowered.

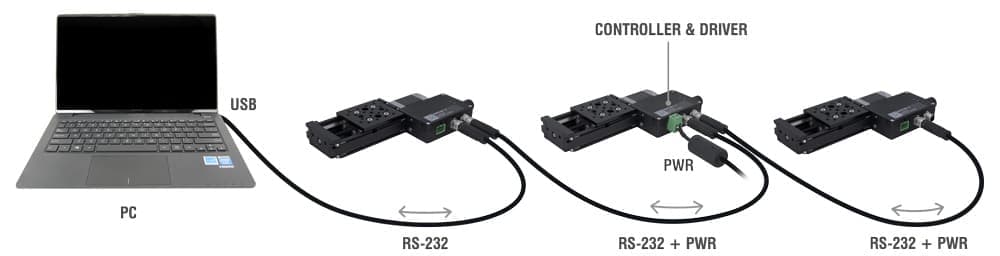

  2. 2.Daisy chain all integrated devices and controllers together using the RS-232 "Prev" and "Next" connectors .
  3. 3.Next, supply power to one or more devices. Many products share power through the daisy-chain cables. The green power indicator on each should light up.
  4. 4.Download and install Launcher. Start Launcher.
  5. 5.Create a New Connection and select the communications port the first controller is connected to.
  6. 6.If multiple devices are detected and there are conflicting device numbers, Launcher will renumber them or you can renumber them as desired. The first device in the chain (closest to the computer) will become Device 1, the next will become Device 2, and so on.
  7. 7.When the communication port is open, Launcher's "My Connections" page will indicate the connection status of each axis with a message suggesting what action may be needed.
  8. 8.Once a peripheral has been activated, either press the Home icon in Launcher's "Basic Movement" app or turn a knob on the X-MCC to move the peripheral associated with that axis. Most positioners will only move at reduced speed in one direction until they reach a home sensor at one limit of travel. Then they will move in both directions over full travel.

    Dicators

    Green (Device) - Power

    • On: Controller is operational.
    • Blinking twice per second: The power supply voltage or controller temperature is out of range.

    Red (Device) - System Error

    • On/blinking: An error has occurred. Please contact Technical Support.

    Yellow (Device) - Communication

    • On: Data is being transferred.
    • Blinking twice per second: Packet corruption has occurred for ASCII commands sent with a checksum.

    Yellow (Axis) - Axis Status

    • On: Peripheral positioner is moving.
    • Blinking: Axis is under manual control via the knob (in Velocity mode). The blinking rate is proportional to movement speed.
    • Fading in and out every 2 seconds: A connected autodetect peripheral is awaiting activation.

    Blue (Axis) - Axis Warning/Error

    • Solid: Peripheral is deactivated.
    • Blinking twice per second: Driver is disabled due to over-temperature, out-of-range voltage or other driver fault; due to user request; or due to E-Stop.This will also occur briefly when a peripheral is plugged back into the axis after being unplugged or on power-up as device initializes.
    • On briefly, during a move: The axis is slipping.
    • Blinking once every 2 seconds: The axis has stalled and stopped.
    • Burst of 2 flashes every 1 second: The stationary axis has been forced out of position.
    • Burst of 5 flashes every 2 seconds: The encoder has encountered a read error and raised the FQ or FA Warning Flag.
    • Fading in and out slowly: A peripheral axis is parked.

Accessories

Accessory

Description

Weight（kg）

Data Cable

The data cable daisy chains all motorized stages products.It is designed to handle flexing in motion applications. The maximum current carrying capacity of the cable is 4.0 Amps.

ST-X-DC01





1 ft (0.3 m),4-pin male to female M8 extension cable



0.03

ST-X-DC02

2 ft (0.6 m),4-pin male to female M8 extension cable

0.04

ST-X-DC06

6 ft (2 m),4-pin male to female M8 extension cable

0.08

ST-X-DC15



15 ft (4.5 m),4-pin male to female M8 extension cable

0.17

Power Supply

This is a 100-240 V AC input power supply with stable voltage isolation, compatible with motorized stages products. Suitable for powering a single high current motorized stages product or several lower current motorized stages products over a daisy-chain.

ST-X-PS12

The output is 24 V DC, 3.0 A on a 2-pin 5 mm pitch terminal block.

0.44

ST-X-PS14

The output is 48 V DC, 3.75 A on a 2-pin 5 mm pitch terminal block.

0.75

ST-X-PS15



The output is 48 V DC, 6.5 A on a 2-pin 5 mm pitch terminal block.

1.7

USB to Serial Converter Cable

ST-X-USB

USB to Serial Converter Cable with M8 Female Plug for motorized stages Products.This 6 ft (2 m) M8 female to USB A plug conversion cable allows you to connect the previous port of your motorized stages product to a USB port on your computer. Only one is needed per motorized stages daisy-chain.

0.06

Serial Adaptor Cable with M8 Female Plug for motorized stages Products

ST-X-SDC

This 6 ft (2 m) M8 female to RS-232 female conversion cable allows you to connect the previous port of your motorized stages product to an RS-232 serial port on your computer. Only one is needed per motorized stages daisy-chain.

0.09

Related Products

Product Travel（mm） Highest Speed（mm/s） Maximum Continuous Thrust(N) Repeatability（μm） Resolution(µm)
    XY Stepper Motor Stages 25-1000 25-280 25-600 <2.5-<4 0.047-0.496
    XYZ Stepper Motor Stages 25-450 26-1000 25-75 < 3 0.047-0.496
    XYM Linear Motor Microscope Stages 130-100/250-100 750 13 < 0.5 /
