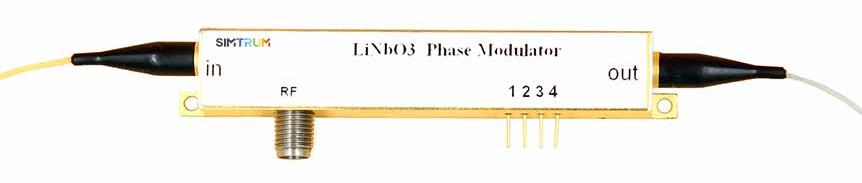

SIMTRUM's the LiNbO₃ phase modulator is widely used in high-speed optical communication system, laser sensing and ROF systems because of well electro-optic effect. The OE-CQ01-PM series based on Ti-diffused and APE technology, has stable physical and chemical characteristics, which can meet requirement of the most applications in laboratory experiments and industrial systems.

Bandwidth: 300MHz ,10GHz, 20G, 40G
Wavelength: 780nm, 850nm,1060nm,1310nm,1550nm

Features

Low insertion loss
Polarization-maintaining
Low half-wave voltage
Dual-polarization option

Applications

Optical communication
Quantum key distribution
Frequency shifting

Product specifications

Low bandwith:DC-300MHz

OE-CQ01-PM Series	OE-CQ01-PM-10-300M	OE-CQ01-PM-15-300M
Operating wavelength	1030~1100nm	1530~1565nm
3dB Bandwidth	DC~300MHz	DC~300MHz
Insertion Loss	＜3dB	＜3.5dB
Vn@RF (50KHz)	＜3V	＜4V

High bandwith:~10/20/40GHz

OE-CQ01-PM Series	OE-CQ01-PM-07	OE-CQ01-PM-08	OE-CQ01-PM-10	OE-CQ01-PM-13	OE-CQ01-PM-15
Operating wavelength	780nm	850nm	1064nm	1310nm	1550nm
3dB Bandwidth	~10GHz	~10GHz	~10GHz	~10GHz	~10/20/40GHz
Insertion Loss	＜3.5dB	＜3.5dB	＜3.5dB	＜3.5dB	＜3.5dB
PER	＞20dB	＞20dB	＞20dB	＞20dB	＞20dB
Vn@RF (50KHz)	＜3V	＜3V	＜2.0V / <4.0V	＜3V	＜4V

Characteristic Curve

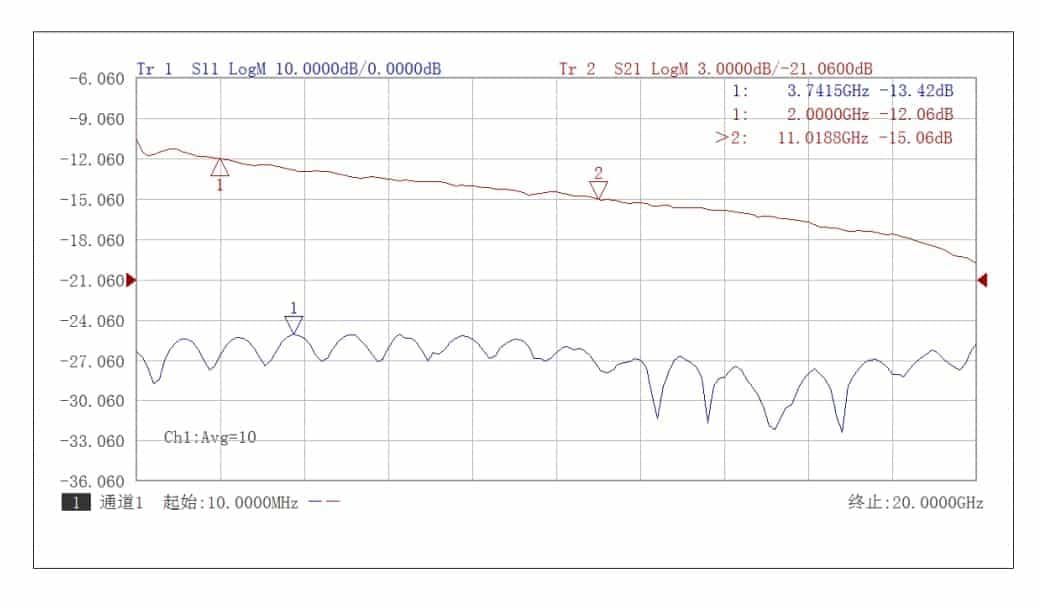

OE-CQ01-PM-XX-10G

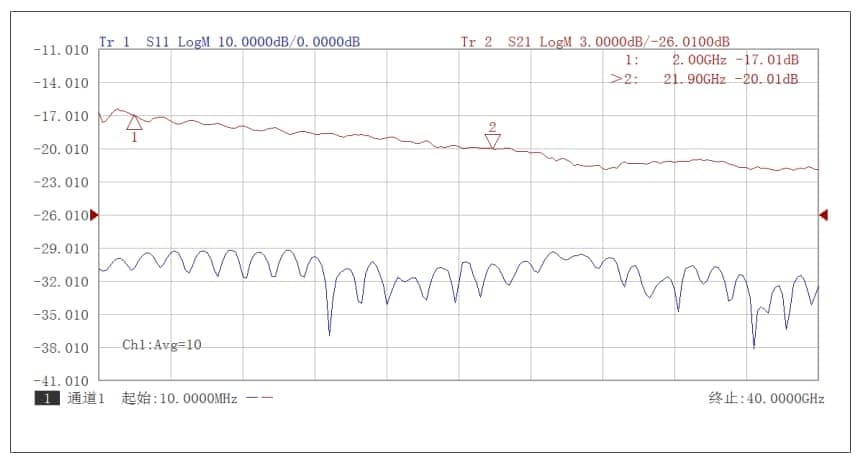

OE-CQ01-PM-XX-40G

Ordering Information

PM

15

10G

XX

Type：

PM---Phase Modulator

Wavelength：

07---780nm

08---850nm

10---1060nm

13---1310nm

15---1550nm

Operating bandwidth：

300M---300MHz

10G---10GHz

20G---20GHz

40G---40GHz

In-Out Fiber type：

PP---PM/PM

PS---PM/SMF

SS---SMF/SMF

Optical connector：

FA---FC/APC

FP---FC/PC

SP---Customization

Mechanical Diagram (mm)

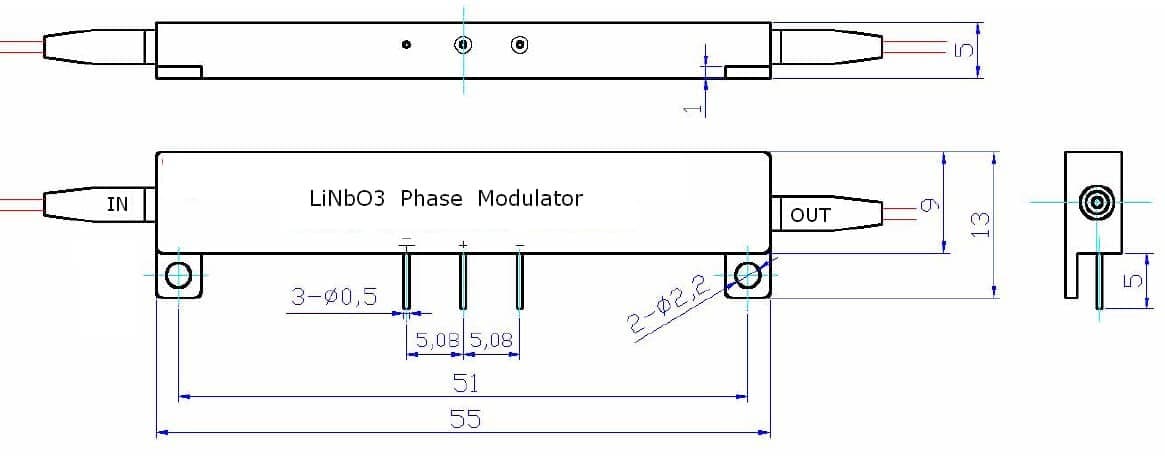

DC-300MHz phase modulator

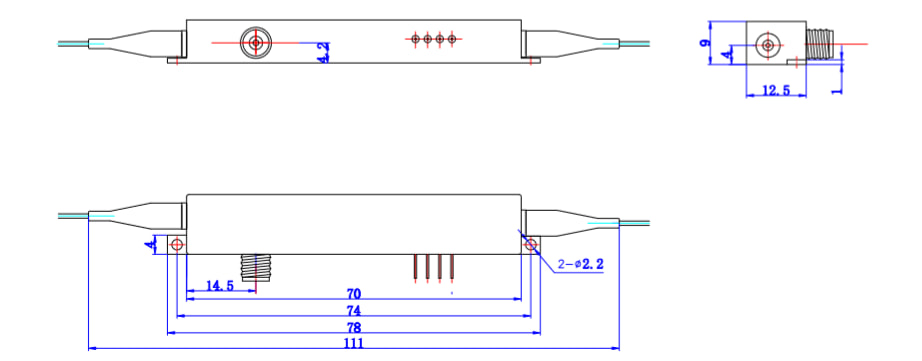

High bandwidth(~10 / 20 / 40GHz) phase modulator

Fiber Amplifiers

Type	Wavelength	Input	Output
EDFA Single Mode C-Band - Standard/ Booster	1530 - 1565 nm	-45 dBm to -25dBm -6dBm to +3dBm	35@-35dBm / 45@-45dBm 15/17/20/23/25/26 dBm
EDFA Single Mode C-Band In-Line	1530 - 1565 nm	-25 dBm to +3 dBm	13/17/23/25/26 dBm
EDFA Single Mode C-Band Gain Flattened	1530 - 1565 nm	-32 dBm to -10 dBm	14/17/20/23 dBm
EDFA Single Mode C-Band High Power	1530 - 1565 nm	- 6 dBm to +10dBm	27/30/33/35/37/40 dBm
EDFA Polarization Maintaining C-Band PM - Low Power / High Power	1530 - 1565 nm	-30 dBm to +3 dBm - 6 dBm to +10 dBm	14/17/20/23/26 dBm 30/33/37/40 dBm
EDFA Single Mode C-Band Pulsed	1530 - 1565 nm	1-10mw	1-1000W
EDFA Single Mode L-Band High Power	1530 - 1603 nm	- 6 dBm to +10 dBm	27/30/33/37 dBm
EDFA Polarization Maintaining L-Band Low Power / High Power	1530 - 1603 nm	- 6 dBm to +3 dBm - 6 dBm to +10 dBm	15/17/20/23/25 dBm 27/30/33/37 dBm
EDFA Single Mode C+L Band Booster	1528 -1563 nm 1570 - 1603 nm	- 6 dBm to +3 dBm	17/20/23/25 dBm
YDFA Ytterbium Doped Fiber Amplifier	1030 - 1100 nm	0 dBm to 10 dBm	17/20/23/25/26/27/30/33/37/40 @0dBm
TDFA	1920 - 2020 nm	-10 to 10 dBm	20/23/25/26/27/30 dBm
Fiber Raman Amplifier 1st Order	1528 - 1565 nm	Pump Wavelenth 1425 - 1465 nm	Total Pump Power 300/500/1000/1400 mW
Fiber Raman Amplifier 2nd Order	1425 - 1465 nm	Pump Wavelenth 1340 -1360 nm	Total Pump Power 300/500/1000/1400 mW

CW Laser Diode Module (375-785nm)

Type	Wavelength	Output Power	Fiber output
UV Laser Diode Module	375, 395, 405, 415, 420nm	upto 200mW	SM/MM
Blue Laser Diode Module	445, 473, 488nm	upto 200mW	SM/MM
Green Laser Diode Module	505, 515, 532, 561nm	upto 200mW	SM/MM
Red Diode Laser Diode Module	633, 639, 640, 642, 647, 660, 685nm	upto 200mW	SM/MM
NIR Laser Diode Module	705, 730, 785nm	upto 200mW	SM/MM
Multiple Wavelength Laser Diode Module	375 to 785nm	upto 200mW	SM/MM

Optical Power Meter (Photodiode)

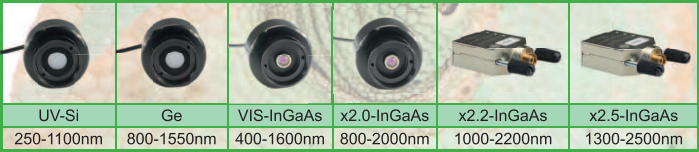

Sensor Head Wavelength Choice

Power Meter Console

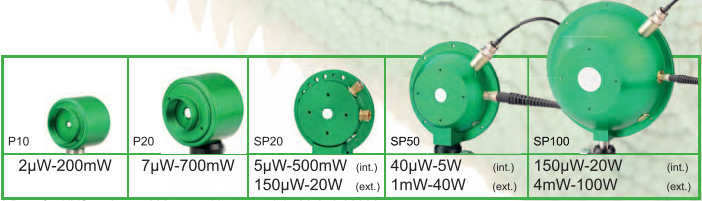

Integrating Sphere Size & Power Choice

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
OE-CQ01-PM-07-10G OE-CQ01-PM-07-10G，Operating wavelength780nm，3dB Bandwidth~10GHz，Insertion Loss＜3.5dB，PER＞20dB，Vn @RF (50KHz)＜3V	In Stock	Request for quote
OE-CQ01-PM-08-10G OE-CQ01-PM-08-10G，Operating wavelength850nm，3dB Bandwidth~10GHz，Insertion Loss＜3.5dB，PER＞20dB，Vn@RF (50KHz)＜3V	4-6week	Request for quote
OE-CQ01-PM-10-02G OE-CQ01-PM-10-02G，Operating wavelength1064nm，3dB Bandwidth~10GHz，Insertion Loss＜3.5dB，PER ＞20dB，Vn @RF (50KHz)＜2.0V / <4.0V	4-6week	Request for quote
OE-CQ01-PM-10-10G OE-CQ01-PM-10-10G，Operating wavelength1064nm，3dB Bandwidth~10GHz，Insertion Loss＜3.5dB，PER ＞20dB，Vn@RF (50KHz)＜2.0V / <4.0V	4-6week	Request for quote
OE-CQ01-PM-10-300M OE-CQ01-PM-10-300M，Operating wavelength1064nm，3dB Bandwidth~10GHz，Insertion Loss＜3.5dB，PER ＞20dB，Vn@RF (50KHz)＜2.0V / <4.0V	4-6week	Request for quote
OE-CQ01-PM-13-10G OE-CQ01-PM-13-10G，Operating wavelength 1310nm，3dB Bandwidth ~10GHz，Insertion Loss＜3.5dB，PER＞20dB，Vn@RF (50KHz)＜3V	4-6week	Request for quote
OE-CQ01-PM-15-10G OE-CQ01-PM-15-10G，Operating wavelength1550nm，3dB Bandwidth~10/20/40GHz，Insertion Loss＜3.5dB，PER＞20dB，Vn @RF (50KHz)＜4V	4-6week	Request for quote
OE-CQ01-PM-15-20G OE-CQ01-PM-15-20G，OE-CQ01-PM-15-10G，Operating wavelength1550nm，3dB Bandwidth~10/20/40GHz，Insertion Loss＜3.5dB，PER＞20dB，Vn@RF (50KHz)＜4V	4-6week	Request for quote
OE-CQ01-PM-15-40G OE-CQ01-PM-15-40G，OE-CQ01-PM-15-10G，Operating wavelength1550nm，3dB Bandwidth~10/20/40GHz，Insertion Loss＜3.5dB，PER＞20dB，Vn@RF(50KHz)＜4V	In Stock	Request for quote
OE-CQ01-PM-15-300M OE-CQ01-PM-15-300M，OE-CQ01-PM-15-10G，Operating wavelength1550nm，3dB Bandwidth~10/20/40GHz，Insertion Loss＜3.5dB，PER＞20dB，Vn@RF (50KHz)＜4V	4-6week	Request for quote
