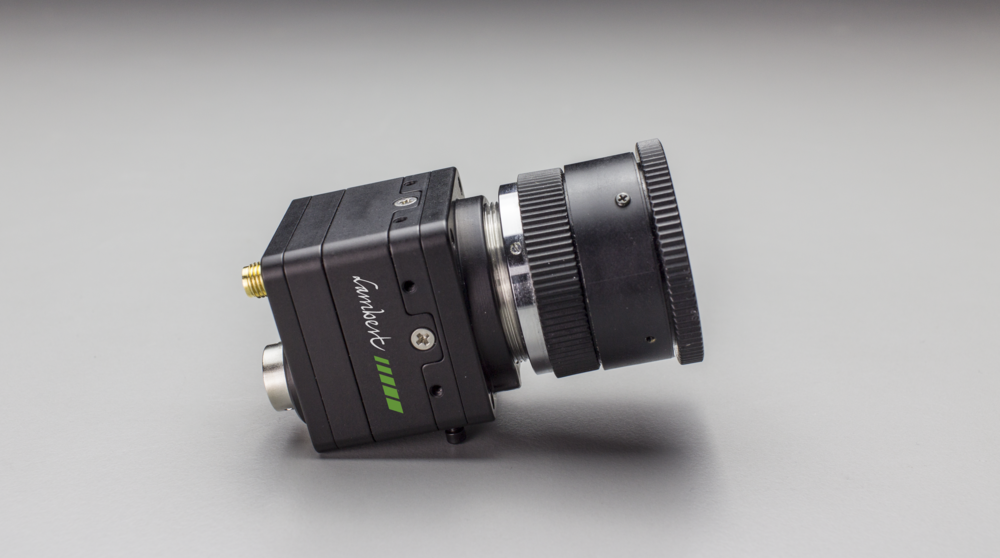

Intensified CMOS Camera / Intensifier

SIMTRUM Provide below different types of Intensified CMOS camere and intensifier


Time-Resolved iCMOSHigh-speed Gated iCMOS CameraHigh-speed Fluorescence iCMOS Camera
540M/S1000M/SFLUO (1000 FPS)FLUO (2000 FPS)
Framerate 162 fps540 fps1000 fps1000 fps - 7500 fps2000 fps - 6400 fps
Sensor Resolution1920   x 1200 pixels1696   x 1710 pixels1280   x 1024 pixels1280   x 1024 pixels1920   x 1080 pixels*
Pixel size5.86   * 5.86  µm 8 x 8 µm6.6   x 6.6 µm6.6   x 6.6 µm10   x 10 µm
Photon gain (max.)50000 lm/m^2/lx 11000 lm/m^2/lx11000 lm/m^2/lx36000 lm/m^2/lx36000 lm/m^2/lx
Gating repetition rate100   or 300Khz100khz100khz100khz100khz
Intensifier18mm intensifier Dual-stage   intensifierDual-stage intensifierSingle-stage intensifier  Single-stage intensifier
Bit Depth10   bit and 12 bit8   bit8   and 12 bit8   and 12 bit8   bit
Minimum exposure time40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)



Time-Resolved Image IntensifierHigh-speed Image Intensifier
Model 18Model 25Model 18Model 25
Input diameter18mm25mm18mm25mm
Effective areaGen II: ø 17.5 mm, Gen III: 13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mmGen II: ø 17.5 mm, Gen III:   13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition 100   kHz, 300 kHz or 1 MHz100   kHz, 300 kHz or 1 MHz100khz Or 300khz ,  2.5 MHz    burst mode100khz Or 300khz,  2.5 MHz    burst mode
Min. gate width< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)
Frame RateUp to 500 fpsUp to 500 fpsup to 1,000,000 fpsup to 1,000,000 fps
Photon GainS20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000
S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000
S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000
S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000
