Spatial Light Modulator

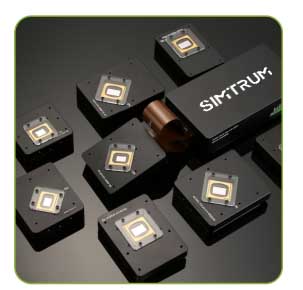

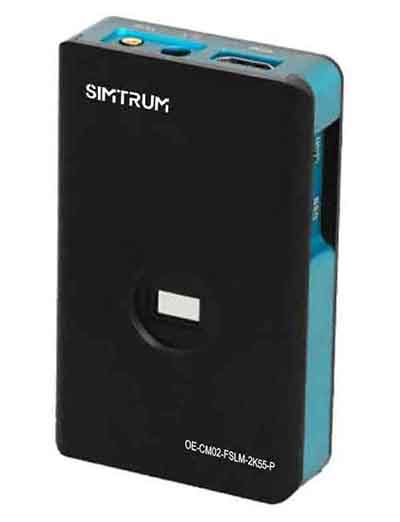

SIMTRUM Provides 2 types of SLM (Spatial Light Modulator) Phase modulator offers 2π phase retardation at different selectable wavelengths, Amplitude Modulator uses pulse width modulation (PWM) to digitally and directly drive displays; proprietary modulation patterns can be used as desired development goals.

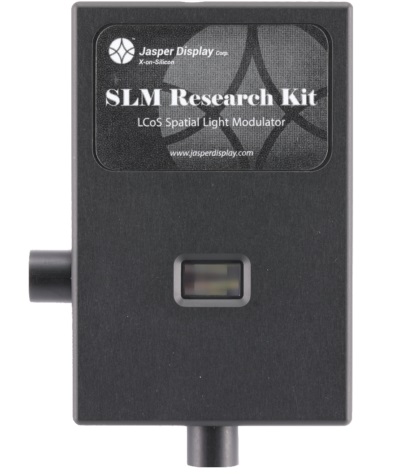

| Phase Modulator |
| Amplitude Modulator |
| Model# | Wavelength | Retardation | Resolution | Model # | Wavelength | Response Time | Resolution |
| JD7554 | 430 –750 nm | 2π @532nm & 633nm | 1920 x 1080 | JD7555 | 430 – 750 nm | < 12 ms | 1920 x 1080 |
| JD7554B | 405 –490 nm | ≧ 2π @405nm | 1920 x 1080 | JD7555N | 1000-1100 nm | < 60 ms | 1920 x 1080 |
| JD7554N | 1000 –1100nm | ≧ 2π @1064nm | 1920 x 1080 | JD7715 | 532 nm or 633 nm | < 2.2 ms | 4094 x 2400 |
| JDN554W | 1530 –1565nm | ≧ 2π @1550nm | 1920 x 1080 | JDN125N | 1000-1100 nm | < 15 ms | 4094 x 2400 |
| JD7554VH | 430 –633nm | 2.6π @532nm & 2π@633nm | 1920 x 1080 |
|
|
|
|
| JD7556VH | 532 nm | 2π@532nm | 1920 x 1080 |
|
|
|
|
| JD7714 | 430 – 750 nm | 2π @ 532 nm & 633nm | 4094 x 2400 |
|
|
|
|
| JDN714W | 1530 –1565 nm | 2π @ 1550 nm | 4094 x 2400 |
|
|
|
|
| JDN714V03P2 | 430 – 750 nm | 2π @ 532 nm & 633 nm | 4094 x 2400 |
|
|
|
|
| JDN124W | 1530 – 1565 nm | 2π @ 1550 nm | 4094 x 2400 |
|
|
|
|
Technical Support Available: Contact us | You can download our full Product Line Card Click Here
