Full Frame CCD Camera for UV VIS NIR | SIMTRUM Photonics Store

Products / Imaging /Scientific CCD Cameras /Full Frame CCD Camera for UV VIS NIR /
Full Frame CCD Camera for UV VIS NIR
Overview Selection Guide ELSEs Selection Guide ELSEi Order Now!

Scientific Full-Frame CCD Cameras for UV, VIS, NIR (160 nm -1100 nm)

ELSEs Series for Spectroscopy

ELSEi Series for Imaging

These scientific full-frame CCD cameras for UV, VIS, NIR imaging and spectroscopy are the ELSE series (including ELSEs and ELSEi). It is suitable for wavelength range 160 nm -1100 nm.


ELSE integrates cutting-edge low-noise electronics and ultra-deep cooling technology while keeping a compact camera design. Multiple readout speeds can be selected supporting pixel rates from 50 kHz up to 5 MHz. True 18-bit AD conversion allows to exploit the full dynamic range of the CCD sensor for highest performance and SNR. ELSE is ideally suited for detection of very weak signal intensities where a low-noise floor is paramount. ELSE offers unprecedented possibilities for your measurements of tomorrow.



Camera Common Feature



- Ultra deep TE cooling to -100 °C

  Lowest dark current for better detection limit

- Hermetic vacuum seal

  Low camera maintenance and sensor protection

- GigE & USB 3.0 data interface

  Local or remote network operation – your choice

- Multiple sensor options

  UV, VIS or NIR coatings for different sensor formats


- High QE up to 98%

  Very sensitive sensors for low light applications

- User selectable gain

  Balance your detector for best SNR and dynamic range

- Flexible software options

  Camera software and SDKs available

- Fast readout speeds up to 5 MHz

  Fast frame rates paired with low-noise electronics


Application

 ELSEs series for spectroscopy
ELSEi series for imaging
- Raman spectroscopy

- NIR spectroscopy

- Fluorescence spectroscopy

- Absorption, transmission,

- Reflectance spectroscopy


- In-vivo fluorescence bioimaging

- Astronomy

- LIBS spectroscopy

- Neutron tomography

- EL / PL imaging

- Ultracold quantum studies


Quantum efficiency curves


ELSEs series for spectroscopy

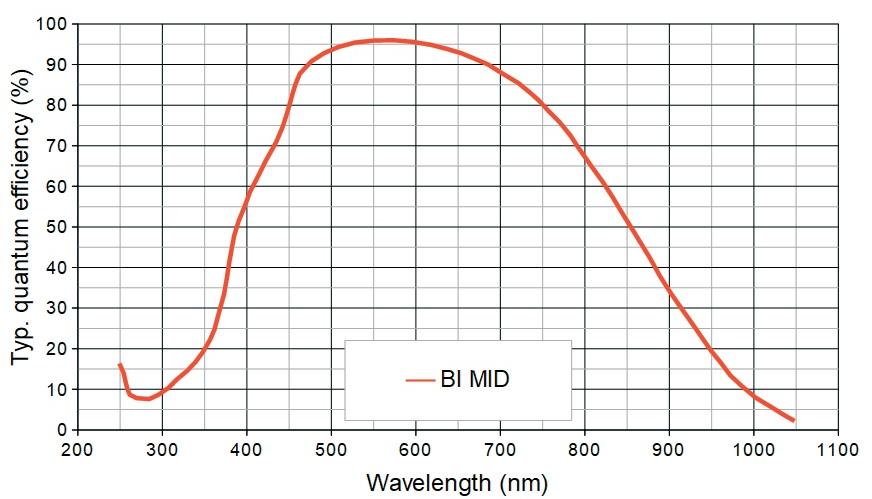

Back-illuminated CCD sensors for VIS range

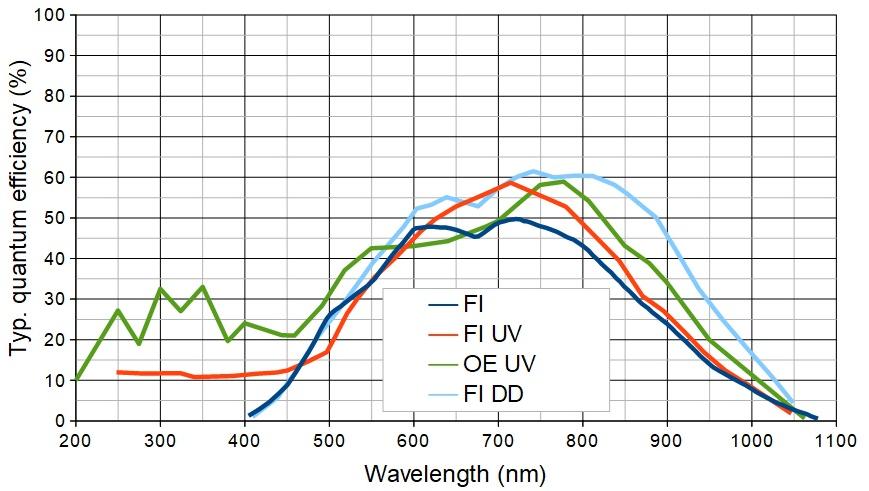

            Basic front-illuminated CCD sensors

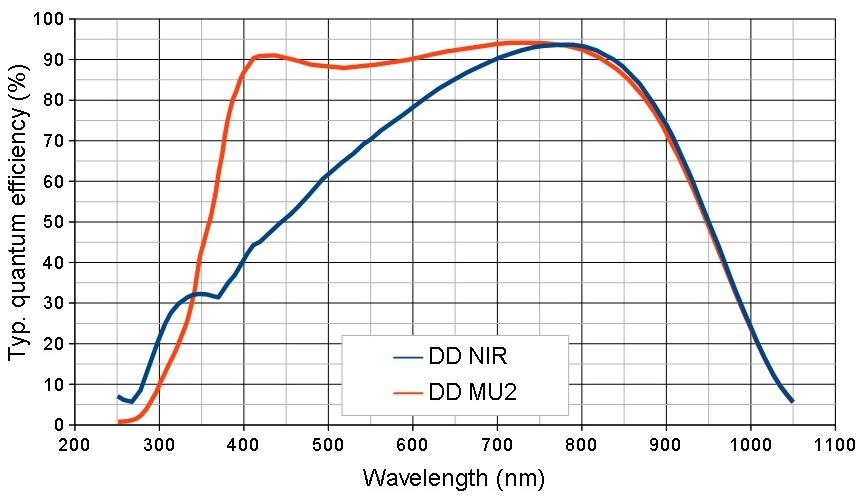

Deep-depletion, NIMO CCD sensors for

NIR range

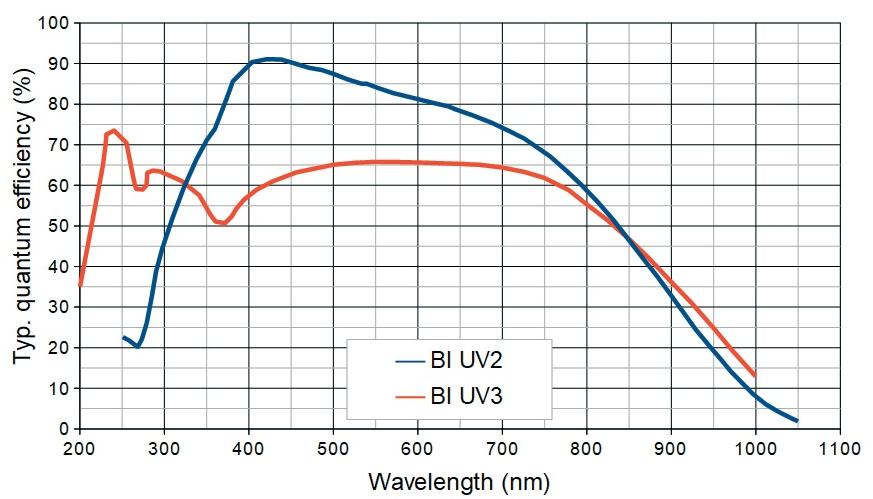

Enhanced back-illuminated CCD sensors for

UV range

ELSEi series for imaging

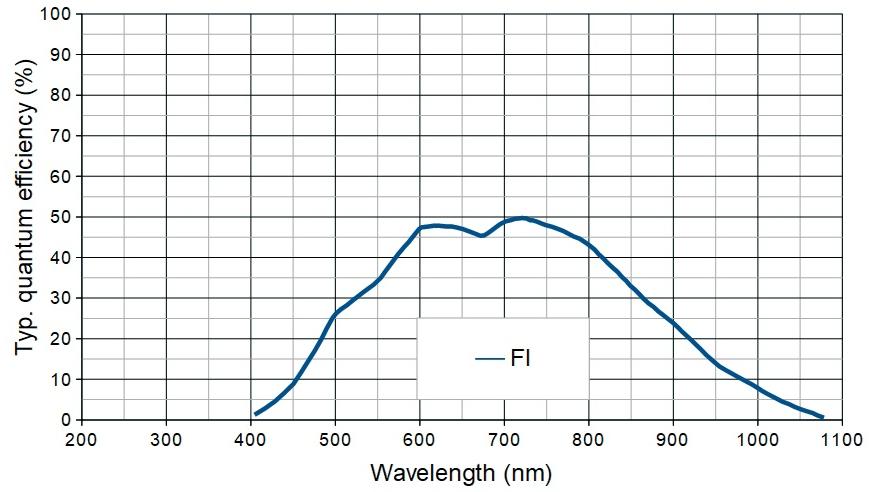

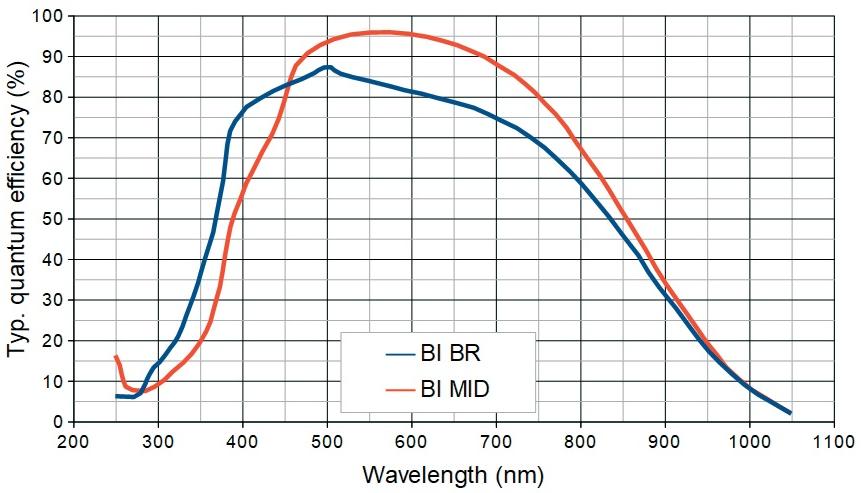

Back-illuminated CCD sensors for VIS range  Basic front-illuminated CCD sensors

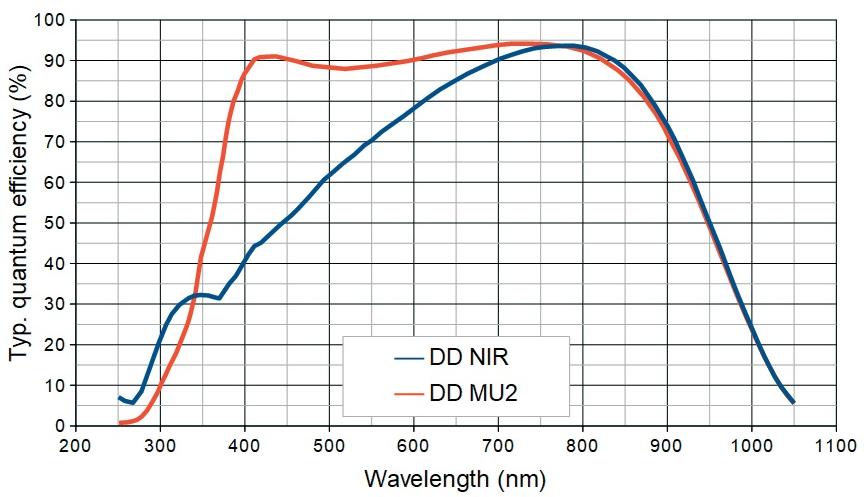

Deep-depletion, NIMO CCD sensors for

 NIR range

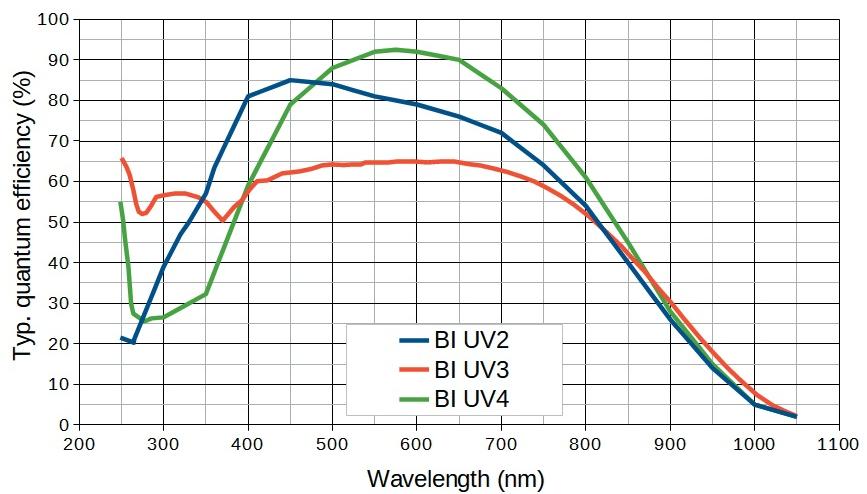

Enhanced back-illuminated CCD sensors for

 UV range


Product specifications and Brochures

Product Brochure Link:

For more information on ELSEs series for spectroscopy and ELSEi series for imaging,please go to Selection Guide ELSEs and Selection Guide ELSEi.


ParameterELSEs series for spectroscopyELSEi series for imaging
Pixel readout frequency

50 kHz, 100 kHz, 250kHz, 500 kHz, 1 MHz, 3 MHz

 (5 MHz for visualization mode)

50 kHz, 250 kHz, 1 MHz, 3 MHz

(5 MHz for visualization mode; up to 20 MHz with multi-output)

Readout modes/2 output nodes for 1k1k & 2k2k cameras,
4 output nodes for 2k2k plus & 4k4k cameras
AD converter resolution18-bit
LinearityBetter than 99%
Window materialMgF2 or UVFS for UV sensitive models, otherwise BK7
Distance fl ange - focal plane10.0 mm10.0 mm (1k1k, 2k2k plus & 4k4k cameras); 9mm (2k2k camera)
CCD sensor coolingMin. -100°C to 20°C, forced air or liquid cooling

-100 °C to 20 °C (1k1k cameras);

 -90°C to 20 °C (2k2k, 2k2k plus&4k4kcamera)

Temperature monitoringTwo thermistors at CCD sensor and thermoelectric cooler (hot side)
Data linkGigabit Ethernet, USB 3.0
SoftwareVision software for Windows 7/10
SDK and driversDLL for Windows; LabVIEW, EPICS, Linux, Python, Tango driver (optional)
TTL interface signalsExposure out, shutter out, 2 external trigger in
Operating conditionsTemperature: 0°C to 35°C ambient, relative humidity <80% (non-condensing)
Power supply80 - 240 VAC, 47 Hz - 63 Hz
max. 1.1 A (230 VAC), 1.9 A (115 VAC)		1k1k & 2k2k: 80-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60)
 max. 1.1 A (230 V) / 1.9 A (115 V)
2k2k plus & 4k4k: 85-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60)
 max. 1.9 A (230 V) / 3.8 A (115 V)
CertificationCE
Dimensions8.3 cm (3.27ʺ) × 10.0 cm (3.94ʺ) × 13.1 cm (5.16ʺ) (W × H × L)

8.3 cm (3.27ʺ) × 10.0 cm (3.94ʺ) × 13.1 cm (5.16ʺ)

 (W × H × L, 1k1k & 2k2k camera body)

13.7 cm (5.39ʺ) × 13.7 cm (5.39ʺ) × 17.1 cm (6.71ʺ)

(W × H × L, 2k2k plus & 4k4k camera body)

Weight2.2 kg2.2 kg (1k1k & 2k2k)
5.4 kg (2k2k plus & 4k4k)
Blemish specificationsGrade 0 or grade 1 (standard) as specifi ed by sensor manufacturer



Items delivered together with each camera

CodeDescriptionCodeDescription
GE-VI01Vision software suite for WindowsGE-StoB2m2m SMB to BNC connection cable × 2
GE-SDK01SDK for Windows (C/C++ based)GE-POW01Camera power supply with cabling
GE-USB3m33m USB 3.0 cable type A to type CGE-ManCamCamera instruction manual
GE-GigE10m10m Ethernet cable//

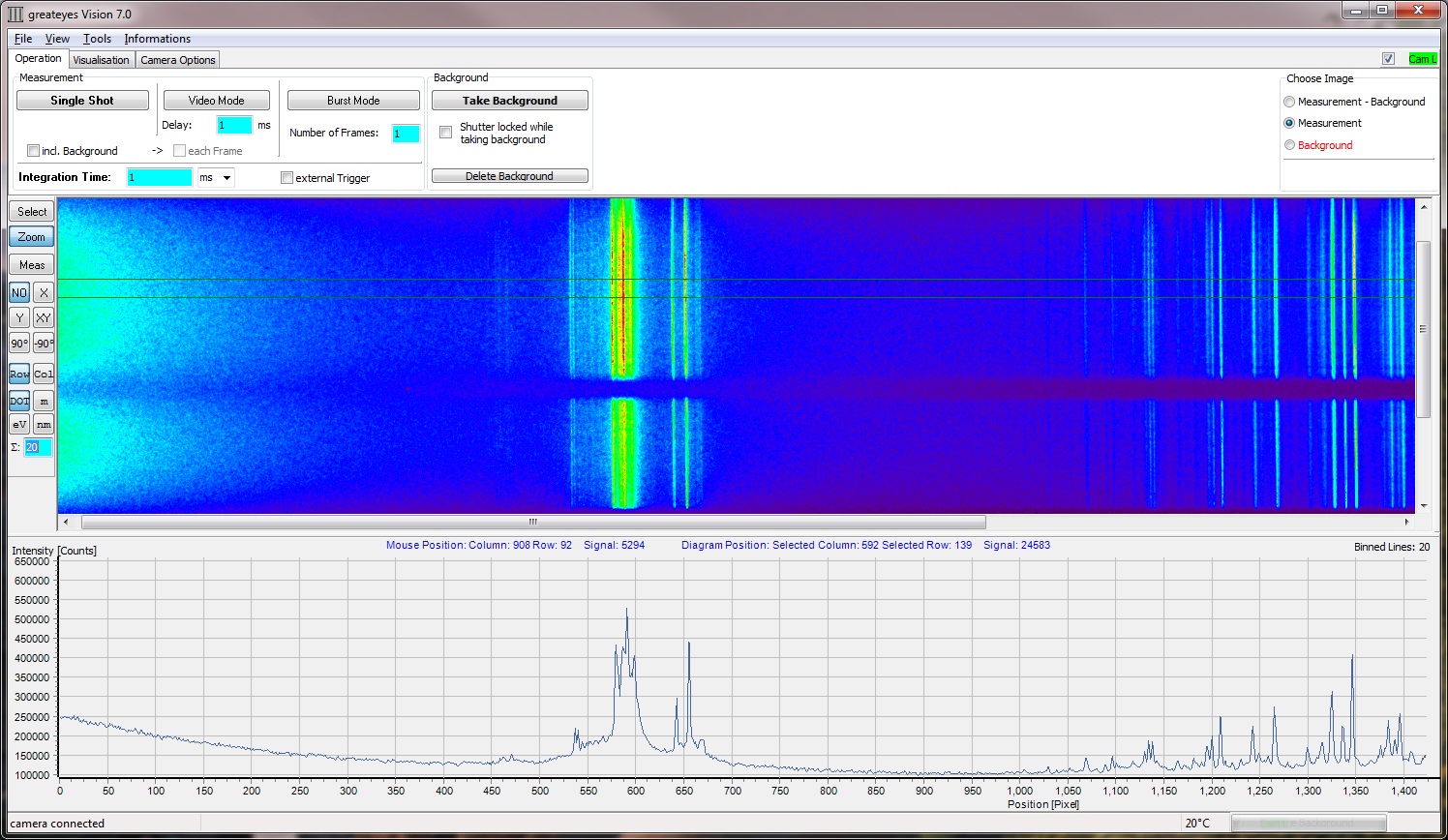

Vision Software

Vision software suite provides access to all camera functionalities. It includes comprehensive visualization, analysis and storage options and supports important features such as wavelength and geometric calibration, crop and burst modes and various file formats. The software runs on 32/64-bit Windows systems. For integration into other systems, a software development kit and drivers are available.


Software Features



- Supports crop and burst readout modes for higher frame rates and precise time resolution

- Various file formats: JPG, BMP, TXT, TIFF (16-bit), DAT raw data

- Comprehensive visualization and image manipulation routines

- Supports flexible horizontal and vertical binning


- Many drivers available for integration into other systems

- Runs on 32/64-bit Windows systems

- Wavelength and geometric calibration

- Language support in English and German




Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy - ELSEs Series



Choose your camera model
Model Image area( mm) Pixel format Pixel size(µm) Gain(counts/e-) CCD sensor type Sensor coating Full well capacity(k e-) Typ.read noise(e¯) Dark current
@ -100 °C		 Register well(ke¯) Quantum efficiency
Standard mode High capacity
mode		 @ 50 kHz @ 1 MHz @ 3 MHz

ELSE-s 1k128

 ELSE-s 1k128 BI MID 26.6 × 3.3 1024 × 127 26  × 26 0.4 / BSI Midband AR 500 5.5 12.5 26 0.0004 e¯/pixel/s 1 000 Up to 95% VIS
ELSE-s 1k128 DD NIR 0.4 / BSI,Deep depletion,
Fringe suppression		 NIR AR 700 5.5 12.5 26 0.005 e¯/pixel/s 1 400 Up to 95% NIR

ELSE-s 1k256

 ELSE-s 1k256 OE UV 26.6 × 6.7 1024 × 255 26  × 26 0.4 / FSI, Open-electrode / 300 / / / 0.0004 e¯/pixel/s 1 000 Up to 36% UV
ELSE-s 1k256 BI UV2 0.4 / BSI Broadband UV AR 500 6 13.1 26 0.4 counts/e¯ 1 000 Up to 90%
ELSE-s 1k256 BI UV3 0.4 / BSI UV AR 500 6 13.1 26 0.4 counts/e¯ 1 000 Up to 60% UV
ELSE-s 1k256 FI 0.4 / FSI / 500 4.2 12 25 0.4 counts/e¯ 1 000 Up to 55% VIS
ELSE-s 1k256 BI MID 0.4 / BSI Midband AR 500 6 13.1 26 0.4 counts/e¯ 1 000 Up to 95% VIS
ELSE-s 1k256 FI DD 0.4 / FSI,  Deep depletion / 700 5.4 12.3 25 0.005 e¯/pixel/s 1 400 Up to 60%
ELSE-s 1k256 DD NIR 0.4 / BSI, Deep depletion,
Fringe suppression		 NIR AR 700 5.4 12.3 25 0.005 e¯/pixel/s 1 400 Up to 95% NIR
ELSE-s 1k256 DD MU2 0.4 / BSI, Deep depletion,
Fringe suppression		 Multiband AR 700 5.4 12.3 25 0.005 e¯/pixel/s 1 400 Up to 95%

ELSE-s 2k256

 ELSE-s 2k256 FI 30.7 × 3.9 2048 × 264 15  × 15 1.5 / FSI / 75 3.7 7 12.1 0.0006 e¯/pixel/s 650 Up to 55% VIS
ELSE-s 2k256 DD NIR 1.5 / BSI, Deep depletion,
Fringe suppression		 NIR AR 75 3.7 7 12.1 0.0006 e¯/pixel/s 650 Up to 95% NIR

ELSE-s 2k512

 ELSE-s 2k512 FI UV 27.6 × 6.9 2048 × 512 13.5  × 13.5 1 0.34 FSI Lumogen 100 3.5 6.8 10.7 0.00025 e¯/pixel/s 400 Up to 12% UV
ELSE-s 2k512 BI UV2 1 0.34 BSI Broadband UV AR 100 3.5 6.8 10.7 0.00025 e¯/pixel/s 400 Up to 90%
ELSE-s 2k512 BI UV3 1 0.34 BSI UV AR 100 3.5 6.8 10.7 0.00025 e¯/pixel/s 400 Up to 60% UV
ELSE-s 2k512 FI 1 0.34 FSI / 100 3.5 6.8 10.7 0.00025 e¯/pixel/s 400 Up to 55% VIS
ELSE-s 2k512 BI MID 1 0.34 BSI Midband AR 100 3.5 6.8 10.7 0.00025 e¯/pixel/s 400 Up to 95% VIS

Note: BSI=back-side illumination,FSI=front-side illumination,AR=anti-reflective


1ms Exposure Time, 5MHz Digitisation, 1-port
Sensor Sensor Format Full Frame FVB Crop 32 lines Crop 16 lines

1k x 128 33.7 337.3 / /
1k x 256 17.1 221.8 624 709
2k x 512 2.7 98.6 456 511



Choose your accessories and software(optional)
Order code Description
A) Accessories for imaging purposes
GE-M4202 M42 lens adapter (integrated fi lter holder optional)
GE-FM02 F-mount lens adapter (integrated filter holder optional)
GE-SR35 35mm shutter, including shutter driver module
B) Accessories for enhanced cooling performance
GE-CR01 Compact liquid cooling, circulating the coolant at room temperature for deep camera cooling
GE-CR02 Recirculating water chiller, PID control with temp. from -5°C to 30°C for ultra-deep camera cooling
C) Software development kit (SDK) and drivers
GE-LX01 SDK for Linux (C/C++ based)
GE-PYT01 Python driver
GE-LAB01 LabVIEW driver
GE-EP EPICS driver
GE-TAN Tango driver






Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging Applications - ELESi Series



Choose your camera model
Mode Image area(mm ) Pixel format Pixel size(µm) Gain(counts/e-) CCD sensor type Sensor coating Full well capacity(k e-) Typ.read noise(e¯) Dark current( (e¯/pixel/s)) Register well (ke¯) Output node( ke¯) Quantum efficiency
Standard mode High capacity mode @ 50 kHz @ 1 MHz @ 3 MHz @ -100 °C @ -90 °C

ELSE-i 1k1k

 ELSE-i 1k1k BI UV3 13.3 × 13.3  1024x1024  13×13 1 / BSI UV AR 100 2.8 6.4 10.9 0.00015 / 400 / Up to 60% UV
ELSE-i 1k1k FI 1 / FSI / 100 2.8 6.4 10.9 0.00015 / 400 / Up to 55% VIS
ELSE-i 1k1k BI BR 1 / BSI Broadband AR 100 2.8 6.4 10.9 0.00015 / 400 / Up to 85% VIS
ELSE-i 1k1k BI MID 1 / BSI Midband AR 100 2.8 6.4 10.9 0.00015 / 400 / Up to 95% VIS
ELSE-i 1k1k DD NIR 1 / BSI,Deep depletion,
Fringe suppression		 NIR AR 120 2.8 6.4 10.9 0.0005 / 400 / Up to 95% NIR
ELSE-i 1k1k DD MU2 1 / BSI,Deep depletion,
Fringe suppression		 Multiband AR 120 2.8 6.4 10.9 0.0005 / 400 / Up to 95%

ELSE-i 2k2k

 ELSE-i 2k2k BI UV3 27.6 × 27.6  2048×2052  13.5×13.5 1 0.34 BSI UV AR 150 3.4 7.0  13.6 / 0.001 600 / Up to 60%
ELSE-i 2k2k FI 1 0.34 FSI / 100 3.4 7.0  13.6 / 0.0001 400 / Up to 55% VIS
ELSE-i 2k2k BI MID 1 0.34 BSI Midband AR 100 3.4 7.0  13.6 / 0.0001 400 / Up to 95% VIS
ELSE-i 2k2k DD NIR 1 0.34 BSI,Deep depletion,
Fringe suppression		 NIR AR 150 3.4 7.0  13.6 / 0.001 600 / Up to 95% NIR
ELSE-i 2k2k DD MU2 1 0.34 BSI,Deep depletion,
Fringe suppression		 Multi-2 AR 150 3.4 7.0  13.6 / 0.001 600 / Up to 95% VIS-NIR

ELSE-i 2k2k plus

 ELSE-i 2k2k plus BI MID 30.7 × 30.7  2048×2064  15×15 0.6 0.2 BSI Midband AR 150 4.6 8.5 17 / 0.00008 850 900 Up to 95% VIS



ELSE-i 4k4k

 ELSE-i 4k4k BI UV2 61.4 × 61.4  4096×4112  15×15 1 0.34 BSI Astro-broadband AR 350 2.8 5.8 10.4 / 0.0006 / 600 Up to 85%
ELSE-i 4k4k BI UV4 1 0.34 BSI Astro-midband AR 350 2.8 5.8 10.4 / 0.0006 / 600 Up to 95%
ELSE-i 4k4k FI 0.6 0.2 FSI / 150 4.6 8.5 17 / 0.00008 / 900 Up to 55% VIS
ELSE-i 4k4k BI BR 0.6 0.2 BSI Broadband AR 150 4.6 8.5 17 / 0.00008 / 900 Up to 85% VIS
ELSE-i 4k4k BI MID 0.6 0.2 BSI Midband AR 150 4.6 8.5 17 / 0.00008 / 900 Up to 95% VIS
ELSE-i 4k4k DD MU2 1 0.34 BSI,Deep depletion,
Fringe suppression		 Multiband AR 150 2.8 5.8 10.4 / 0.0006 / 600 Up to 95%
Note: BSI=back-side illumination,FSI=front-side illumination,AR=anti-reflective



1ms Exposure Time, 6MHz Digitisation, 2-port
Sensors
 Binning Full Frame 1k x 1k 512 x 512 256 x 256



CCD 42-40 (2kx2k)

 1 x 1 1 2.1 4.2 8.3
2 x 2 1.7 3.4 6.9 13.6
4 x 4 2.6 5.1 10 19.9
8 x 8 3.3 6.6 13.2 25.8
16 x 16 4 7.9 15.5 30.4



 1ms Exposure Time, 10MHz Digitisation, 2-port
Sensors
 Binning Full Frame 512k x 512k 256 x 256 128 x 128


CCD 47-10 (1kx1k)
 1 x 1 8.5 16.9 33.1 63.6
2 x 2 16.3 32 62.1 116.1
4 x 4 30.1 58.3 110 195.3
8 x 8 52.1 98.5 177.5 296.4
16 x 16 81.9 150.1 257.3 399.9





Choose your accessories and software(optional)
Order code Description
A) Accessories for imaging purposes
GE-CM02 C-mount lens adapter for 1k1k camera
GE-M4202 M42 lens adapter for 1k1k, 2k2k, and 2k2k plus cameras (integrated filter holder optional
GE-FM02 F-mount lens adapter for 1k1k, 2k2k,and 2k2k plus cameras (integrated filter holder optional)
GE-SR35 25mm shutter for 1k1k camera,including shutter driver module
GE-SR45 45mm shutter for 2k2k and 2k2k plus camera, including shutter driver module
B) Accessories for enhanced cooling performance
GE-CR01 Compact liquid cooling, circulating the coolant at room temperature for deep camera cooling
GE-CR02 Recirculating water chiller, PID control with temp. from -5°C to 30°C for ultra-deep camera cooling
C) Software development kit (SDK) and drivers
GE-LX01 SDK for Linux (C/C++ based)
GE-PYT01 Python driver
GE-LAB01 LabVIEW driver
GE-EP EPICS driver
GE-TAN Tango driver




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Series


Search Reset
Compare Model Drawings & Specs Series Availability Reference Price
(USD)
ELSE-s-1k128-BIMID
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy, Image Area 26.6 mm × 3.3 mm，Pixel Format 1024 × 127 Pixels，Pixel Size 26 µm × 26 µm，Gain 0.4 Counts/e-，CCD Sensor Type Back-illuminated，Sensor Coating Midband Antireflective，Full well capacity 500 k e-, Up to 95% VIS Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-1k128-DDNIR
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy, Image Area 26.6 mm × 3.3 mm, Pixel Format 1024 × 127 Pixels, Pixel Size 26 µm × 26 µm, Gain 0.4 Counts/e-, CCD Sensor Type, Back-illuminated, Deep Depletion, Fringe Suppression, Sensor Coating NIR Antireflective, Full Well Capacity 700 k e-, Up to 95% NIR Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-1k256-OEUV
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy，Image Area 26.6 mm × 6.7 mm，Pixel Format 1024 × 255 Pixels，Pixel Size 26 µm × 26 µm，Gain 0.4 Counts/e-，CCD Sensor Type Front-illuminated, Open-Electrode，Full Well Capacity 300 k e-，Up to 36% UV Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-1k256-BIUV2
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy，Image Area 26.6 mm × 6.7 mm, Pixel Format 1024 × 255 Pixels, Pixel Size 26 µm × 26 µm, Gain 0.4 counts/e-, CCD Sensor Type, Back-illuminated, Enhanced Process, Sensor Coating Broadband UV Antireflective, Full Well Capacity 500 k e-, Up to 90% Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-1k256-BIUV3
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy，Image Area 26.6 mm × 6.7 mm, Pixel Format 1024 × 255 Pixels, Pixel Size 26 µm × 26 µm, Back-illuminated, Enhanced Process, Sensor Coating UV Antireflective, Full Well Capacity 500 k e-, Up to 60% UV Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-1k256-FI
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy，Image Area 26.6 mm × 6.7 mm, Pixel Format 1024 × 255 Pixels, Pixel Size 26 µm × 26 µm, Gain 0.4 Counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 500 k e-, Up to 55% VIS Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-1k256-BIMID
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy，Image Area 26.6 mm × 6.7 mm，Pixel Format 1024 × 255 Pixels，Pixel Size 26 µm × 26 µm，Gain 0.4 counts/e-，CCD Sensor Type Back-illuminated，Sensor Coating Midband Antireflective，Full Well Capacity 500 k e-, Up to 95% VIS Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-1k256-FIDD
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy，Image Area 26.6 mm × 6.7 mm，Pixel Format 1024 × 255 pixels，Pixel Size 26 µm × 26 µm ，Gain 0.4 Counts/e-，CCD Sensor Type Front-illuminated, Deep Depletion，Full Well Capacity 700 k e-，Up to 60% Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-1k256-DDNIR
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy，Image Area 26.6 mm × 6.7 mm, Pixel Format 1024 × 255 Pixels, Pixel Size 26 µm × 26 µm, Gain 0.4 Counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion, Fringe Suppression, Sensor Coating NIR Antireflective, Full Well Capacity 700 k e-, Up to 95% NIR Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-1k256-DDMU2
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy，Image Area 26.6 mm × 6.7 mm，Pixel Format 1024 × 255 Pixels，Pixel Size 26 µm × 26 µm，CCD Sensor Type Back-illuminated, Deep Depletion, Fringe Suppression，Sensor Coating Multiband Antireflective，Full Well Capacity 700 k e- 		ELSEs 6-8 weeks Request for quote
ELSE-s-2k256-FI
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy，Image Area 30.7 mm × 3.9 mm, Pixel Format 2048 × 264 Pixels, Pixel Size 15 µm × 15 µm, Gain 1.5 Counts/e-, CCD Sensor Type Front-Illuminated, Full Well Capacity 75 k e-, Up to 55% VIS Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-2k256-DDNIR
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy, Image area 30.7 mm × 3.9 mm，Pixel format 2048 × 264 pixels，Pixel size 15 µm × 15 µm，Gain 1.5 counts/e-，CCD sensor type Back-Illuminated, Deep-Depletion, Fringe Suppression，Sensor coating NIR antireflective，Full well capacity 75 k e- 		ELSEs 6-8 weeks Request for quote
ELSE-s-2k512-FIUV
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy, Image Area 27.6 mm × 6.9 mm，Pixel Format 2048 × 512 Pixels，Pixel Size 13.5 µm × 13.5 µm，Gain High Capacity Mode 0.34 counts/e-; Standard Mode 1 counts/e-，CCD Sensor Type Front-illuminated，Sensor Coating Lumogen，Full Well Capacity 100 k e-, Up to 12% UV Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-2k512-BIUV2
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy, Image Area 27.6 mm × 6.9 mm, Pixel Format 2048 × 512 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain High Capacity Mode 0.34 counts/e-; Standard Mode 1 counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Sensor Coating Broadband UV Antireflective, Full Well Capacity 100 k e-, Up to 90% Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-2k512-BIUV3
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy, Image Area 27.6 mm × 6.9 mm, Pixel Format 2048 × 512 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain High Capacity Mode 0.34 Counts/e-; Standard Mode: 1 Counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Sensor Coating UV Antireflective, Full Well Capacity 100 k e-, Up to 60% UV Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-2k512-FI
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy, Image Area 27.6 mm × 6.9 mm, Pixel Format 2048 × 512 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain High Capacity Mode 0.34 Counts/e-; Standard Mode 1 Counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 100 k e-, Up to 55% VIS Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-s-2k512-BIMID
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Spectroscopy, Image Area 27.6 mm × 6.9 mm, Pixel Format 2048 × 512 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain High Capacity Mode 0.34 Counts/e-; Standard Mode 1 Counts/e-, CCD Sensor Type Back-illuminated, Sensor Coating, Midband Antireflective, Full Well Capacity 100 k e-, Up to 95% VIS Quantum Efficiency 		ELSEs 6-8 weeks Request for quote
ELSE-i-1k1k-BIUV3
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 x 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 Counts/e-, CCD Sensor Type Back-illuminated, Sensor Coating UV Antireflective, Full Well Capacity 100 k e-, Up to 60% UV Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-1k1k-FI
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 x 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 Counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 100 k e-, Up to 55% VIS Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-1k1k-BIBR
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 x 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 Counts/e-, CCD Sensor Type Back-illuminated, Sensor Coating Broadband Antireflective, Full Well Capacity 100 k e-, Up to 85% VIS Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-1k1k-BIMID
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 x 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 Counts/e-, CCD Sensor Type Back-illuminated, Sensor Coating Midband Antireflective, Full Well Capacity 100 k e-, Up to 95% VIS Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-1k1k-DDNIR
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 x 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 Counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion, Fringe Suppression, Sensor Coating NIR Antireflective, Full Well Capacity 120 k e-, Up to 95% NIR Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-1k1k-DDMU2
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 x 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion, Fringe Suppression, Sensor Coating Multiband Antireflective, Full Well Capacity 120 k e-,Up to 95% Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-2k2k-BIUV3
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Sensor Coating UV Antireflective Full Well Capacity 150 k e-, Up to 60% quantum efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-2k2k-FI
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 100 k e-, Up to 55% VIS Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-2k2k-BIMID
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Sensor Coating Midband Antireflective, Full Well Capacity 100 k e-, Up to 95% VIS Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-2k2k-DDNIR
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion Fringe Suppression, Sensor Coating NIR Antireflective, Full Well Capacity 150 k e-, Up to 95% NIR Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-2k2k-DDMU2
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-Illuminated, Deep-Depletion, Fringe Suppression, Sensor Coating Multi-2 Antireflective, Full Well Capacity 150 k e-, Up to 95% VIS-NIR Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-2k2kplus-BIMID
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 30.7 mm × 30.7 mm, Pixel Format 2048 × 2064 Pixels, Pixel Size 15 µm × 15 µm, Gain 0.6 (Standard Mode) / 0.2 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-Illuminated, Sensor Coating Midband Antireflective, Full Well Capacity 150 k e-, Up to 95% VIS Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-4k4k-BIUV2
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 61.4 mm × 61.4 mm, Pixel Format 4096 × 4112 Pixels, Pixel Size 15 µm × 15 µm, Gain 1 (Standard Mode )/ 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Sensor Coating Astro-broadband Antireflective, Up to 85% Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-4k4k-BIUV4
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 61.4 mm × 61.4 mm, Pixel Format 4096 × 4112 Pixels, Pixel Size 15 µm × 15 µm, Gain 1(Standard Mode) / 0.34 (High Capacity Mode ) Counts/e-, CCD Sensor Type Back-illuminated, Sensor Coating Astro-midband Antireflective, Full Well Capacity 350 k e-, Up to 95% Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-4k4k-FI
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 61.4 mm × 61.4 mm, Pixel Format 4096 × 4112 Pixels, Pixel Size 15 µm × 15 µm, Gain 0.6(Standard Mode) / 0.2 (High Capacity Mode) Counts/e-, CCD Sensor Type Front-Illuminated, Full Well Capacity 150 k e-, Up to 55% VIS Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-4k4k-BIBR
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 61.4 mm × 61.4 mm, Pixel Format 4096 × 4112 Pixels, Pixel Size 15 µm × 15 µm, Gain 0.6(Standard Mode) / 0.2 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-Illuminated, Sensor Coating Broadband Antireflective, Full Well Capacity 150 k e-, Up to 85% VIS Quantum Efficiency 		ELSEi 6-8 weeks Request for quote
ELSE-i-4k4k-BIMID
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging，Image Area 61.4 mm × 61.4 mm, Pixel Format 4096 × 4112 Pixels, Pixel Size 15 µm × 15 µm，Gain 0.6(Standard Mode) / 0.2(High Capacity Mode) Counts/e-，CCD Sensor Type Back-illuminated，Sensor Coating Midband Antireflective，Full Well Capacity 150 k e-，Up to 95% VIS Quantum Efficiency 		ELSEi In Stock Request for quote
ELSE-i-4k4k-DDMU2
Scientific Full-Frame CCD Cameras for UV, VIS, NIR for Imaging, Image Area 61.4 mm × 61.4 mm, 61.4 mm × 61.4 mm 4096 × 4112 Pixels, Pixel Size 15 µm × 15 µm, Gain 1(Standard Mode) / 0.34(High Capacity Mode ) Counts/e-, CCD Sensor Type Back-Illuminated, Deep-Depletion, Fringe Suppression, Sensor Coating Multiband Antireflective, Full Well Capacity 150 k e-, Up to 95% Quantum Efficiency 		ELSEi 6-8 weeks Request for quote

ELSE-i-4k4k-DDMU2 - Parameter

Series
ELSEi

ELSE-i-4k4k-BIMID - Parameter

Series
ELSEi

ELSE-i-4k4k-BIBR - Parameter

Series
ELSEi

ELSE-i-4k4k-FI - Parameter

Series
ELSEi

ELSE-i-4k4k-BIUV4 - Parameter

Series
ELSEi

ELSE-i-4k4k-BIUV2 - Parameter

Series
ELSEi

ELSE-i-2k2kplus-BIMID - Parameter

Series
ELSEi

ELSE-i-2k2k-DDMU2 - Parameter

Series
ELSEi

ELSE-i-2k2k-DDNIR - Parameter

Series
ELSEi

ELSE-i-2k2k-BIMID - Parameter

Series
ELSEi

ELSE-i-2k2k-FI - Parameter

Series
ELSEi

ELSE-i-2k2k-BIUV3 - Parameter

Series
ELSEi

ELSE-i-1k1k-DDMU2 - Parameter

Series
ELSEi

ELSE-i-1k1k-DDNIR - Parameter

Series
ELSEi

ELSE-i-1k1k-BIMID - Parameter

Series
ELSEi

ELSE-i-1k1k-BIBR - Parameter

Series
ELSEi

ELSE-i-1k1k-FI - Parameter

Series
ELSEi

ELSE-i-1k1k-BIUV3 - Parameter

Series
ELSEi

ELSE-s-2k512-BIMID - Parameter

Series
ELSEs

ELSE-s-2k512-FI - Parameter

Series
ELSEs

ELSE-s-2k512-BIUV3 - Parameter

Series
ELSEs

ELSE-s-2k512-BIUV2 - Parameter

Series
ELSEs

ELSE-s-2k512-FIUV - Parameter

Series
ELSEs

ELSE-s-2k256-DDNIR - Parameter

Series
ELSEs

ELSE-s-2k256-FI - Parameter

Series
ELSEs

ELSE-s-1k256-DDMU2 - Parameter

Series
ELSEs

ELSE-s-1k256-DDNIR - Parameter

Series
ELSEs

ELSE-s-1k256-FIDD - Parameter

Series
ELSEs

ELSE-s-1k256-BIMID - Parameter

Series
ELSEs

ELSE-s-1k256-FI - Parameter

Series
ELSEs

ELSE-s-1k256-BIUV3 - Parameter

Series
ELSEs

ELSE-s-1k256-BIUV2 - Parameter

Series
ELSEs

ELSE-s-1k256-OEUV - Parameter

Series
ELSEs

ELSE-s-1k128-DDNIR - Parameter

Series
ELSEs

ELSE-s-1k128-BIMID - Parameter

Series
ELSEs

ELSE-i-4k4k-DDMU2 - Download

ELSE-i-4k4k-BIMID - Download

ELSE-i-4k4k-BIBR - Download

ELSE-i-4k4k-FI - Download

ELSE-i-4k4k-BIUV4 - Download

ELSE-i-4k4k-BIUV2 - Download

ELSE-i-2k2kplus-BIMID - Download

ELSE-i-2k2k-DDMU2 - Download

ELSE-i-2k2k-DDNIR - Download

ELSE-i-2k2k-BIMID - Download

ELSE-i-2k2k-FI - Download

ELSE-i-2k2k-BIUV3 - Download

ELSE-i-1k1k-DDMU2 - Download

ELSE-i-1k1k-DDNIR - Download

ELSE-i-1k1k-BIMID - Download

ELSE-i-1k1k-BIBR - Download

ELSE-i-1k1k-FI - Download

ELSE-i-1k1k-BIUV3 - Download

ELSE-s-2k512-BIMID - Download

ELSE-s-2k512-FI - Download

ELSE-s-2k512-BIUV3 - Download

ELSE-s-2k512-BIUV2 - Download

ELSE-s-2k512-FIUV - Download

ELSE-s-2k256-DDNIR - Download

ELSE-s-2k256-FI - Download

ELSE-s-1k256-DDMU2 - Download

ELSE-s-1k256-DDNIR - Download

ELSE-s-1k256-FIDD - Download

ELSE-s-1k256-BIMID - Download

ELSE-s-1k256-FI - Download

ELSE-s-1k256-BIUV3 - Download

ELSE-s-1k256-BIUV2 - Download

ELSE-s-1k256-OEUV - Download

ELSE-s-1k128-DDNIR - Download

ELSE-s-1k128-BIMID - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
