High Speed Large Format Camera

Industry High Speed Camera With Resolution Between 1-3K

These industry high speed cameras feature resolution between 1-3K and pixel size  up to 5.5 x 5.5μm. Our products have applied to PCB AOI inspection, semiconductor inspection, solarcell inspection and life science.


Feature


         0e1151cf4edd09a028ae0b64f2ba9a01_STS2M8SXGV_409M.jpg36abc60e6eb5d1f87d570ef68c259b95_STS2MCL_340MC.jpg        6ec703757503164238004d2daf15e275_STS4MCL_180MC.jpg

STS2M8SXGV-409M / STS7MSXGV-171M

             STS2MCL-340MC                            STS4MCL-180M/C

-High sensitivity and low noise

 -Global shutter CMOS

 -ROI/LUT/binning functions

 -Rich exposure control modes (STS2M8SXGV-409M only)

 -Defect pixel corection/flat field correction

- Analog gain/digital gain/offset control

 -Scanning directioncon figurable

-10GigE interface

 -Temperature monitor(STS7MSXGV-171M only)

-Global shutter CMOS

-ROI/sub-sampling/flip

-High sensitivity and low noise

-Rich exposure control modes

 -Camera link base/medium/full

 -Strobe control output

 -Automatic pixel correction(STS2MCL-340M/C only)

 -Analog gain/digital gain/offset control(STS4MCL-180M/C only)




c5ffcfa56017c69ec1ab2e05ee288b1a_STS5M3CXP_105M.jpgaabf9f12464bfc7fa7e575f5c06c0bbf_STS5MCL_156M.jpg

         STS5M3CXP-105M

             STS5MCL-156M

-Global shutter CMOS

-High sensitivity and low noise

-Defect pixel corection

-ROI / FFC

-Defect Pixel Corection

-Rich exposure control modes

-Temperature monitor

 Analog gain/digital gain/offset control

-Global shutter CMOS

-Temperature monitor

-High sensitivity and ow noise

-Defect Pixel Correction

 -ROI/LUT/binning/sub-sampling

 -Rich exposure control modes

 -GUI-based IKTool camera configuration management tool



Application


-PCB AOI inspection

-Semiconductor inspection

-Solar cell inspection

-Life science

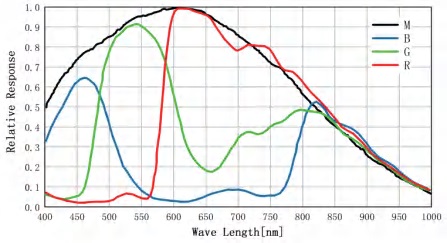

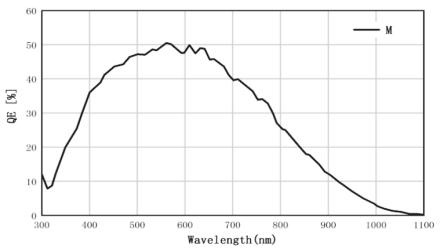

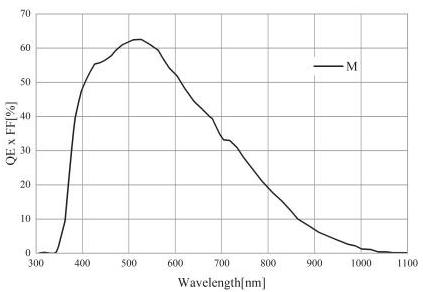

Spectral response

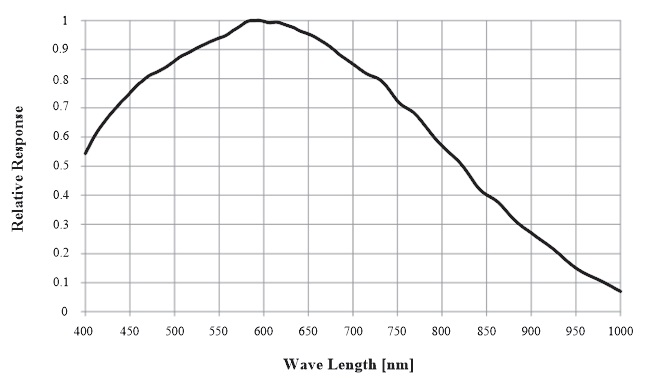

STS5MCL-156M

STS2MCL-340M/C / STS4MCL-180M/C





STS5M3CXP-105M

STS2M8SXGV-409M / STS7MSXGV-171M



Product specifications and Brochures

Product Brochure Link:

ModelSTS2M8SXGV-409MSTS2MCL-340M/CSTS4MCL-180M/CSTS5M3CXP-105MSTS5MCL-156MSTS7MSXGV-171M
SensorGlobal shutter CMOS
Image ModeMonoColor/MonoColor/MonoMonoMonoMono
Optical Size(mm)10.9412.7515.9315.8616.397.55
Resolution1936*14722048*10882048 * 20482592 * 20482560 * 20483216*2208
Pixel Size(μm)4.5* 4.55.5*5.55.5*5.54.8 * 4.85 * 54.5*4.5
Max Frame Rate409 fps

335fps@10Tap

,280fps@8Tap

140fps@4Tap

71fps@2Tap

180fps@10Tap

150fps@8Tap

75fps@4Tap

38fps@2Tap

105fps@8bit
87fps@10bit
156 fps171 fps
Bit Depth8/10/12 bit8/10 bit8/10 bit8/10 bit8/10/12 bit8/10/12 bit
Dynamic Range≥72 dB≥60 dB≥60 dB≥61.4 dB≥54 dB≥72 dB
Data Rate1165 MB/s(8bit)830 MB/s830 MB/s550 MB/s818 MB/s1214 MB/s(8bit)
Trigger ModeFree run/external trigge
Trigger SourceSoftware trigger/external IO

External IO/camera link CC

External IO/CXP triggerSoftware trigger/Camera Link CC/Extemal IOSoftware trigger/external IO
Exposure ControlProgram/Pulse Width
ExposureTime2μs-10s12μs-50s
(Step:lus)
24μs-50s
(Step:lμs)
5μs-10s
(Step:lus)
2μs-10s
(Step:lμs)
2μs-10s
Analog Gain0-24dB1-3.2x1-3.2x1/1.8x1/2/4x0-24dB
Digital Gain0.004-8.000x0.01-8.00x0.01-8.00x0.01-8.00x0.06-8.00x0.004-8.000x
Data Interface10 GigE VisionCamera LinkCamera LinkCoaXPressCamera Link10 GigE Vision
Lens InterfaceC MountCS MountCS MountC MountC MountC Mount
Power InterfaceHR10A-10R-12PB(71)(Male)M54-pinHR10A-10R-12PB(71)(Male)
Power SupplyDC12-24V(±10%)2.5ADC12V±10% 0.5ADC12V±10% 0.5APoCXP supplyDC12-24V(±10%)1ADC12-24V(±10%)2.5A
Power
Consumption
16.0 W2.5 W3.0 W3.4 W4.2 W16.0 W
Dimensions(W*H*D)(mm)

70.0x70.0x76.

8(Without adapter)

65.0x65.0x50.065.0x65.0x50.0

29x29x51.7

7(without adapter)

29x 29x43.88

(Without adapter)

70.0x70.0x73.2

(Without adapter)

Operating Temperature0-65℃0-55℃0-55℃0-50℃0-50℃0-65℃
Storage Temperature-20-75℃


Drawings

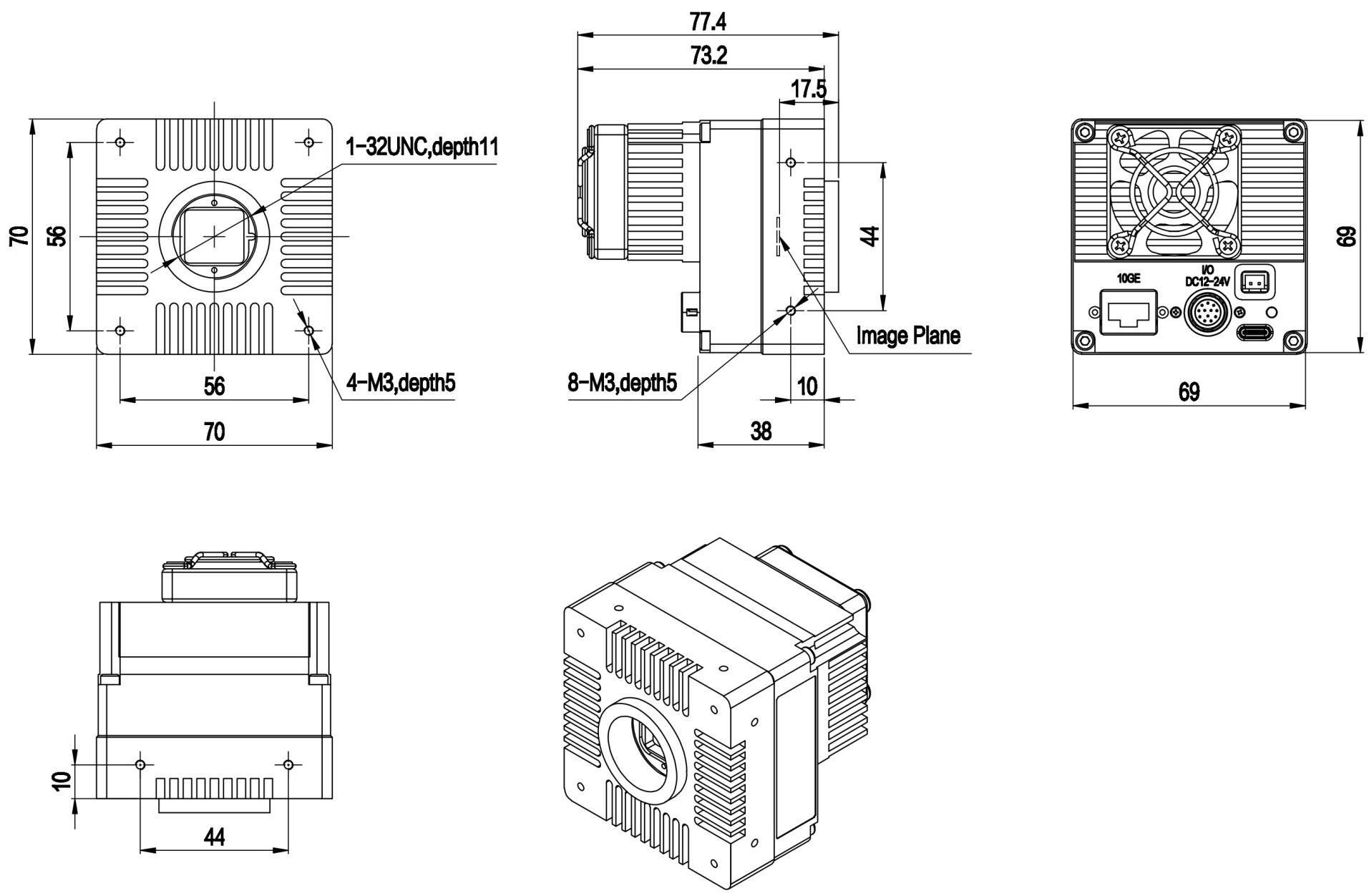

STS2M8SXGV-409M / STS7MSXGV-171M

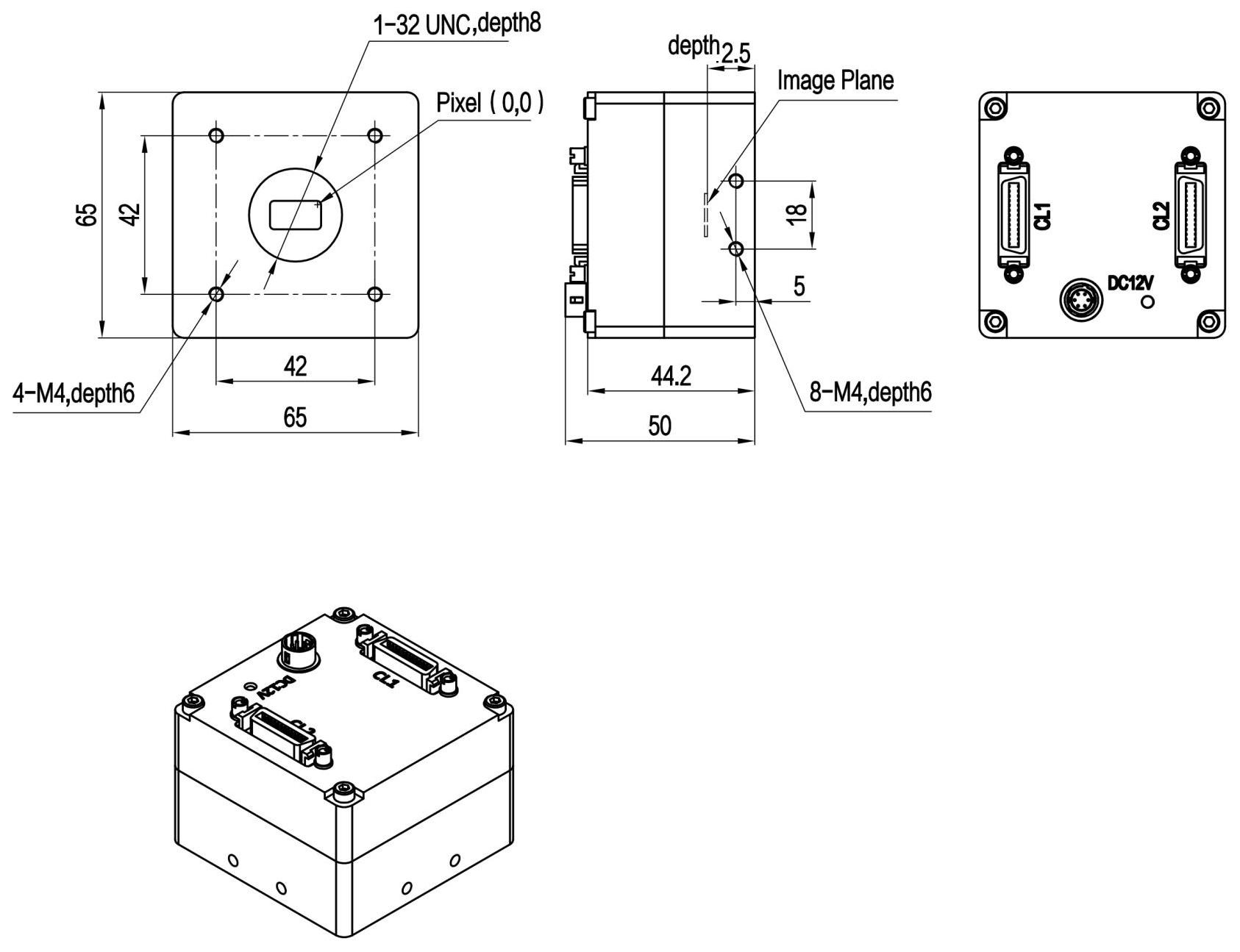

STS2MCL-340MC

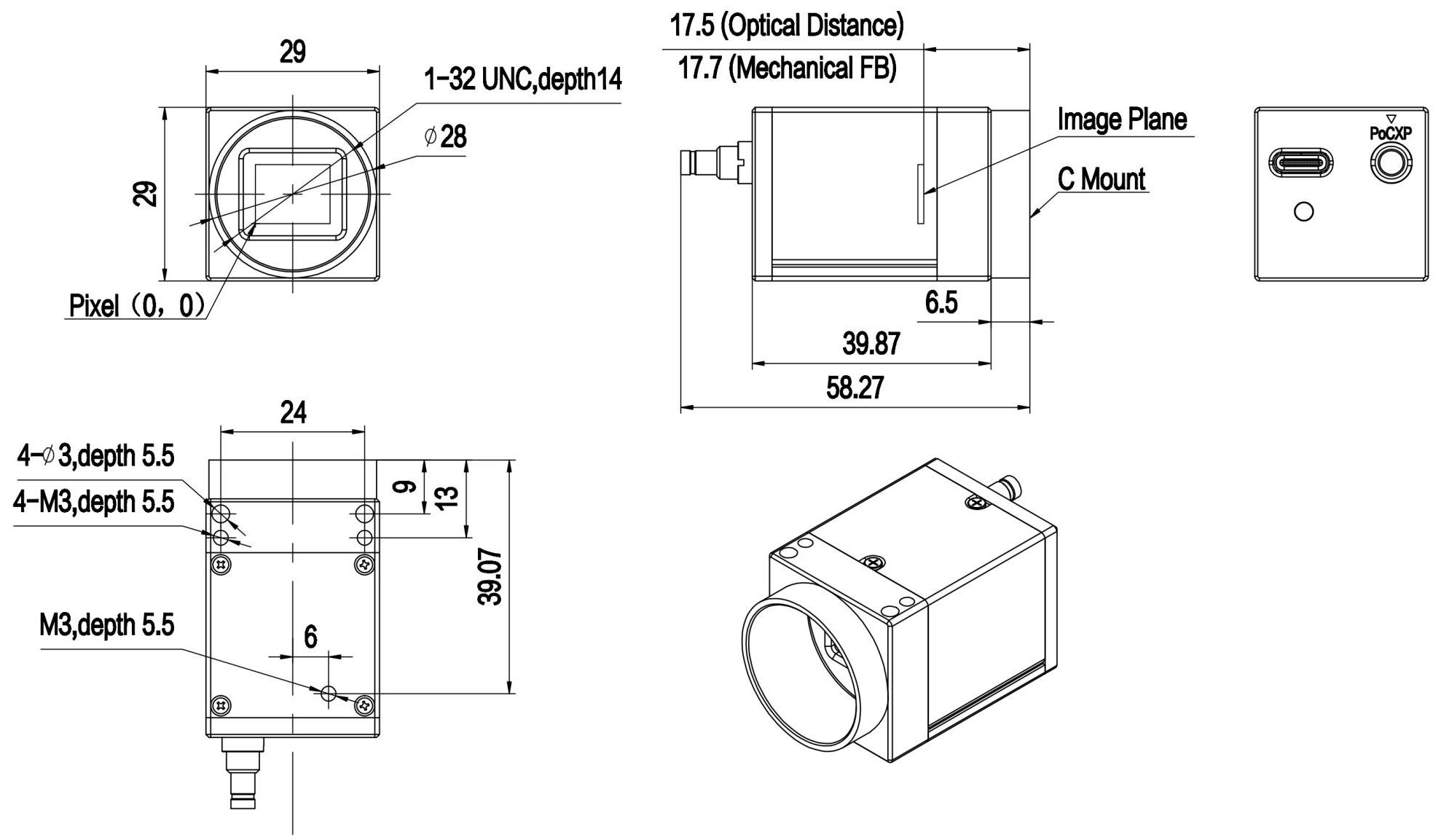

STS5M3CXP-105M

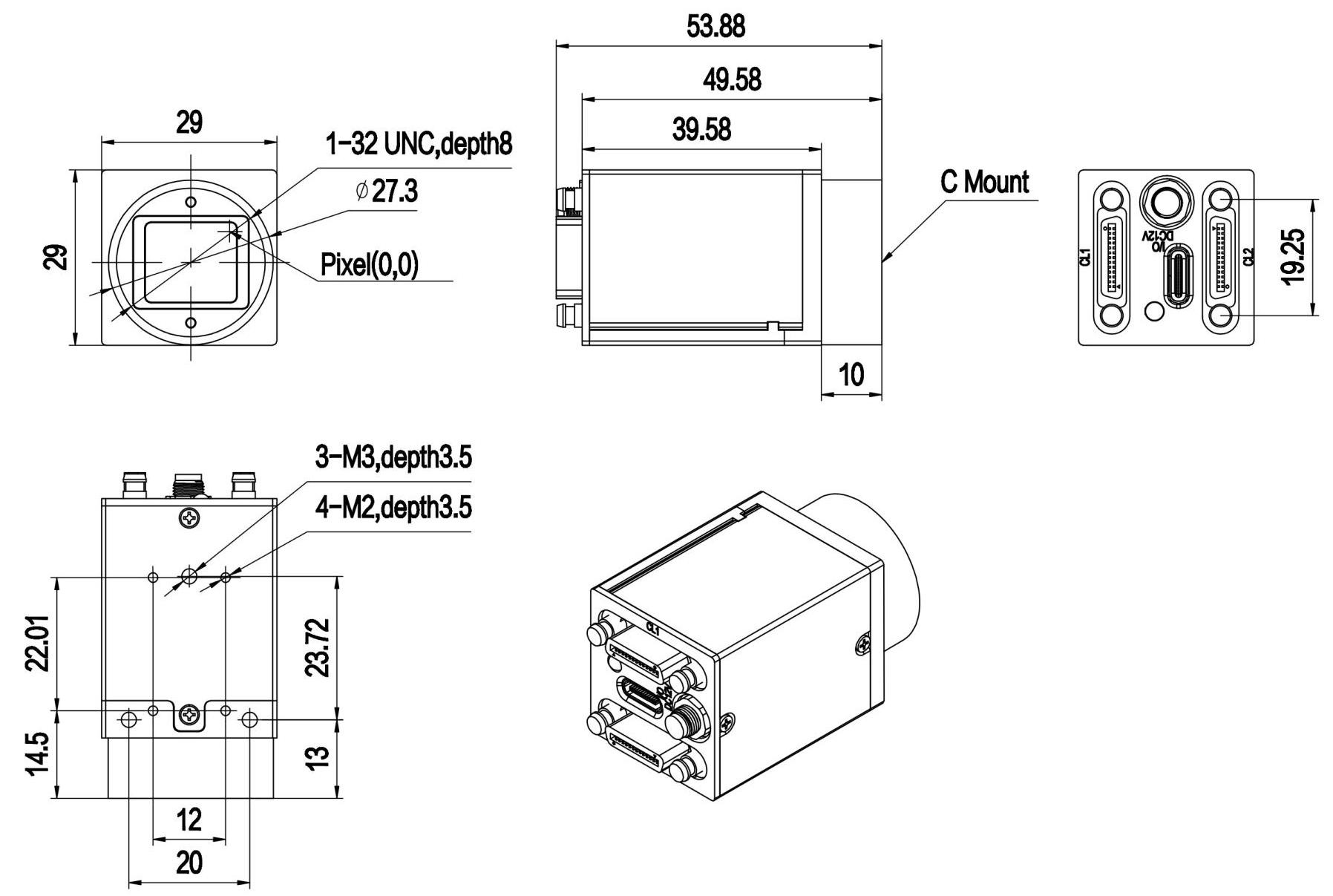

STS5MCL-156M

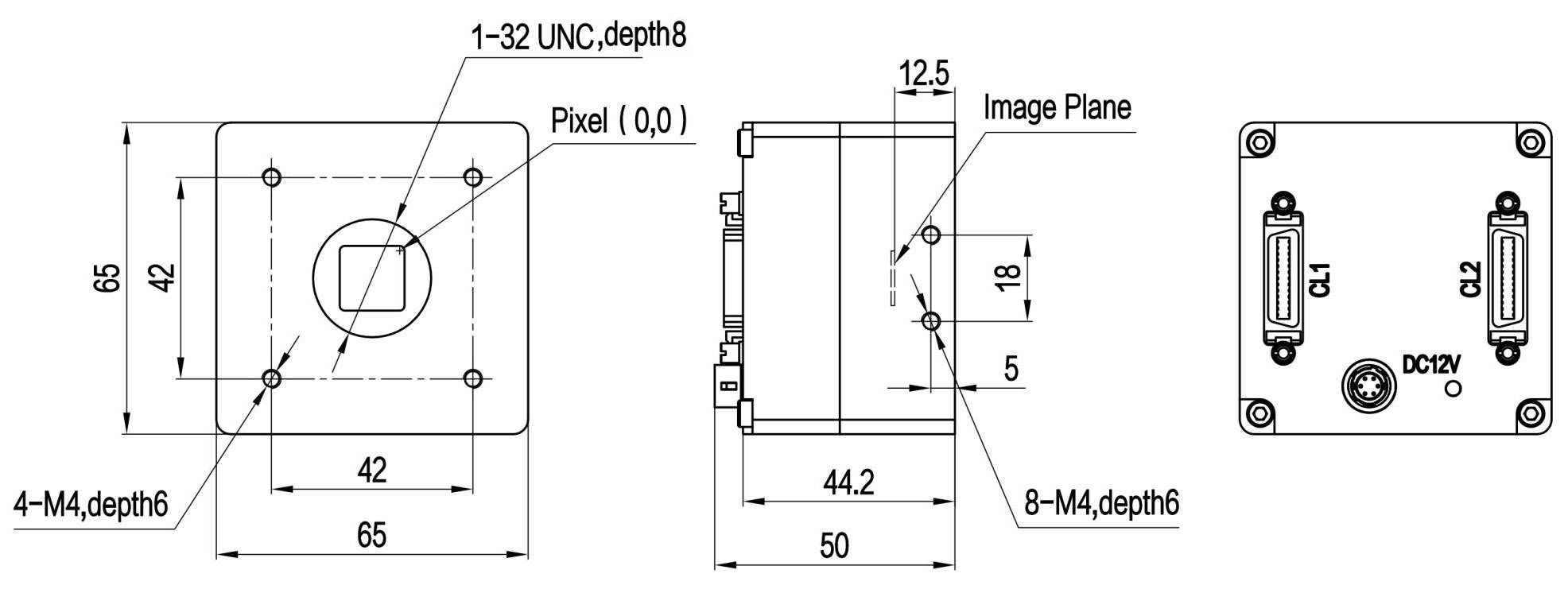

STS4MCL-180M/C




Industry High Speed Camera With Resolution Between 4-6K

These industry high speed cameras feature resolution between 4-6K and pixel size  up to 5.5 x 5.5μm. Our products have applied to PCB AOI inspection, semiconductor inspection, solarcell inspection and life science.


Feature


60fd53471d2483228cbff3855550495d_STS25MCXP_85M.jpg         93d33627a956efd18a14323996adcd22_STS12MCXP_172MC.jpg0fb000b8ebbc11503bb8bd10569de95d_STS25MCXP_42M.jpg           0f67ca46f1e0b435386a414ae87a8d0b_STS31MSCXP_35MC.jpg
             STS25MCXP-85M                                  STS12MCXP-172M/C

                STS25MCXP-42M                                         STS31MSCXP-35M/C

-Global Shutter CMOS

-Analog gain/digital gain/offset control

-High sensitivity and low noise

-CoaXPress interface

-Support CoaXPress1.1.1

-Temperature monitor

-Defect Pixel Correction/FFC/ROI

-Rich exposure control modes(STS25MCXP-85M only)

 -Auto White Balance (STS12MCXP-172M/C only)

-Global Shutter CMO

-High sensitivity and low noise

- Analog gain/digital gain/offset control

 -Defect pixel correction

 -Rich exposure control modes

 -Automatic white balance/ROI/LUT/FFC

 -Temperature monitor

 -Binning(STS31MSCXP-35M/C only)

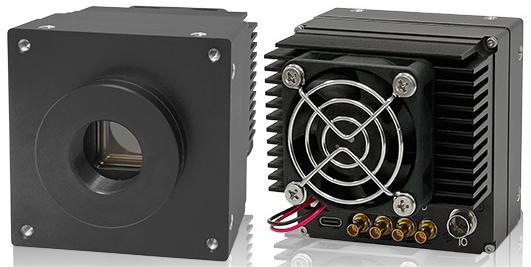

508fe2b857e55d3f4a749209d04998d1_STS21MCXP12_230M.jpg14535b9f18e875505473cef38a5bb334_STS25MCXP12_150M.jpg
       STS21MCXP12-230M          STS25MCXP12-150M

-Global Shutter CMOS

-High sensitivity and low noise

-Defect pixel corection/ROI

-Rich exposure control modes

-Temperature monitor

-Scanning direction configurable

-Global Shutter CMOS

-High sensitivity and low noise

-ROI/Auto white balance

 -Defect pixel correction/FFC

 -Analog Gain/Digital Gain/Offset Control

 -Support CoaXPress 2.0 protocol

 -Temperature monitor



Application

-PCB AOI inspection

-Semiconductor inspection

-Solar cell inspection

-Life science

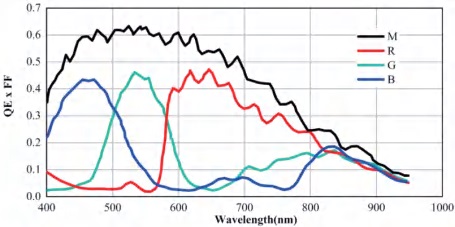

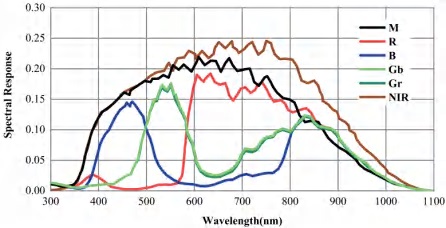

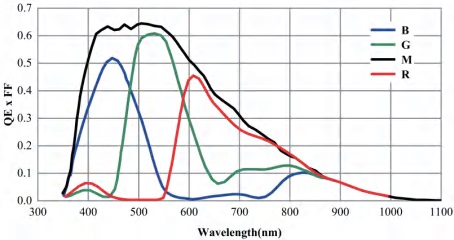

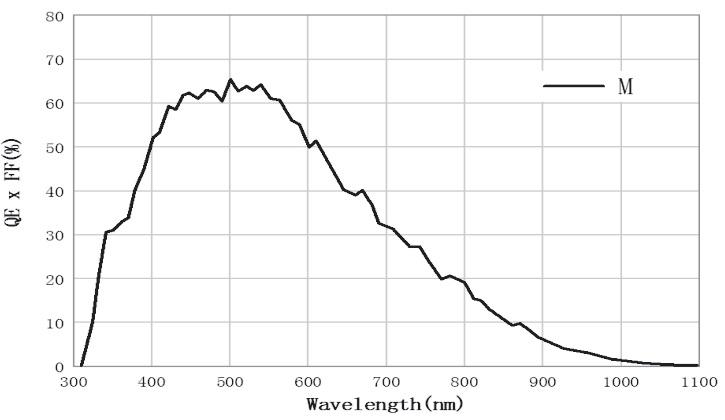

Spectral response





STS3 1MSCXP-35M/C

STS12MCXP-172M/C

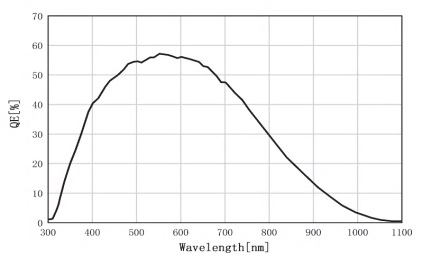

STS25MCXP-85M








STS25MCXP-42M

STS25MCXP12-150M/C

STS21MCXP12-230M







Product specifications and Brochures

Product Brochure Link:

ModelSTS12MCXP-172M/CSTS21MCXP12-230MSTS25MCXP-42MSTS25MCXP-85MSTS25MCXP12-150M/CSTS31MSCXP-35M/C
SensorGlobal shutter CMOS
Image ModeColor/MonoMonoMonoMonoColor/MonoColor/Mono
Optical Size(mm)28.1629.518.132.5818.127.88
Resolution4096 * 30725120* 40965120 *51205120* 51205120*51206464* 4852
Pixel Size(μm)5.5*5.54.5*4.52.5*2.54.5* 4.52.5*2.53.45*3.45
Max Frame Rate181 fps231.05fps@8bit
179.60fps@10bit
152.44fps@12bit
41.79fps@8bit
37.01fps@10bit
30.48fps@12bit
85fps@8bit
70fps@10bit
Two-channel :
92.1lfps@8bit,73.84fps@10bit
Four-rchannel:
150.06fps@8bit,143.12fps@10bit
35.85fps@8bit
30.57fps@10bit
25.52fps@12bit
Bit Depth8/10 bit8/10/12 bit8/10/12 bit8/10 bit8/10 bit8/10/12 bit
Dynamic Range≥54 dB≥65.7 dB≥64 dB≥59 dB≥57.2 dB≥71 dB
Data Rate2846 MB/s4795 MB/s1199 MB/s2225 MB/s4690MB/s1200 MB/s
Trigger ModeFree run/external trigge
Trigger SourceExternal IO/CXP trigger
Exposure ControlProgram/pulse width
ExposureTime28μs-50s(Step:4us)lμs-10s(Step:lμs)8ps-10s(Step: lμs)2μs-10s(Step:lμs)8μs-100s(Step:lus)5us-10s(Step:5-6us)
Analog Gain1/2/3/4x1/2/4x0.6/0.8/1.0/1.2/1.4/1.6/1.8/2.01/1.26/1.87/3.17x1/1.5/2/2.5x0-24dB
Digital Gain0.01-8.00x0.1-8.0x0.1-8.0x0.004-8.000x0.1-8.0x0.004-8.000x
Data InterfaceCoaXPressCoaXPress12CoaXPressCoaXPressCoaXPress12CoaXPress BNCx2
Lens InterfaceM42*1/F MountM58 * 0.75 / F MountC Mount/M29*0.45F MountM42/M58/C MountM42*1
Power InterfaceHirose HR10A-7R-6PB(Male)HR10A-10R-12PB(71)(Male)Hirose HR10A-7R-6PB(Male)
Power SupplyDC12-24V(±10%)2A
or PoCXP supply
DC12-24V
(±10%)3A
DC12-24V(±10%) 0.5A or
 PoCXP supply
DC12-24V1.5A
or PCXP supply
DC12V±10% 3ADC12-24V(±10%)2A or
PoCXP supply
Power
Consumption
13W(DC supply )or 15W(PoCXP supply)17.0 W3.1W(DC supply )or 3.3W(PoCXP supply)9.5W(DC supply)or 10.0W(PoCXP supply)20.4 W12.6 w
Dimensions
(W*H*D)(mm)
80.0x80.0x42.6
(Without adapter)
80.0×80.0×77.6
(Without adapter)
44.0x 33.0x67.5375.0x 75.0x87.380.0mx80.0x82.8
(Without adapter)
62.0x62.0x62.18
(Without adapter)
Operating Temperature0-50℃0-65℃0-50℃0-50℃0-50℃0-65℃
Storage Temperature-20-75℃



Drawings

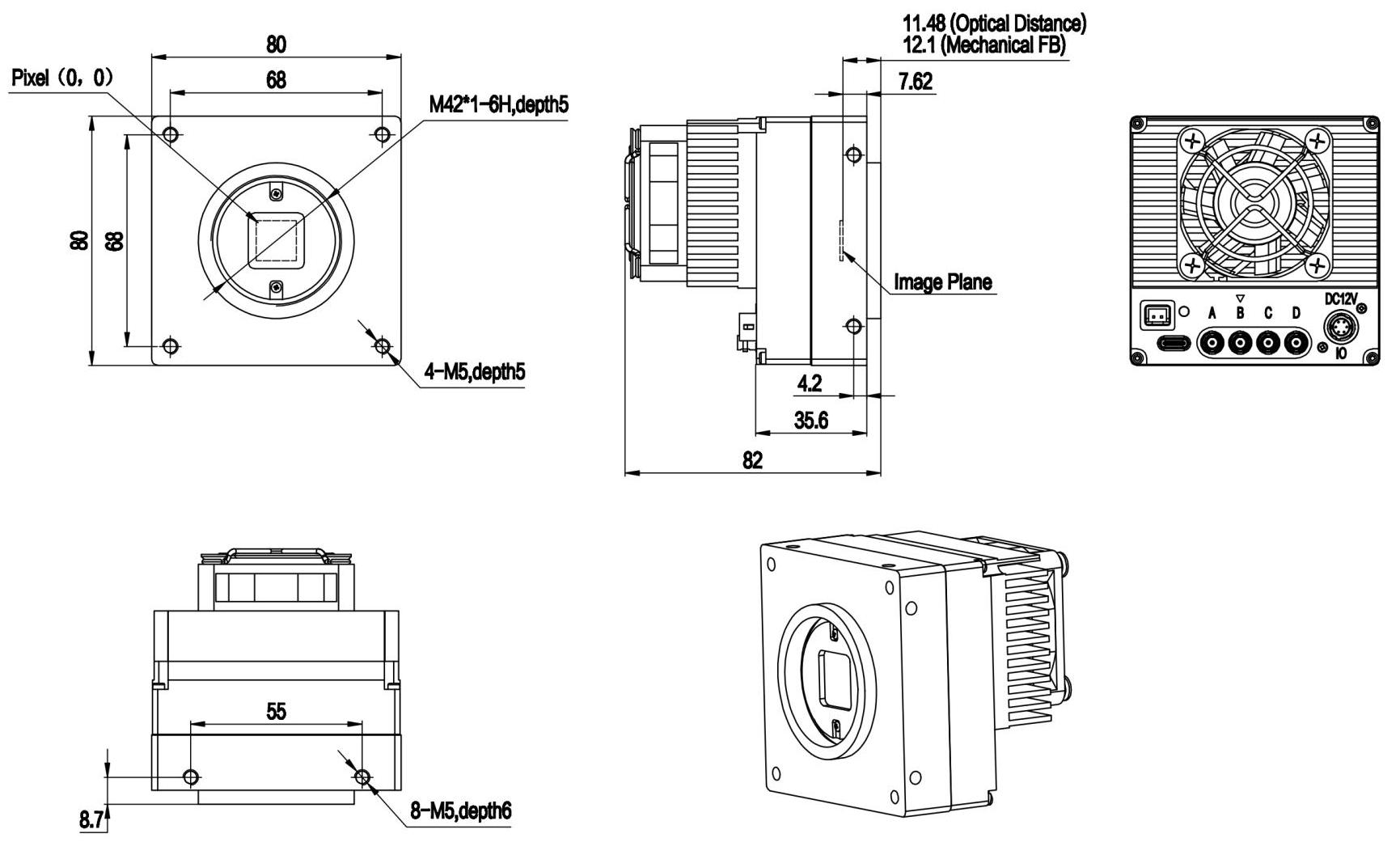

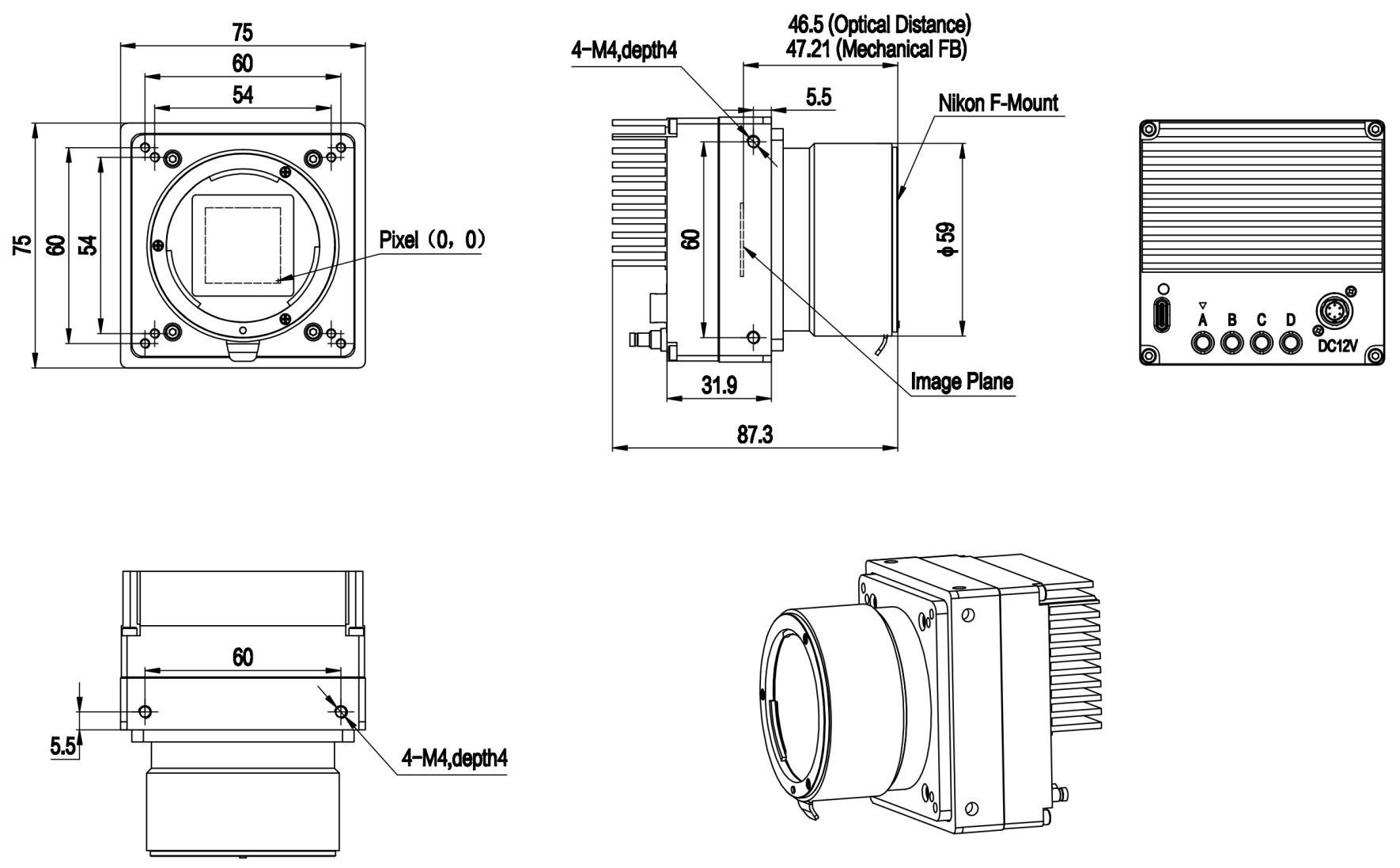

STS25MCXP-85M

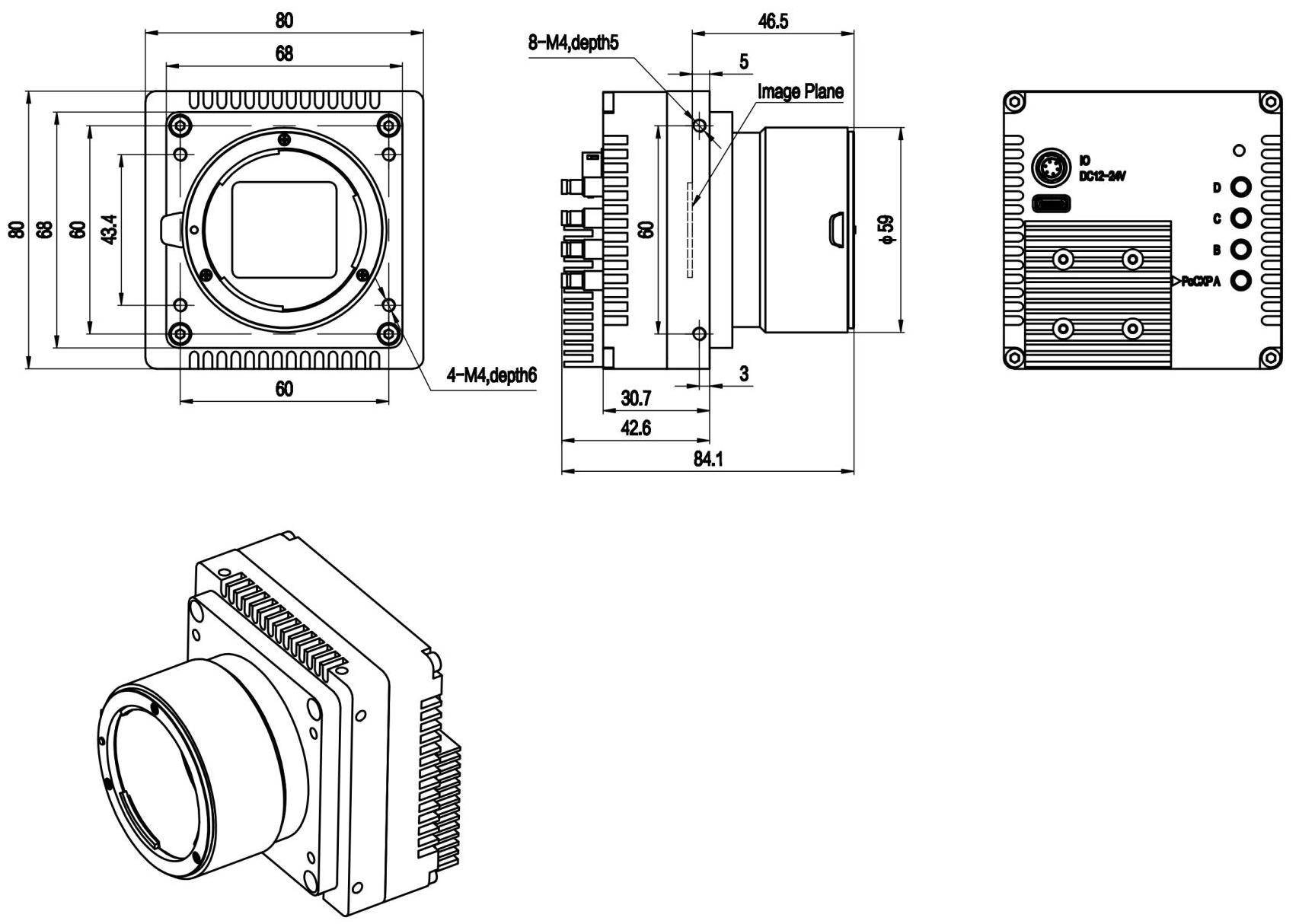

STS12MCXP-172M/C

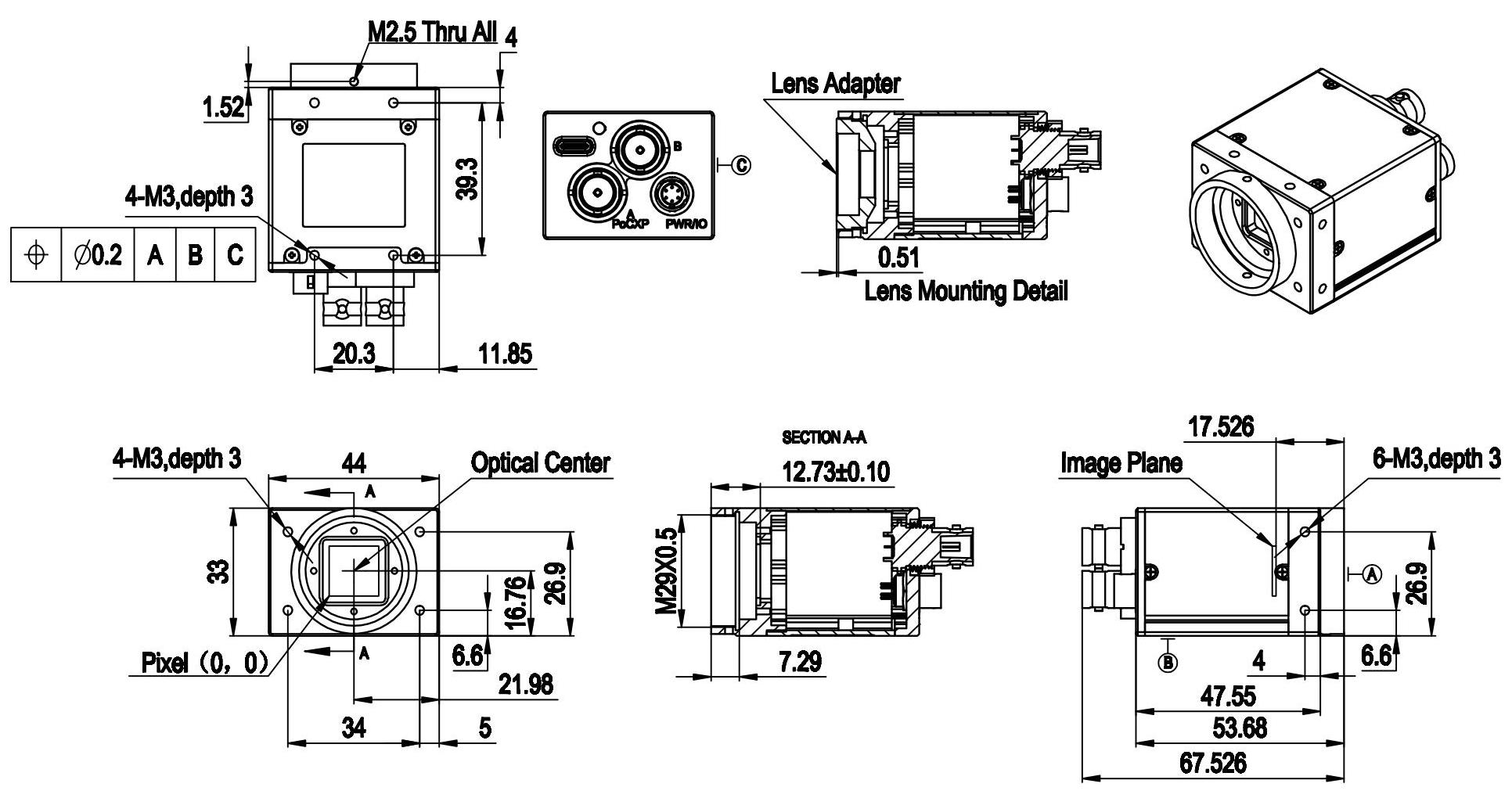

STS25MCXP-42M

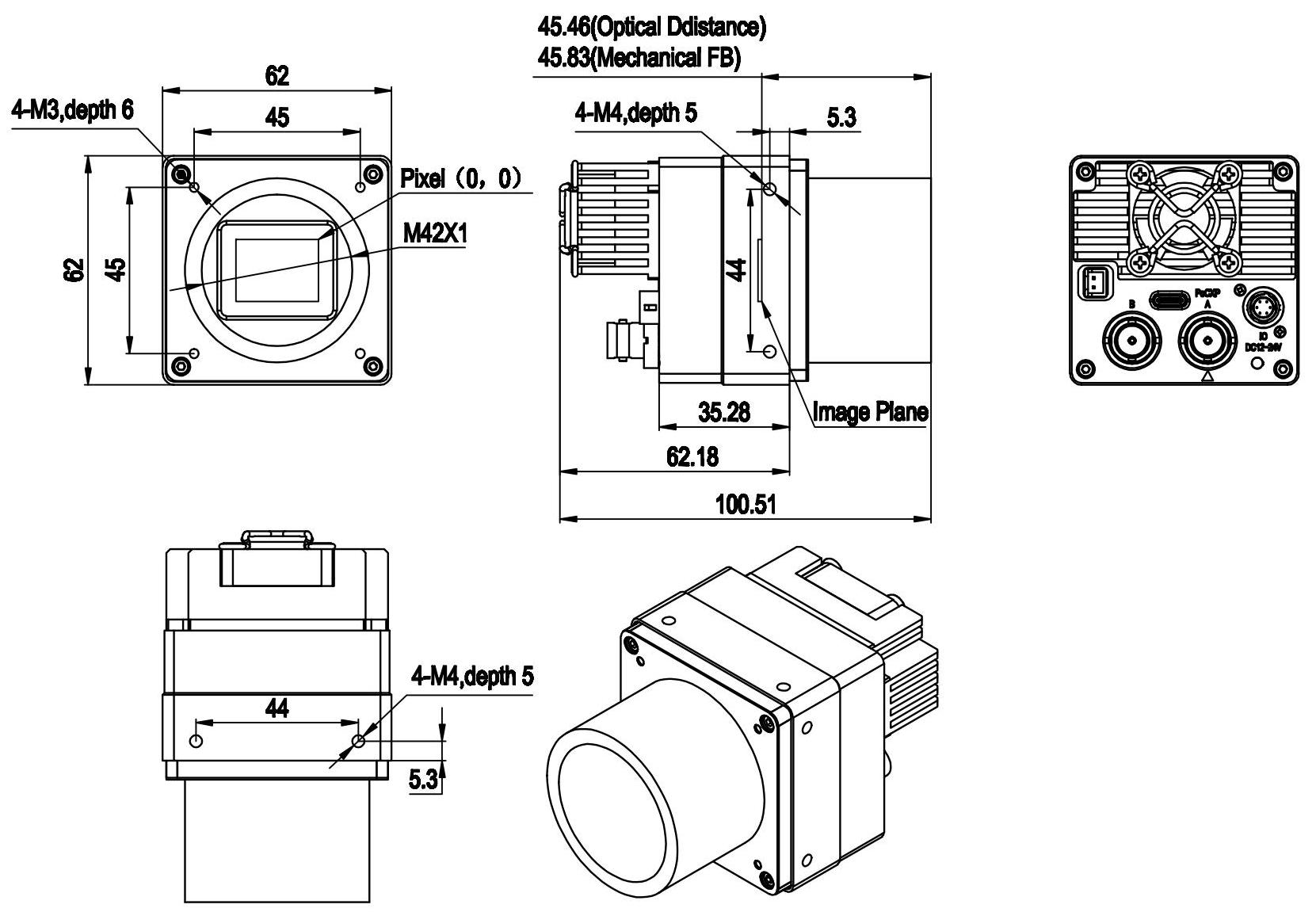

STS31MSCXP-35M/C

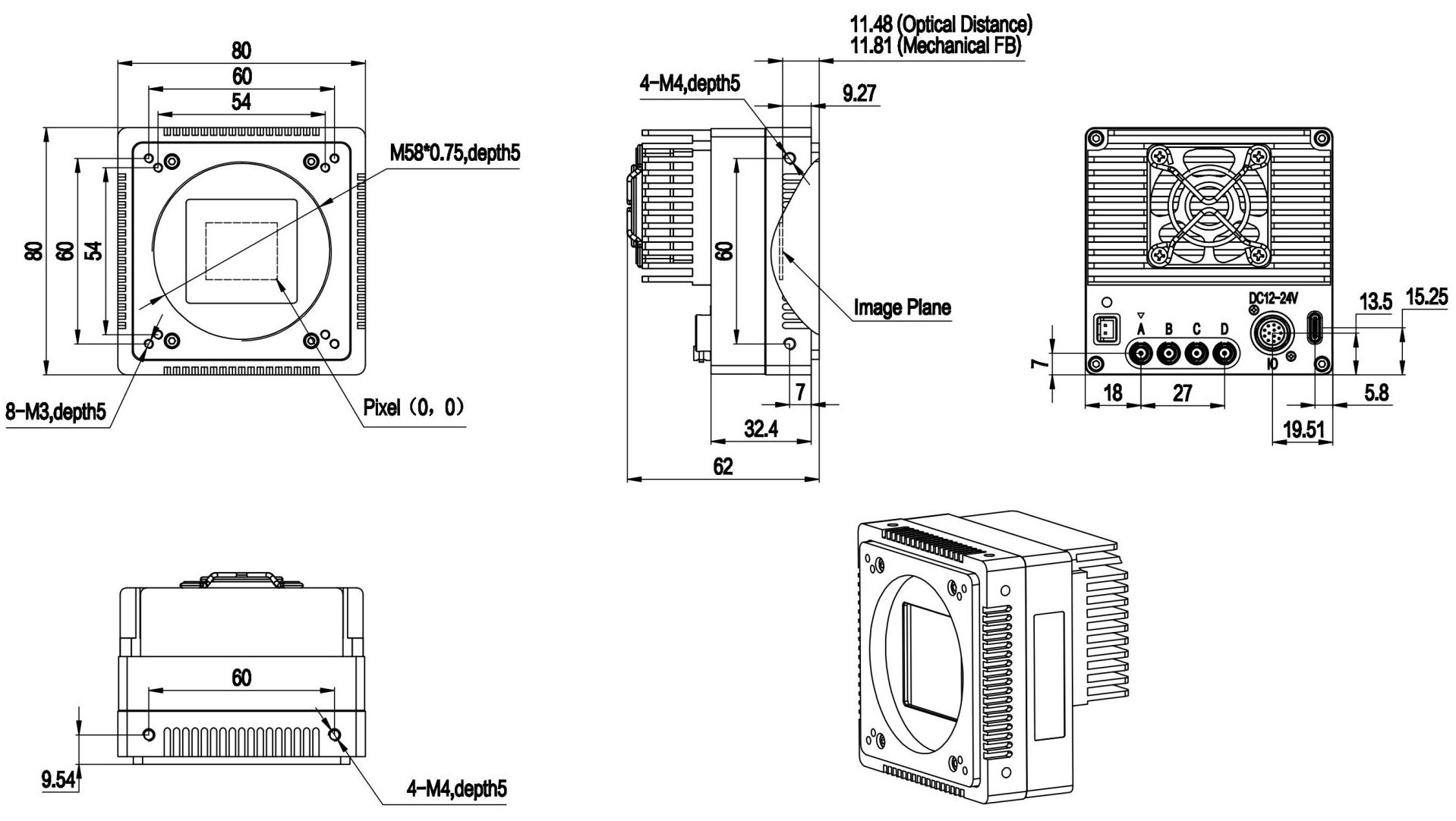

STS21MCXP12-230M


STS25MCXP12-150M/C






Industry High Speed Camera With 9K Resolution

These industry high speed cameras feature 9K resolution  and pixel size  up to 3.2 x 3.2μm. Our products have applied to PCB AOI inspection, semiconductor inspection, solarcell inspection and life science.


Feature
Application
-Global Shutter CMOS

-High sensitivity and low noise

- ROI/Auto White Balance

-Analog gain/digital gain/offset control

-Defect Pixel Correction/Flat Field Correction

-Temperature monitor

-Support CoaXPress1.1.1

 (STS65MCXP-31M/C only)

-Support CoaXPress 2.0 protocol

 (STS65MCXP-71M/C only)


          STS65MCXP-31M/C



         STS65MCXP-71M/C

-PCB AOI inspection

-Semiconductor inspection

-Solar cell inspection

-Life science

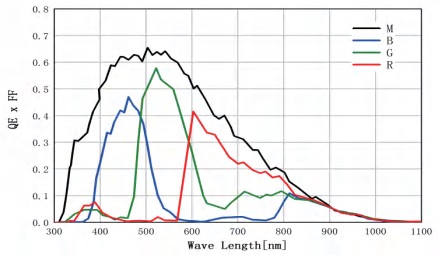

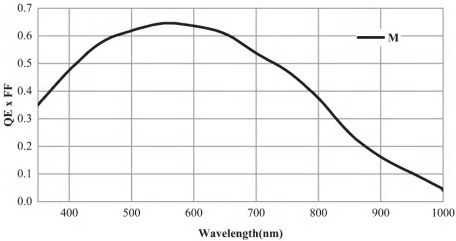

Spectral response





Product specifications and Brochures

Product Brochure Link:

ModelSTS65MCXP-31M/CSTS65MCXP-71M/C
SensorGlobal shutter CMOSGlobal shutter CMOS
Image ModeColor/MonoColor/Mono
Optical Size(mm)37.3637.36
Resolution9344*70009344* 7000
Pixel Size(μm)3.2 *3.23.2* 3.2
Max Frame Rate31.59fps(4channels),18.58fps(2 channels)71.04fps@8bit,58.13fps@10bit
Bit Depth8/10/12 bit8/10 bit
Dynamic Range≥62 dB≥62 dB
Data Rate

2000MB/s(8bit)(4 channels),1400MB/s(8bit)(2 channels)

4750MB/s
Trigger ModeFree run/external trigge
Trigger SourceExternal IO/CXP trigger
Exposure ControlProgram/Pulse Width
ExposureTime14μs-10s
(Step:lμs)
14us-10s
(Step:4μs)
Analog Gain0-12dB0-6dB
Digital Gain0.1-8.0x0.1-8.0x
Data InterfaceCoaXPressCoaXPres12
Lens InterfaceM58 * 0.75 / F MountM58/F Mount
Power InterfaceHirose HR10A-7R-6PB(Male)Hirose HR10A(6-pin)
Power SupplyDC12V±10% 3.5ADC12V±10% 3.5A
Power
Consumption
25W(4-channels);20W(2-channels)25.0 W
Dimensions(W*H*D)(mm)75.0×75.0x84.285.0x 85.0x 89.2
Operating Temperature0-50℃
Storage Temperature-20-75℃




Drawings

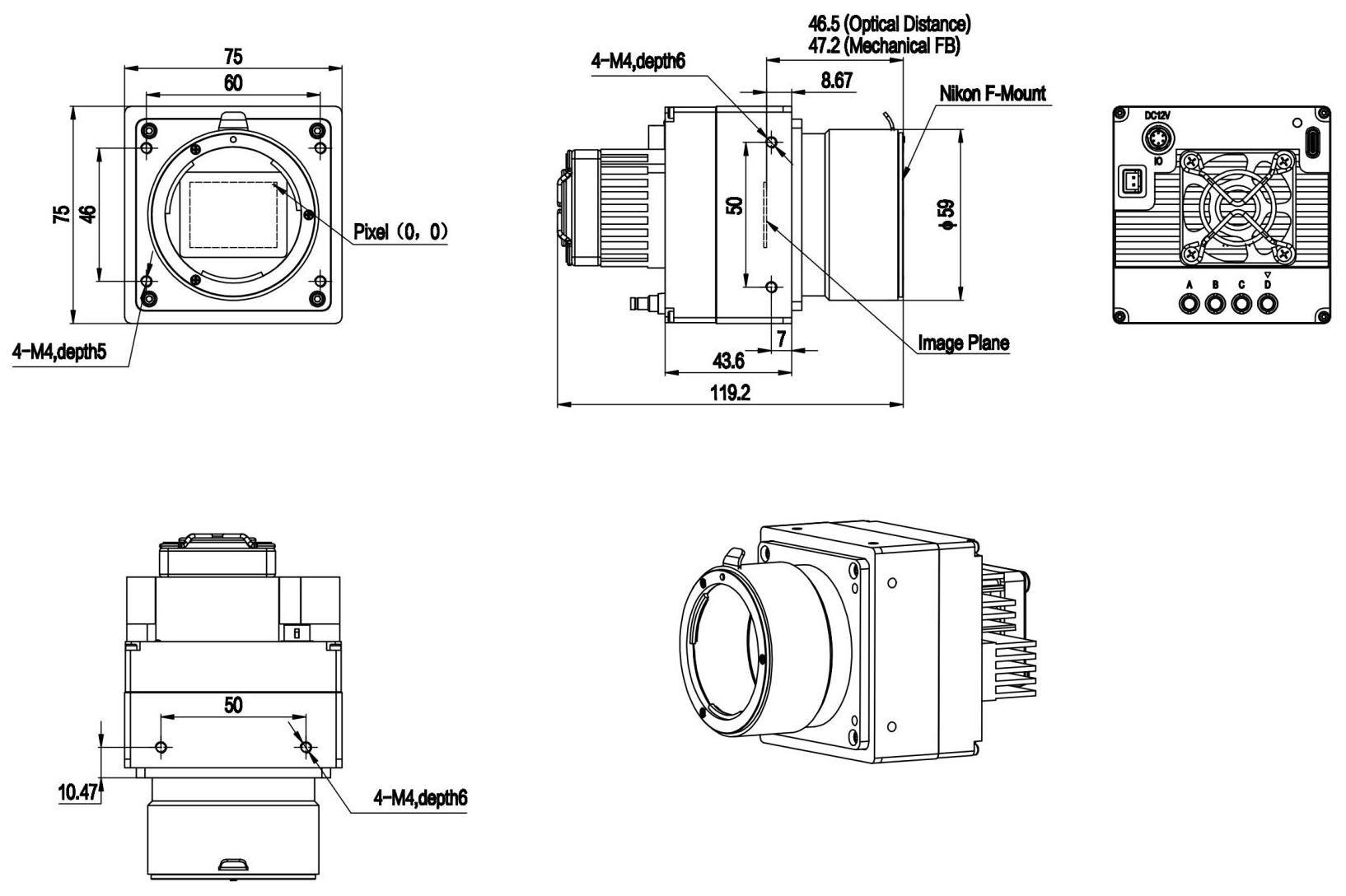

STS65MCXP-31M/C

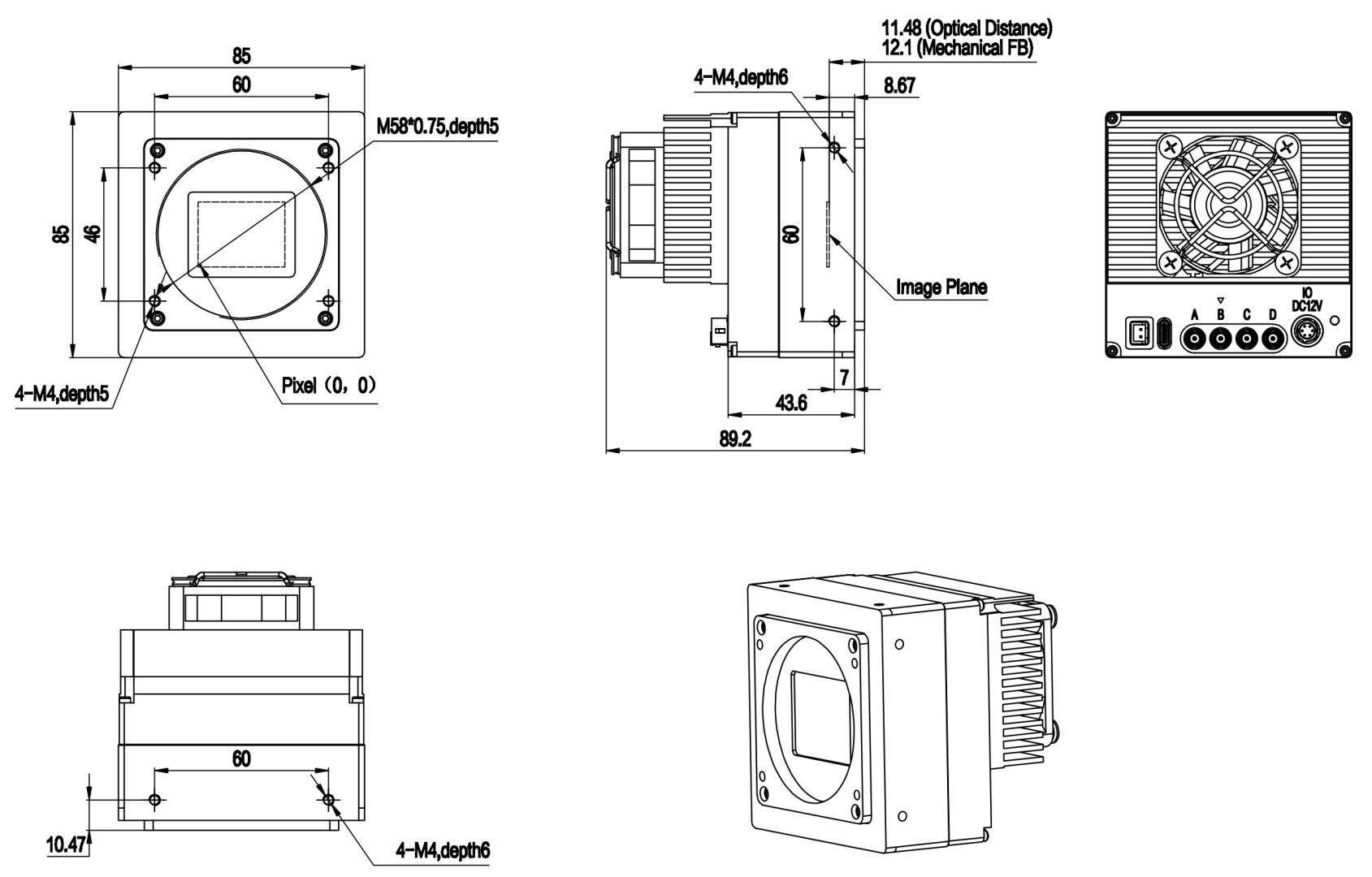

STS65MCXP-71M/C






We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Resolution


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STS2M8SXGV-409M
Industry High Speed Camera, Sensor Global shutter CMOS, Image Mode Mono, Optical Size 10.94MM, Resolution 1936*1472, Pixel Size 4.5* 4.5μm, Max Frame Rate 409 fps, Bit Depth 8/10/12 Bit, Dynamic Range ≥72 dB, Data Rate 1165 MB/s(8Bit)
6-8 weeks Request for quote
STS2MCL-340M/C
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 12.75MM, Resolution 2048*1088, Pixel Size 5.5*5.5μm, Max Frame Rate 335fps@10Tap, 280fps@8Tap, 140fps@4Tap, 71fps@2Tap, Bit Depth 8/10 Bit, Dynamic Range ≥60 dB, Data Rate 830 MB/s
6-8 weeks Request for quote
STS4MCL-180M/C
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 15.93MM, Resolution 2048 * 2048, Pixel Size 5.5*5.5μm, Max Frame Rate 180fps@10Tap, 150fps@8Tap, 75fps@4Tap, 38fps@2Tap, Dynamic Range ≥60 dB, Data Rate 830 MB/s
6-8 weeks Request for quote
STS5M3CXP-105M
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 15.86MM, Resolution 2592 * 2048, Pixel Size 4.8 * 4.8μm, Max Frame Rate 105fps@8Bit, 87fps@10Bit, Bit Depth 8/10 Bit, Dynamic Range ≥61.4 dB, Data Rate 550 MB/s
6-8 weeks Request for quote
STS5MCL-156M
Industry High Speed Camera, Sensor Global shutter CMOS, Image Mode Mono, Optical Size 16.39MM, Resolution 2560 * 2048, Pixel Size 5 * 5μm, Max Frame Rate 156 fps, Bit Depth 8/10/12 Bit, Dynamic Range ≥54 dB, Data Rate 818 MB/s
6-8 weeks Request for quote
STS7MSXGV-171M
Industry High Speed Camera, Sensor Global shutter CMOS, Image Mode Mono, Optical Size 7.55MM, Resolution 3216*2208, Pixel Size 4.5*4.5μm, Max Frame Rate 171 fps, Bit Depth 8/10/12 Bit, Dynamic Range ≥72 dB, Data Rate 1214 MB/s(8Bit)
6-8 weeks Request for quote
STS12MCXP-172M/C
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 28.16MM, Resolution 4096 * 3072, Pixel Size 5.5*5.5μm, Max Frame Rate 181 fps, Bit Depth 8/10 Bit, Dynamic Range ≥54 dB, Data Rate 2846 MB/s
6-8 weeks Request for quote
STS21MCXP12-230M
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 29.5MM, Resolution 5120* 4096, Pixel Size 4.5*4.5μm, Max Frame Rate 231.05fps@8Bit, 179.60fps@10Bit, 152.44fps@12Bit , Bit Depth 8/10/12 Bit, Dynamic Range ≥65.7 dB, Data Rate 4795 MB/s
6-8 weeks Request for quote
STS25MCXP-42M
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 18.1MM, Resolution 5120 *5120, Pixel Size 2.5*2.5μm, Max Frame Rate 41.79fps@8bit, 37.01fps@10bit, 30.48fps@12bit, Bit Depth 8/10/12 bit, Dynamic Range ≥64 dB, Data Rate 1199 MB/s
6-8 weeks Request for quote
STS25MCXP-85M
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 32.58MM, Resolution 5120* 5120, Pixel Size 4.5* 4.5μm, Max Frame Rate 85fps@8Bit, 70fps@10Bit, Bit Depth 8/10 Bit, Dynamic Range ≥59 dB, Data Rate 2225 MB/s
6-8 weeks Request for quote
STS25MCXP12-150M/C
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 18.1MM, Resolution 5120*5120, Pixel Size 2.5*2.5μm, Max Frame Rate Two-channel 92.1lfps@8Bit, 73.84fps@10Bit, Four-rchannel 150.06fps@8Bit, 143.12fps@10Bit, Bit Depth 8/10 Bit, Dynamic Range ≥57.2 dB, Data Rate 4690MB/s
6-8 weeks Request for quote
STS31MSCXP-35M/C
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 27.88MM, Resolution 6464* 4852, Pixel Size 3.45*3.45μm, Max Frame Rate 35.85fps@8Bit, 30.57fps@10Bit, 25.52fps@12Bit, Bit Depth 8/10/12 Bit, Dynamic Range ≥71 dB, Data Rate 1200 MB/s
6-8 weeks Request for quote
STS65MCXP-31M/C
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 37.36MM, Resolution 9344*7000, Pixel Size 3.2 *3.2μm, Max Frame Rate 31.59fps(4channels), 18.58fps(2 channels), Bit Depth 8/10/12 Bit, Dynamic Range ≥62 dB, Data Rate 2000MB/s(8Bit)(4 channels), 1400MB/s(8Bit)(2 channels)
6-8 weeks Request for quote
STS65MCXP-71M/C
Industry High Speed Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 37.36MM, Resolution 9344* 7000, Pixel Size 3.2* 3.2μm, Max Frame Rate 71.04fps@8Bit, 58.13fps@10Bit, Bit Depth 8/10 Bit, Dynamic Range ≥62 dB, Data Rate 4750MB/s
6-8 weeks Request for quote

STS65MCXP-71M/C - Parameter

Resolution
9K

STS65MCXP-31M/C - Parameter

Resolution
9K

STS31MSCXP-35M/C - Parameter

Resolution
4-6K

STS25MCXP12-150M/C - Parameter

Resolution
4-6K

STS25MCXP-85M - Parameter

Resolution
4-6K

STS25MCXP-42M - Parameter

Resolution
4-6K

STS21MCXP12-230M - Parameter

Resolution
4-6K

STS12MCXP-172M/C - Parameter

Resolution
4-6K

STS7MSXGV-171M - Parameter

Resolution
1-3K

STS5MCL-156M - Parameter

Resolution
1-3K

STS5M3CXP-105M - Parameter

Resolution
1-3K

STS4MCL-180M/C - Parameter

Resolution
1-3K

STS2MCL-340M/C - Parameter

Resolution
1-3K

STS2M8SXGV-409M - Parameter

Resolution
1-3K

STS65MCXP-71M/C - Download

STS65MCXP-31M/C - Download

STS31MSCXP-35M/C - Download

STS25MCXP12-150M/C - Download

STS25MCXP-85M - Download

STS25MCXP-42M - Download

STS21MCXP12-230M - Download

STS12MCXP-172M/C - Download

STS7MSXGV-171M - Download

STS5MCL-156M - Download

STS5M3CXP-105M - Download

STS4MCL-180M/C - Download

STS2MCL-340M/C - Download

STS2M8SXGV-409M - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
