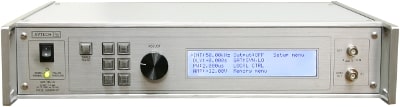

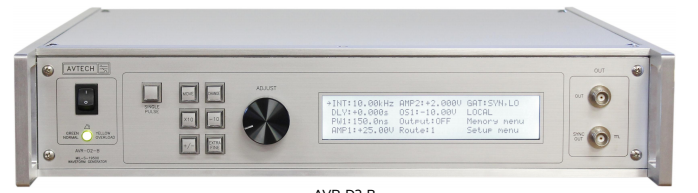

Medium and High Voltage Pulse Generators

Medium Voltage Pulse Generators

Rise Time > 1 ns


Key Features

Connectivity - A variety of connectivity options is made available (based on model variation). Standard conectivity includes: IEEE-488.2 GPIB and RS-232 computer control feature for models with -B.

Software - Labview drivers are available for selected models.

Ethernet Ports and Remote Operation - Selected models have Options to add an ethernet port allowing the devices to be remotely accessed and controlled with secure protocols.

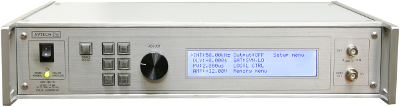

Front Panel Interface - The interface contains memory to store up to four complete instrument setups. The operator can use the front panel or the computer interface to store a complete "snapshot" of all key instrument settings, and recall this setup at a later time. This simplifies the setup of frequently performed experiments.



Please check the table below for individual specifications tied to individual products.


ProductVout (max)Rise time (20%-80%)Pulse width (FWHM)PRFGPIBBrochures
AVR-9A-B pulse generator12 V10 ns0.2-2000us50 kHzYESAVR-9 Series Brochure
AVR-9B-B pulse generator20 V15 ns0.2-2000us50 kHzYES
AVR-9C-B pulse generator12 V50 ns0.2-200us5 kHzYES
AVR-9D-B pulse generator20 V80 ns0.2-200us5 kHzYES
AV-1015-B pulse generator50 V10 ns20ns-10ms10 MHzYESAV-1010, AV-1011, AV-1015 Series Brochure
AV-1011B1-B pulse generator100 V2 ns100ns-1ms100 kHzYES
AV-1010-B pulse generator100 V10 ns20ns-10ms1 MHzYES
AVR-1A-B pulse generator50 V10 ns100ns-100us100 kHzYESAVR-1, -2, -3 & -4 Series Brochure
AVR-2A-B pulse generator100 V10 ns100ns-100us100 kHzYES
AVR-2B-B pulse generator100 V10 ns100ns-100us100 kHzYES
AVR-3-B pulse generator200 V10 ns0.1us-100us10 kHzYES
AVR-3HE-B pulse generator200 V10 ns50ns-100us100 kHzYES
AVR-3HF-B pulse generator250 V10 ns0.1-100us100 kHzYES
AVR-3HG-B pulse generator300 V12.5 ns50ns-100us20 kHzYES
AVR-4-B pulse generator400 V15 ns0.1us-100us10 kHzYES
AVR-5B-B pulse generator500 V20 ns0.1us-100us10 kHzYESAVR-5, AVR-7, and AVR-8 Series Brochure
AVR-7B-B pulse generator700 V20 ns0.1us-100us10 kHzYES
AVR-8A-B pulse generator1000 V50 ns0.2us-200us1 kHzYES
AVR-A-1-PW-B pulse generator200 V10 ns50-500 ns100 kHzYESAVR-A & AVR-S Series Brochure
AVR-A-1-S2-C pulse generator200 V2 ns10-200ns10 kHz
AVR-AHF-1-B pulse generator250 V10 ns50-500ns100 kHzYES
AVR-S3-B pulse generator200 V2 ns0.1us-5us10 kHzYES
AVR-E2A-B pulse generator50 V1.5 ns10-500 ns200 kHzYESAVR-E Series Brochure
AVR-E3A-B pulse generator100 V1.5 ns10-500 ns200 kHzYES
AVR-E6-B pulse generator100 V2 ns8-30ns2 MHzYES
AVR-GHV1-B pulse generator500 V40 ns0.2us-0.5sec1 kHzYESAVR-GHV Series Brochure
AVR-GHV2-B pulse generator500 V40 ns0.2us-0.5sec1 kHzYES
AVR-GHV4-B pulse generator400 V30 ns1us-0.5sec100 kHzYES
AVR-GHV5-B pulse generator800 V100 ns1us-0.5sec50 kHzYES
AVR-GHV6-B pulse generator500 V100 ns0.2us-0.5sec10 kHzYES
AVR-G1-B pulse generator250 V20 ns0.1us-1ms10 kHzYES




AVR-G5-B pulse generator440 V20 ns200ns-0.5s100 kHzYES
AVRF-4A-B pulse generator400 V5 ns0.15us-10us10 kHzYES




AVRF-7B-B pulse generator750 V8 ns90ns-10us5 kHzYES
AVRH-2-B pulse generator2000 V80 ns0.2us-2.5us1 kHzYES




AVRH-3-B pulse generator3000 V100 ns0.2us-2.5us1 kHzYES
AVRK-1-B pulse generator300 V3 ns (2 ns opt)5-100 ns1 kHzYES
AVRK-2-B pulse generator400 V3 ns (2 ns opt)7-65ns1 kHzYES
AVRK-3-B pulse generator550 V4 ns (2 ns opt)6-35ns1 kHzYES
AVRK-4-B pulse generator750 V4 ns (2 ns opt)6-20ns1 kHzYES
AVRQ-4-B pulse generator1500 V25-250 ns1 us10 HzYES




AVRZ-5W-B pulse generator500 V6.5 ns15ns-10us5 kHzYES




AVMR-3-B pulse generator50 V2.5 ns10-100 ns3 MHzYES




AVIR-2-B pulse generator200 V1.5 ns3-10 ns20 kHzYES
AVIR-3-B pulse generator200 V2 ns10-200 ns20 kHzYES
AVIR-4-B pulse generator200 V2 ns4-200 ns20 kHzYES
AVIR-4D-B pulse generator200 V2 ns4-1000 ns20 kHzYES
AVOZ-D1-B pulse generator500 V70 ns0.2us-10us5 kHzYES
AVOZ-D2-B pulse generator700 V100 ns0.2us-10us2.5 kHzYES
AVOZ-D3-B pulse generator200 V50 ns0.2us-10us5 kHzYES
AVOZ-D4-B pulse generator200 V50 ns0.2us-10us5 kHzYES
AVOZ-D6-B pulse generator1000 V200 ns1us-10us500 HzYES
AVOZ-D7-B pulse generator1000 V120 ns0.2us-10us1 kHzYES
AVOZ-E1-B pulse generator50 V50 ns0.5us-10us10 kHzYES
AVOZ-E2-B pulse generator100 V80 ns0.5us-10us10 kHzYES
AVOZ-E3-B pulse generator250 V150 ns0.5us-10us1 kHzYES
AVOZ-E4-B pulse generator250 V100 ns0.5us-10us3 kHzYES
AVOZ-E5-B pulse generator500 V200 ns0.5us-10us500 HzYES
AVL-AV-1-W-B pulse generator100 V2 ns5-400 ns50 kHzYES
AVL-2A-W-B pulse generator160 V2 ns3-400 ns20 kHzYES
AVL-2D-B pulse generator240 V1.5 ns10-100 ns20 kHzYES
AVL-5-B pulse generator450 V5 ns (2.5 ns opt)8-100ns2 kHzYES



Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Email Quotations

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 1 working days.


Local Same Day Service

-Singapore Main office:  Call us at +65 6996 0391 Office Hours: 9am - 6pm (+8GMT)
-China Shanghai Main office:Call us at +86 1500085 3620. Office Hours: 9am - 6pm (+8GMT)
For Other Internation sales office
click here.


Spectroscopy & Microscopy Solution

Check our solution page Spectroscopy Solutions | Microscopy Solutions



Search Reset
Compare Model Drawings & Specs Max. PRF Rise Time (20%-80%) Pulse Width Output Voltage (Max) Availability Reference Price
(USD)
AVR-3HF-B pulse generator
general purpose, wide PW range, high PRF
100 kHz10 ns0.1-100us250 V 2-3 Weeks Request for quote
AVRK-1-B pulse generator
fast rise time
1 kHz3 ns (1.5 ns opt)5-100 ns300 V 2-3 Weeks Request for quote
AVR-8A-B pulse generator
general purpose, very wide PW range
1 kHz50 ns0.2us-200us1000 V 2-3 Weeks Request for quote
AVRH-3-B pulse generator
high voltage, high impedance
1 kHz100 ns0.2us-2.5us3000 V 2-3 Weeks Request for quote
AVR-E3A-B pulse generator
fast rise time, high PRF
200 kHz1.2 ns10-500ns100 V 2-3 Weeks Request for quote
AVRQ-4-B pulse generator
High Voltage, Wide PW range
10 Hz1us25-250ns1500 4-6 Weeks Request for quote
AVRK-4-B pulse generator
General Purpose
1kHz6-20ns4 ns (1.5 ns opt)750 4-6 Weeks Request for quote
AVOZ-E5-B pulse generator
General Purpose
500Hz0.5us-10us200ns500 4-6 Weeks Request for quote

AVOZ-E5-B pulse generator - Parameter

Max. PRF
500Hz

Rise Time (20%-80%)
0.5us-10us

Pulse Width
200ns

Output Voltage (Max)
500

AVRK-4-B pulse generator - Parameter

Max. PRF
1kHz

Rise Time (20%-80%)
6-20ns

Pulse Width
4 ns (1.5 ns opt)

Output Voltage (Max)
750

AVRQ-4-B pulse generator - Parameter

Max. PRF
10 Hz

Rise Time (20%-80%)
1us

Pulse Width
25-250ns

Output Voltage (Max)
1500

AVR-E3A-B pulse generator - Parameter

Max. PRF
200 kHz

Rise Time (20%-80%)
1.2 ns

Pulse Width
10-500ns

Output Voltage (Max)
100 V

AVRH-3-B pulse generator - Parameter

Max. PRF
1 kHz

Rise Time (20%-80%)
100 ns

Pulse Width
0.2us-2.5us

Output Voltage (Max)
3000 V

AVR-8A-B pulse generator - Parameter

Max. PRF
1 kHz

Rise Time (20%-80%)
50 ns

Pulse Width
0.2us-200us

Output Voltage (Max)
1000 V

AVRK-1-B pulse generator - Parameter

Max. PRF
1 kHz

Rise Time (20%-80%)
3 ns (1.5 ns opt)

Pulse Width
5-100 ns

Output Voltage (Max)
300 V

AVR-3HF-B pulse generator - Parameter

Max. PRF
100 kHz

Rise Time (20%-80%)
10 ns

Pulse Width
0.1-100us

Output Voltage (Max)
250 V

AVOZ-E5-B pulse generator - Download

AVRK-4-B pulse generator - Download

AVRQ-4-B pulse generator - Download

AVR-E3A-B pulse generator - Download

AVRH-3-B pulse generator - Download

AVR-8A-B pulse generator - Download

AVRK-1-B pulse generator - Download

AVR-3HF-B pulse generator - Download
