VUV/UV Spectrograph
Overview & Specifications Software Related Products Order Now！

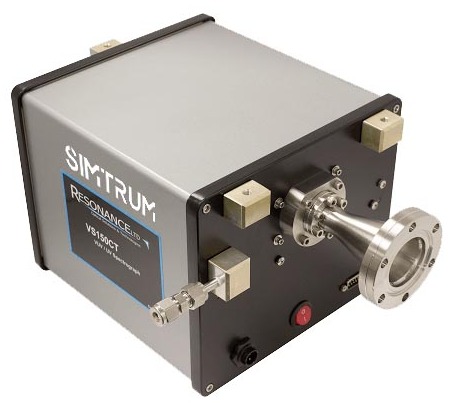

Simtrum's VUV/UV spectrograph is a Compact Czerny Turner spectrograph with excellent speed, spectral range and spectral resolution with software control of slit size, input f#, order sorting filters, grating angle and dark exposures. For VUV operation the spectrograph has a UHV window and laminar flow purge system, which allows operation down to the window short wavelength cut-off (112 nm for MgF2). The spectrograph employs interchangeable gratings and can interface to a UHV chamber or used on a benchtop in any orientation at the end of a 5-meter cable. Accessories include a built-in spectral calibration lamp, a multi-spectral flat-light source and low-cost accessories such as telescopes, vacuum adapters, flow controllers.

Features

  • Wide spectral range
  • High resolution
  • High sensitivity
  • Fast data acquisition

Application

  • Material analysis
  • Photochemical research
  • Biomedical application
  • Environmental monitoring
  • Semiconductor manufacturing

Products Specifications
Parameter Min Ave Max Unit
  Focal Length 151 152.4 153 mm
  Best Spectral Resolution 4200 grat. 41 0.04 48 mm
  Wavelength Range (grating dependent) 115 / 1100 mm
  Wavelength Accuracy / ±0.1nm / /
  CCD QE 110-400nm 10 18 42 %
  CCD QE 400-930nm 15 34 42 %
  CCD QE 930-1050nm 3 12 15 %
  Size 166.7 x 195.6 x 215.9 mm
  Vacuum interface 3.75 L x 2.75 dia Inches
  Allowance for purge connections 2 Inches
  Wavelength Resolution <0.25nm in center of field with 3600 grooves per mm grating
  Available Gratings 1200g/mm ,2880g/mm
  Software selectable slits 25/50/100/200/400 microns
  Software selection grating aperture Effective range of f# 5.2 to 10.2
  Detector CCD with 2048 pixels with radiation resistant-VUV/UV phosphor



Grating grooves/mm Wavelength range(nm) 25 mic.slit FWHM(nm)
2880 110-340 0.9
1200 110-950 0.25



Vacuum Interface

Front 2.75 in flange can be attached to UHV chamber. Spectrograph is isolated with MgF2 window in vacuum adapter. Purge can be dry N2, Ar, or He.The Spectrometer can be removed from a vacuum chamber without breaking vacuum. This allows bake out of the UHV chamber above the non-operational limit of the spectrometer.

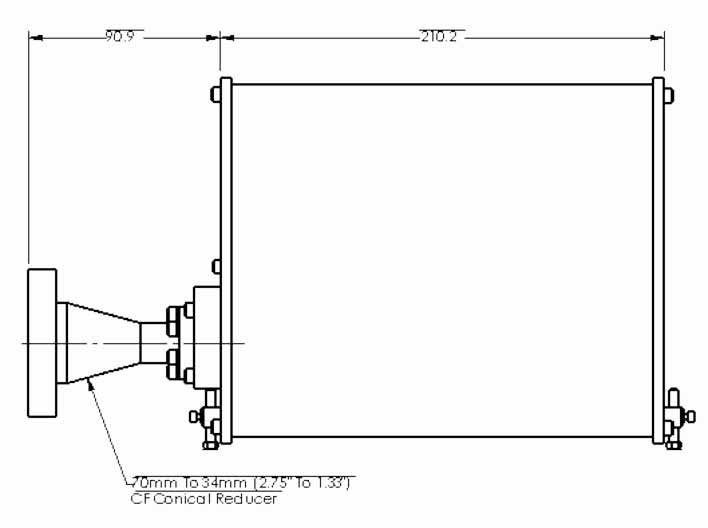

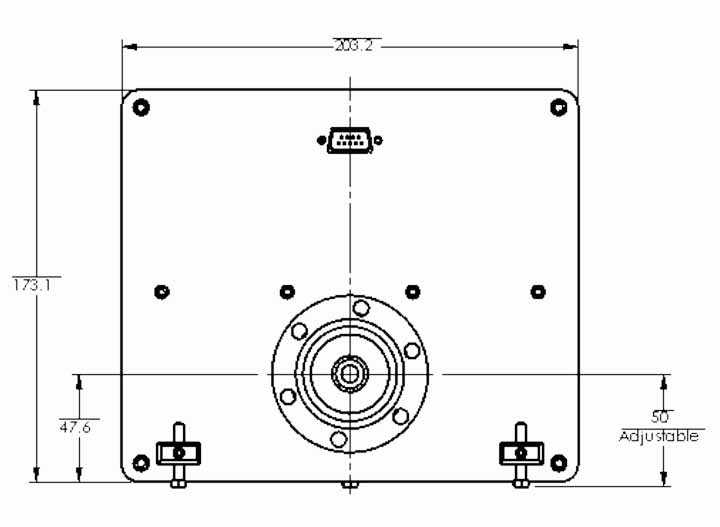

Mechanical Diagram

Software drivers and demonstration programs are available for Visual Basic, Delphi, LabView and C++. Interfacing can also be accomplished using the spectrograph virtual COM port. This allows low-level programming with ASCII string commands.

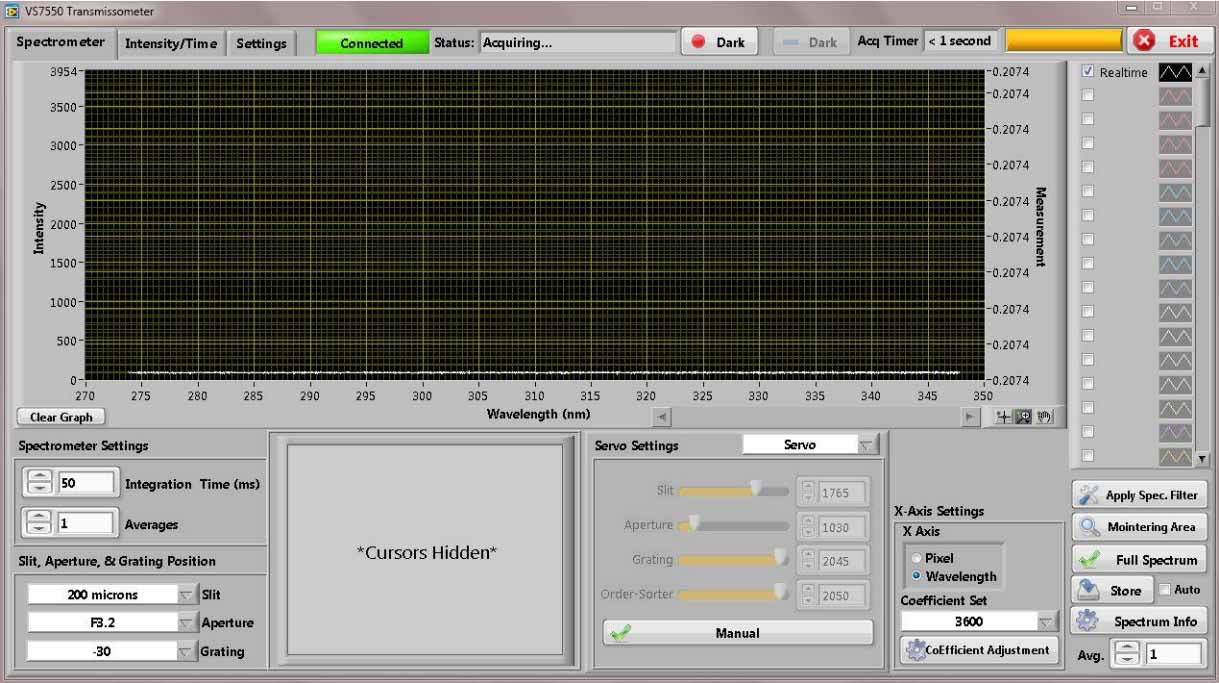

We include our spectrometer software, which allows:

  • Changing all CCD parameters (wavelength coefficients, integration time)
  • Slit width control
  • Spectrograph wavelength range control
  • Spectrograph input aperture (input f#)
  • Multiple Graphical Modeso Transmittanceo Absorbance
  • Software activated darks
  • Software activated references (field flats)
  • Data export (CSV, TXT, User selectable)
  • Store multiple spectra and graph multiple spectra
  • Rapid customization to user requirements
  • Library of Spectrophotometer Application Software


We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.
