1060nm ASE Broadband

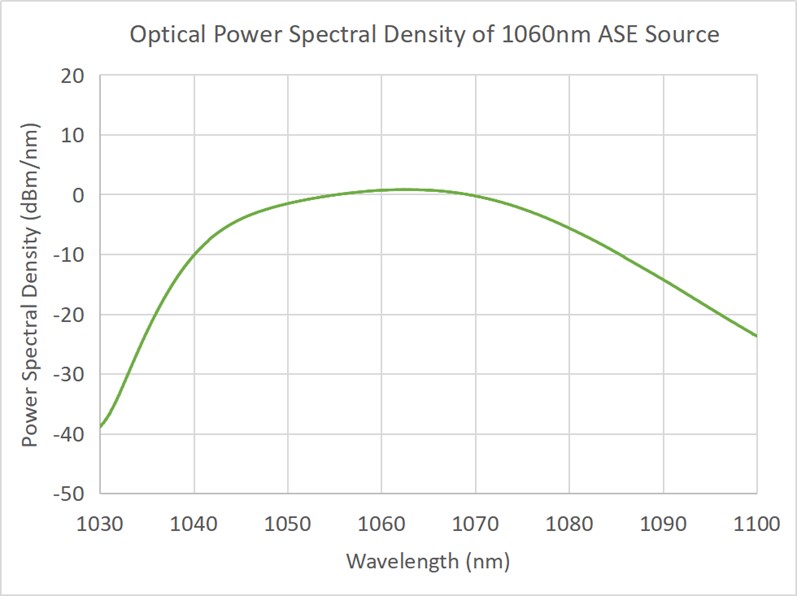

The 1060 ASE Broadband Light Source is based on Ytterbium fiber and high-performance pump lasers, with an ASE spectrum covering 1030-1060nm and optimized light source structure with high output power and better flatness.  It can be used for fiber optic device testing,FBG grating production, etc.




Characteristics

-Flat Spectrum

-Adjustable Power

-High Stability Output Power


Applications

-Fiber Sensing

-Medical Imaging

-Fiber Device Testing







General Specifications

Optical indicators

Unit

Typical value

Remark

Spectral range

nm

1030~1080

50nm@10dB

Output optical power

mW

10/20/30

Irreconcilable

Spectral flatness

dB

10(Type)


Output isolation

dB

>35


Short-term stability (15 minutes).

dB

≤ ±0.02


Long-term stability (8 hours).

dB

≤ ±0.05


Polarization DOP

dB

≤ 0.2


Tail fiber type

-

Hi 1060 single-mode fiber


Tail fiber connector type

-

FC/APC




Electrical and environmental parameters

Desktop

Module

Control Method

keystroke

RS232 serial communication

The communication interface

:: Optional

DB9 Female

Power  supply

100~240V AC, <30W

5V DC, <15W

The size of the inch

260(W)×280(D)×120(H)mm

125(W)×150(D)×20(H)mm

Operating temperature range

-5~+55°C

Operating humidity range

0~70%


Order information / model number

ASE

The spectral range

Output   power (mW).

:: Power   adjustable (optional).

The encapsulation   form


1060

10/20/30

*T

B- Desktop

M - Module



Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Technical Assistance and Email Quotations (Recommended for Custom Orders, inquiries)

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


Local Same Day Service

SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.


International Inquiries

SIMTRUM provides worldwide shipping and inquiry management. Please contact us for more information.




Search Reset

ASE-1060-30-M - Parameter

Type
Module

Spectral Range (nm)
1030 to 1080

Operating Temperature (°C)
-5 to 55

Output Power (mW)
30

Dimensions (mm)
125 x 150 x 20

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
Hi1060 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Communication Interface
DB9 Female

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
10 (Type)

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-1060-20-M - Parameter

Type
Module

Spectral Range (nm)
1030 to 1080

Operating Temperature (°C)
-5 to 55

Output Power (mW)
20

Dimensions (mm)
125 x 150 x 20

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
Hi1060 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Communication Interface
DB9 Female

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
10 (Type)

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-1060-10-M - Parameter

Type
Module

Spectral Range (nm)
1030 to 1080

Operating Temperature (°C)
-5 to 55

Output Power (mW)
10

Dimensions (mm)
125 x 150 x 20

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
Hi1060 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Communication Interface
DB9 Female

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
10 (Type)

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-1060-30-B - Parameter

Type
Desktop

Spectral Range (nm)
1030 to 1080

Operating Temperature (°C)
-5 to 55

Output Power (mW)
30

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
Hi1060 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Communication Interface
Optional

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
10 (Type)

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-1060-20-B - Parameter

Type
Desktop

Spectral Range (nm)
1030 to 1080

Operating Temperature (°C)
-5 to 55

Output Power (mW)
20

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
Hi1060 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Communication Interface
Optional

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
10 (Type)

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-1060-10-B - Parameter

Type
Desktop

Spectral Range (nm)
1030 to 1080

Operating Temperature (°C)
-5 to 55

Output Power (mW)
10

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
Hi1060 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Communication Interface
Optional

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

Spectral Flatness (dB)
10 (Type)

Output Isolation (dB)
> 35

Polarization DOP (dB)
≤ 0.02

ASE-1060-30-M - Download

ASE-1060-20-M - Download

ASE-1060-10-M - Download

ASE-1060-30-B - Download

ASE-1060-20-B - Download

ASE-1060-10-B - Download
