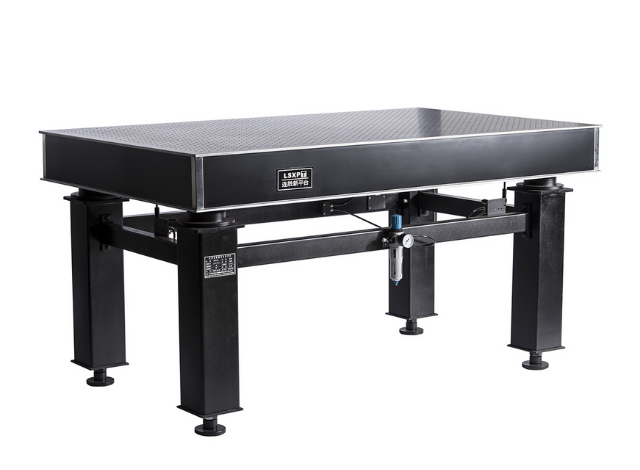

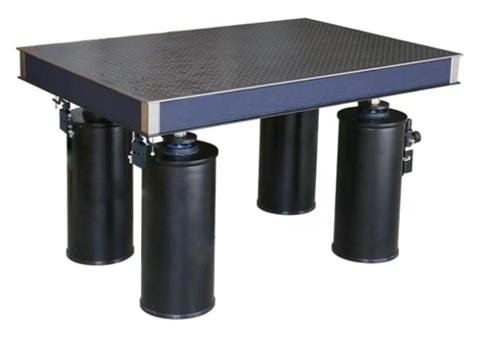

Pneumatic Optical table


• Vibration Isolation damping optical breadboard for surface              resonance elimination

• High density honeycomb structure breadboard

• Isolators provide excellent vibration isolation efficiency, highly

  stable performance

• Air spring isolators feature auto levelling and inflating

  characteristics

• Manual levelling adjustment

 Optional ordering for castors



 Inherent Frequency
Vertical: 1.0-2.0Hz Horizontal: 1.0-2.0Hz
 Vibration Isolating TypeAir Springs & Vibration Damping Rubber Plates
 Leveling TypeAutomatic
 Vibration Damping TypeMulti air streams laminar flow vibration isolation damping
 Total Table Height800mm
 Working Air Pressure0.2-0.4MPa
 Compressed Air SourceSilent Compressor ( Noise level<50dB)
 Vibration Isolating Efficiency

Vertical: 5Hz 82-88% 10Hz 86-95%

Horizontal: 5Hz 78-86% 10Hz 84-92%

 Re-leveling Accuracy±0.1mm
 Table Top Flatness
≤0.05mm/m2
 Surface Roughness≤0.8μm
 Isolator Height Adjustment Range±10mm



Choosing the right type of optical table


In research laboratories, it is often necessary to conduct experiments and take measurements in vibration-free environments. Many types of experiments are hindered or even made impossible to perform in the presence of small vibrations. Air conditioners, building ventilation fans and many appliances around a building as well as foot traffic from building users all contribute to vibrations contribute to the vibrations that could have an adverse effect on the experiments conducted with the laboratories. To prevent such undesirable effects from occurring, Simtrum’s optical tables, or table supports specifically, are designed to dampen vibrations to varying degrees based on needs and requirements.  Simtrum offers three levels of optical table supports: rigid, passive, and active.


Rigid Optical Table Supports


Simtrum’s Solid Vibration Isolation Damping Optical Tables utilize rigid optical table supports which are used predominately when experiments do not need to require the optical table to be isolated from vibrations. Instead, the main purpose of the optical table is to provide a flat and rigid surface for experiments to be carried out. The advantages include high load capacity, excellent horizontal and vertical stability.


Passive Optical Table Supports


Simtrum’s Solid Vibration Isolation Table with Hollow Cone structure Isolators utilize passive optical table supports suitable for environments which require minimal vibrations. The deformable air reservoir in the passive optical table supports isolates the optical table from background vibrations. The advantages are effective vertical vibration isolation as well as stability. While the supports are not able to dampen vibrations as well as the active optical table supports, there is also the advantage of requiring less maintenance.


Active Optical Table Supports


Simtrum’s Pneumatic Air Spring Vibration Isolation Optical Tables make use of active optical table supports that should be used for vibration-sensitive applications and in environments where there is significant vibrations, for instance in labs of upper floors of buildings, which encounter more horizontal and vertical vibrations. Vertical damping is achieved by the pneumatic air springs. The air spring isolators also feature auto levelling and inflating characteristics. The Pneumatic Air Spring Vibration Isolation Optical Tables with Pendulum Rod can achieve much lower inherent frequency in horizontal direction and higher load capacity. Overall, the advantages are superior vertical and horizontal vibration isolation, self-leveling features as well as excellent horizontal and vertical stability.




Simtrum Part No.Optical Breadboard Dimension(mm)Hole TypeDescription
ASVI0606600×600×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI075075750×750×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI0906900×600×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI10071000×700×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI10081000×800×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI12081200×800×100(50/80)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI15091500×900×150(50/80/100)M6,  with 25mm hole grid

Total Table Height: 800mm

M6 tapped holes with 25mm hole grid

ASVI15101500×1000×150(50/80/100)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI16091600×900×150(50/80/100)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI18121800×1200×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI20102000×1000×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI20122000×1200×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI24122400×1200×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI30103000×1000×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI30123000×1200×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI30153000×1500×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

M6 tapped holes with 25mm hole grid

ASVI35123500×1200×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI35153500×1500×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

ASVI40154000X1500X250M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 50mm hole grid

ASVI42154200X1500X250M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 50mm hole grid

ASVI48154800X1500X250M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 50mm hole grid

ASVI54155400X1500X250M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 50mm hole grid

ASVI60156000X1500X250M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 50mm hole grid

The information in the chart above is a general guide to choosing the suitable pneumatic air spring solid vibration isolation optical tables  for your optomechanical setup.

Other optical breadboard height variants available are shown in bold.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.









Optomechanics



Optical Breadboard Dimension (mm)


Search Reset
Compare Model Drawings & Specs Hole Type Optical Breadboard Dimension (mm) Availability Reference Price
(USD)
ASVI075075
750x750mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid750×750×80(50) In Stock $3500.00
ASVI0906
900x600mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid900×600×80(50) In Stock $3851.67
ASVI1007
1000x700mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1000×700×80(50) In Stock $3945.00
ASVI1008
1000x800mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1000×800×80(50) 4-6 Weeks $4036.67
ASVI1208
1200x800mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1200×800×100(50/80) 4-6 Weeks $4721.67
ASVI1509
1500x900mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1500×900×150(50/80/100) 4-6 Weeks $5018.33
ASVI1510
1500x1000mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1500×1000×150(50/80/100) 4-6 Weeks $5315.00
ASVI1609
1600x900mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1600×900×150(50/80/100) 4-6 Weeks $5721.67
ASVI1812
1800x1200mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1800×1200×200(80/100/150) 4-6 Weeks $7018.33
ASVI2010
2000x1000mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid2000×1000×200(80/100/150) 4-6 Weeks $6685.00
ASVI2012
2000x1200mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid2000×1200×200(80/100/150) 4-6 Weeks $8018.33
ASVI2412
2400x1200mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid2400×1200×200(80/100/150) 4-6 Weeks $8500.00
ASVI3010
3000x1000mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid3000×1000×250(150/200) 4-6 Weeks $9760.00
ASVI3012
3000x1200mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid3000×1200×250(150/200) 4-6 Weeks $11500.00
ASVI3015
3000x1500mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid3000×1500×250(150/200) 4-6 Weeks $12518.33
ASVI3512
3500x1200mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid3500×1200×250(150/200) 4-6 Weeks $11666.67
ASVI3515
3500x1500mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid3500×1500×250(150/200) 4-6 Weeks $14593.33
ASVI4015
4000x1500mm Optical Table, M6 tapped holes with 50mm hole grid
M6, with 25mm hole grid 4-6 Weeks $17183.33
ASVI4215
4200x1500mm Optical Table, M6 tapped holes with 50mm hole grid
M6, with 25mm hole grid 4-6 Weeks $20206.67
ASVI4815
4800x1500mm Optical Table, M6 tapped holes with 50mm hole grid
M6, with 25mm hole grid 4-6 Weeks $25256.67
ASVI5415
5400x1500mm Optical Table, M6 tapped holes with 50mm hole grid
M6, with 25mm hole grid 4-6 Weeks $31815.00
ASVI6015
6000x1500mm Optical Table, M6 tapped holes with 50mm hole grid
M6, with 25mm hole grid 4-6 Weeks $40365.00
ASVI0606
600x600mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid600×600×80(50) 4-6 Weeks $3351.67

ASVI0606 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
600×600×80(50)

ASVI6015 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)

ASVI5415 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)

ASVI4815 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)

ASVI4215 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)

ASVI4015 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)

ASVI3515 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
3500×1500×250(150/200)

ASVI3512 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
3500×1200×250(150/200)

ASVI3015 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
3000×1500×250(150/200)

ASVI3012 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
3000×1200×250(150/200)

ASVI3010 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
3000×1000×250(150/200)

ASVI2412 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
2400×1200×200(80/100/150)

ASVI2012 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
2000×1200×200(80/100/150)

ASVI2010 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
2000×1000×200(80/100/150)

ASVI1812 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1800×1200×200(80/100/150)

ASVI1609 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1600×900×150(50/80/100)

ASVI1510 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1500×1000×150(50/80/100)

ASVI1509 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1500×900×150(50/80/100)

ASVI1208 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1200×800×100(50/80)

ASVI1008 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1000×800×80(50)

ASVI1007 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1000×700×80(50)

ASVI0906 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
900×600×80(50)

ASVI075075 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
750×750×80(50)

ASVI0606 - Download

ASVI6015 - Download

ASVI5415 - Download

ASVI4815 - Download

ASVI4215 - Download

ASVI4015 - Download

ASVI3515 - Download

ASVI3512 - Download

ASVI3015 - Download

ASVI3012 - Download

ASVI3010 - Download

ASVI2412 - Download

ASVI2012 - Download

ASVI2010 - Download

ASVI1812 - Download

ASVI1609 - Download

ASVI1510 - Download

ASVI1509 - Download

ASVI1208 - Download

ASVI1008 - Download

ASVI1007 - Download

ASVI0906 - Download

ASVI075075 - Download
