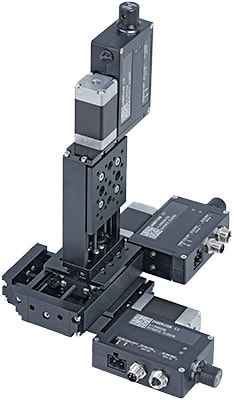

XYZ 3 Axis Stepper Motor Stages
Overview Specifications Drawings (mm) Controllers Accessories Related Products Order Now！
SIMTRUM's XYZ Stepper Motor Stages is a highly integrated and convenient motorized Stages with a built-in controller, designed to enhance the accuracy and responsiveness of the system for superior performance.

Features

  • Built-in controller simplifies system configuration and installation
  • Available in various speed / resolution options
  • Optimized for precision, performance, and reliability

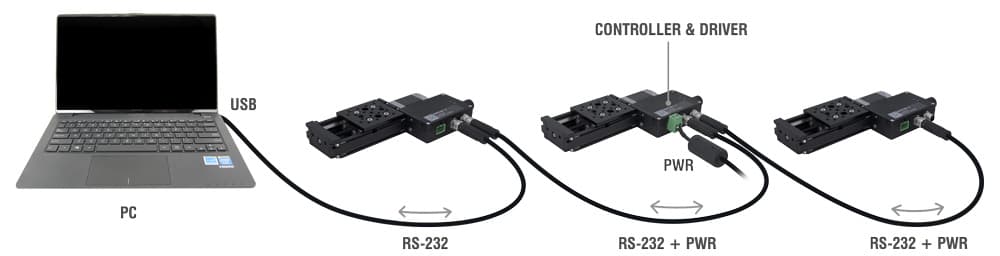

  • The device can be connected to a computer via a USB or RS-232 port. Additionally, multiple units can be daisy-chain to share data and power, reducing wiring and simplifying setup.


Applications
  • Automated production line
  • Precision machining
  • Microscope platform







 ST-XYZ-LSM

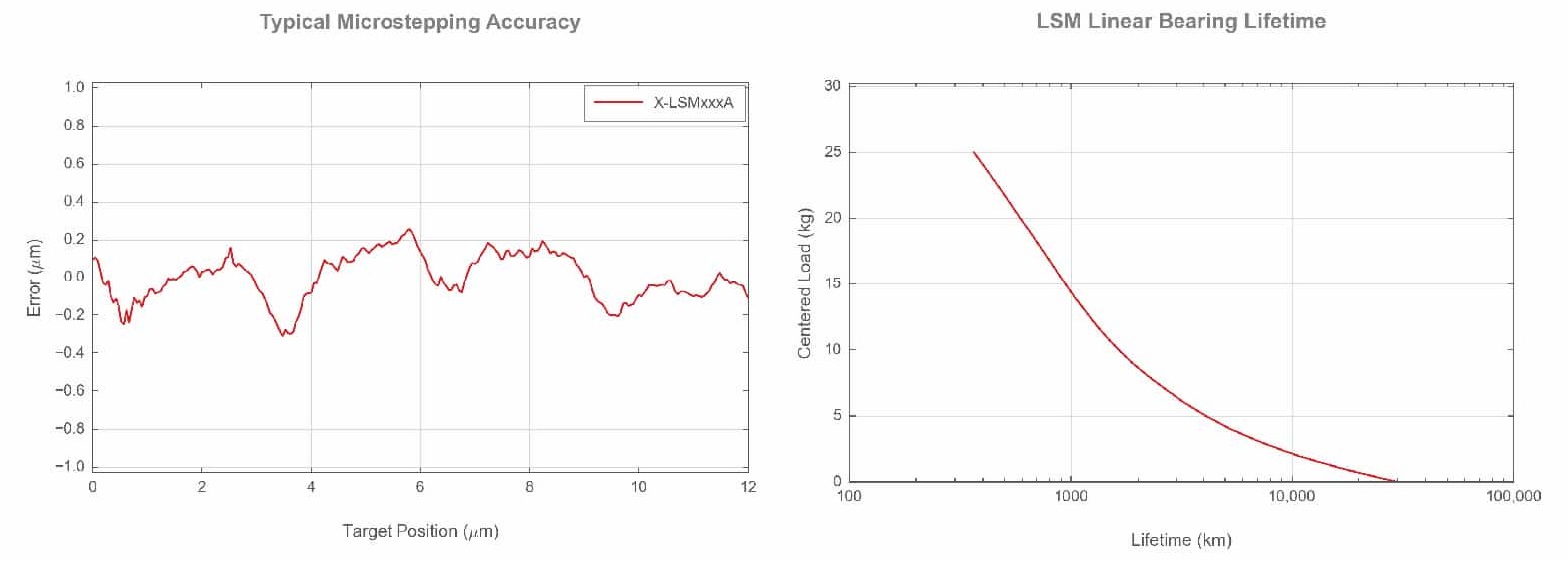

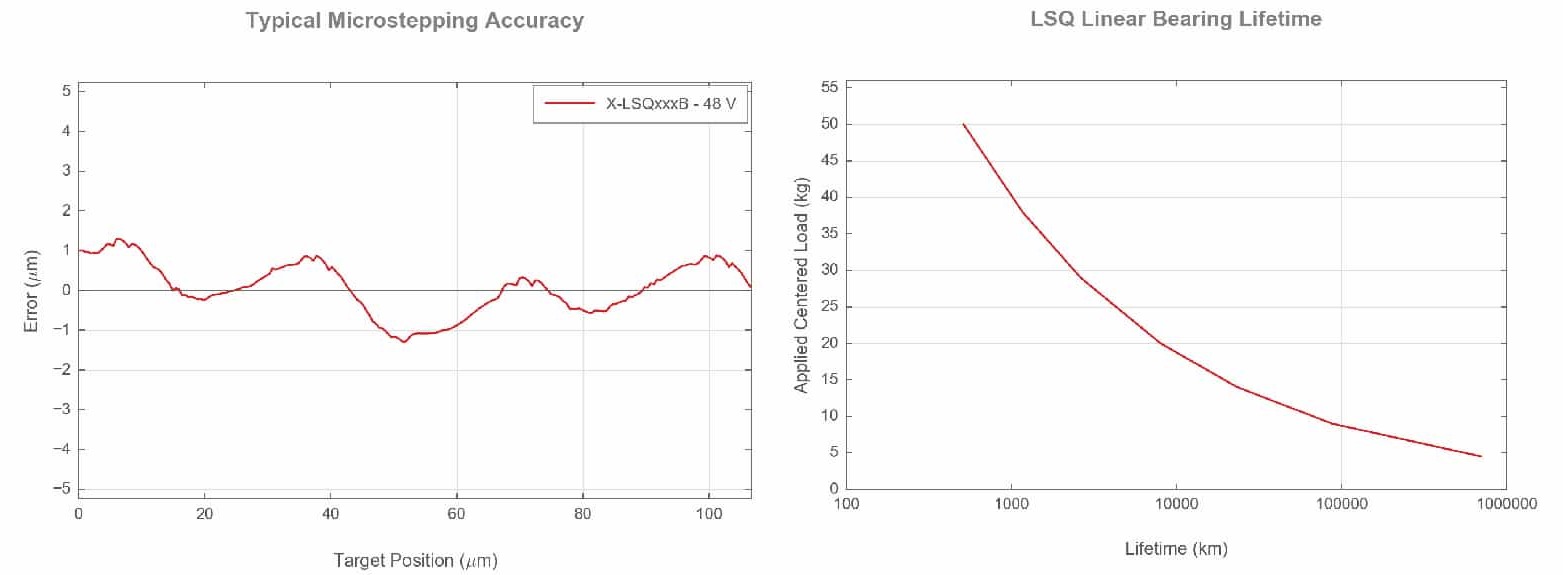

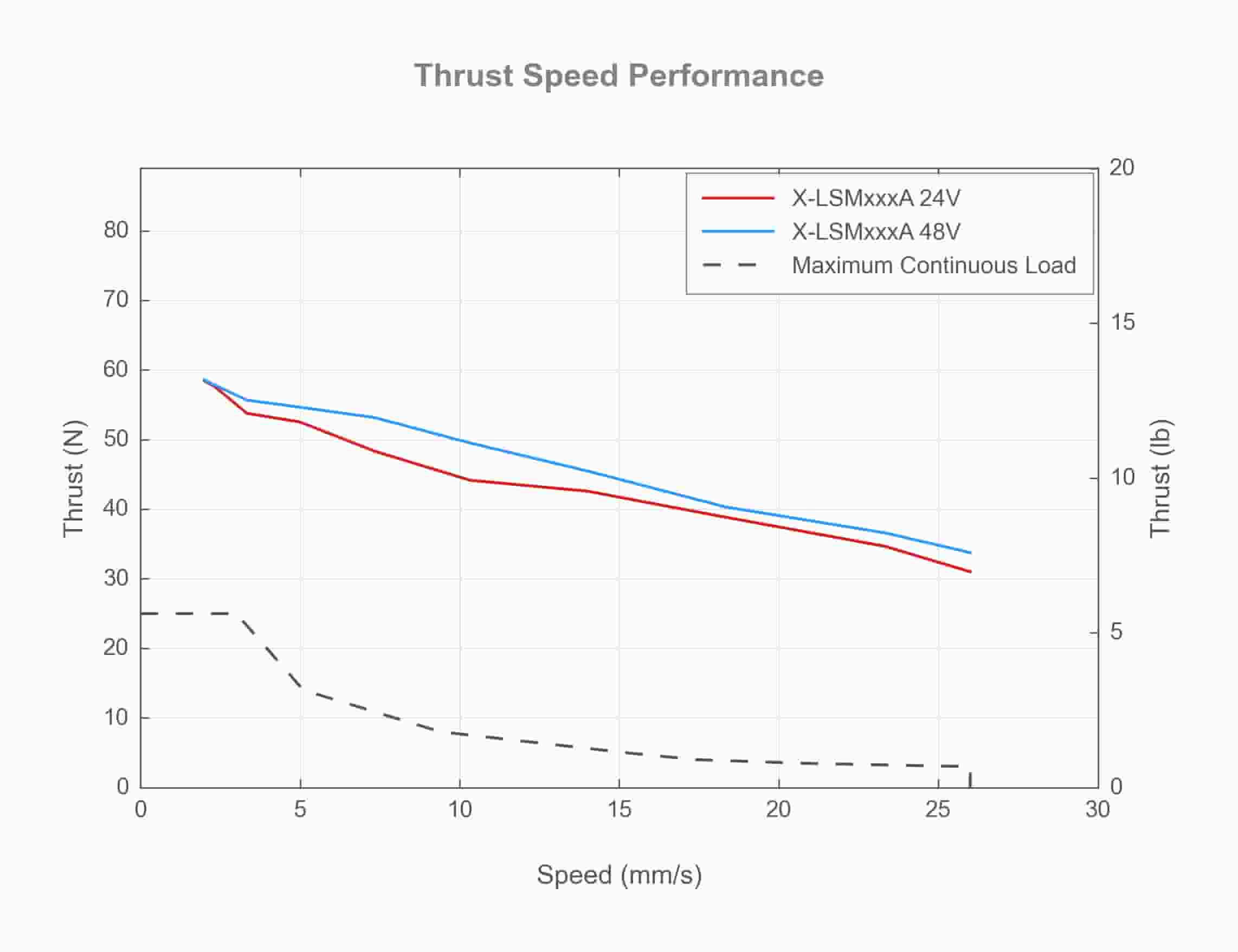

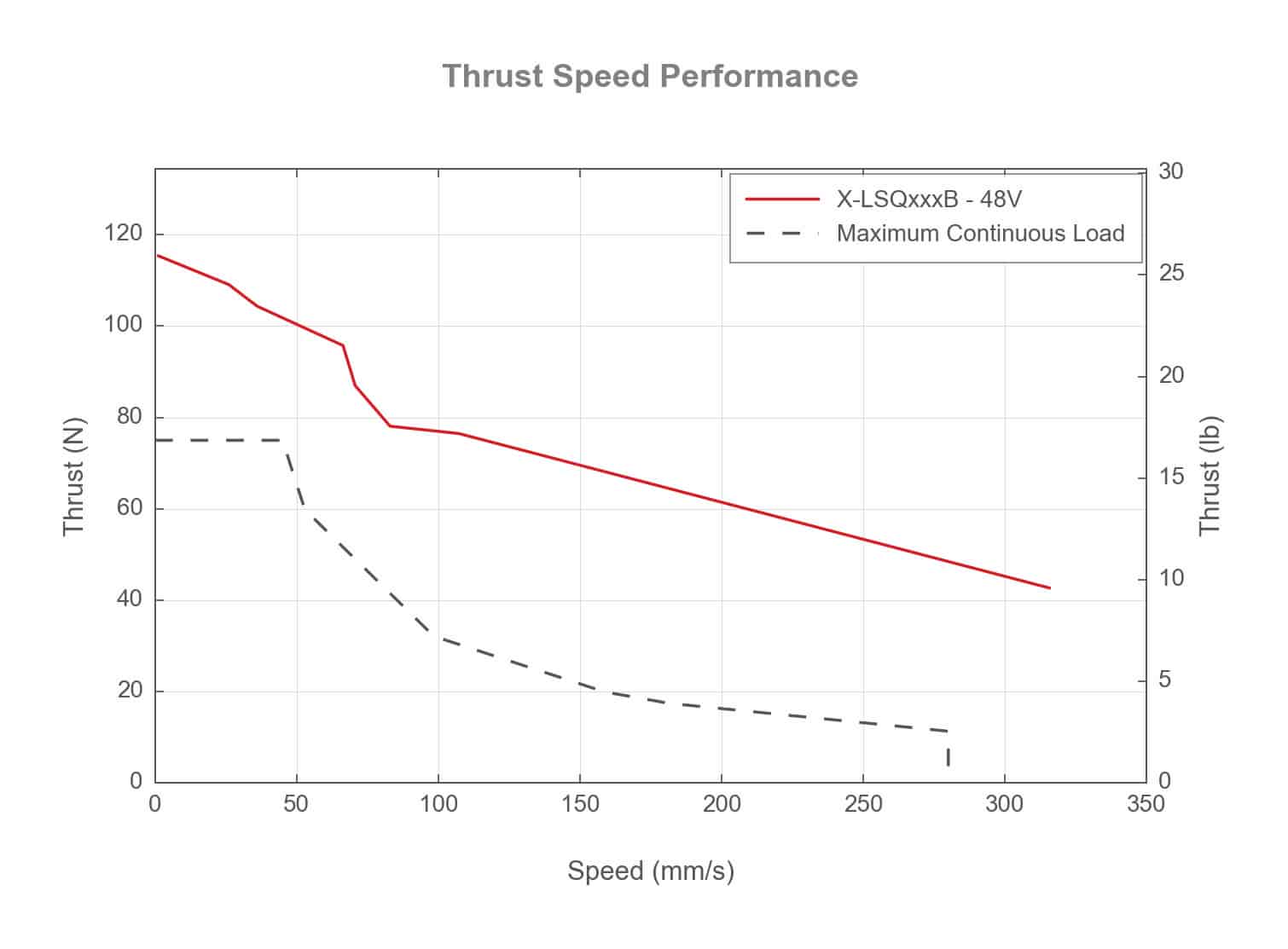

Specification Charts
ST-XY-LSM

ST-XY-LSQ

General Parameters

Model Picture Travel（mm） Load capacity(kg) Accuracy(µm) Default Resolution(µm) Repeatability(µm) Maximum Continuous Thrust(N)

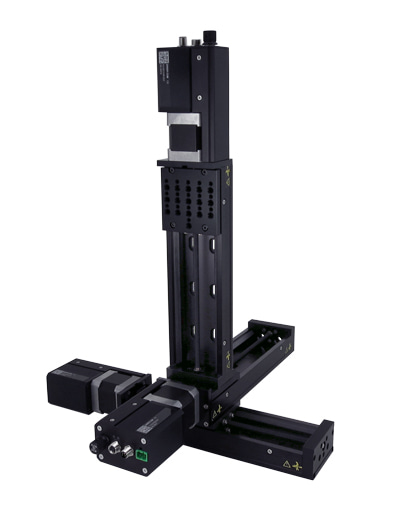

ST-XYZ-LSQ
ST-XYZ-LSQ075

75 50 45 0.496 <3 75
ST-XYZ-LSQ150 150 50 50 0.496 <3 75
ST-XYZ-LSM
ST-XYZ-LSM025

25 25 15 0.047 <3 25
ST-XYZ-LSM050 50 25 20 0.047 <3 25
ST-XYZ-LSM100 100 25 35 0.047 <3 25
ST-XYZ-LSM150 150 25 50 0.047 <3 25
ST-XYZ-LSM200 200 25 60 0.047 <3 25



Other Parameters

XYZ-LSQ series XYZ-LSM series XYZ-LSM series
Communication Interface RS-232
Communication Protocol Zaber ASCII（Default），Zaber Binary
Data Cable Connection Locking 4-pin M8
Maximum Centered Load 500 N（112.1 lb） 250 N (56.1 lb)
Maximum Moment (Roll) 20 N⋅m（14.8 ft⋅lb） 10 N·m (7.4 ft·lb)
Maximum Moment (Pitch) 6 N⋅m（4.4 ft⋅lb） 4 N·m (3.0 ft·lb)
Maximum Moment (Yaw) 6 N⋅m（4.4 ft⋅lb） 4 N·m (3.0 ft·lb)
Guide Type Recirculating Ball Linear Guide Recirculating ball bearing
Vertical Runout < 30 µm (< 0.001181") /
Pitch 0.06°（1.047 mrad）
Roll 0.03°（0.523 mrad）
Yaw 0.03°（0.523 mrad）
Stiffness in Pitch 150 N⋅m/°（116 µrad/N⋅m）
150 N·m/° (116 µrad/N·m)
Stiffness in Roll 225 N⋅m/°（78 µrad/N⋅m） 150 N·m/° (116 µrad/N·m)
Stiffness in Yaw 150 N⋅m/°（116 µrad/N⋅m）
Power Supply 24-48 VDC
Power Plug 2-pin Screw Terminal
Maximum Current Draw 1450 mA 350 mA
Motor Steps Per Rev 200
Motor Type Stepper (2 phase)
Motor Rated Current 2300 mA/phase 600 mA/phase
Inductance 2.2 mH/phase 3.5 mH/phase
Default Resolution 1/64 of a step
Mechanical Drive System Precision lead screw
Limit or Home Sensing Magnetic home sensor Magnetic hall sensor
Manual Control Indexed knob with push switch /
Mounting Interface M6 threaded holes and 8-32 threaded holes M3 and M6 threaded holes and M4 threaded centre hole
Stage Parallelism < 100 µm (< 0.003937") < 25 µm (< 0.000984")
Operating Temperature Range 0 to 50 °C

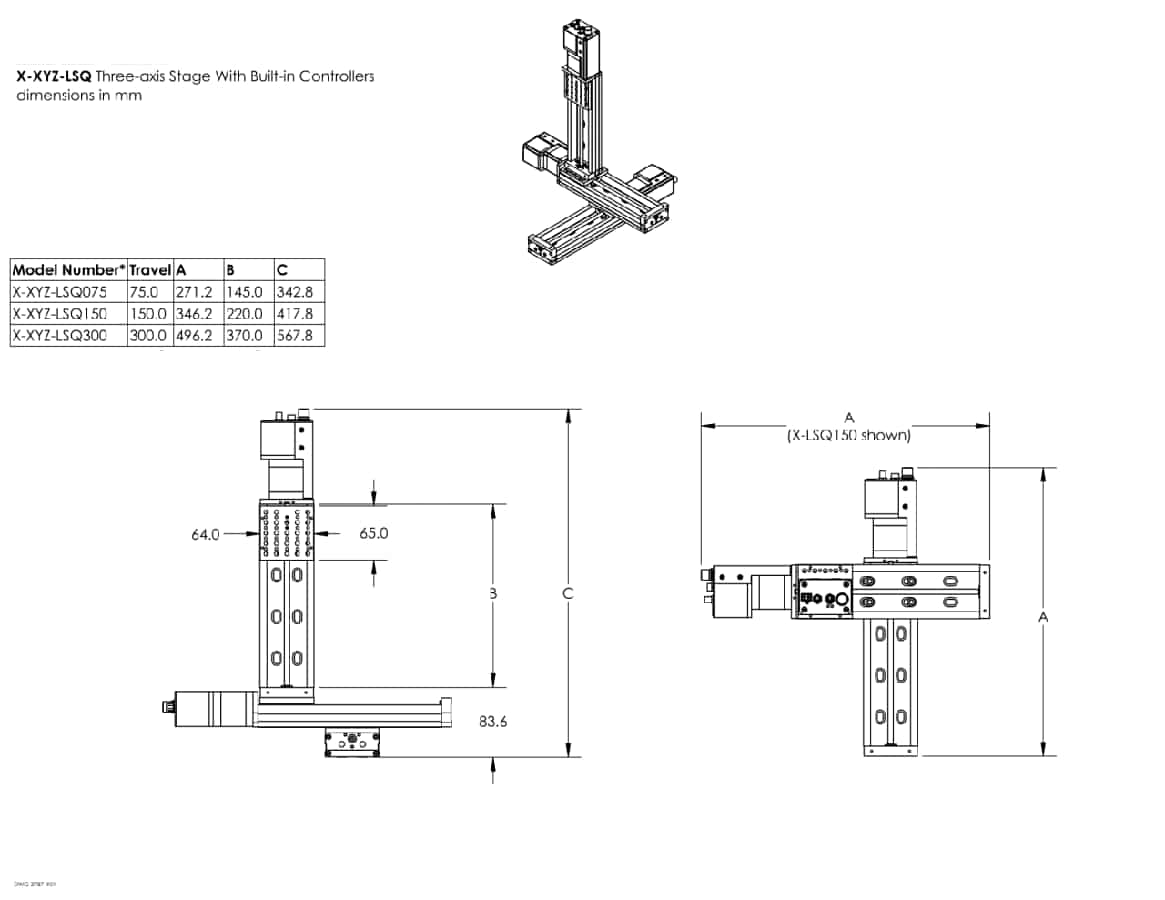

Drawings (mm)
ST-XYZ-LSQ

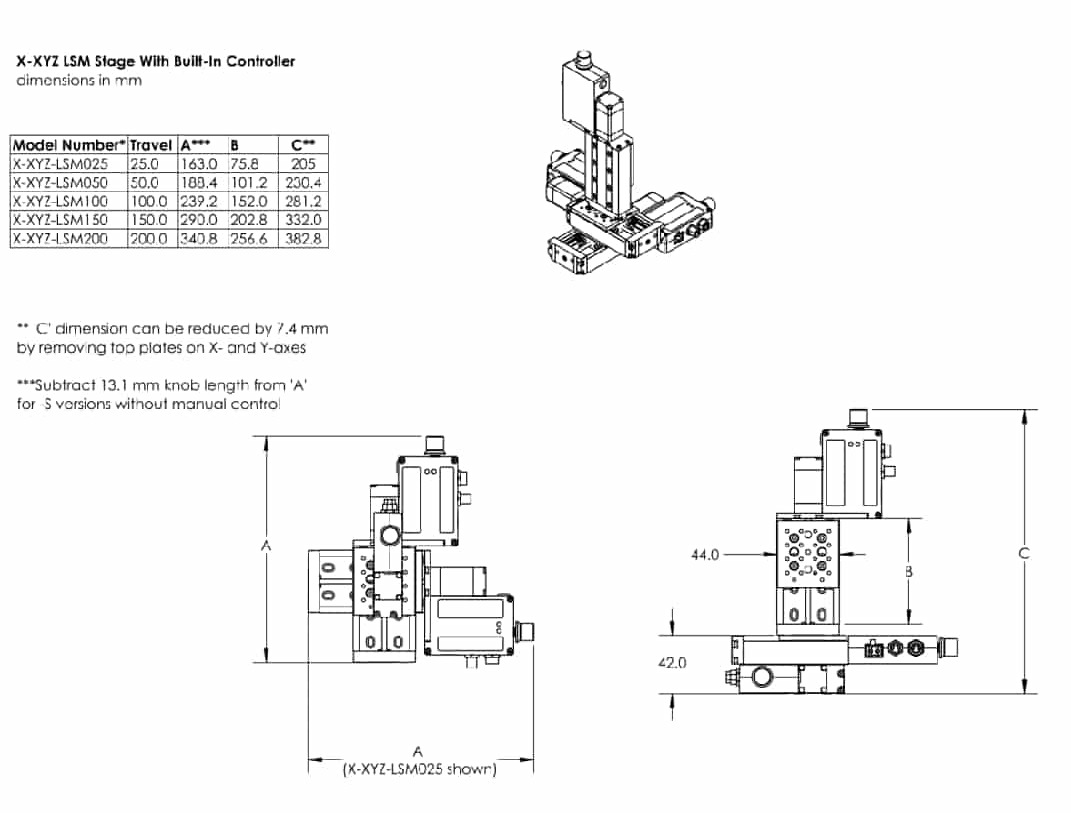

ST-XYZ-LSM

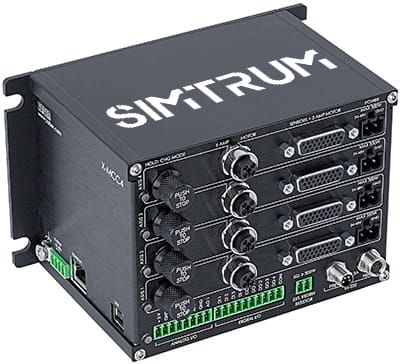

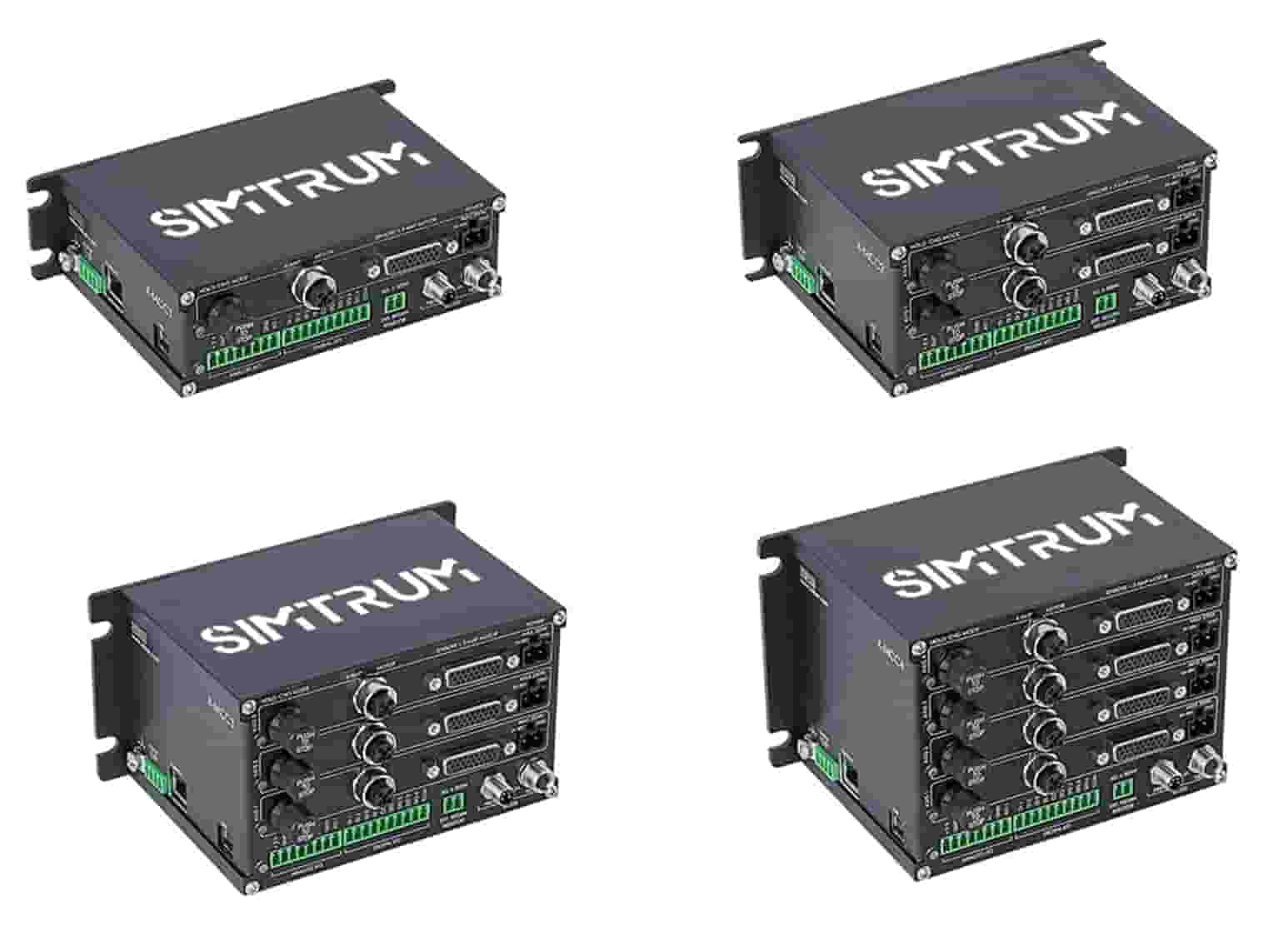

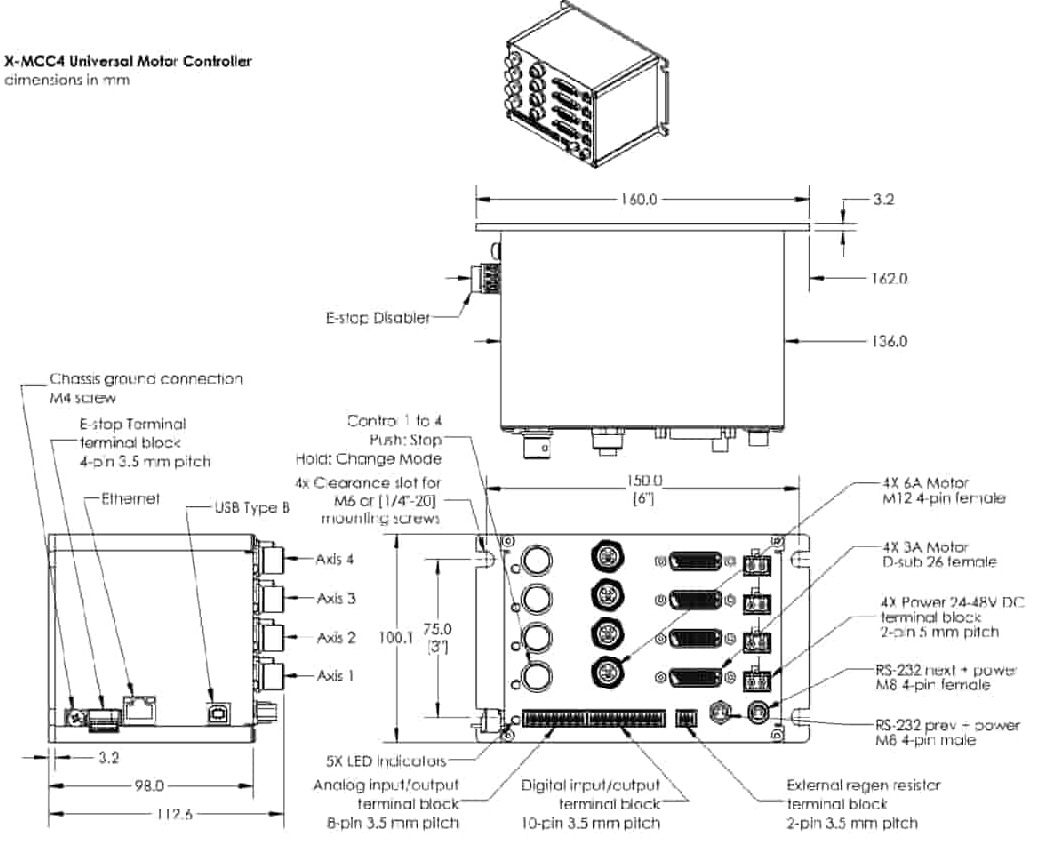

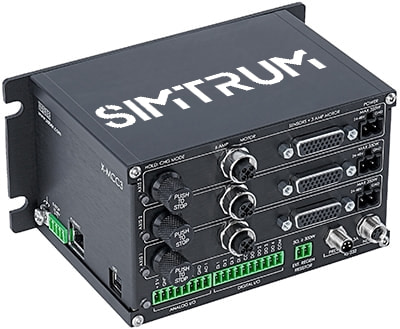

X-MCC Multi-axis universal motor controllers

User Manual:



Note：SIMTRUM motorized stages feature built-in controllers and support daisy-chaining multiple devices(you can choose whether to additionally configure an X-MCC controller), enabling them to share a single power supply and a single data connection to the computer, simplifying setup and management.

Universal drive allows control of 1, 2, 3, or 4 axes, including bipolar stepper motors, linear motors, or voice coil motors with up to 6 Arms (10 A peak) per phase.

Allows different control modes, including independent axis control with trapezoidal velocity profiles or interpolated multi-axis control with line, arc, or circle primitives.

Multiple communications options: Ethernet, USB, and RS-232.

Designed for easy mounting to panels, breadboards, lab benches, and enclosures.

Axes can be locked together to move simultaneously as if they were a single axis, carrying out all motion in parallel.

The X-MCC series is compatible with all of motorized stages products. When daisy-chained with several units, the X-MCC can also share a single power supply with multiple motorized stages products.

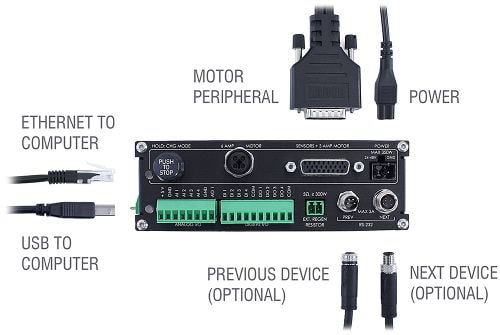

Initial Set-up

  1. 1.Connect peripheral(s) to the desired axes of your X-MCC, while unpowered.
  2. 2.Daisy chain all integrated devices and controllers together using the RS-232 "Prev" and "Next" connectors .
  3. 3.Next, supply power to one or more devices. Many products share power through the daisy-chain cables. The green power indicator on each should light up.
  4. 4.Download and install Launcher. Start Launcher.
  5. 5.Create a New Connection and select the communications port the first controller is connected to.
  6. 6.If multiple devices are detected and there are conflicting device numbers, Launcher will renumber them or you can renumber them as desired. The first device in the chain (closest to the computer) will become Device 1, the next will become Device 2, and so on.
  7. 7.When the communication port is open, Launcher's "My Connections" page will indicate the connection status of each axis with a message suggesting what action may be needed.
  8. 8.Once a peripheral has been activated, either press the Home icon in Launcher's "Basic Movement" app or turn a knob on the X-MCC to move the peripheral associated with that axis. Most positioners will only move at reduced speed in one direction until they reach a home sensor at one limit of travel. Then they will move in both directions over full travel.

    Dicators

    Green (Device) - Power

    • On: Controller is operational.
    • Blinking twice per second: The power supply voltage or controller temperature is out of range.

    Red (Device) - System Error

    • On/blinking: An error has occurred. Please contact Technical Support.

    Yellow (Device) - Communication

    • On: Data is being transferred.
    • Blinking twice per second: Packet corruption has occurred for ASCII commands sent with a checksum.

    Yellow (Axis) - Axis Status

    • On: Peripheral positioner is moving.
    • Blinking: Axis is under manual control via the knob (in Velocity mode). The blinking rate is proportional to movement speed.
    • Fading in and out every 2 seconds: A connected autodetect peripheral is awaiting activation.

    Blue (Axis) - Axis Warning/Error

    • Solid: Peripheral is deactivated.
    • Blinking twice per second: Driver is disabled due to over-temperature, out-of-range voltage or other driver fault; due to user request; or due to E-Stop.This will also occur briefly when a peripheral is plugged back into the axis after being unplugged or on power-up as device initializes.
    • On briefly, during a move: The axis is slipping.
    • Blinking once every 2 seconds: The axis has stalled and stopped.
    • Burst of 2 flashes every 1 second: The stationary axis has been forced out of position.
    • Burst of 5 flashes every 2 seconds: The encoder has encountered a read error and raised the FQ or FA Warning Flag.
    • Fading in and out slowly: A peripheral axis is parked.

Accessories

Accessory

Description

Weight（kg）

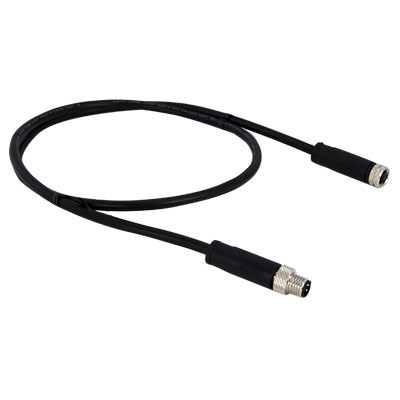

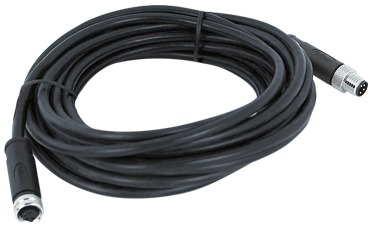

Data Cable

The data cable daisy chains all motorized stages products.It is designed to handle flexing in motion applications. The maximum current carrying capacity of the cable is 4.0 Amps.

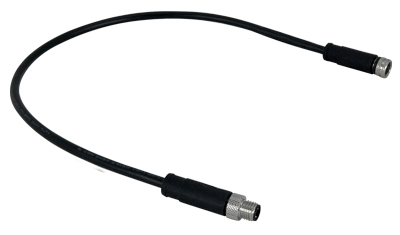

ST-X-DC01





1 ft (0.3 m),4-pin male to female M8 extension cable



0.03

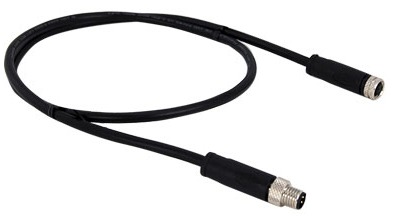

ST-X-DC02

2 ft (0.6 m),4-pin male to female M8 extension cable

0.04

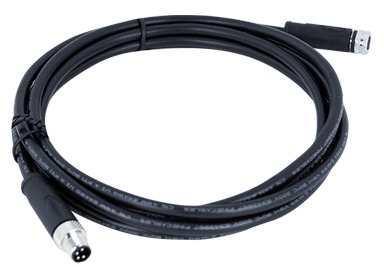

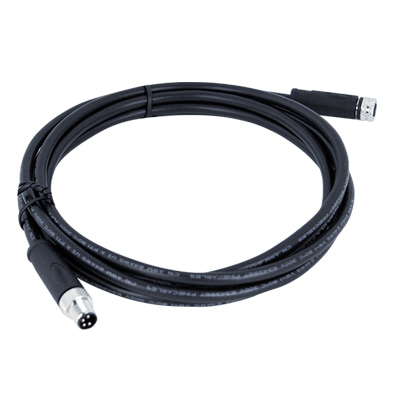

ST-X-DC06

6 ft (2 m),4-pin male to female M8 extension cable

0.08

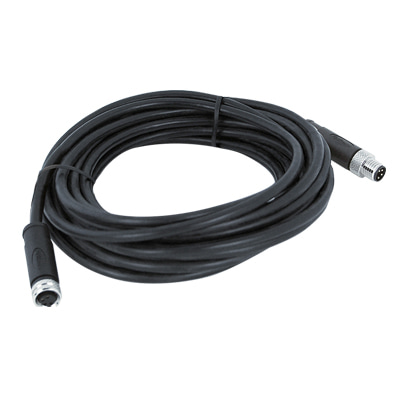

ST-X-DC15



15 ft (4.5 m),4-pin male to female M8 extension cable

0.17

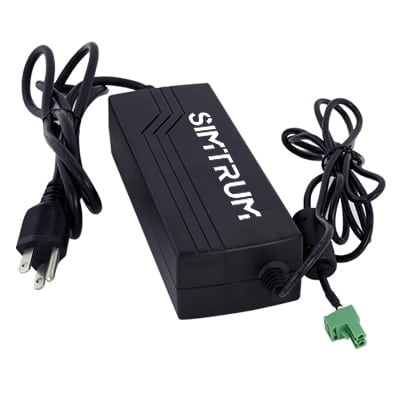

Power Supply

This is a 100-240 V AC input power supply with stable voltage isolation, compatible with motorized stages products. Suitable for powering a single high current motorized stages product or several lower current motorized stages products over a daisy-chain.

ST-X-PS12

The output is 24 V DC, 3.0 A on a 2-pin 5 mm pitch terminal block.

0.44

ST-X-PS14

The output is 48 V DC, 3.75 A on a 2-pin 5 mm pitch terminal block.

0.75

ST-X-PS15



The output is 48 V DC, 6.5 A on a 2-pin 5 mm pitch terminal block.

1.7

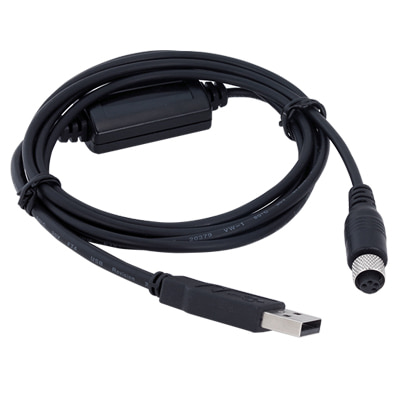

USB to Serial Converter Cable

ST-X-USB

USB to Serial Converter Cable with M8 Female Plug for motorized stages Products.This 6 ft (2 m) M8 female to USB A plug conversion cable allows you to connect the previous port of your motorized stages product to a USB port on your computer. Only one is needed per motorized stages daisy-chain.

0.06

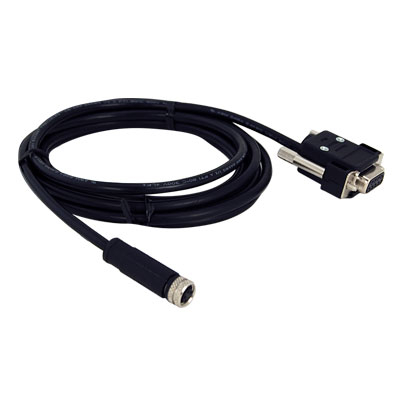

Serial Adaptor Cable with M8 Female Plug for motorized stages Products

ST-X-SDC

This 6 ft (2 m) M8 female to RS-232 female conversion cable allows you to connect the previous port of your motorized stages product to an RS-232 serial port on your computer. Only one is needed per motorized stages daisy-chain.

0.09

Related Products

Product Travel（mm） Highest Speed（mm/s） Maximum Continuous Thrust(N) Repeatability（μm） Resolution(µm)
    XY Stepper Motor Stages 25-1000 25-280 25-600 <2.5-<4 0.047-0.496
    XYZ Stepper Motor Stages 25-450 26-1000 25-75 < 3 0.047-0.496
    XYM Linear Motor Microscope Stages 130-100/250-100 750 13 < 0.5 /

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
OM-ZA01-XYZ-LSQ075
OM-ZA01-XYZ-LSQ075，travel 75mm, Accuracy 45µm，Maximum Load Capacity 50KG, Default Resolution 0.496µm 		4-6week $9020.77
OM-ZA01-XYZ-LSQ150
OM-ZA01-XYZ-LSQ150，travel 150mm, Accuracy 50µm，Maximum Load Capacity 50KG, Default Resolution 0.496µm 		4-6week $9978.46
OM-ZA01-XYZ-LSM025
OM-ZA01-XYZ-LSM025，travel 25mm, Accuracy 15µm，Maximum Load Capacity 25KG, Default Resolution 0.047µm 		4-6week $7506.92
OM-ZA01-XYZ-LSM050
OM-ZA01-XYZ-LSM050，travel 50mm, Accuracy 35µm，Maximum Load Capacity 25KG, Default Resolution 0.047µm 		4-6week $7948.85
OM-ZA01-XYZ-LSM0100
OM-ZA01-XYZ-LSM100，travel 100mm, Accuracy 35µm，Maximum Load Capacity 25KG, Default Resolution 0.047µm 		4-6week $8835.00
OM-ZA01-XYZ-LSM150
OM-ZA01-XYZ-LSM150，travel 150mm, Accuracy 50µm，Maximum Load Capacity 25KG, Default Resolution 0.047µm 		4-6week $9276.92
OM-ZA01-XYZ-LSM200
OM-ZA01-XYZ-LSM200，travel 200mm, Accuracy 60µm，Maximum Load Capacity 25KG, Default Resolution 0.047µm 		4-6week $9717.69

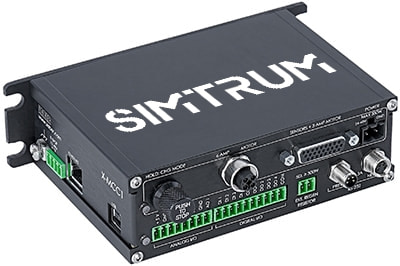

OM-ZA01-X-MCC1
OM-ZA01-X-MCC1, 1Axis, With IO, Up To 6 A Per Phase 		4-6week $1182.69

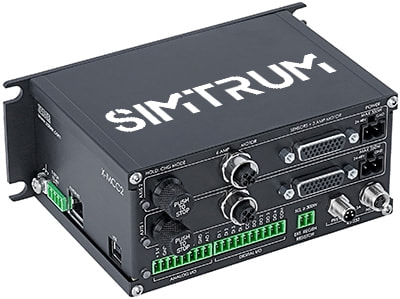

OM-ZA01-X-MCC2
