Fiber Spectrometers (200nm to 5um)

UV-VIS Spectrometers, NIR/MWIR Spectrometers,

SIMTRUM provide wide range of spectrometer cover UV, VIS, NIR and MWIR wavelength range, Our Spectrometer range is ideal for both Research, lab and Industrial applications. With an ease of use, integrated software and wide range of slit options, choose a spectrometer to meet your project goals and are suitable for general purpose use.

NameModelWavelength RangeDetectorResolutionNoise RatioDynamic Range

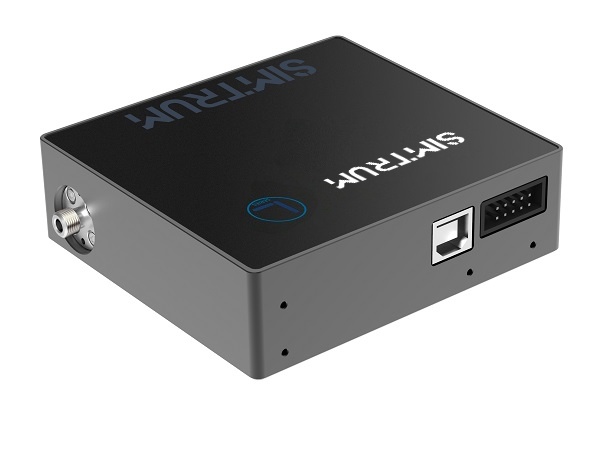

High Resolution SpectrometerL Sereis200-1100nmHamamatsu,S11639,2048 pixels<1nm customizable500:12000:1
High Sensitivity SpectrometerH Series200-1100nmHamamatsu,S11639,2048 pixels<1nm customizable500:12000:1

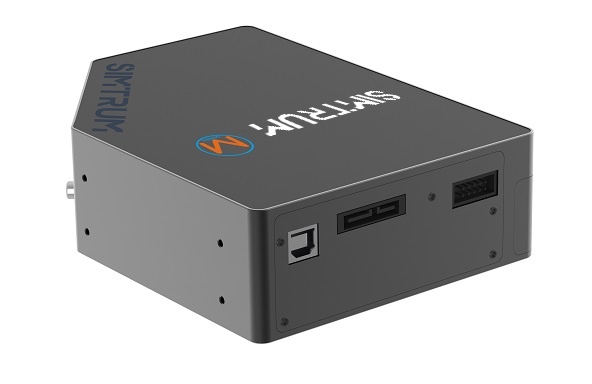

Back Illuminated UV Enhanced SpectrometerM Series200-1100nmHamamatsu,S10420,64×2048 pixels<1nm customizable800:15000:1

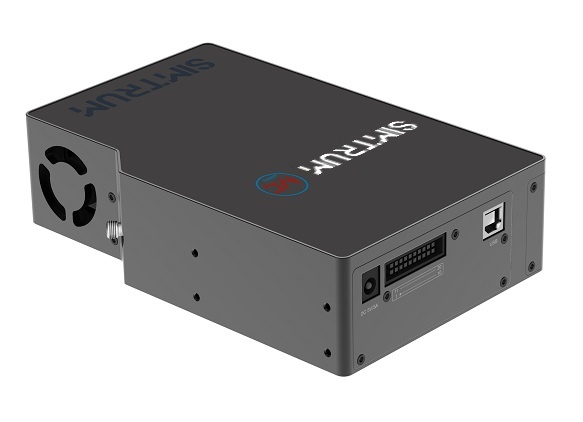

BSI Cooled High Sensitivity Spectrometer MC Serie200-1100nmHamamatsu,S7031,64×1044 pixels<1nm customizable1000:110000:1

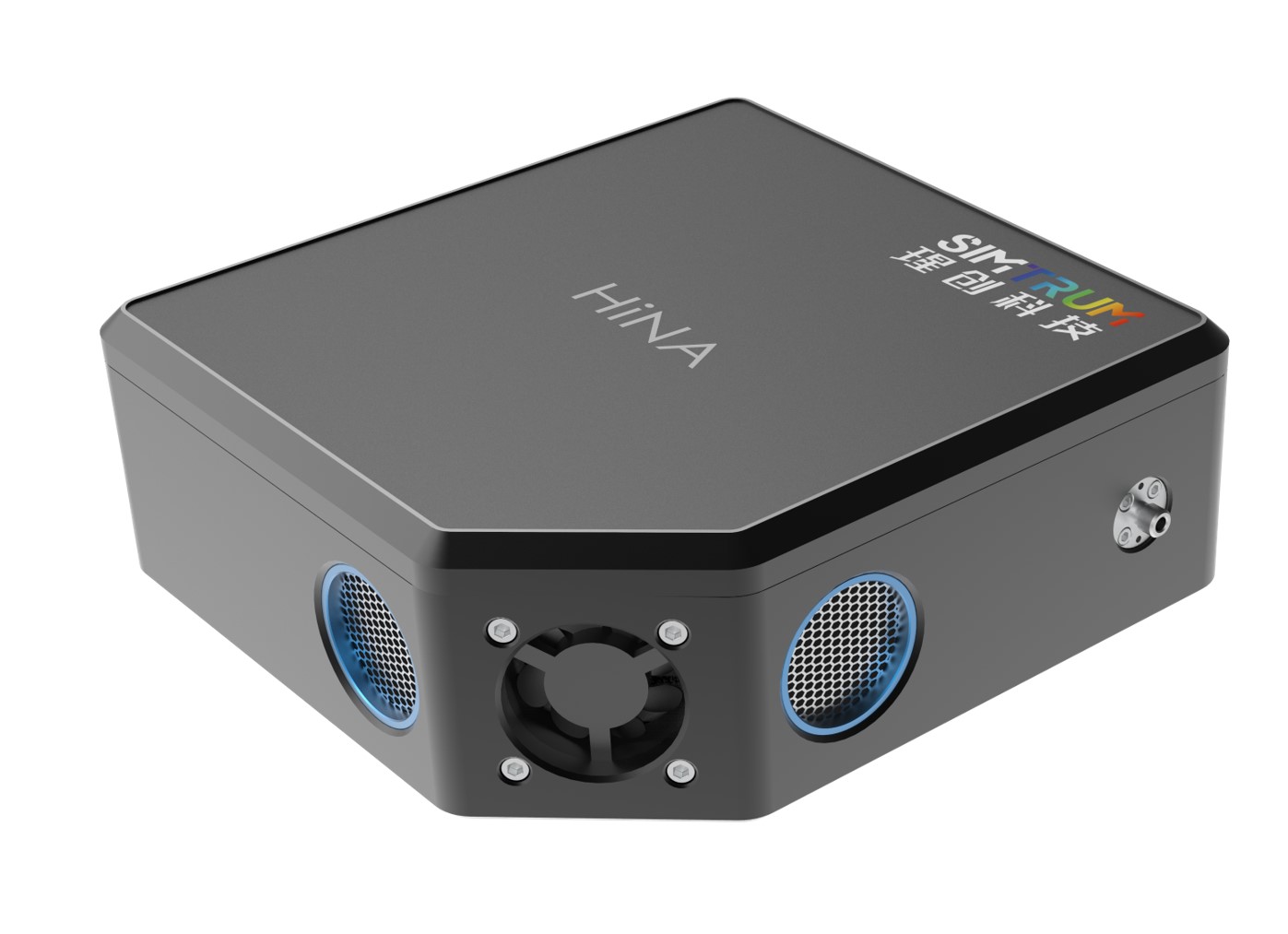

Large NA High Sensitivity Spectrometer HiNA Serie

200-1100nm
850-1450nm

Hamamatsu,S7031,64×1044 pixels       Hamanatsu,  G14237, 512 pixels<1nm customizable1000:110000:1
14000:1

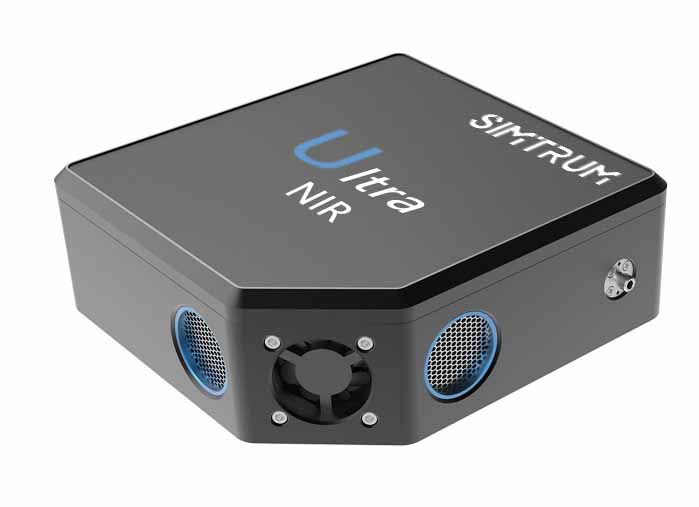

NIR Spectrometer NIR Series900-2500nmHamamatsu, G92033-10nm15000:115000:1
MWIR Spectrometer MWIR Series1-5umPbS or PbSe  256 pixels10-30nm20 RMS

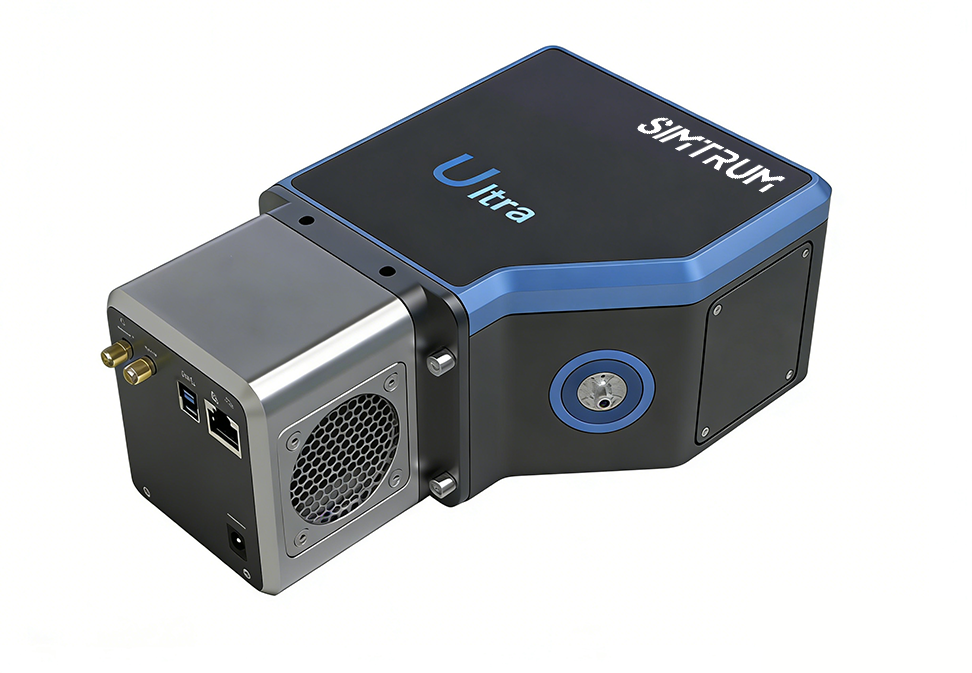

Imaging Spectrometer
240 -1100nm2046 x 1542, 2448 x 2048, 5472 x 34780.44 to 0.66nm

Technical Support Available : Contact us | Consult for system solution
