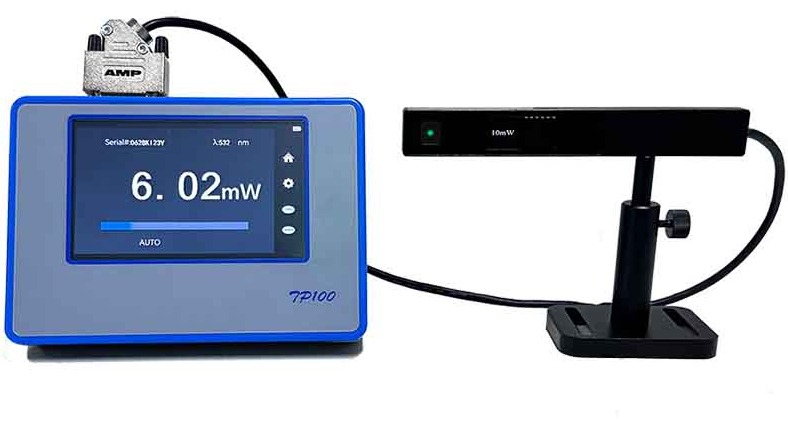

Photoelectric laser power meter(200-1100nm)
Overview Specifications Related Products Order Now！
SIMTRUM'S photoelectric laser power meter uses the photodetector to convert the laser light signal into an electrical signal, and calculates the laser power indirectly by measuring the size of the electrical signal, which is able to accurately measure various laser power. The photoelectric laser power meter has high sensitivity, easy to operate barely affected by the environment temperature and portable built-in rechargeable battery.

Features

  • Wide range of power measurement
  • Wide spectral coverage range 200-1100nm
  • High speed response
  • Long standby time

Applications

  • Laser safety monitoring
  • Laser calibration and maintenance
  • Laser processing
  • Spectral analysis

Mechanical Diagram

LA-CC01-PMPEL200-20/LA-CC01-PMPEL350-100

LA-CC01-PMPEL350-1000/LA-CC01-PMPEL200-1000

Large Detection Diameter Type
Model LA-CC01-PMPEL350-100 LA-CC01-PMPEL350-1000 LA-CC01-PMPEL200-20 LA-CC01-PMPEL200-1000
  Power Range 1 nW - 100 mW 1 nW - 1000 mW 1 nW - 20 mW 1nW-1000mW
  Active Area Diameter 10*10mm
  Wavelength Range 350-1100nm 200-1100nm
  Max. Measurable Power / 1000mW(With Attenuator)
10mW(Without Attenuator)		 / 1000mW(With Attenuator)
10mW(Without Attenuator)
  Max. Power Density 1W/cm2 20W/cm2(With Attenuator)
1W/cm2(Without Attenuator)		 1W/cm2 20W/cm2(With Attenuator)
1W/cm2(Without Attenuator)
  Sensitivity 1nW
  Measurement Uncertainty ±2%
  Resolution 1nW
  Accuracy ＜±2%



Other Parameters

Probe Material Si
Power Supply 18650 (2 batteries)
Computer Interface USB 1.1 and USB 2.0
Instrument Power 100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating) 5°C - 45°C (41°F - 113°F)
Temperature (Storage) -20°C - 70°C (-4°F - 158°F)
Warranty Period 1 year
*Attention:Before testing,please pay attention to the spot size and calculate the maximum average power density.These two parameters must be with in the range of the above table.If the probe is damaged due to parameters beyond the range of abovetable,it is not be covered by the warranty.



Model Wavelength range Power range Resolution Sensitivity Accuracy
Thermoelectric laser power meter
(0.19-25 μm)		 0.19-25 um 100uW-300W Up to 10uW Up to 100uW ＜±2%
Handheld thermoelectric laser power meter
(0.19-25 μm)		 0.19-25 um 0.5W-50W Up to100uW Up to 10mW ＜±2%
Photoelectric laser power meter
(200-1100nm)		 200-1100 nm 1nW-1000mW Up to1nW 1nW ＜±2%
USB multi-channel laser power meter
(0.19-25 μm)		 0.19-25 um 1nW-300W Up to1nW 1nW ＜±2%

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LA-CC01-PD100-350T
Power Range1 nW - 100 mW，Wavelength Range 350-1100nm，Active Area Diameter 10*10mm，Max. Power Density 1W/cm2，Measurement Uncertainty ±2% 		4-6week $1647.78
LA-CC01-PD1000-350T
Power Range 1nW-1000mW，Wavelength Range 350-1100nm，Active Area Diameter 10*10mm，Max. Power Density 20W/cm2(With Attenuator)；1W/cm2(Without Attenuator)，Measurement Uncertainty ±2% 		4-6week $1977.14
LA-CC01-PD20-200T
Power Range 1 nW - 20 mW，Wavelength Range 200-1100nm，Active Area Diameter 10*10mm，Max. Power Density 1W/cm2，Measurement Uncertainty ±2% 		4-6week $1639.37
LA-CC01-PD1000-200T
Power Range 1nW-1000mW，Wavelength Range 200-1100nm，Active Area Diameter 10*10mm，Max. Power Density 20W/cm2(With Attenuator)；1W/cm2(Without Attenuator)，Measurement Uncertainty ±2% 		4-6week $2001.96

LA-CC01-PD1000-200T - Parameter

LA-CC01-PD20-200T - Parameter

LA-CC01-PD1000-350T - Parameter

LA-CC01-PD100-350T - Parameter

LA-CC01-PD1000-200T - Download

LA-CC01-PD20-200T - Download

LA-CC01-PD1000-350T - Download

LA-CC01-PD100-350T - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
