X-ray/XRD Heating & Cryo Stage

Overview Applications Related Products Order Now!

The X-ray/XRD Temperature Stage is an accessory for studying sample variable temperature X-ray diffraction, realizing sample temperature range: -190°C to 600°C/RT to1200°C in air/inert gas/vacuum ambient conditions, and common X-ray Use with diffractometer. Supports retrofitting on various existing X-ray diffractometers ( Bruker, Thermo Fisher, Rigaku, etc.).

Features

● Compact and suitable for in-situ variable temperature XRD testing of materials

● Gas-tight chamber design (with a protective atmosphere)

● Upgradable vacuum chamber (10^-3 mbar)

● Diffraction angle 0 to 164° (standard sample holder)

● Specimen table 23 x 23mm, silver

● Manual displacement table in Z-direction

● Software control of the upper computer

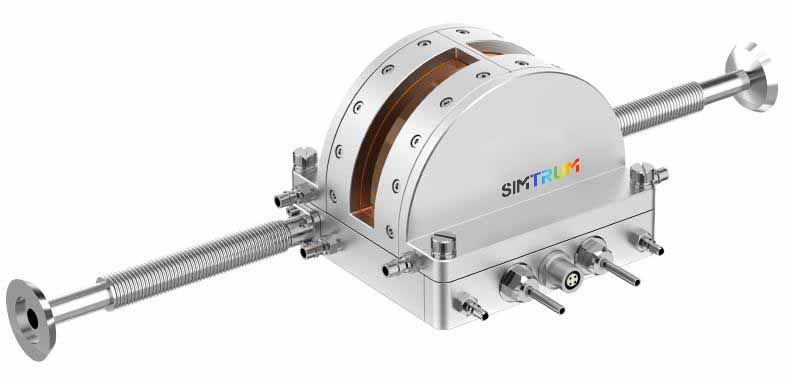

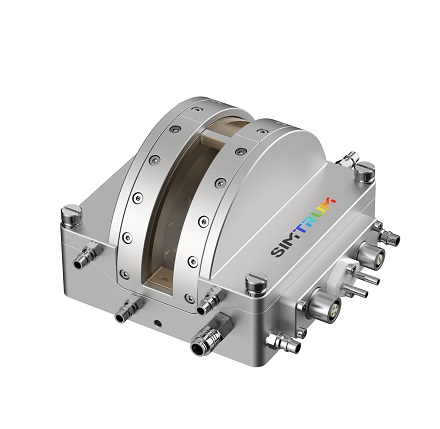

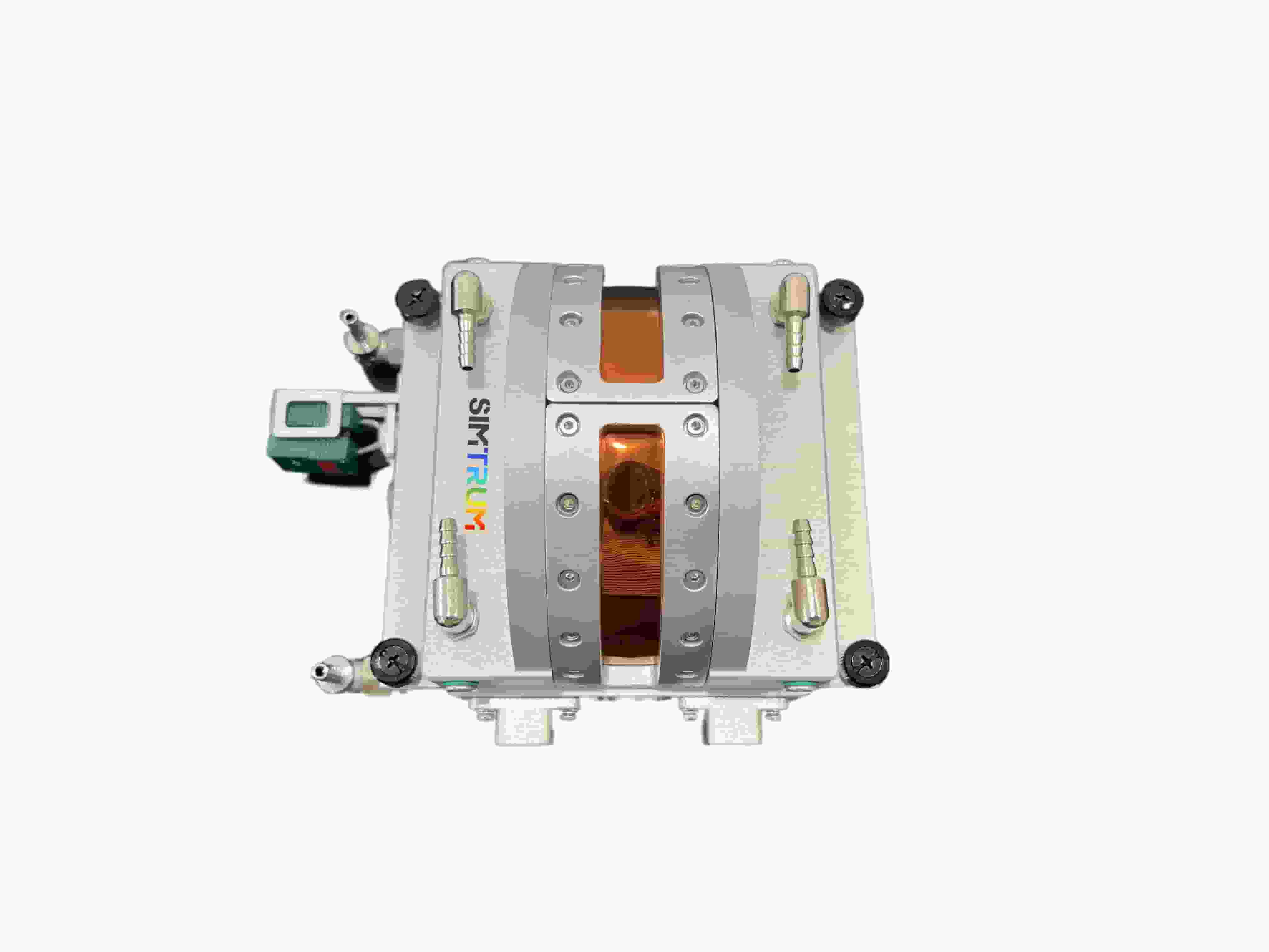

X-ray/XRD Temperature Stage

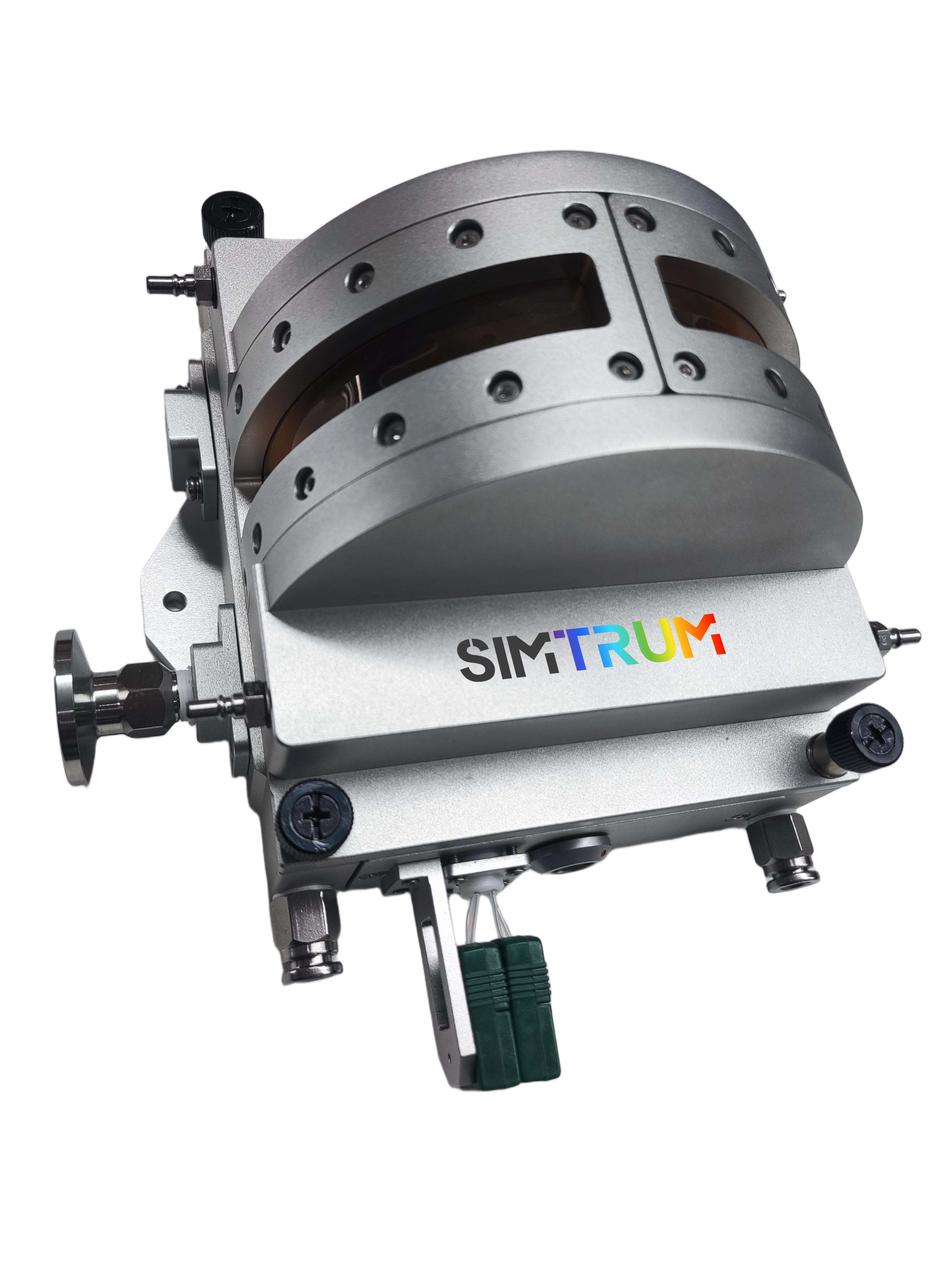

XRD Temperature Stage

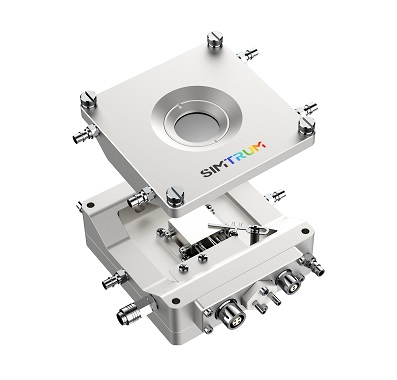

replacement cover can be used as

an optical Temperature stage

Product specifications and Brochures

Product Brochure Link:

Optical Indicators	Cryo 600-190-X	HT1200-X
Temperature Control
Cooling & Heating	Liquid nitrogen cooling/resistance heating	Resistance heating
Temperature Control Range*	-190 to 600℃	RT to 1200℃
Temperature Stability*	±0.2 °C (＜ -170 °C) / ±0.1°C (＜ 600°C ) / ±1°C (＞ 600°C )
Temperature Resolution	0.1 ℃
Temperature Control Speed	0~50℃/ min (can be fixed point / program segment temperature control)
Temperature Control Method	PID
Temperature Sensor	PT100	Thermocouple
Optical Properties
Optical Path*	Reflected optical path (can be upgraded to the transmitted optical path)
X-ray Transmissive Film	Kapton membrane
Structural Properties
Sample Table Size*	23×23mm	12×12mm
Sample Carrier Material*	Silver	Ceramic
Dimensions*	100×100×73mm
Chamber*	Vacuum
Chamber Pressure	Mechanical Pump 10-3Torr, Turbo Pump 10-6Torr
Shell Cooling	Recycled water
Remark	Above are all default parameters, with * being customizable.
Product Package	Temperature stage & controller, chiller, LN2 Tank, Pump for LN2, Software

Temperature Range Choice

Low Temperature Stage: -190 to 600℃

Low temperature optional  -190℃  -180℃  -160℃  -120℃  -100℃  RT

High temperature optional  400℃  600℃

High Temperature Stage: RT to 1200 ℃

High Temperature Optional RT to  400℃  600℃  800℃  1200℃

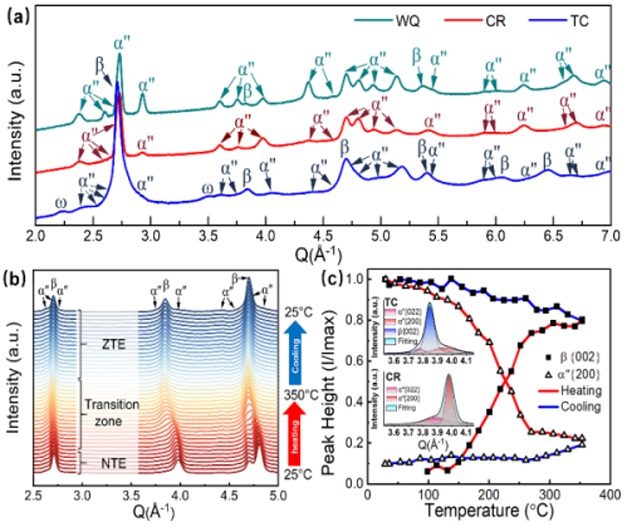

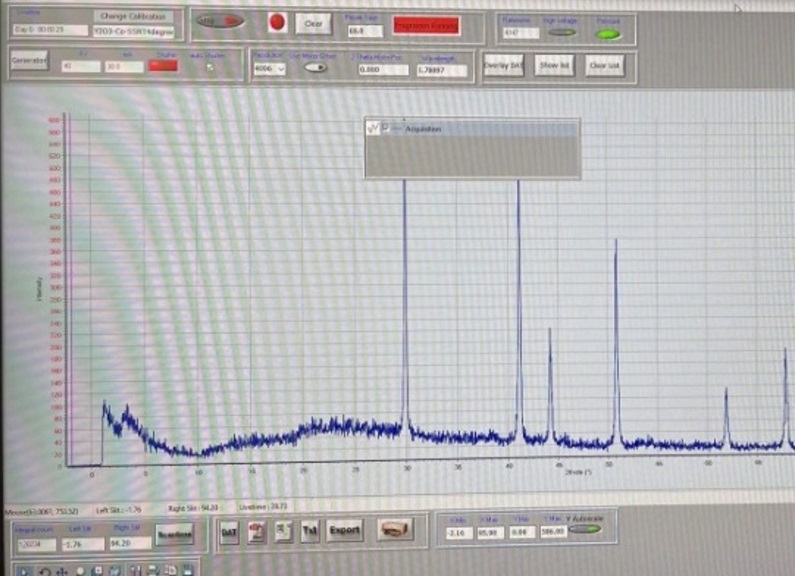

Variable Temperature XRD Testing of Titanium Alloys		Quartz Variable Temperature Phase Change XRD Testing


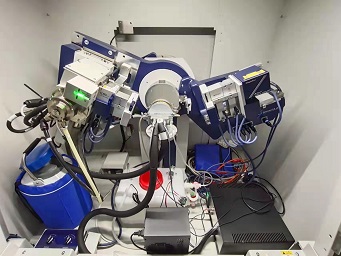

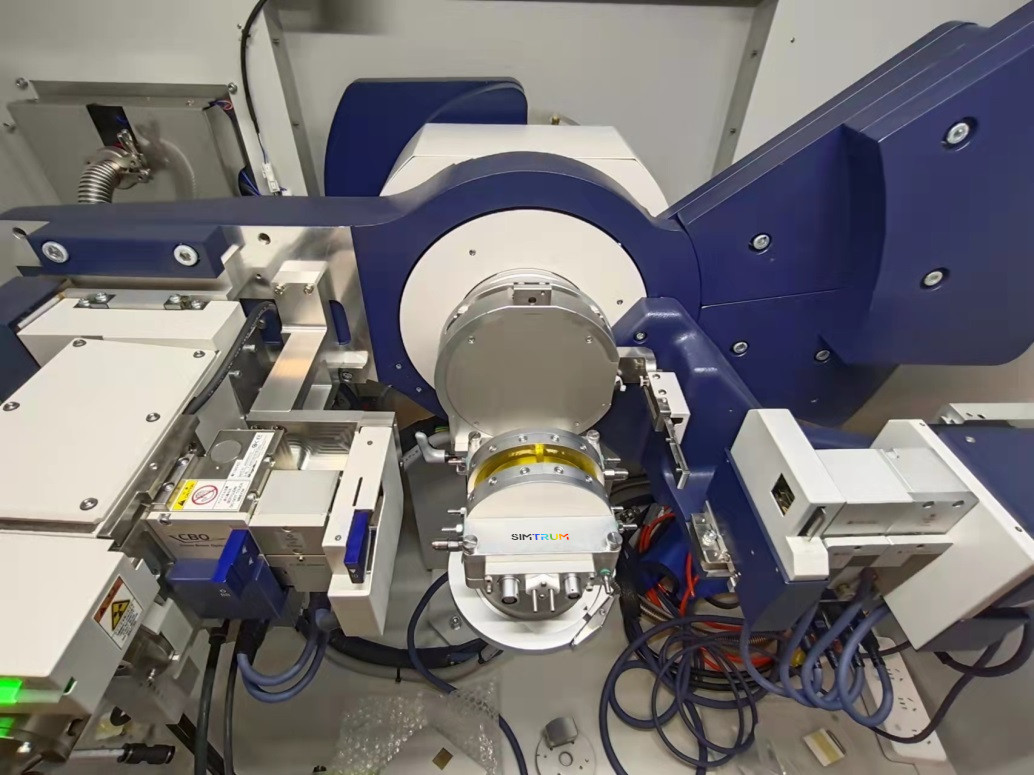

X-ray/XRD Temperature table with scientific X-ray diffraction


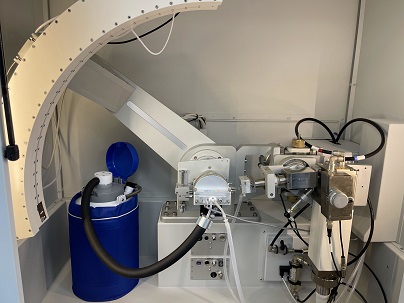

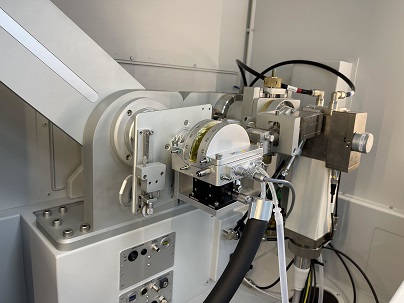

X-ray/XRD Temperature table with Thermo Fisher X-Ray Diffraction

	Temperature Range	Chamber Type	Optical Path	Electrinical Probe Arm
Optical Heating & Cooling Stage	-190°C to 1200°C	Air-tight or Vacuum sealed	Transmission or Reflection	No
XRD Temperature Control Stage	-190°C to1200°C	Air-tight or Vacuum sealed	Transmission or Reflection	No (Customizable)
Electrical Probe Temperature Stage	-190°C to 600°C	Air-tight or Vacuum sealed	Transmission or Reflection	Fix probe arm
Electrical Probe Temperature Station	-190°C to 600°C	Air-tight or Vacuum sealed	Transmission or Reflection	Adjustable probe arm
Tensile Strain Temperature Stage	-190°C to 1200°C	Air-tight or Vacuum sealed	Transmission or Reflection	No(Customizable)

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
XRD CRYO400-100-X X-ray/XRD Temperature Stage, Temperature Control Range: -100 to 400X-ray/XRD Temperature Stage, Temperature Control Range: -100 to 400 °C, Price includes: Temperature Stage and Controller, Chiller, LN2 Tank, Pump for LN2, Software. °C, Prince includes: Temperature Stage and Controller, Chiller, LN2 Tank, Pump for LN2, Software.	6-10 Weeks	Request for quote
XRD CRYO Stage-600-190-X X-ray/XRD Temperature Stage, Temp control range -190 to 600℃, Price includes: Temperature Stage and Controller, Chiller, LN2 Tank, Pump for LN2, Software.	6-10 Weeks	Request for quote
XRD RTH1200-X X-ray/XRD Temperature Stage, Temp control range RT to 1200℃, Price includes: Temperature Stage and Controller, Chiller, LN2 Tank, Pump for LN2, Software.	6-10 Weeks	Request for quote

XRD RTH1200-X - Parameter

XRD CRYO Stage-600-190-X - Parameter

XRD CRYO400-100-X - Parameter

XRD RTH1200-X - Download

Download

XRD CRYO Stage-600-190-X - Download

Download

XRD CRYO400-100-X - Download

Download
