XY Microscope Linear Motor Stages
Overview Specifications Drawings Accessories Related Products Order Now！

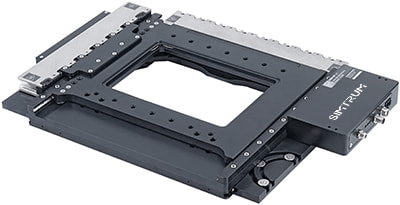

SIMTRUM's XY Microscope Linear Motor Stages are designed as replacements for manual stages on inverted microscopes or for stand-alone operation as scanning stages. Featuring non-contact linear motors and optical linear encoders, these stages offer a leap in performance over conventional screw-driven stages, making them suitable for demanding applications where speed, accuracy and reliability are of utmost importance.

Features

  • Ultra quiet linear motors provide 750 mm/s top speed and are maintenance free
  • 130 x 100 mm or 250 x 100 mm travel options
  • 1 nm resolution linear encoders provide 5 µm accuracy, 500 nm repeatability, and 50 nm minimum incremental move
  • Compact controllers are built directly into the stage, saving bench space and allowing the stages to be powered and controlled through a single flex rated cable.



Applications

  • Biological research
  • Materials science
  • Microscopic sample scanning


ST-XYM



Specification Charts

General Parameters
Built-in Controller ✅

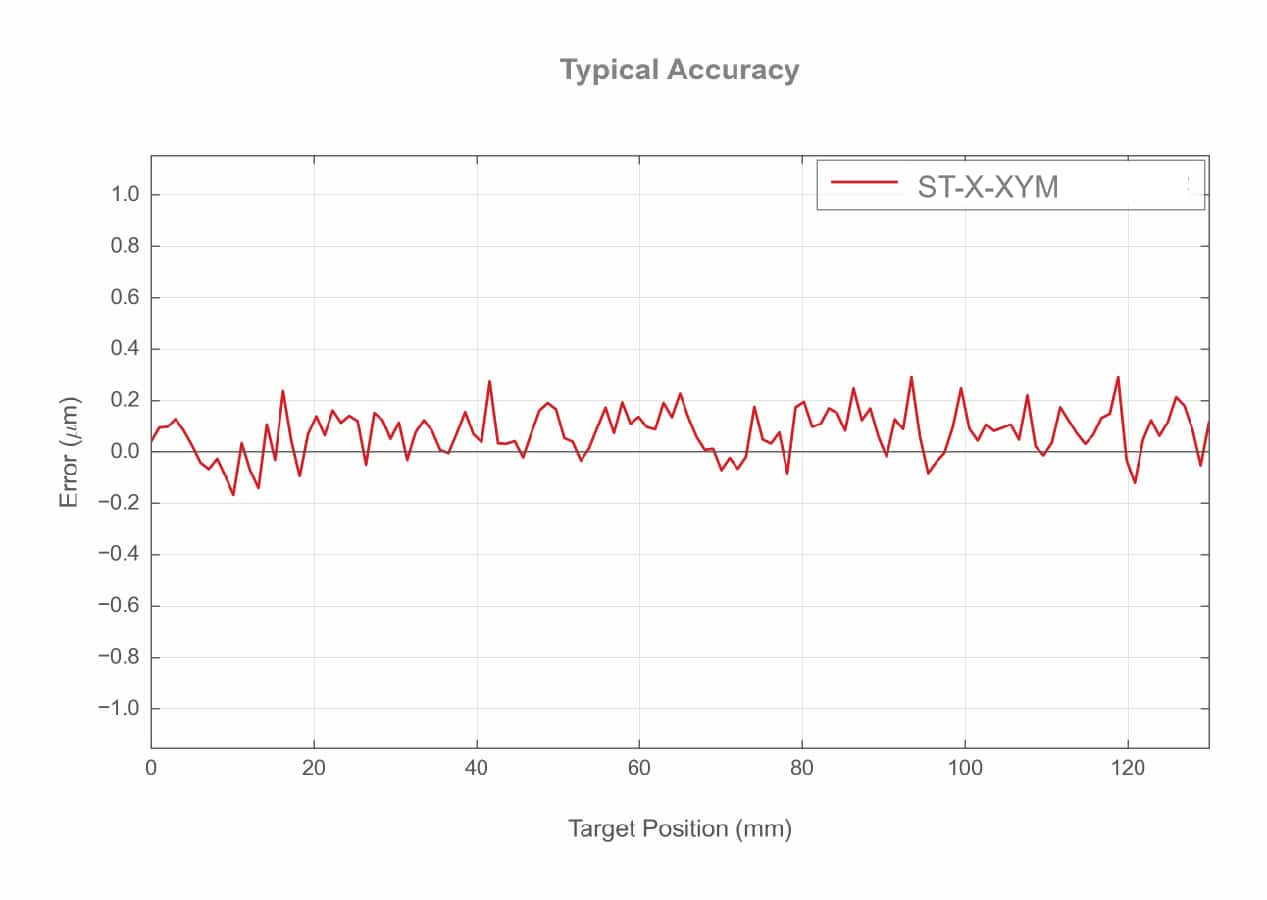

  Accuracy (unidirectional) 5 µm (0.000197")
  Repeatability < 0.5 µm (< 0.000020")

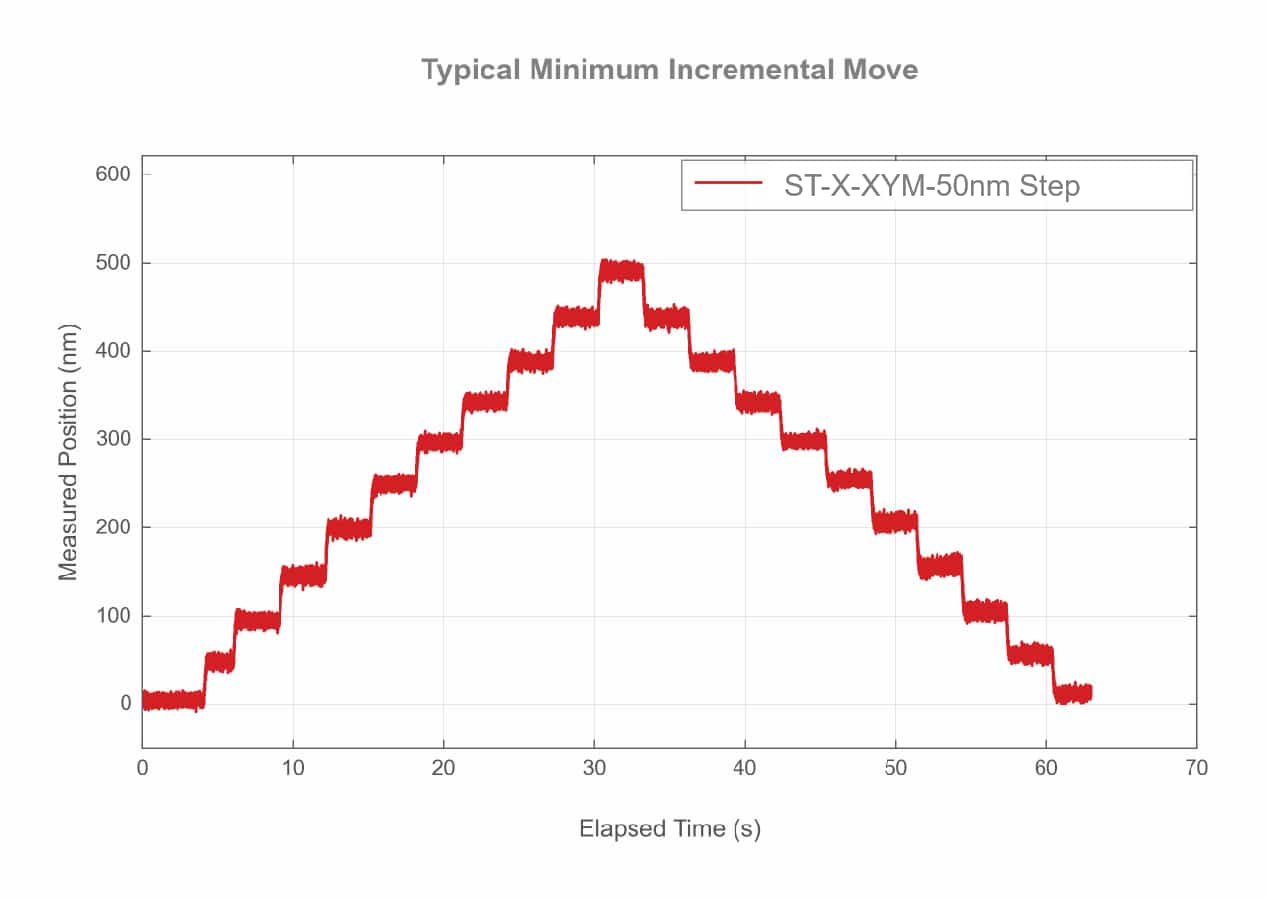

  Minimum Incremental Move 50 nm
  Maximum Speed 750 mm/s (29.528"/s)
  Minimum Speed 0.61 nm/s
  Speed Resolution 0.61 nm/s
  Encoder Type Linear analog encoder
  Encoder Count Size 1 nm
  Peak Thrust 35 N (7.8 lb)
  Maximum Continuous Thrust 13 N (2.9 lb)
  Communication Interface RS-232
  Communication Protocol Zaber ASCII (Default)
  Data Cable Connection Locking 4-pin M8
  Maximum Moment (Roll) 500 N⋅cm (708.1 oz⋅in)
  Maximum Moment (Pitch) 500 N⋅cm (708.1 oz⋅in)
  Maximum Moment (Yaw) 500 N⋅cm (708.1 oz⋅in)
  Guide Type Crossed-Roller Bearing

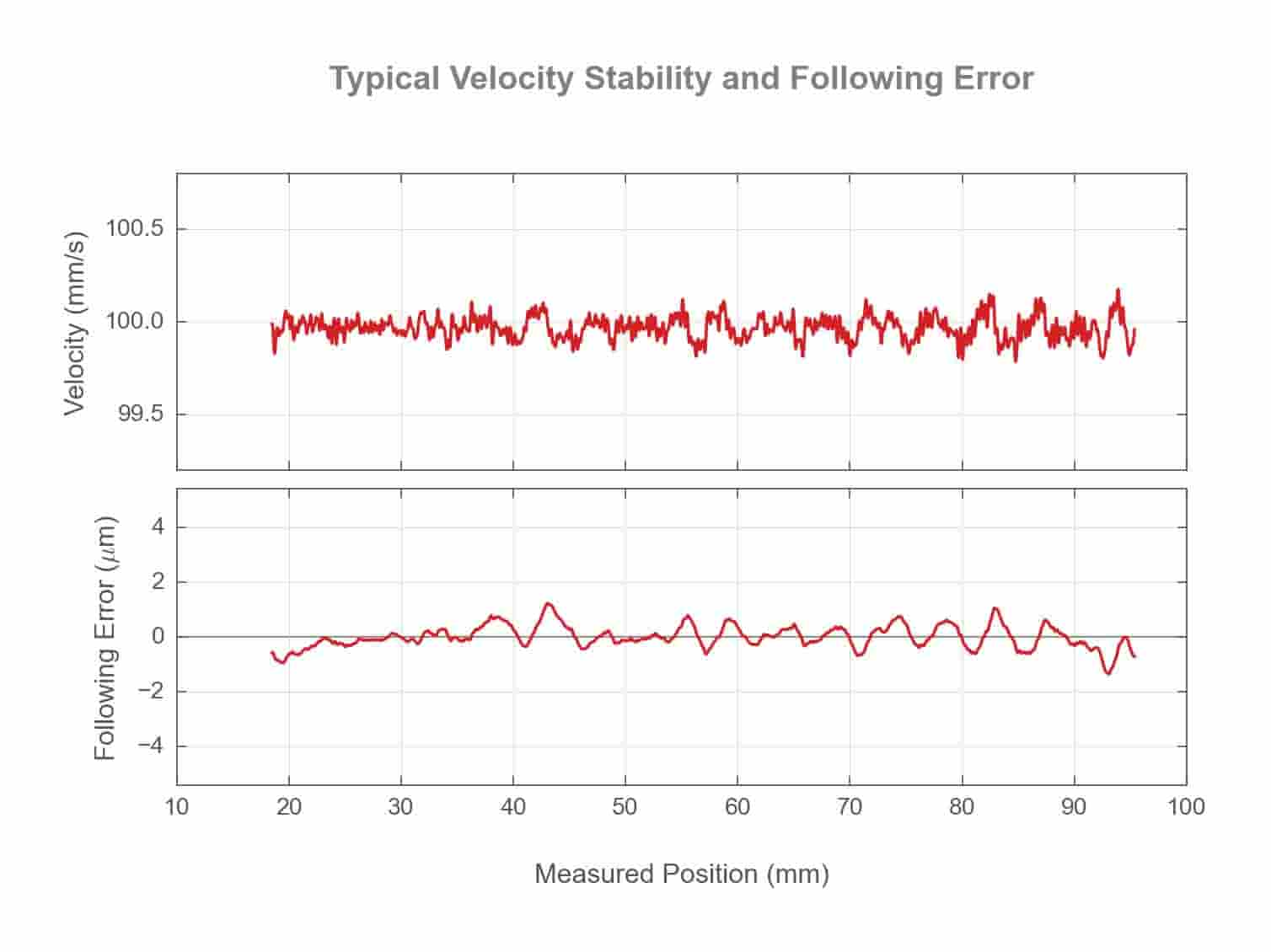

  Typical Velocity Stability ± 0.12% at 100 mm/s with a 0.55 kg payload
  Pitch 0.025° (0.436 mrad)
  Yaw 0.01° (0.174 mrad)
  Power Supply 24-48 VDC
  Maximum Current Draw 2300 mA
  Motor Type Moving Magnet Track Linear Motor
  Force Constant 5.5 N/A (1.2 lbs/A)
  Limit or Home Sensing Optical Index Mark
  Axes of Motion 2
  Led Indicators ✅
  Mounting Interface Separate mounting adaptors available
  Digital Input 1
  Digital Output 2
  Operating Temperature Range 0 to 50 °C
  PoHS Compliant ✅
  CE Compliant ✅



Model Comparison
Model Lower Travel Range Upper Travel Range Maximum Centered Load Roll Lower Moving Mass Upper Moving Mass Weight
XYM-130 130 mm (5.118") 100 mm（3.937 "） 50 N （11.2 lb） 0.006° （0.105 mrad） 3.3 kg（7.260 lbs） 1.3 kg（2.860 lbs） 4.9 kg（10.803 lbs）
XYM-250 250 mm（9.843 "） 100 mm（3.937 "） 30 N （6.7 lb） 0.01° （0.174 mrad） 3.9 kg（8.580 lbs） 1.5 kg（3.300 lbs） 6.2 kg（13.669 lbs）


Drawings（mm）

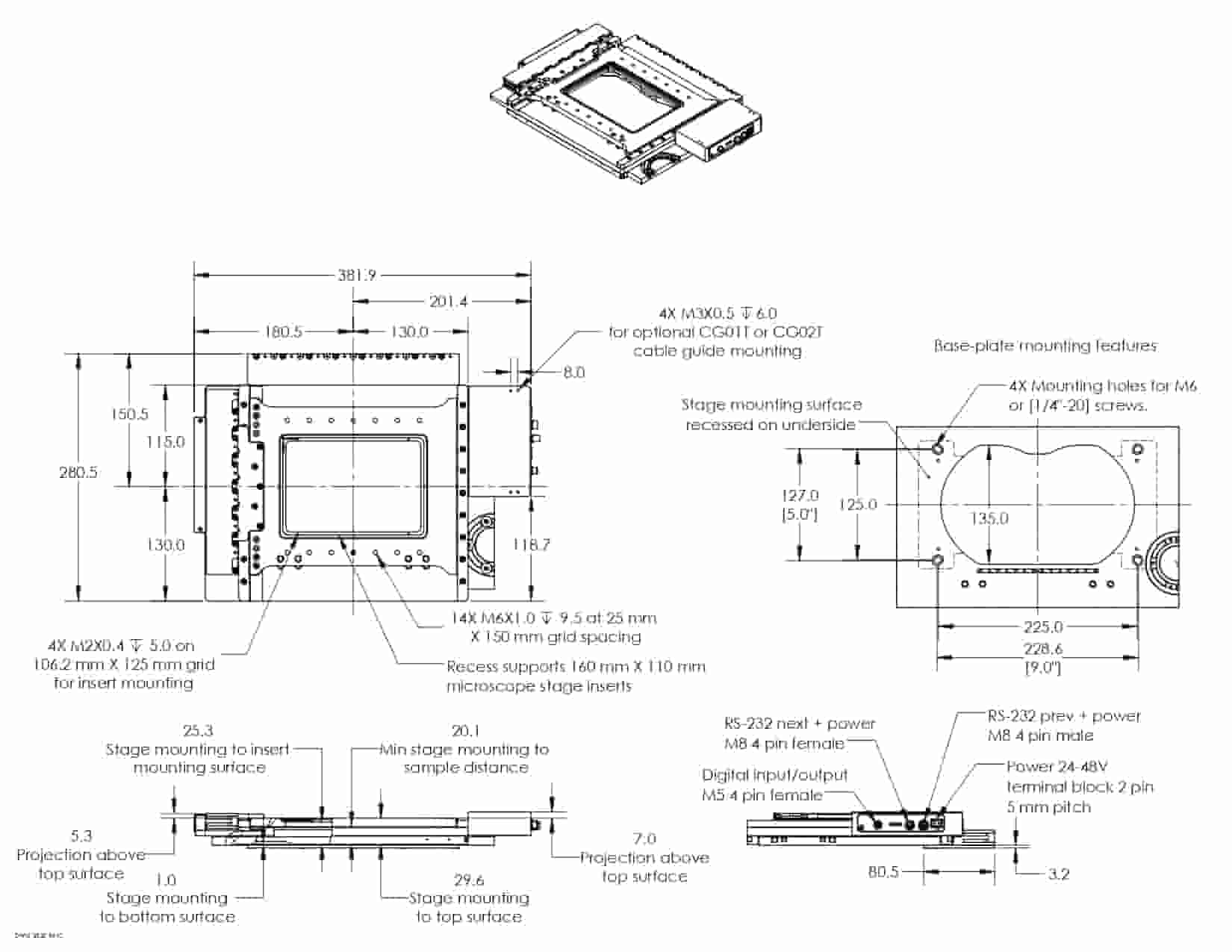

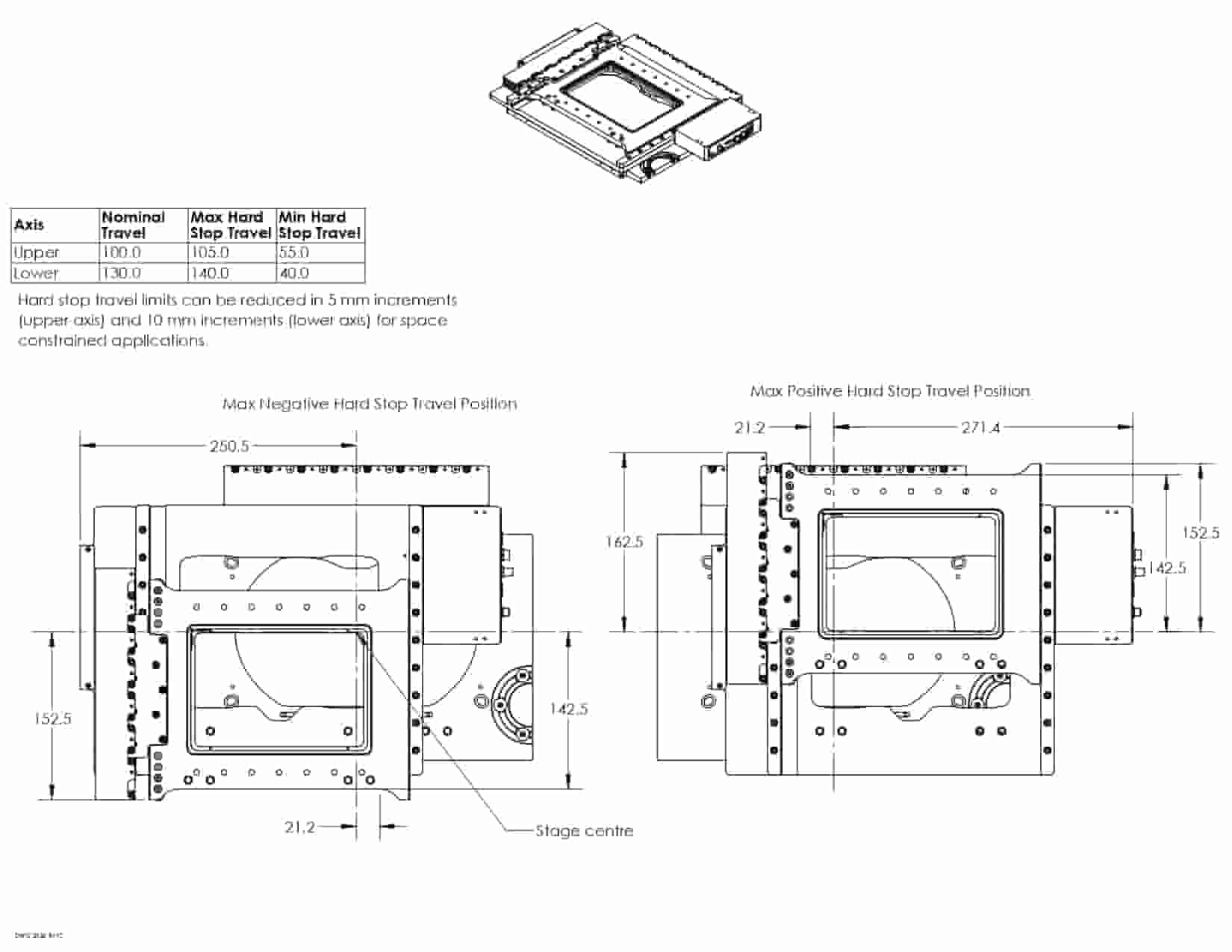

ST-XYM-130

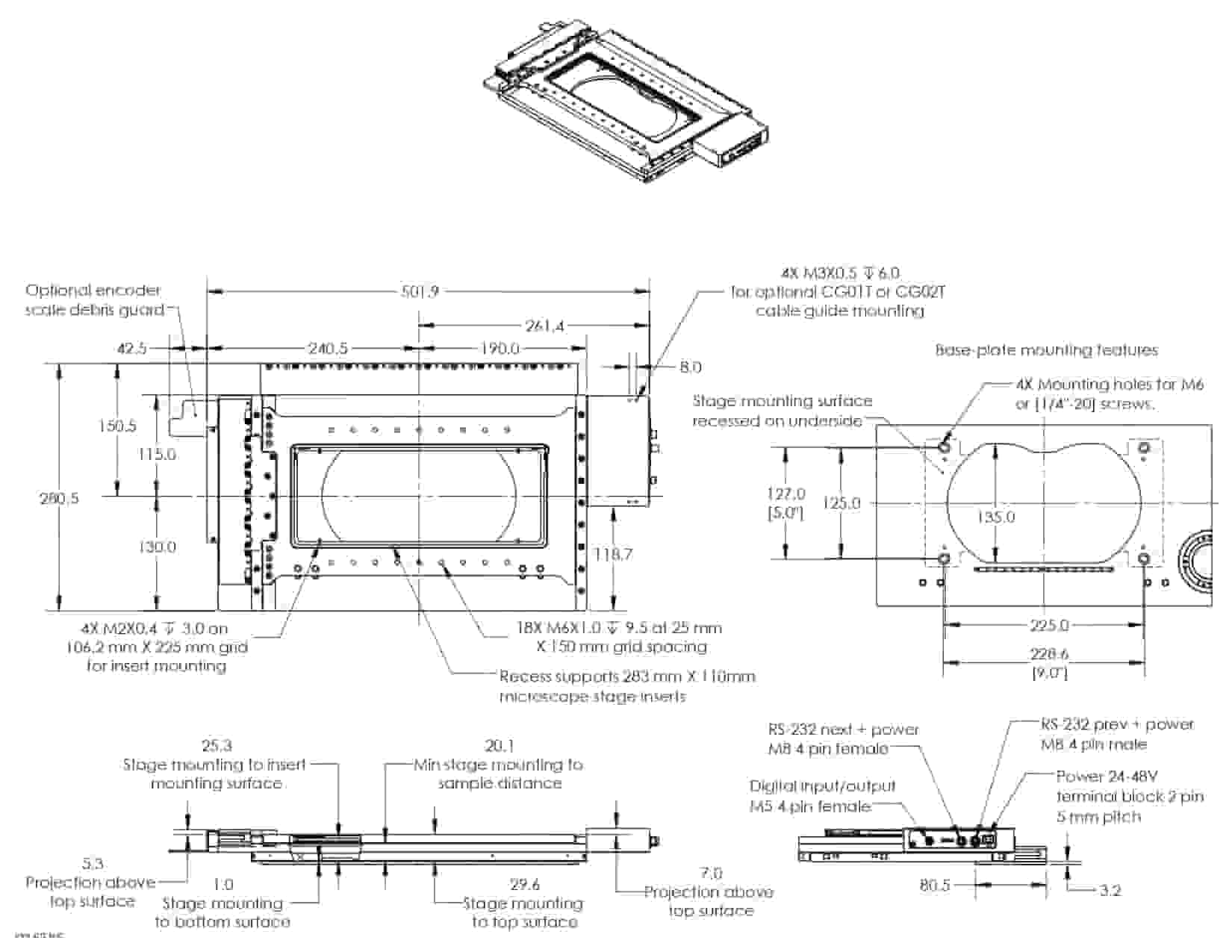

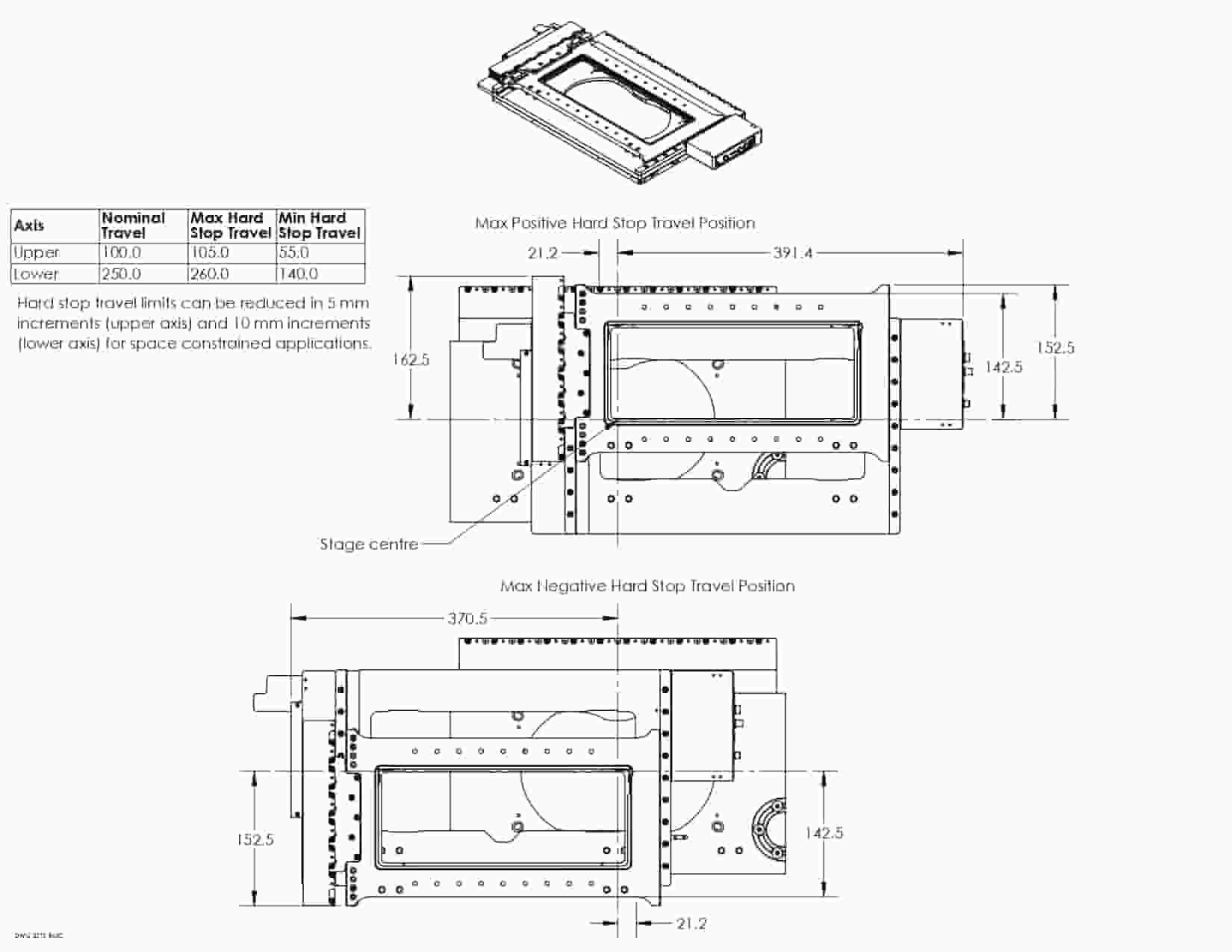

ST-XYM-250



Accessories

Accessory

Description

Weight（kg）

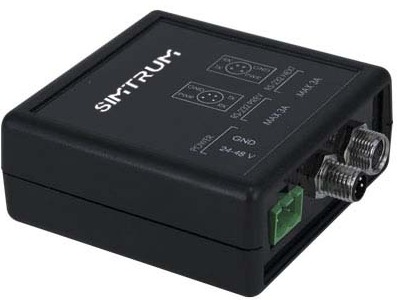

X-PIB

Device for Adding 24 - 48 V Power into Motorized Stages daisy chain.This device adds power into the serial daisy chain for Motorized Stages devices. This allows the user to route a single cable to devices for both power and data transfer in applications where reducing the number of cables to a device is desirable, or routing power is not an option.



0.065

Data Cable

The data cable daisy chains all motorized stages products.It is designed to handle flexing in motion applications. The maximum current carrying capacity of the cable is 4.0 Amps.

ST-X-DC01





1 ft (0.3 m),4-pin male to female M8 extension cable



0.03

ST-X-DC02

2 ft (0.6 m),4-pin male to female M8 extension cable

0.04

ST-X-DC06

6 ft (2 m),4-pin male to female M8 extension cable

0.08

ST-X-DC15



15 ft (4.5 m),4-pin male to female M8 extension cable

0.17

Power Supply

This is a 100-240 V AC input power supply with stable voltage isolation, compatible with motorized stages products. Suitable for powering a single high current motorized stages product or several lower current motorized stages products over a daisy-chain.

ST-X-PS12

The output is 24 V DC, 3.0 A on a 2-pin 5 mm pitch terminal block.

0.44

ST-X-PS14

The output is 48 V DC, 3.75 A on a 2-pin 5 mm pitch terminal block.

0.75

ST-X-PS15



The output is 48 V DC, 6.5 A on a 2-pin 5 mm pitch terminal block.

1.7

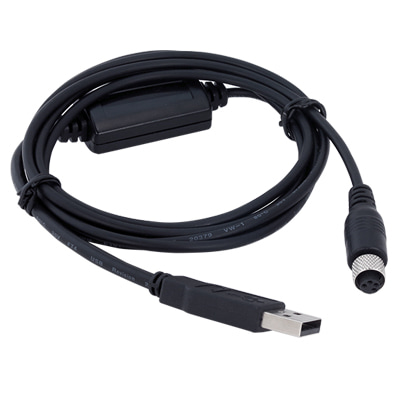

USB to Serial Converter Cable

ST-X-USB

USB to Serial Converter Cable with M8 Female Plug for motorized stages Products.This 6 ft (2 m) M8 female to USB A plug conversion cable allows you to connect the previous port of your motorized stages product to a USB port on your computer. Only one is needed per motorized stages daisy-chain.

0.06

Serial Adaptor Cable with M8 Female Plug for motorized stages Products

ST-X-SDC

This 6 ft (2 m) M8 female to RS-232 female conversion cable allows you to connect the previous port of your motorized stages product to an RS-232 serial port on your computer. Only one is needed per motorized stages daisy-chain.

0.09

Related Products

Product Travel（mm） Highest Speed（mm/s） Maximum Continuous Thrust(N) Repeatability（μm） Resolution(µm)
    XY Stepper Motor Stages 25-1000 25-280 25-600 <2.5-<4 0.047-0.496
    XYZ Stepper Motor Stages 25-450 26-1000 25-75 < 3 0.047-0.496
    XYM Linear Motor Microscope Stages 130-100/250-100 750 13 < 0.5 /

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
OM-ZA01-XYM-130
OM-ZA01-XYM-130，travel 130*100mm，Accuracy 5 µm (0.000197")，Minimum Incremental Move 50 nm，Speed Resolution 0.61 nm/s 		4-6week $11878.85
OM-ZA01-XYM-250
OM-ZA01-XYM-250，travel 250*100mm，Accuracy 5 µm (0.000197")，Minimum Incremental Move 50 nm，Speed Resolution 0.61 nm/s 		4-6week $14255.77

OM-ZA01-XYM-250 - Parameter

OM-ZA01-XYM-130 - Parameter

OM-ZA01-X-SDC - Parameter

OM-ZA01-X-USB - Parameter

OM-ZA01-X-PS16 - Parameter

OM-ZA01-X-PS14 - Parameter

OM-ZA01-X-PS12 - Parameter

OM-ZA01-X-DC15 - Parameter

OM-ZA01-X-DC06 - Parameter

OM-ZA01-X-DC02 - Parameter

OM-ZA01-X-DC01 - Parameter

OM-ZA01-XYM-250 - Download

OM-ZA01-XYM-130 - Download

OM-ZA01-X-SDC - Download

OM-ZA01-X-USB - Download

OM-ZA01-X-PS16 - Download

OM-ZA01-X-PS14 - Download

OM-ZA01-X-PS12 - Download

OM-ZA01-X-DC15 - Download

OM-ZA01-X-DC06 - Download

OM-ZA01-X-DC02 - Download

OM-ZA01-X-DC01 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
OM-ZA01-X-DC01
OM-ZA01-X-DC01，Data Cable, 1 ft (0.3 m), for Use with all ST-Motorized Stages Products 		4-6week $23.18
OM-ZA01-X-DC02
OM-ZA01-X-DC02，Data Cable, 2 ft (0.6 m), for Use with all ST-Motorized Stages Products 		4-6week $20.45
OM-ZA01-X-DC06
OM-ZA01-X-DC06，Data Cable, 6 ft (2 m), for Use with all ST-Motorized Stages Products 		4-6week $31.36
OM-ZA01-X-DC15
OM-ZA01-X-DC15，Data Cable, 15 ft (4.5 m), for Use with all ST-Motorized Stages Products 		4-6week $54.55
OM-ZA01-X-PS12
OM-ZA01-X-PS12，Power Supply, 24 V 3 A, Compatible with Motorized Stages Products 		4-6week $65.45
OM-ZA01-X-PS14
OM-ZA01-X-PS14，Power Supply, 48 V 3.75 A, Compatible with Motorized Stages Products 		4-6week $145.91
OM-ZA01-X-PS16
OM-ZA01-X-PS16，Power Supply, 48 V 6.5 A, Compatible with Motorized Stages Products 		4-6week $260.45
OM-ZA01-X-USB
OM-ZA01-X-USB to Serial Converter Cable with M8 Female Plug for ST-Motorized Stages Products 		4-6week $60.00
OM-ZA01-X-SDC
OM-ZA01-X-SDC，Serial Adaptor Cable with M8 Female Plug for Motorized Stages Products 		4-6week $25.91
