Vacuum Non-magnetic Piezo Stage

Our Vacuum non-magnetic piezo stages include two strokes(70mm and 18mm), with repeatability up to +/-500.

Feature
Piezoelectric motor drive, self-locking when power off, saving energy and reducing heat generation Simple and compact design Grating feedback, optional resolution Can be used in optical assembly, micro-nano processing, laser, automation and other fields Can be applied to a vacuum environment of 10-5pa(Only available for ST-LS3-0770V)

Product Specifications and Brochures

Product Brochure Link:

Model	ST-LS3-0770V	ST-LS3-0618NM
Stroke(mm)	70	18
Driver	Piezoelectric Motor	Piezoelectric Motor
Maximum Load Capacity(KG)	10	1
Maximum Speed(mm/s)	100	100
Minimum Step Size(nm)	150	300
Repeatability(nm)	+/-500	+/-500
Vacuum Compatible	10-5pa	/
Position Feedback	Sensor grid	/
Material	Stainless Steel	Aluminum Alloy
Weight(KG)	2.5	0.3

Drawings

ST-LS3-0770V

Front	Back	Side

ST-LS3-0618NM

Front	Back	Side

Motorized Piezo Stage Controller for Single Axis

使用手册中文:Motorized Piezo StageController

1.Controller JC-4xxxS Interface

JC-4xxxS Interface Diagram of  Controller

1.1 Grounding Screw Hole

Grounding screw hole for the controller housing.

1.2 Power Supply and Communication Interface

The power interface and 485 communication interface of the controller are 5P,  the green terminals with a spacing of 5.08mm.

 Definition of Power Supply and Communication Interface

1.3 Indicator Light

The indicator lights consist of ALARM1 and ALARM2, used to display the status of the controller.

 Meaning of Indicator Lights

1.4 I/O Interface

This interface uses a PS2 female socket (9 cores), and the hole numbers increase from right to left, and from bottom to top. The specific definitions are shown in the  following table.Adopt optocoupler structure, common anode input.

 I/O Interface Diagram

 I/O Interface Definition

Note: Please prevent the short-circuit problem caused by the wrong wiring when the PS2 interface leads out the wiring. A short circuit may burn the driver.

1.5 Motor Interface

The DB9 two-row male seat used by this interface is defined in the following table.

 Motor Interface Definition

Note: Pins 6 and 7 are shorted for DB9 detection access .Please cut off the power supply when connecting the patch cord, please do not impede the movement for a long time when the platform is driven ,or  the motor may be burn out.

1.6 Grating Interface

This interface uses DB15 two-row female socket, and its specific definition is as follows. The displacement feedback communication protocol is orthogonal encoding signal, the hardware circuit is 422 circuit.

Grating Interface

2.Controller JC-4xxxC Interface

JC-4xxxC Interface Diagram of  Controller

2.1 Ground Hole

The ground of the controller is located in the mounting hole near the motor (if it needs to be disconnected, R71 can be removed).

Note: Other versions have different resistor bit number.

2.2 Power Interface

• The power interface of the drive controller is a DC power socket (The outer diameter of the contact is 6.4mm, and the inner diameter of the contact is 2mm).
• Both can be connected, and two DC sockets are designed for multi-axis application (JuTuo structure)
• The input voltage range is 20V~30V, 24V/1A is recommended

2.3 Communication Interface

There are two communication interfaces of the controller, one is 485 interface, and the other is USB interface (USB mini-A). One of the 485 interfaces use a double-seat earphone socket for multi-axis use under the same controller; the other is I/O interface port (DB15, 3 rows, male seat).The USB communication chip uses CH343, which can configure the USB identifier.

 2.4 Indicator Light

The indicator light is composed of ALARM1 and ALARM2, which is used to display the status of the controller.

Meaning of Indicator Lights

 2.5 I/O Interface

This interface uses 3 rows of DB15 male sockets. Its specific definition is shown in the following table.

 I/O Interface Definition

Note: Please prevent the short-circuit problem caused by the wrong connection when leading out the wiring from this interface. The short-circuit between the pins may cause burning the drive controller.

2.6 Motor Interface

The DB9 two-row male seat used by this interface is defined in the following table.

 Motor Interface Definition

Note:Pins 6 and 7 are shorted for DB9 detection access.Please cut off the power supply when connecting the patch cord, please do not impede the movement for a long time when the platform is driven,or the motor may burn out

2.7 Grating Interface

This interface uses a double-deck, two-row DB15, male on the top and female on the bottom. Its specific definition is as follows.The grating signal input is connected to the female socket, and the grating signal output is the male socket.The displacement feedback communication protocol is an orthogonal coding signal, and the hardware circuit is a 422 circuit.

Grating Interface

Motorized Piezo Stage

Confocal Microscope Systems

Our motorized piezo stage can be applied to microscope related systems ,  below is the confocal microscope systems we produced. if you need customized system please contact us.

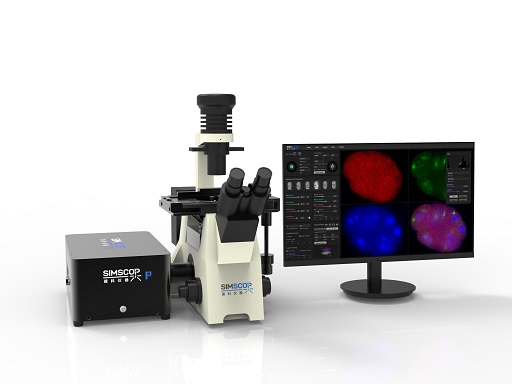

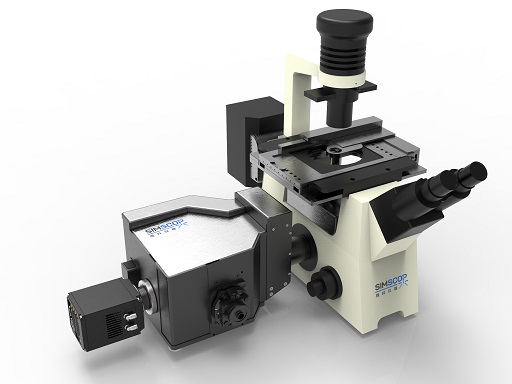

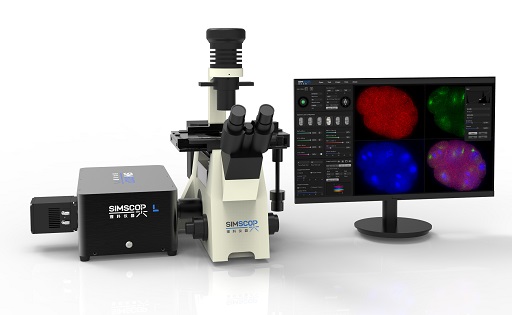

	Laser Scanning Confocal Microscope		Laser Line Scan Confocal Microscope		Spinning Disk Confocal Microscope

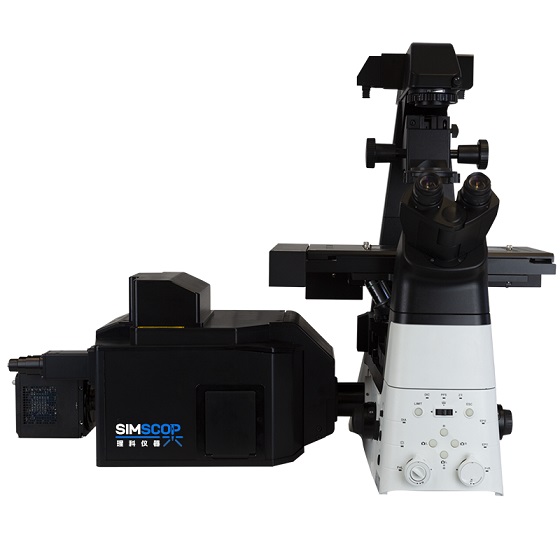

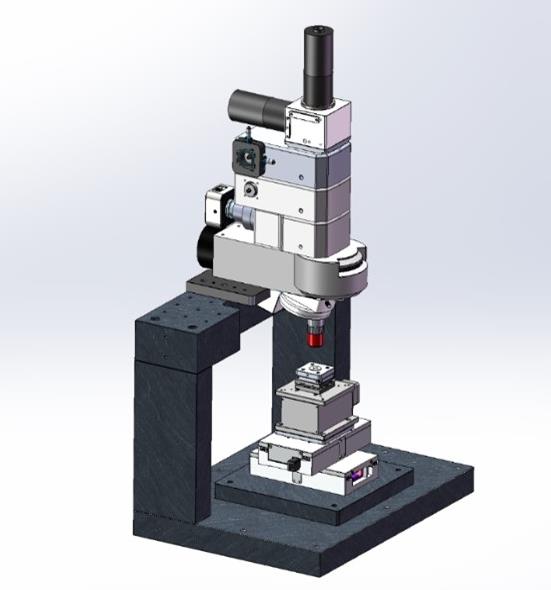

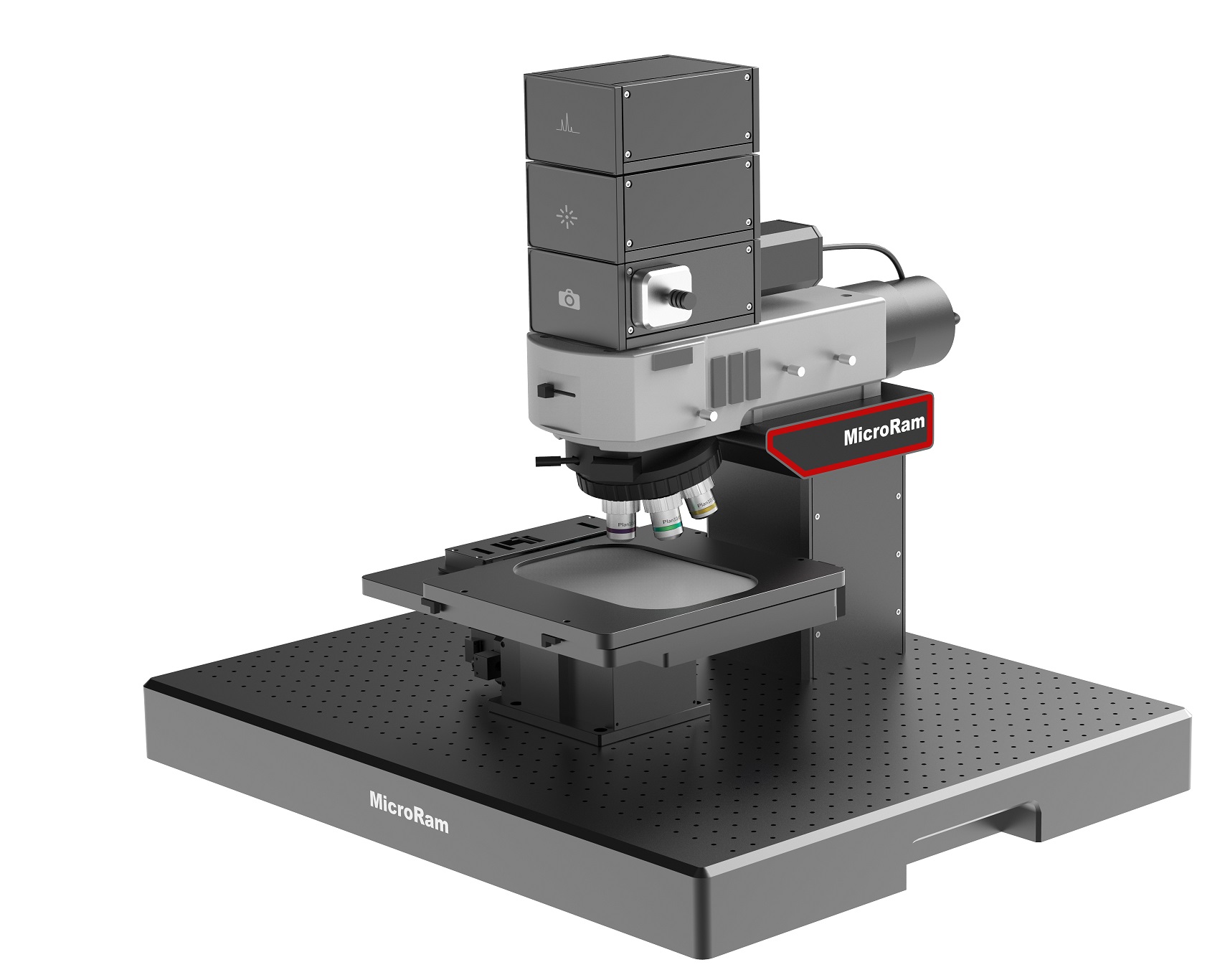

	Structured Illumination Microscope		Wide Field Raman Microscope		Fluorescence / Photoluminescence Microscope
