Full Frame CCD Camera for VUV EUV X-ray
Overview Selection Guide ALEXs Selection Guide ALEXi Order Now!

Scientific Full-Frame CCD Cameras for VUV EUV X-ray (5 eV - 20 keV)

ALEXs Series for Spectroscopy

ALEXi Series for Imaging

These scientific full-frame CCD cameras for for VUV EUV X-ray imaging and spectroscopy are the ALEX series (including ALEXs and ALEXi). It is suitable for photon energy range 5 eV - 20 keV.


ALEX integrates cutting-edge low-noise electronics and ultra-deep cooling technology while keeping a compact camera design. Multiple readout speeds can be selected supporting pixel rates from 50 kHz up to 5 MHz. True 18-bit AD conversion allows to exploit the

full dynamic range of the CCD sensor for highest performance and SNR. ALEX is ideally suited for detection of very weak signal intensities where a low-noise floor is paramount. ALEX offers unprecedented possibilities for your measurements of tomorrow.







Camera Common Feature



-Ultra deep TE cooling to -100 °C

 Lowest dark current for better detection limit

-GigE & USB 3.0 data interface

 Local or remote network operation – your choice

-Fast readout speeds up to 5 MHz

 Fast frame rates paired with low-noise electronics


-High QE up to 98%

 Very sensitive sensors for low light applications

-User selectable gain

 Balance your detector for best SNR and dynamic range

-Flexible software options

 Camera software and SDKs available


Application

 ALEXs series for spectroscopy
 ALEXi series for imaging

-Soft X-ray spectroscopy

-Plasma emission spectroscopy

-High harmonic generation spectroscopy

-NEXAFS spectroscopy

-Resonant inelastic X-ray scattering


-EUV lithography

-X-ray tomography

-Fourier transform holography

-X-ray fluoroscopy

-Coherent diffraction imaging

-Ptychographic spectromicroscopy

-Grazing-incidence small-angle X-ray scattering


Quantum efficiency curves

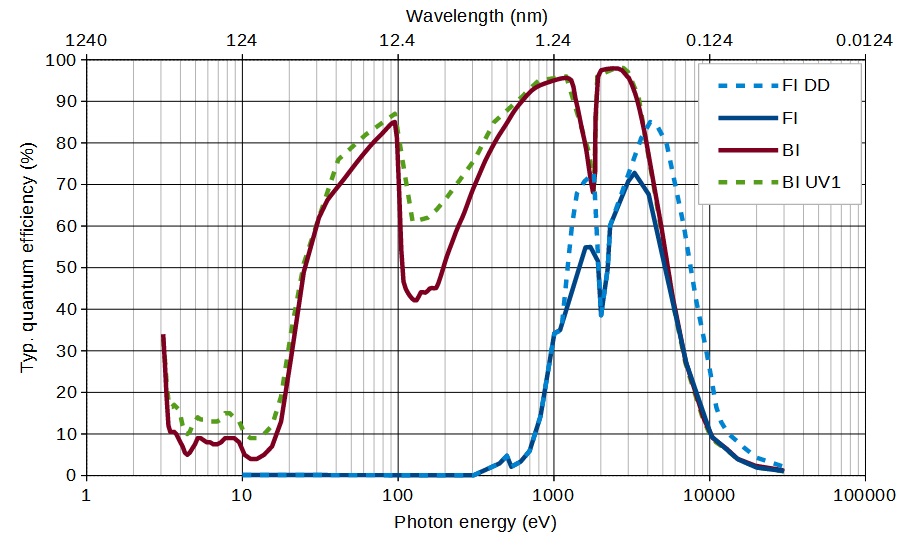

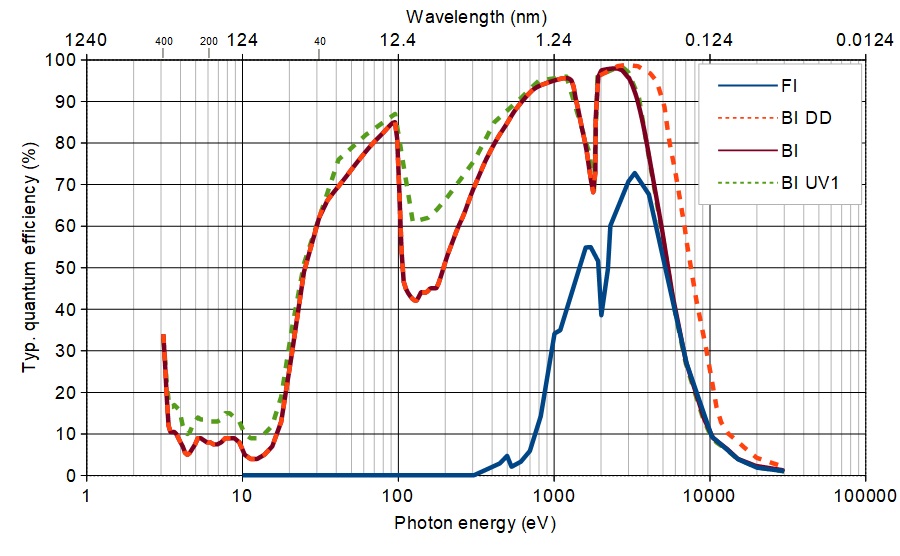

                            ALEXs series for spectroscopy ALEXi series for imaging

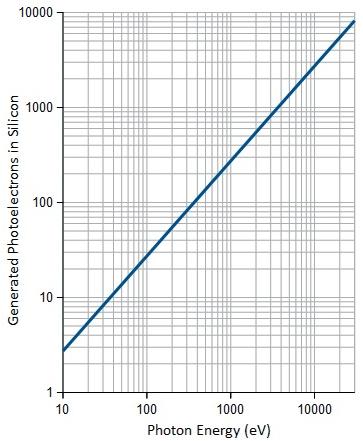

The mean energy of a photon to generate an

 electron-hole pair in silicon is 3.66 eV


Product specifications and Brochures

Product Brochure Link:

For more information on ALEXs series for spectroscopy and ALEXi series for imaging,please go to Selection Guide ALEXs and Selection Guide ALEXi.

Parameter ALEX series for spectroscopyALEX series for imaging
Pixel readout frequency50 kHz, 250 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode)50 kHz, 250 kHz, 1 MHz, 3 MHz
(5 MHz for visualization mode; up to 20 MHz with multi-output)
Readout modes/2 output nodes for 1k1k & 2k2k cameras,
4 output nodes for 2k2k plus & 4k4k cameras
AD converter resolution18-bit
LinearityBetter than 99%
CCD epitaxial thickness15 μm standard, 40 μm for deep depletion (FIDD) models15 μm standard, 40 μm for deep depletion (BI DD) models
Flange typesISO-F DN63, knife-edge sealed CF DN63, CF DN100, CF DN160
Vacuum compatibilityWith CF flange: 10-10 mbar (UHV capability)
Bakeout temperatureMax. +80 °C
Flange - focal plane6 mm for CF DN63, 8 mm for CF DN100 (can be customised)1k1k camera with CF DN63: 6 mm; 2k2k with CF DN63: 5 mm;
2k2k plus & 4k4k cameras with CF DN160: -27 mm (all disctance can be customised)
CCD sensor cooling-100°C to 20°C, forced air or liquid cooling-100 °C to 20 °C(1k1k camera),
'-90°C to 20 °C(2k2k,2k2k plus and 4k4k camera)
Temperature monitoringTwo thermistors at CCD sensor and thermoelectric cooler (hot side
Data linkGigabit Ethernet, USB 3.0
SoftwareVision software for Windows 7 / 10
SDK and driversDLL for Windows; LabVIEW, EPICS, Linux, Python, Tango driver (optional)
TTL interface signalsSync out, shutter out, 2 external trigger in
Operating conditionsTemperature: 0°C to 35°C ambient, relative humidity <80% (non-condensing)
Power supply80-264 VAC (115/230 typical), 47-63 Hz (50/60 typical),
max. 1.1 A (230 VAC), 1.9 A (115 VAC)		1k1k & 2k2k: 80-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60),
max. 1.1 A (230 V) / 1.9 A (115 V)
2k2k plus & 4k4k: 85-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60),
 max. 1.9 A (230 V) / 3.8 A (115 V)
CertificationCE
Dimensions8.3 cm (3.27ʺ) × 10.0 cm (3.94ʺ) × 10.9 cm (4.29ʺ)
(W × H × L, camera body)		8.3 cm (3.27ʺ) × 10.0 cm (3.94ʺ) × 10.9 cm (4.29ʺ)
(W × H × L, 1k1k & 2k2k camera body)
13.7 cm (5.39ʺ) × 13.7 cm (5.39ʺ) × 13.3 cm (5.24ʺ)
(W × H × L, 2k2k plus & 4k4k camera body)
Weight2.9 Kg (with CF DN63 flange)2.9 kg (1k1k & 2k2k, CF DN63) / 4.3 kg (1k1k & 2k2k, CF DN 100) /
12.5kg (4k4k, CF DN160)
Blemish specificationsGrade 0 or grade 1 (standard) as specifi ed by sensor manufacturer


Items delivered together with each camera
CodeDescriptionCodeDescription
GE-VI01Vision software suite for WindowsGE-StoB2m2m SMB to BNC connection cable × 2
GE-SDK01SDK for Windows (C/C++ based)GE-POW01Camera power supply with cabling
GE-USB3m33m USB 3.0 cable type A to type CGE-ManCamCamera instruction manual
GE-GigE10m10m Ethernet cable//


Vision Software

Vision software suite provides access to all camera functionalities. It includes comprehensive visualization, analysis and storage options and supports important features such as wavelength and geometric calibration, crop and burst modes and various file formats. The software runs on 32/64-bit Windows systems. For integration into other systems, a software development kit and drivers are available.


Software Features



- Supports crop and burst readout modes for higher frame rates and precise time resolution

- Various file formats: JPG, BMP, TXT, TIFF (16-bit), DAT raw data

- Comprehensive visualization and image manipulation routines

- Supports flexible horizontal and vertical binning


- Many drivers available for integration into other systems

- Runs on 32/64-bit Windows systems

- Wavelength and geometric calibration

- Language support in English and German




Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Spectroscopy-ALEXs Series



Choose your camera model
Model Image area(mm) Pixel format Pixel size(µm) Gain(counts/e-) CCD sensor type Typ. read noise (e¯) Full well capacity Register well capacity Dark current @ -100°C Quantum efficiency Sensitive  range
Standard mode High capacity mode @ 50 kHz @ 1 MHz @ 3 MHz

ALEX-s 1k256

 ALEX-s 1k256 FI 26.6×6.7 1024×255 26×26 0.4 / FSI 4.2 12 25 500 k e- 1 000 ke¯ 0.0004 e¯/pixel/s Up to 72% X-ray 500 eV to 20 keV
ALEX-s 1k256 FI DD 0.4 / FSI,Deep depletion fringe suppression 5.4 12.3 25 700 k e- 1 400 ke¯ 0.005 e¯/pixel/s Up to 85% X-ray 500 eV to 20 keV
ALEX-s 1k256 BI UV1 0.4 / BSI,enhanced process 6 13.1 26 500 k e- 1 000 ke¯ 0.0004 e¯/pixel/s Up to 96% VUV to X-ray

ALEX-s 2k512

 ALEX-s 2k512 FI 27.6×6.9 2048×515 13.5×13.5 1 0.34 FSI 3.5 6.8 10.7 100 k e- 400 ke¯ 0.00025 e¯/pixel/s Up to 72% X-ray 500 eV to 10 keV
ALEX-s 2k512 BI 1 0.34 BSI 3.5 6.8 10.7 100 k e- 400 ke¯ 0.00025 e¯/pixel/s Up to 96% VUV to X-ray max. 10 keV
ALEX-s 2k512 BI UV1 1 0.34 BSI 3.5 6.8 10.7 100 k e- 400 ke¯ 0.00025 e¯/pixel/s / VUV to X-ray up to 10 keV

Note:BSI=back-side illumination,FSI=front-side illumination



  1ms Exposure Time, 5MHz Digitisation, 1-port
Sensor Sensor Format Full Frame FVB Crop 32 lines Crop 16 lines

1k x 256 17.1 221.8 624 709
2k x 512 2.7 98.6 456 511



Select interface vacuum flange
Order code Description
CF1 Knife-edge sealed CF DN63 flange with threaded holes
CF2 Knife-edge sealed CF DN100 flange with through holes
CF4 Rotatable, knife-edge sealed CF DN100 flange with through holes



Choose your accessories and software
Order code Description
A) Accessories for imaging purposes
GE-SR35 35mm shutter, including shutter driver module (compatible with CF DN100 or larger)
GE-AE01 Addittional CF DN63 flange with a window of Beryllium, MgF2, UVFS or other materials, can be sealed with the camera
flange, with a port for external vacuum pump, enables ALEX to be used in air independently
B) Accessories for enhanced cooling performance
GE-CR01 Compact liquid cooling, circulating the coolant at room temperature for deep camera cooling
GE-CR02 Recirculating water chiller, PID control with temp. from -5°C to 30°C for ultra-deep camera cooling
C) Soft ware development kit (SDK) and drivers
GE-LX01 SDK for Linux (c/c++ based)
GE-PYT01 Python driver
GE-LAB01 LabVIEW driver
GE-EP EPICS driver
GE-TAN Tango driver






Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging Applications - ALEXi Series





Choose your camera mode
Model Image area(mm) Pixel format Pixel size(µm) Gain(counts/e-) CCD sensor type Typ. read noise (e¯) Full well capacity( ke-) Register well capacity Output node( ke¯) Dark current(e¯/pixel/s) Quantum efficiency Sensitive  range
Standard mode High capacity mode @ 50
kHz		 @ 1
MHz		 @ 3
MHz		 @ -100 °C @ -90 °C

ALEX-i 1k1k

 ALEX-i 1k1k FI 13.3×13.3 1024×1024 13 ×13 1 / FSI 2.8 6.4 10.9 100 400 ke¯ / 0.00015 / Up to 72% X-ray 500eV to 10keV
ALEX-s 2k512 BI 1056×1027 1 / BSI 2.8 6.4 10.9 100 400 ke¯ / 0.00015 / Up to 96% VUV to X-ray max.10 keV
ALEX-i 1k1k BI DD 1 / BSI,Deep depletion,fringe suppression 2.8 6.4 10.9 120 400 ke¯ / 0.0005 / Up to 98% VUV to X-ray up to 20 keV
ALEX-i 1k1k BI UV1 1 / BSI,enhanced process 2.8 6.4 10.9 100 400 ke¯ / 0.00015 / Up to 96% VUV to X-ray

ALEX-i 2k2k

 ALEX-i 2k2k FI 27.6×27.6 2048×2052 13.5×13.5 1 0.34 FSI 3.4 7 13.6 100 400 ke¯ / / 0.0001 Up to 72% X-ray 500eV to 10keV
ALEX-i 2k2k BI 1 0.34 BSI 3.4 7 13.6 100 400 ke¯ / / 0.0001 Up to 96% VUV to X-ray
ALEX-i 2k2k BI UV1 1 0.34 BSI,enhanced process 3.4 7 13.6 150 600 ke¯ / / 0.001 Up to 96% VUV to X-ray
ALEX-i 2k2k BI DD 1 0.34 BSI,Deep depletion,fringe suppression 3.4 7 13.6 150 600 ke¯ / / 0.001 Up to 98% VUV to X-ray up to 20 keV

ALEX-i 2k2k plus

 ALEX-i 2k2k plus BI 30.7×30.7 2048×2064 15 ×15 0.6 0.2 BSI 4.6 8.5 17 150 / 900 / 0.00008 Up to 96% VUV to X-ray

ALEX-i 4k4k

 ALEX-i 4k4k BI 61.4×61.7 4096×4096 15 ×15 0.6 0.2 BSI 4.6 8.5 17 150 / 900 / 0.00008 Up to 97% VUV to X-ray
ALEX-i 4k4k BI UV1 1 0.34 Enhanced BSI 2.8 5.8 10.4 350 / 600 / 0.0006 Up to 97% VUV to X-ray
ALEX-i 4k4k BI DD 1 0.34 BSI,Deep depletion 2.8 5.8 10.4 350 / 600 / 0.0006 Up to 97% VUV to X-ray

Note:BSI=back-side illumination,FSI=front-side illumination



1ms Exposure Time, 6MHz Digitisation, 2-port
Sensor Binning Full Frame 1k x 1k 512 x 512 256 x 256

CCD 42-40 (2kx2k)

 1 x 1 1 2.1 4.2 8.3
2 x 2 1.7 3.4 6.9 13.6
4 x 4 2.6 5.1 10 19.9
8 x 8 3.3 6.6 13.2 25.8
16 x 16 4 7.9 15.5 30.4



1ms Exposure Time, 10MHz Digitisation, 2-port
Sensor
 Binning Full Frame 512k x 512k 256 x 256 128 x 128



CCD 47-10 (1kx1k)

 1 x 1 8.5 16.9 33.1 63.6
2 x 2 16.3 32 62.1 116.1
4 x 4 30.1 58.3 110 195.3
8 x 8 52.1 98.5 177.5 296.4
16 x 16 81.9 150.1 257.3 399.9



Select interface vacuum flange
Order code Description
CF1 Knife-edge sealed CF DN63 flange with threaded holes (only for 1k1k or 2k2k)
CF2 Knife-edge sealed CF DN100 flange with through holes (only for 1k1k or 2k2k)
CF3 Knife-edge sealed CF DN160 flange with through holes
CF4 Rotatable, knife-edge sealed CF DN100 flange with through holes (only for 1k1k or 2k2k)



Choose your accessories and software
Order code Description
A) Accessories for imaging purposes
GE-SR25 25mm shutter for 1k1k camera, including shutter driver module
GE-SR45 45mm shutter for 2k2k & 2k2k plus cameras, including shutter driver module
GE-AE01 Additional CF DN63 flange with a window of Beryllium, MgF2, UVFS or other materials, can be sealed
with the camera flange, with a port for external vacuum pump, enables ALEX to be used in air independently
B) Accessories for enhanced cooling performance
GE-CR01 Compact liquid cooling, circulating the coolant at room temperature for deep camera cooling
GE-CR02 Recirculating water chiller, PID control with temp. from -5°C to 30°C for ultra-deep camera cooling
C) Soft ware development kit (SDK) and drivers
GE-LX01 SDK for Linux (C/C++ based)
GE-PYT01 Python driver
GE-LAB01 LabVIEW driver
GE-EP EPICS driver
GE-TAN Tango driver




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Series


Search Reset
Compare Model Drawings & Specs Series Availability Reference Price
(USD)
ALEX-s-1k256-FI
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Spectroscopy, Image Area 26.6 mm × 6.7 mm，Pixel Format 1024 × 255 pixels，Pixel Size 26 µm × 26 µm，Gain 0.4 Counts/e-，CCD Sensor Type Front-illuminated，Full Well Capacity 500 k e-， Sensitive X-ray Range 500 eV to 20 keV，Up to 72% Quantum Efficiency 		ALEXs 6-8 weeks Request for quote
ALEX-s-1k256-FIDD
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Spectroscopy, Image Area 26.6 mm × 6.7 mm, Pixel Format 1024 × 255 Pixels, Pixel Size 26 µm × 26 µm, Gain 0.4 Counts/e-, CCD Sensor Type Front-illuminated, Deep Depletion Fringe Suppression, Full Well Capacity 700 k e-, Sensitive X-ray Range 500 eV to 20 keV, Up to 85% Quantum Efficiency 		ALEXs 6-8 weeks Request for quote
ALEX-s-1k256-BIUV1
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Spectroscopy，Image Area 26.6 mm × 6.7 mm, Pixel Format 1024 × 255 Pixels, Pixel Size 26 µm × 26 µm, Gain 0.4 Counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Full Well Capacity 500 k e-, Up to 96% Quantum Efficiency, VUV to X-ray Range 		ALEXs 6-8 weeks Request for quote
ALEX-s-2k512-FI
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Spectroscopy, Image Area 27.6 mm × 6.9 mm，Pixel Format 2048 × 515 Pixels，Pixel Size 13.5 µm × 13.5 µm，Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-，CCD Sensor Type Front-illuminated，Full Well Capacity 100 k e-, Sensitive X-ray Range: 500 eV to 10 keV, Up to 72% Quantum Efficiency 		ALEXs 6-8 weeks Request for quote
ALEX-s-2k512-BI
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Spectroscopy, Image Area 27.6 mm × 6.9 mm, Pixel Format 2048 × 515 pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Full Well Capacity 100 k e-, Sensitive Range: VUV to X-ray Max. 10 keV, Up to 96% Quantum Efficiency 		ALEXs 6-8 weeks Request for quote
ALEX-s-2k512-BIUV1
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Spectroscopy, Image Area 27.6 mm × 6.9 mm, Pixel Format 2048 × 515 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-，CCD Sensor Type Back-illuminated, Enhanced Process，Full Well Capacity 100 k e-，Sensitive Range From VUV to X-ray Up to 10 keV 		ALEXs 6-8 weeks Request for quote
ALEX-i-1k1k-FI
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging , Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 × 1024 , Pixel Size 13 µm × 13 µm, Gain 1 Counts/e, CCD Sensor Type Front-illuminated, Full Well Capacity 100 k e-, Sensitive X-ray Range 500 eV to 10 keV, Up to 72% Quantum Efficiency 		ALEXi 6-8 weeks Request for quote
ALEX-i-1k1k-BI
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging , Image Area 13.3 mm × 13.3 mm, Pixel Format 1056 × 1027 Pixels, Gain 1 Counts/e-, CCD Sensor Type Back-illuminated, Full Well Capacity 100 k e-, Up to 96% Quantum Efficiency, VUV to X-ray Range 		ALEXi 6-8 weeks Request for quote
ALEX-i-1k1k-BIDD
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging , Image Area 13.3 mm × 13.3 mm, Pixel Format 1056 × 1027 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 Counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion, Fringe Suppression, Full Well Capacity 120 k e-, Sensitive Range VUV to X-ray Range Up to 20 keV, Up to 98% Quantum Efficiency 		ALEXi 6-8 weeks Request for quote
ALEX-i-1k1k-BIUV1
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging , Image Area 13.3 mm × 13.3 mm, Pixel Format 1056 × 1027 Pixels, Pixel Size 13 µm × 13 µm, Gain 1 Counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Full Well Capacity 100 k e-,Up to 96% Quantum Efficiency, VUV to X-ray Range 		ALEXi 6-8 weeks Request for quote
ALEX-i-2k2k-FI
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 100 k e-, Sensitive X-ray Range: 500 eV to 10 keV, Up to 72% Quantum Efficiency 		ALEXi 6-8 weeks Request for quote
ALEX-i-2k2k-BI
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Full Well Cpacity 100 k e-, Up to 96% Quantum Efficiency, VUV to X-ray Range 		ALEXi 6-8 weeks Request for quote
ALEX-i-2k2k-BIUV1
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Full Well Capacity 150 k e- 		ALEXi 6-8 weeks Request for quote
ALEX-i-2k2k-BIDD
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging, Image Area 27.6 mm × 27.6 mm, Pixel Format 2048 × 2052 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain 1 (Standard Mode) / 0.34 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion, Fringe Suppression, Full Well Capacity 150 k e-, Sensitive Range VUV to X-ray Range up to 20 keV, Up to 98% Quantum Efficiency 		ALEXi 6-8 weeks Request for quote
ALEX-i-2k2kplus-BI
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging, Image Area 30.7 mm × 30.7 mm, Pixel Format 2048 × 2064 Pixels, Pixel Size 15 µm × 15 µm, Gain 0.6 (Standard Mode) / 0.2 (High Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Full Well Capacity 150 k e-, Up to 96% Quantum Efficiency, VUV to X-ray Range 		ALEXi 6-8 weeks Request for quote
ALEX-i-4k4k-BI
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging, Image Area 61.4 mm × 61.7 mm, Pixel Format 4096 × 4096 Pixels, Pixel Size 15 μm × 15 μm, Gain 0.6(Standard mode) / 0.2(high capacity mode) Counts/e-, CCD Sensor Type Back-illuminated, Full Well Capacity 150 k e-, Up to 97% Quantum Efficiency, VUV to X-ray Range 		ALEXi 6-8 weeks Request for quote
ALEX-i-4k4k-BIUV1
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging, Image Area 61.4 mm × 61.7 mm, Pixel Format 4096 × 4096 Pixels, Pixel Size 15 μm × 15 μm, Gain 1(Standard Mode) / 0.34(High Capacity Mode )Counts/e-, CCD Sensor Type Enhanced Back-illuminated, Full Well Capacity 350 k e-, Up to 97% Quantum Efficiency, VUV to X-ray Range 		ALEXi 6-8 weeks Request for quote
ALEX-i-4k4k-BIDD
Scientific Full-Frame CCD Cameras for VUV EUV X-ray for Imaging, Image Area 61.4 mm × 61.7 mm, Pixel Format 4096 × 4096 Pixels, Pixel Size 15 μm × 15 μm, Gain 1( Standard Mode) / 0.34(high Capacity Mode) Counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion, Full Well Capacity 350 k e-, Up to 97% Quantum Efficiency, VUV to X-ray Range 		ALEXi 6-8 weeks Request for quote

ALEX-i-4k4k-BIDD - Parameter

Series
ALEXi

ALEX-i-4k4k-BIUV1 - Parameter

Series
ALEXi

ALEX-i-4k4k-BI - Parameter

Series
ALEXi

ALEX-i-2k2kplus-BI - Parameter

Series
ALEXi

ALEX-i-2k2k-BIDD - Parameter

Series
ALEXi

ALEX-i-2k2k-BIUV1 - Parameter

Series
ALEXi

ALEX-i-2k2k-BI - Parameter

Series
ALEXi

ALEX-i-2k2k-FI - Parameter

Series
ALEXi

ALEX-i-1k1k-BIUV1 - Parameter

Series
ALEXi

ALEX-i-1k1k-BIDD - Parameter

Series
ALEXi

ALEX-i-1k1k-BI - Parameter

Series
ALEXi

ALEX-i-1k1k-FI - Parameter

Series
ALEXi

ALEX-s-2k512-BIUV1 - Parameter

Series
ALEXs

ALEX-s-2k512-BI - Parameter

Series
ALEXs

ALEX-s-2k512-FI - Parameter

Series
ALEXs

ALEX-s-1k256-BIUV1 - Parameter

Series
ALEXs

ALEX-s-1k256-FIDD - Parameter

Series
ALEXs

ALEX-s-1k256-FI - Parameter

Series
ALEXs

ALEX-i-4k4k-BIDD - Download

ALEX-i-4k4k-BIUV1 - Download

ALEX-i-4k4k-BI - Download

ALEX-i-2k2kplus-BI - Download

ALEX-i-2k2k-BIDD - Download

ALEX-i-2k2k-BIUV1 - Download

ALEX-i-2k2k-BI - Download

ALEX-i-2k2k-FI - Download

ALEX-i-1k1k-BIUV1 - Download

ALEX-i-1k1k-BIDD - Download

ALEX-i-1k1k-BI - Download

ALEX-i-1k1k-FI - Download

ALEX-s-2k512-BIUV1 - Download

ALEX-s-2k512-BI - Download

ALEX-s-2k512-FI - Download

ALEX-s-1k256-BIUV1 - Download

ALEX-s-1k256-FIDD - Download

ALEX-s-1k256-FI - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
