In-situ Tensile Heating & Cryo Stage

The In-situ Tensile Heating & Cryo Stage is an advanced experimental device designed for stress-strain testing of materials under various temperature conditions. This Series, integrated with an in-situ tensile module, can perform stretching, compression, or reciprocating motion in constant force or constant speed modes to explore the mechanical properties of materials. Equipped with liquid nitrogen cooling and resistance heating technology, it can achieve a temperature range from -190°C to 1500°C, meeting a wide range of experimental needs. As technology advances and the market expands, the application scope and market demand for this equipment will further increase.



* The product must be used in conjunction with a temperature controller, a cooling controller (optional), and an in-situ tensile controller. The accompanying PC software facilitates the setting of temperature and mechanical parameters and data collection.





In-situ Tensile Heating & Cryo Stage CRYO600-190-5000N SEM In-situ Tensile Heating & Cryo Stage RTH1000-5000N-SEM

In-situ Tensile Heating & Cryo Stage

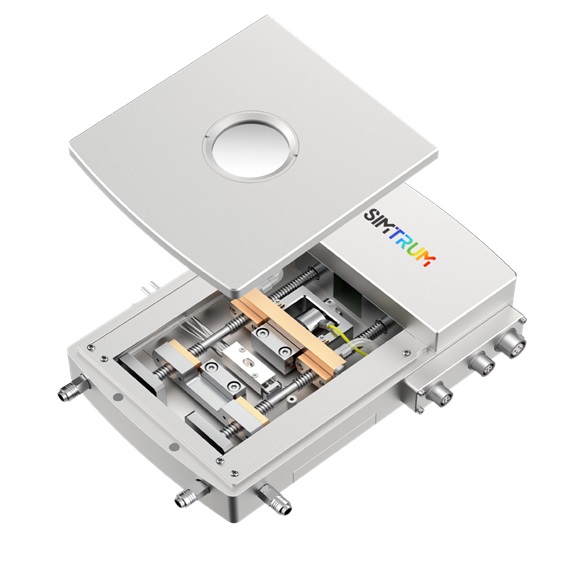

CRYO600-190-5000N

SEM In-situ Tensile Heating & Cryo Stage

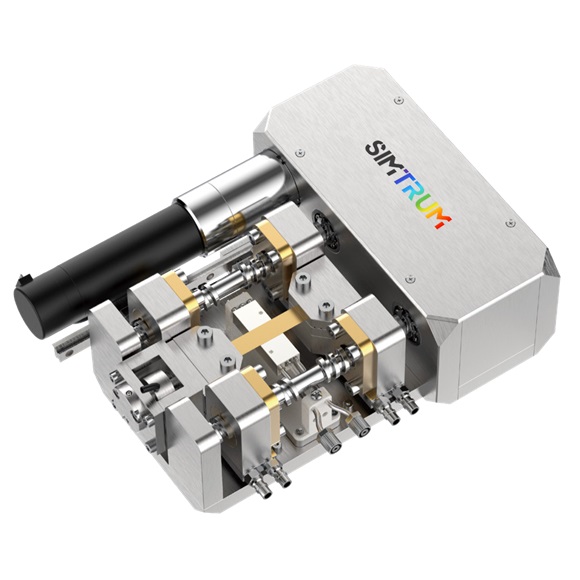

RTH1000-5000N-SEM



Features



  • Flexible temperature control  The combination of liquid nitrogen cooling and resistance heating ensures precise temperature adjustment.
  • High precision measurement   Provides high-precision mechanical and displacement measurements, ensuring the accuracy of experimental results.
  • Multifunctional application  Supports various mechanical modes such as stretching, compression, bending, and shearing.
  • Easy to operate  The accompanying PC software simplifies the setting of temperature and mechanical parameters and data collection.



Applications



The in-situ tensile heating and cooling stage is widely used in materials science, biomedical engineering, chemical engineering, and other fields. It is particularly suitable for studying the mechanical properties of materials under different temperature conditions, such as stress-strain analysis of metals, plastics, ceramics, and composite materials.

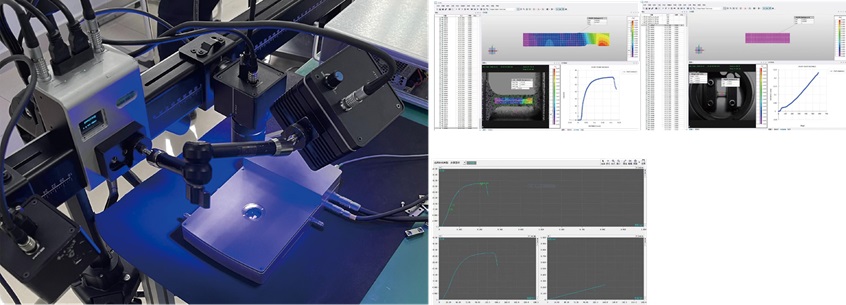

Variable temperature tensile micro-deformation testing system

Variable temperature tensile micro-deformation testing system

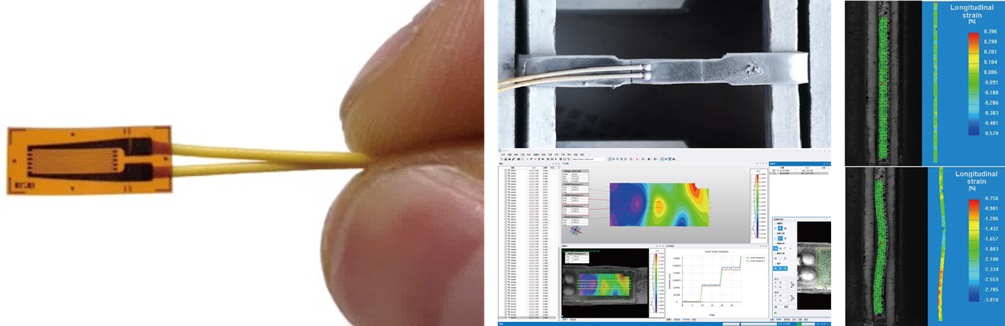

Welding strength test (with DIC system)

Welding strength test (with DIC system)





Functions & Customization



In-situ Tensile Heating & Cryo Stage CRYO600-190-5000N

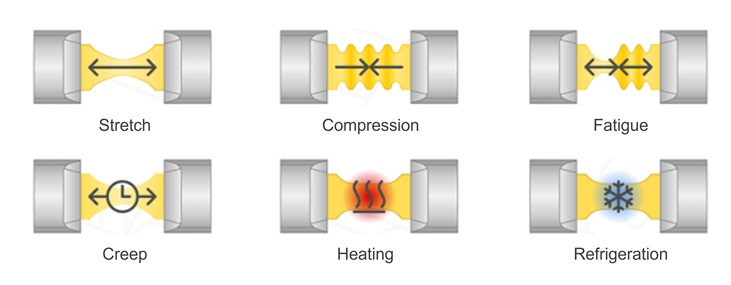

In-situ tensile heating & cryo stage realizes function

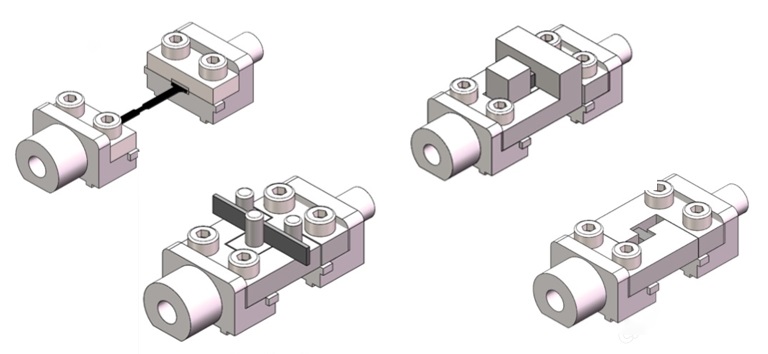

Various type of Fixtures



Various type of Fixtures




Product specifications and Brochures

Product Brochure Link:

Parameter CRYO600-190-5000N RTH1000-5000N
Temperature Control Module
Cooling & Heating Liquid nitrogen refrigeration, resistance heating Resistance heating
Temperature Control Range -190~600℃ * RT~1000℃ *
Temperature Stability ±0.1℃ (<600℃), ±1℃ (>600℃)*
Temperature Resolution 0.1℃
Temperature Control Speed 0~30℃/min (fixed point/segment temperature control possible)
Temperature control method PID
Temperature Sensor PT100 Thermocouple
Mechanics Module
Pulling Range 0-5000N *(500N, 1000N, 2000N, 5000N, etc. optional)
Pulling Force Accuracy 0.5%FS *
Displacement Distance 40mm (two-way, optional) *
Stretch Speed 0.1~60mm/min *
Displacement Accuracy ±1μm
Mechanical Mode Tensile (hot and cold), compression, bending, shearing
Optical Properties
Light Path Reflected light path *Can be upgraded to transmitted light path
Window Material Quartz glass *
Window Size Φ45mm *
Objective Working Distance 20mm *
Light Hole No light-transmitting hole by default *Light-transmitting hole can be upgraded
Structural Properties
Sample Table Size 12x36mm * φ15mm *
Sample Carrier Material Silver* Ceramic*
Dimensions 360×150×40mm *
Sample Chamber Height 17mm *
Chamber Airtight, can be filled with protective atmosphere*
Basic Configuration In-situ stretching heating & cryo table x1, in-situ stretching controller x1, temperature controller x1, refrigeration controller x1 (low temperature configuration), liquid nitrogen tank x1 (low temperature configuration), temperature control stretching integrated software x1, cycle Water system x1, several connecting pipes

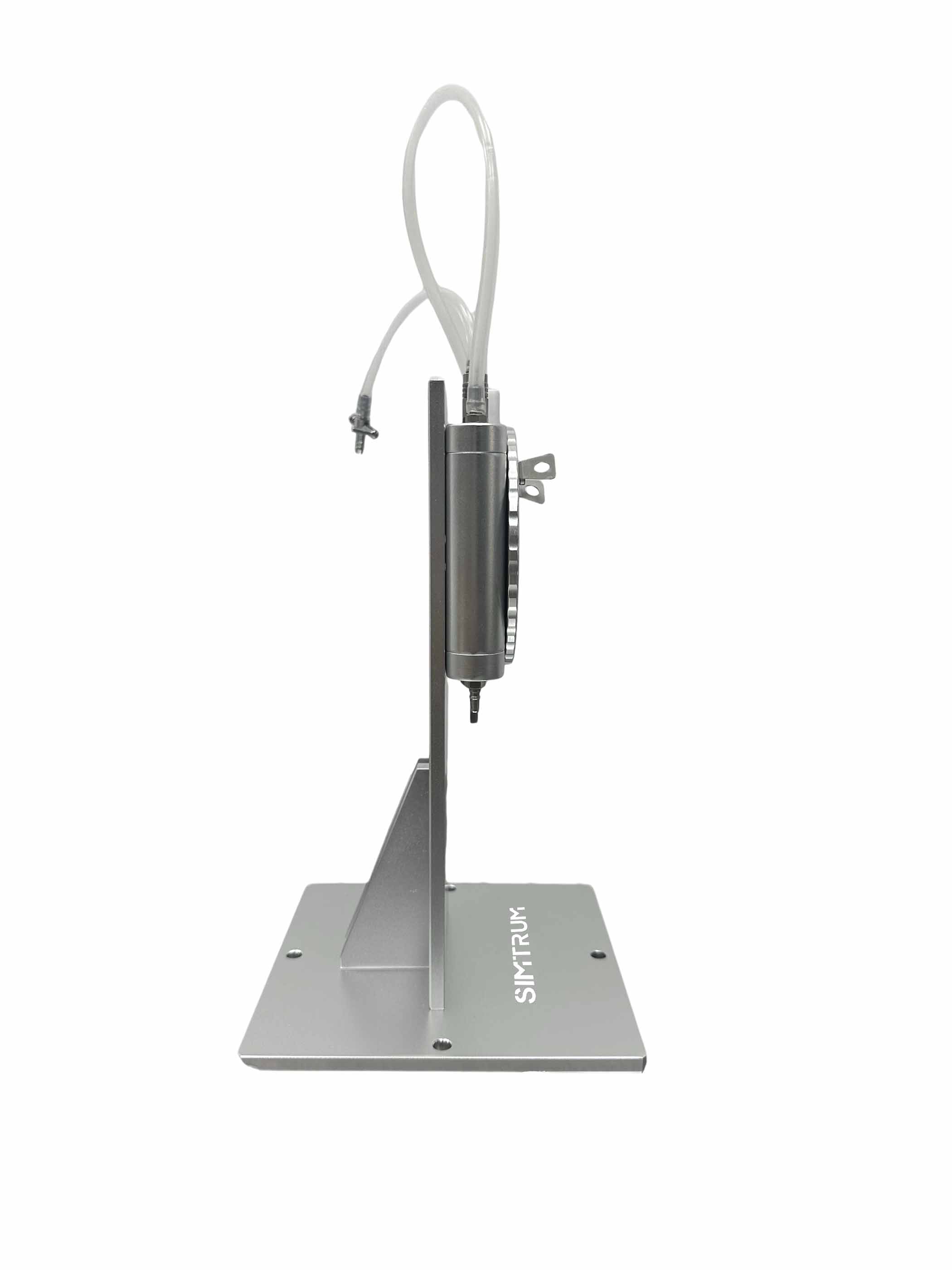

Optional Computer host/installation bracket/customized control software/DIC-Micro microscopic strain measurement analysis system
Remark The above are all default parameters * are customizable items





  Temperature Range Chamber Type Optical Path Electrinical Probe Arm

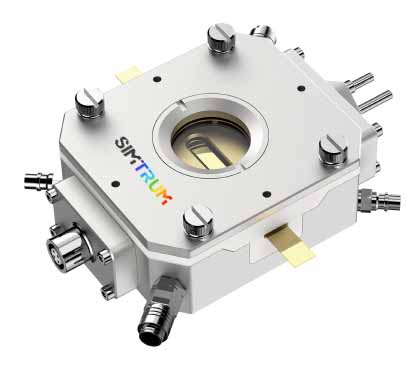

Optical Heating & Cooling Stage

-190°C to 1200°C Air-tight or Vacuum sealed Transmission or Reflection  No

XRD Temperature Control Stage

-190°C to1200°C Air-tight or Vacuum sealed Transmission or Reflection  No (Customizable)

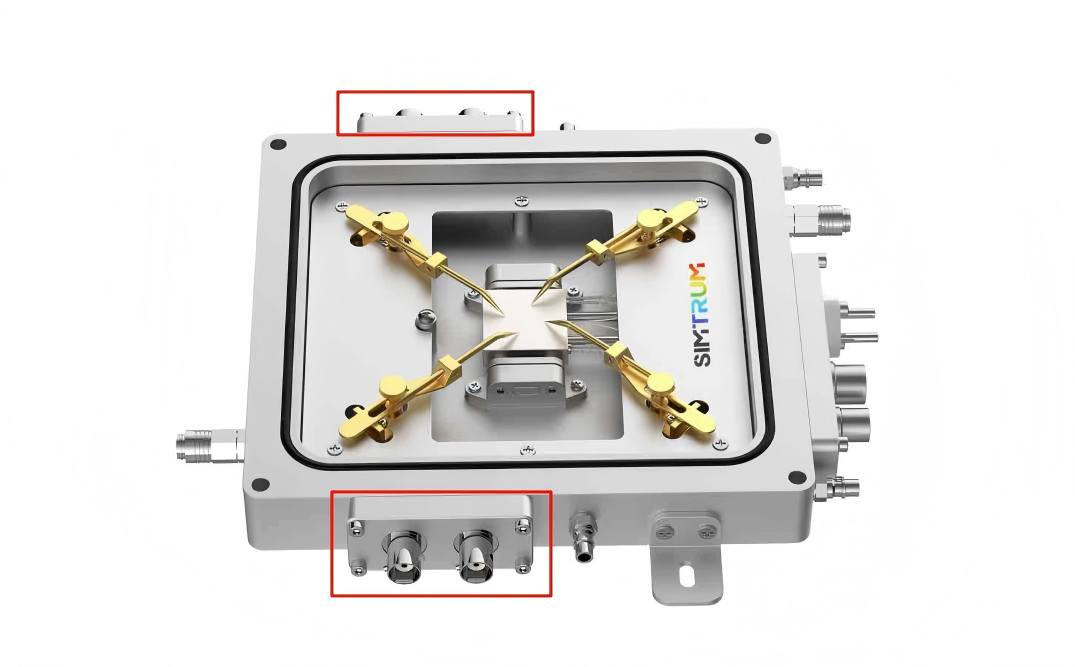

Electrical Probe Temperature Stage

-190°C to 1200°C Air-tight or Vacuum sealed Transmission or Reflection  Fix probe arm

Electrical Probe Temperature Station

-190°C to 1200°C Air-tight or Vacuum sealed Transmission or Reflection  Adjustable probe arm

Tensile Strain Temperature Stage

-190°C to 1200°C Air-tight or Vacuum sealed Transmission or Reflection  No(Customizable)



SIMSCOP P Series Laser Scanning Confocal Microscope Laser Scanning Confocal Microscope, Confocal Raman Microscope,
SIMSCOP L Series Line Scan Confocal Microscopy High Speed Line Scan Confocal Microscope
Wde Field Raman Microscope,
Fluorescence / Photoluminescence Microscope
  Time Correlated Single Photon Counting (Solution)

We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
TENS CRYO600-190-XN
In-situ Tensile Heating & Cryo Stage, Temp control range -190 to 600℃, sample table size 12*35mm,Silver, Compatible tension,Price includes: Temperature Stage and Controller, cycle water system, refrigeration controller, liquid nitrogen tank, Software,Mechanical fixture
6-10 Weeks $8396.16

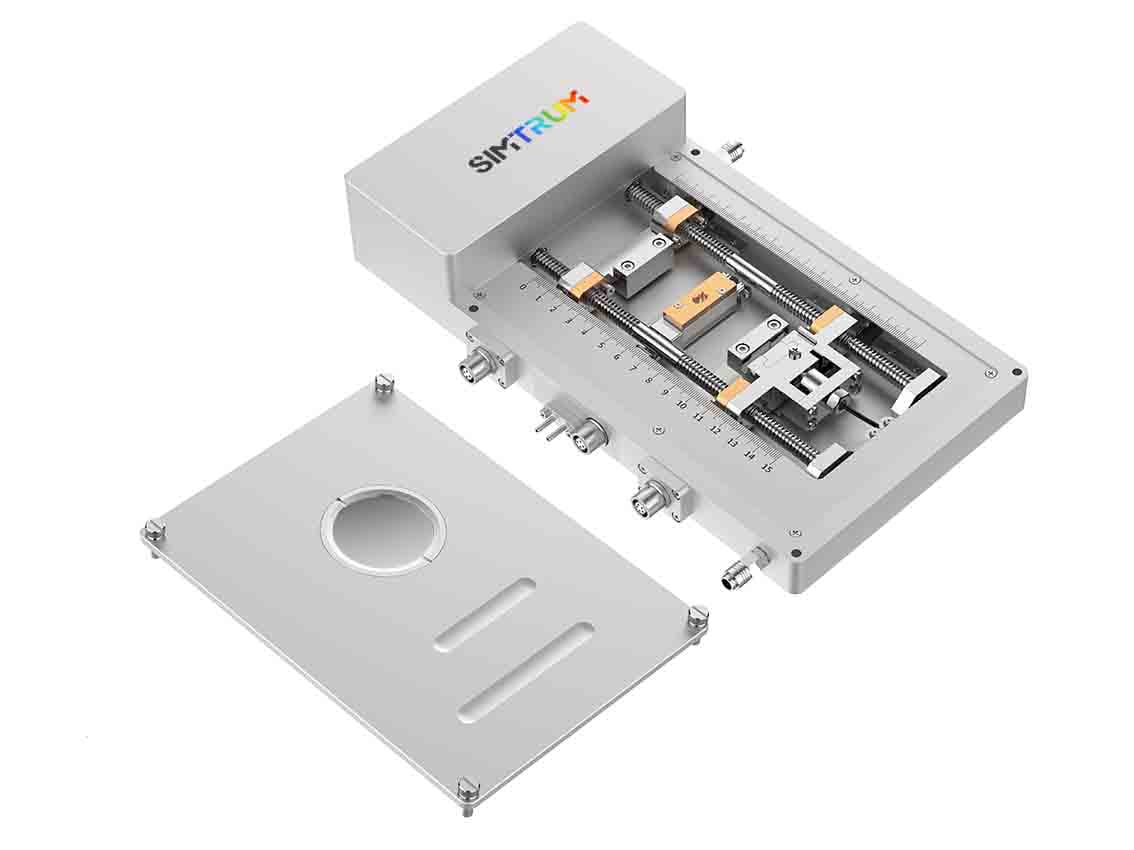

TENS 500N
In-situ TensileTester - Mechanical Module, 500N,Air-tight Chamber, Pulling Range 0-5000N, Pulling Force Accuracy 0.5%FS, tension and compression speed: 0~40mm/min Price includes: In-situ stretching table,Controller,Software, Mechanical fixture
6-10 Weeks $18471.56
TENS 2000N
In-situ Tensile Mechanical Module,Pulling Range 2000N, Air-tight Chamber,, Pulling Force Accuracy 0.5%FS, tension and compression speed: 0~40mm/min, Price includes: In-situ stretching table,Controller,Software, Mechanical fixture
6-10 Weeks $25188.49
TENS 5000N
In-situ Tensile Tester - Mechanical Module, Pulling Range 5000N,, Air-tight Chamber,Pulling Force Accuracy 0.5%FS, tension and compression speed: 0~2mm/min, Price includes: In-situ stretching table,Controller,Software, Mechanical fixture
6-10 Weeks $33584.66
TENS RTH-600-XN
In-situ Tensile Heating & Cryo Stage, RT~600℃,Sample table size 12*35mm,Stainless steel/Copper, Compatible tension,Price includes: In-situ stretching hot stage,controller,Temperature controller,software, Circulating water system,Mechanical fixture
6-10 Weeks $4198.08
TENS RTH-1000-XN
In-situ Tensile Heating & Cryo Stage, RT~1000℃,Sample platform size φ15mm, Ceramic, Compatible tension,Price includes: In-situ stretching hot stage,controller,Temperature controller,software, Circulating water system,Mechanical fixture
6-10 Weeks $8396.16
TENS RTH-1200-XN
In-situ Tensile Heating & Cryo Stage, RT~1200℃,Sample platform size φ15mm, Ceramic, Compatible tension,Price includes: In-situ stretching hot stage,controller,Temperature controller,software, Circulating water system,Mechanical fixture
6-10 Weeks $11544.73
TENS RTH-1500-XN
In-situ Tensile Heating & Cryo Stage, RT~1500℃,Sample platform size φ15mm, Ceramic,Compatible tension,Price includes: In-situ stretching hot stage,controller,Temperature controller,software, Circulating water system,Mechanical fixture
6-10 Weeks $16792.33

TENS RTH-1500-XN - Parameter

TENS RTH-1200-XN - Parameter

TENS RTH-1000-XN - Parameter

TENS RTH-600-XN - Parameter

TENS 5000N - Parameter

TENS 2000N - Parameter

TENS 500N - Parameter

TENS CRYO600-190-XN - Parameter

TENS RTH-1500-XN - Download

TENS RTH-1200-XN - Download

TENS RTH-1000-XN - Download

TENS RTH-600-XN - Download

TENS 5000N - Download

TENS 2000N - Download

TENS 500N - Download

TENS CRYO600-190-XN - Download
