Filters

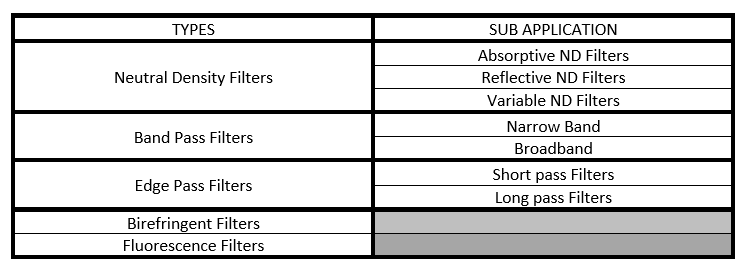

Filters in optics and photonics is a device or material that selectively transmits light of certain properties,while blocking other light. Filters are essential components in a wide range of optical systems and have various applications across multiple fields. Filters can more precise control over the light that reaches the detector, sensor, or eye, thus enhancing the outcome or information gained from optical systems.SIMTRUM Provides different types of filters and filters sets.
|
|
Single-band > Multi-band bandpass |
Long Pass & Short Pass |
Notch |
Dichroic mirrors |
| Transmittance |
93 - 99% |
95 - 99% |
95 - 99% |
94 - 98% |
| Cut-off Depth / Reflectivity |
OD6 - 8+ |
OD6 - 8+ |
OD6+ |
Reflectance > 98% |
| Spectral range |
200 - 3000 nm |
200 - 3000 nm |
300 - 3000 nm |
200 - 3000 nm |
| Spectral steepness |
< 1% |
< 0.25% |
< 1% |
< 2% |
| Environmental and physical durability |
ISO 9022-2-11-03; ISO 9022-2-11-06; MIL-C-48497A 4.5.4.1; ISO 9022-2-12-06; ISO 9211-4-04-08 |
| Tolerance range |
400 degrees / -200 degrees |
Technical Support Available: Contact us | You can download our full Product Line Card Click Here
