Filters for Raman Spectroscopy

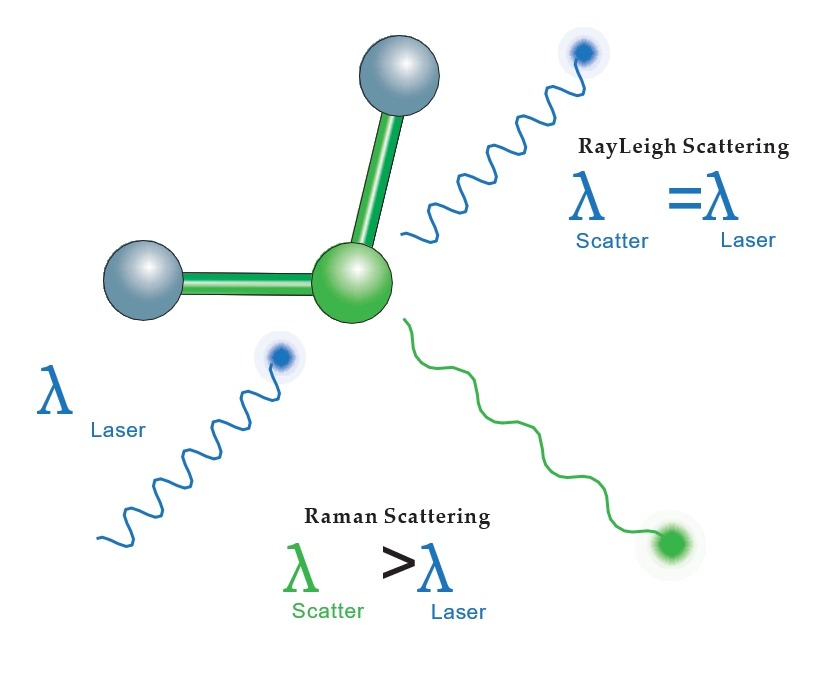

This analytical technique uses the light scattered from the vibrational energy modes of the sample.  Rayleigh scattering is a simple deflection of the incoming light, Raman scattering is an inelastic scattering of light.  There is an exchange of energy with the incoming photons resulting in a directional deviation of the light path. The resultant spectrograph is a ‘fingerprint’ of the substance being analyzed.



This incredibly powerful technique is used in a variety of applications from security inspection at airports to food safety.  Raman scattering is much weaker than Rayleigh scattering, and therefore requires much better filters to isolate the signal of interest – high transmission values, steep transitions and superior blocking to keep out unwanted photons. We offers a variety of Raman filters depending on your budget and application needs.

Features

  • Broad transmission band
  • Excellent image quality
  • Ultra-steep edge
  • Deep blocking

Applications

  • High transmission for detection  of weak signals
  • Custom designs when needed
  • Offering designs from the UV to IR

Specifications

Product Brochure Link:

49953

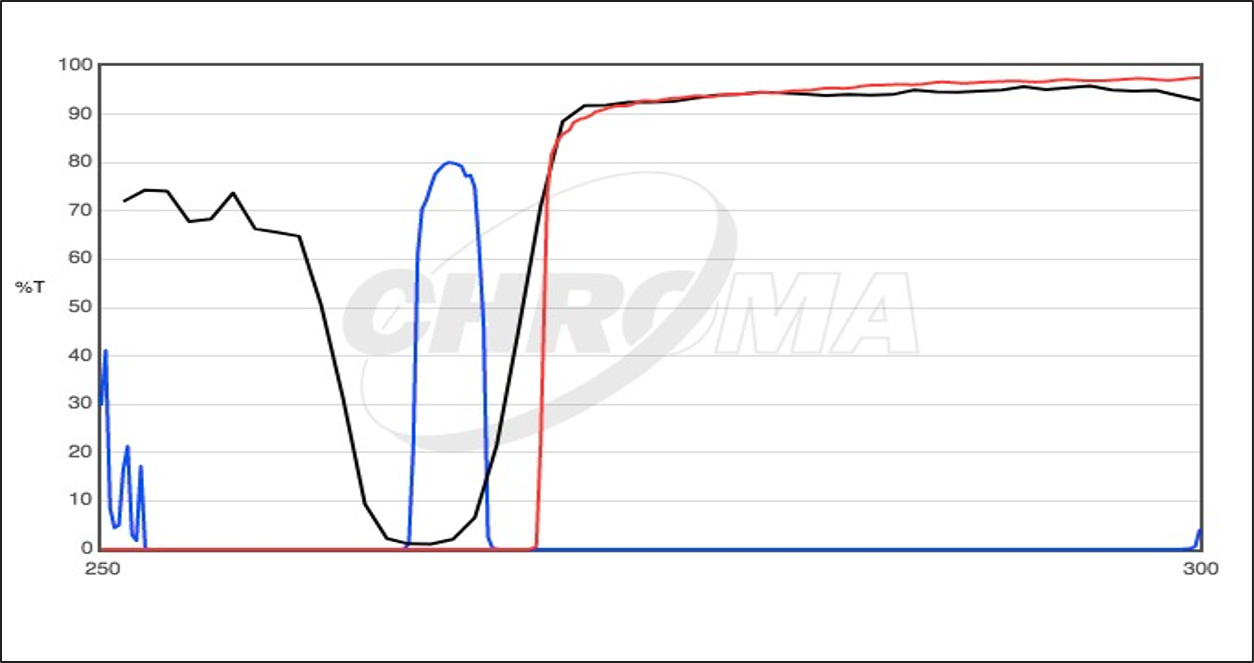

Raman 266nm Laser Longpass Set

RT266rdc | RET270lp RET266/3x

Dedicated Filter set for Raman spectroscopy. The ultra-steep 266nm laser dichroic mirror perfectly matches the ultra-steep longpass emission filter which blocks the 266nm laser.  Set includes the narrow-band 266nm laser clean-up filter.

49951

Raman 488nm Laser Longpass Set

RT488rdc | RET493lp | RET488/4x

Dedicated Filter set for Raman spectroscopy. The ultra-steep 488nm laser dichroic mirror perfectly matches the ultra-steep longpass emission filter which blocks the 488nm laser.  Set includes the narrow-band 488nm laser clean-up filter.

49952

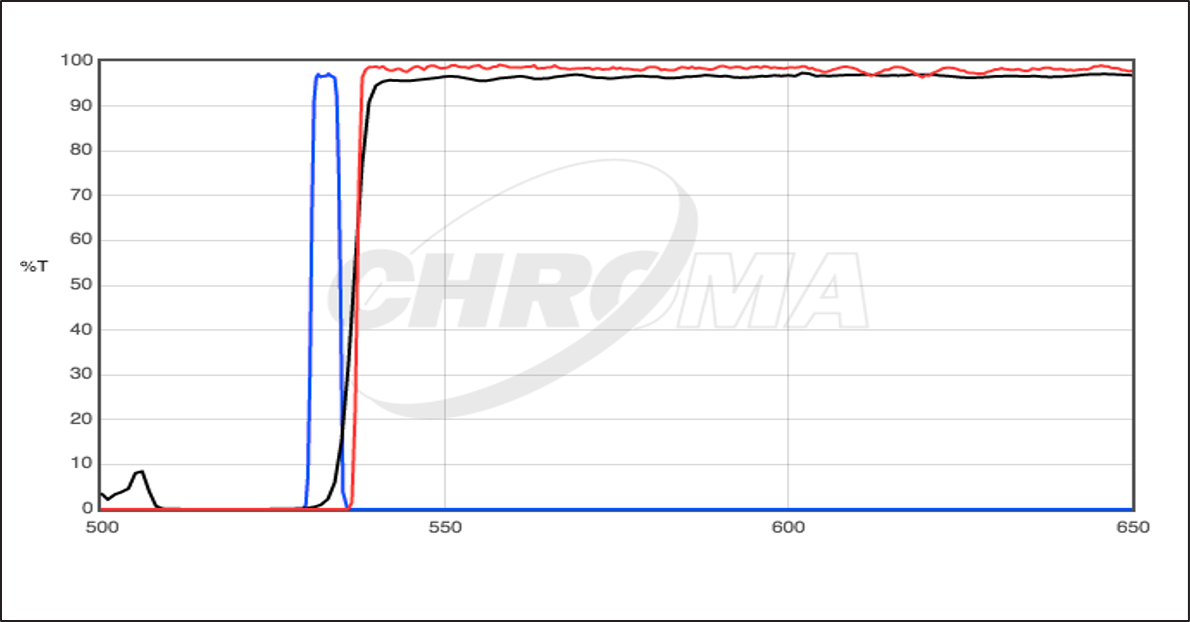

Raman 532nm Laser Longpass Set

RT532rdc | RET537lp | RET532/4x

Dedicated Filter set for Raman spectroscopy. The ultra-steep 532nm laser dichroic mirror perfectly matches the ultra-steep longpass emission filter which blocks the 532nm laser.  Set includes the narrow-band 532nm laser clean-up filter.

49954

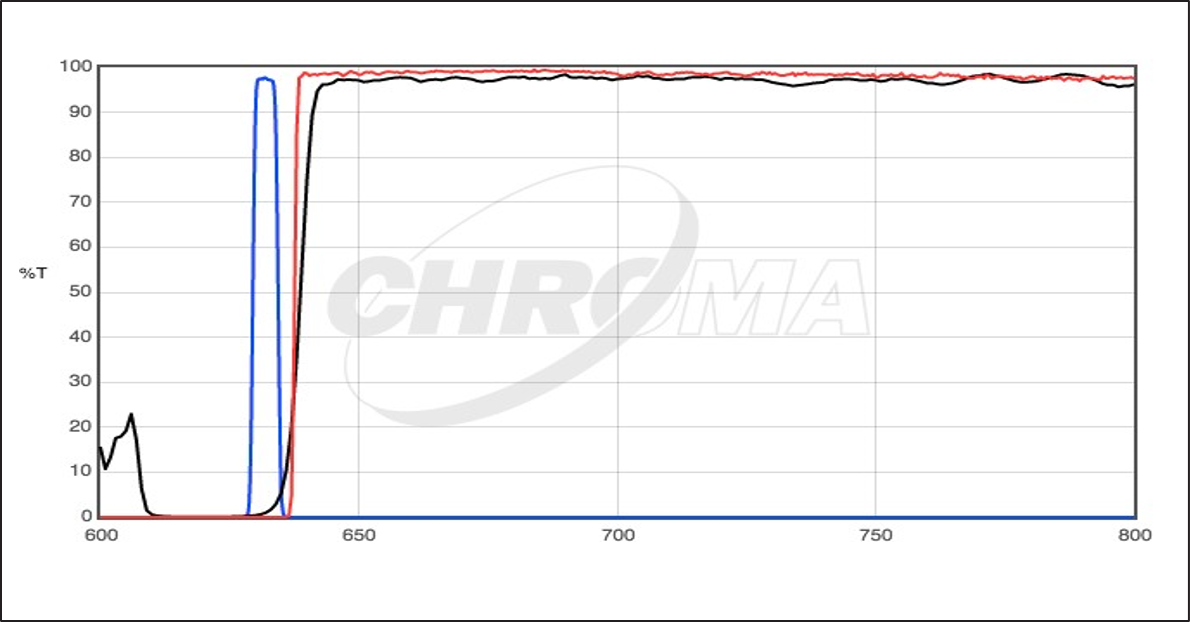

Raman 633nm Laser Longpass Set

RT633rdc | RET638lp | RET633/5x

Dedicated Filter set for Raman spectroscopy. The ultra-steep 633nm laser dichroic mirror perfectly matches the ultra-steep longpass emission filter which blocks the 633nm laser.  Set includes the narrow-band 633nm laser clean-up filter.

49950

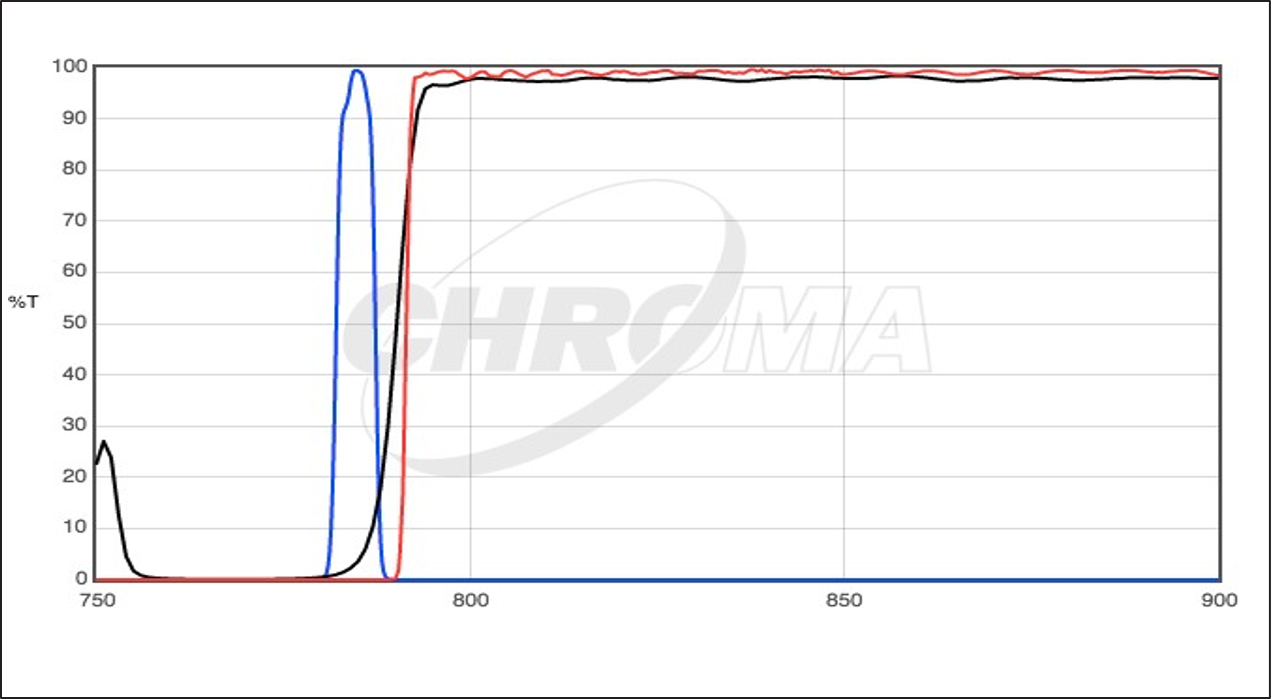

Raman 785nm Laser Longpass Set

RT785rdc| RET792lp | RET785/6x

Dedicated Filter set for Raman spectroscopy. The ultra-steep 785nm laser dichroic mirror perfectly matches the ultra-steep longpass  emission filter which blocks the 785nm laser.  Set includes the narrow-band 785nm laser clean-up filter.

49955

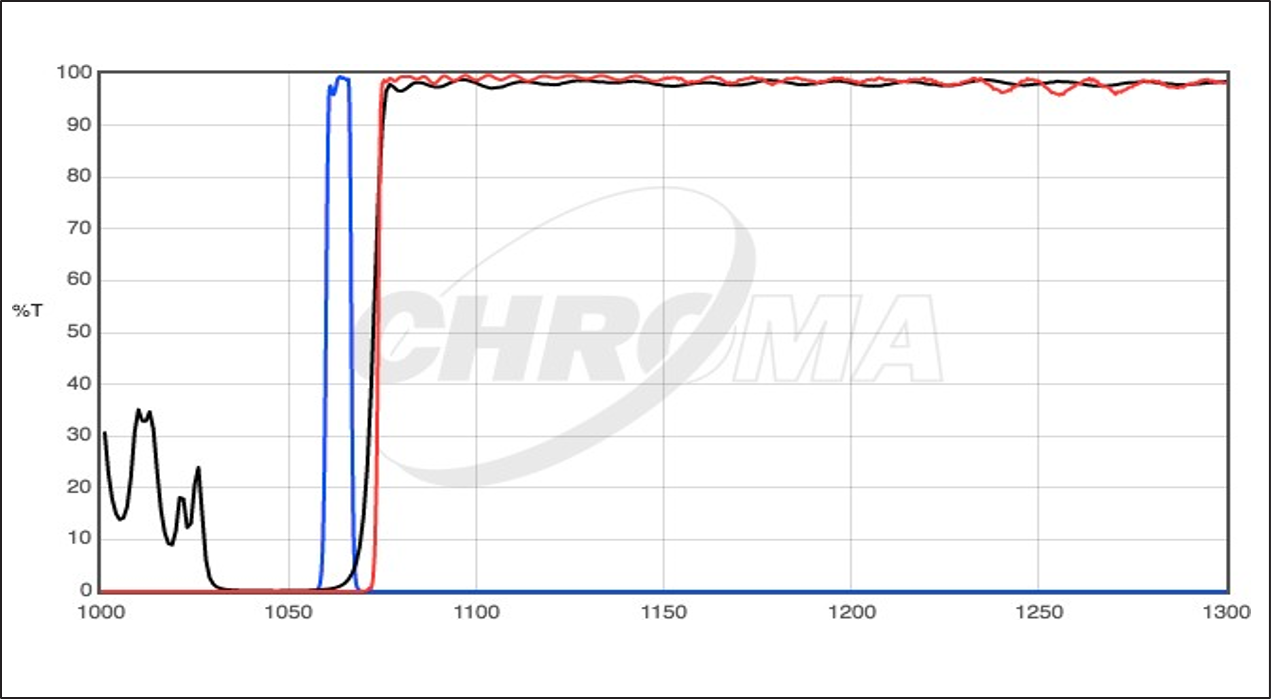

Raman 1064nm Laser Longpass Set

RT1064rdc | RET1072lp | RET1064/7x

Dedicated Filter set for Raman spectroscopy. The ultra-steep 1064nm laser dichroic mirror perfectly matches the ultra-steep longpass emission filter which blocks the 1064nm laser.  Set includes the narrow-band 1064nm laser clean-up filter.

*Note Prices do not include any shipping, tax or customs clearance charges




Model Wavelength  (nm)  Following Sets Spectral Transmission Curves
RT266rdc 266 49953 - RT – Raman 266nm Laser Longpass Set
RT532rdc 532 49952 - RT – Raman 532nm Laser Longpass Set
RT488rdc 488 49951 - RT – Raman 488nm Laser Longpass Set
RT633rdc 633 49954 - RT – Raman 633nm Laser Longpass Set
RT785rdc 785 49950 - RT – Raman 785nm Laser Longpass Set
RT1064rdc 1064 49955 - RT – Raman 1064nm Laser Longpass Set

*Note Prices do not include any shipping, tax or customs clearance charges


We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).







Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
49951 Filter Set
49951, Raman Spectroscopy Filter Set, Raman 488nm Laser Longpass Set
4-6 Weeks $1600.00
49952 Filter Set
49952, Raman Spectroscopy Filter Set, Raman 532nm Laser Longpass Set
4-6 Weeks $1600.00
49953 Filter Set
49953, Raman Spectroscopy Filter Set, Raman 266nm Laser Longpass Set
4-6 Weeks $1600.00
49954 Filter Set
49954, Raman Spectroscopy Filter Set, Raman 633nm Laser Longpass Set
4-6 Weeks $1600.00
49955 Filter Set
49955, Raman Spectroscopy Filter Set, Raman 1064nm Laser Longpass Set
4-6 Weeks $1600.00
49950 Filter Set
49950, Raman Spectroscopy Filter Set, Raman 785nm Laser Longpass Set
4-6 Weeks $1600.00
RT266rdc
RT266rdc,Dichroic mirror,Wavelength 266 nm,Raman Laser Longpass Set
4-6 Weeks $600.00
RT532rdc
RT532rdc,Dichroic mirror,Wavelength 532 nm,Raman Laser Longpass Set
4-6 Weeks $600.00
RT488rdc
RT488rdc,Dichroic mirror,Wavelength 488 nm,Raman Laser Longpass Set
4-6 Weeks $600.00
RT633rdc
RT633rdc,Dichroic mirror,Wavelength 633 nm,Raman Laser Longpass Set
4-6 Weeks $600.00
RT785rdc
RT785rdc,Dichroic mirror,Wavelength 785 nm,Raman Laser Longpass Set
4-6 Weeks $600.00
RT1064rdc
RT1064rdc,Dichroic mirror,Wavelength 1064nm,Raman Laser Longpass Set
4-6 Weeks $600.00

RT1064rdc - Parameter

RT785rdc - Parameter

RT633rdc - Parameter

RT488rdc - Parameter

RT532rdc - Parameter

RT266rdc - Parameter

49950 Filter Set - Parameter

49955 Filter Set - Parameter

49954 Filter Set - Parameter

49953 Filter Set - Parameter

49952 Filter Set - Parameter

49951 Filter Set - Parameter

RT1064rdc - Download

RT785rdc - Download

RT633rdc - Download

RT488rdc - Download

RT532rdc - Download

RT266rdc - Download

49950 Filter Set - Download

49955 Filter Set - Download

49954 Filter Set - Download

49953 Filter Set - Download

49952 Filter Set - Download

49951 Filter Set - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
