IR sources
Overview & Specifications Q&A Related Products Order Now！
SIMTRUM'S ARCLIGHT-NIR & ARCLIGHT-MIR are versatile broadband lamps optimized for the VIS-NIR (400 – 4,000nm) or MIR (1-25μm) spectral ranges. The light sources used in the ArcLight lamps are the brightest available, ensuring that you will achieve the best signal-to-noise ratio in your application. The lamps feature a high-end stabilized electronic power supply and a variable mechanical attenuator. They are supplied with a removable fiber coupler enabling free-space of fiber-coupled operation.

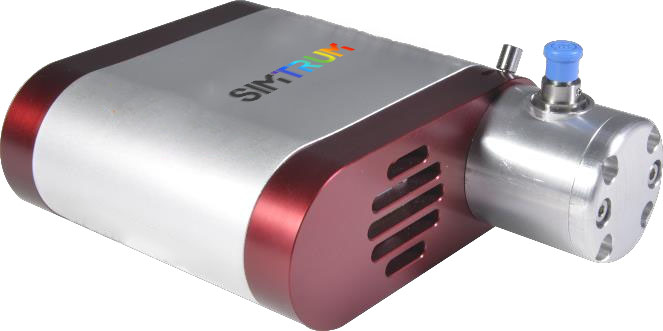

MIR source with reflector fiber coupler
NIR source with lens fiber coupler

Features

  • Broadband
  • Highest intensity and color temperature
  • Stabilized power supply
  • Variable mechanical attenuator
  • Removable fiber coupler

Applications

  • Spectral analysis
  • Excitation light source of the sensor
  • Imaging without light



Specifications

General Specifications

Model LL-AR01-NIR LL-AR01-MIR
  Light emitting element QTH (Halogen) SiC globar
  Source temperature [K] 2850 1550
  Spectral range [µm] 0.4-4 1-25
  Spectral range [cm-1] 25000-2500 10000-400
  Rated lifetime [hours] 4000 10000
  Removable fiber-optic coupler NA = 0.25, CaF2 lens NA = 0.3, gold-coated off-axis parabolic mirror



Other Specifications

Power consumption [W] 20 (electrical)
Power requirement 12V via OD 2.5mm/ID2.1mm power jack
(100-240 VAC to 12 VDC converter included)
Output beam diameter [mm] 12.7
Operational temperature [℃] 5-40
Attenuator Manual Iris Diaphragm
Dimensions [mm] 92×92×43 (w/o fiber coupler)
140×92×43 (w/ fiber coupler)
Weight [kg] 0.4

What is the typical emission of my MIR/NIR source?

The MIR/NIR lamps are thermal sources, which behave to a good approximation like blackbodies at a temperature of 2'850 °K (NIR) and 1'450 °K (MIR), the spectral radiances of which are illustrated below. The typical total power emitted by both version of the source are shown in the following table.

  NIR MIR
  w/o fiber coupler 360 mW 180 mW
  w/ fiber coupler 110 mW 40 mW
  w/ optical fiber 20 mW 4 mW

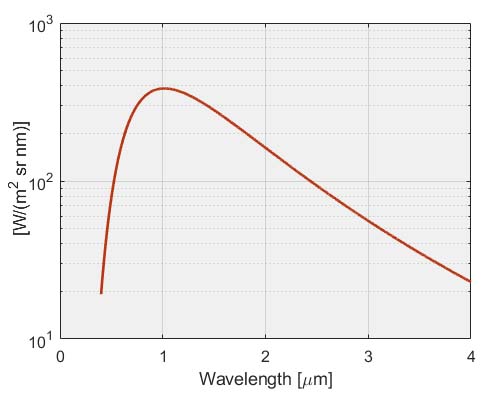

NIR

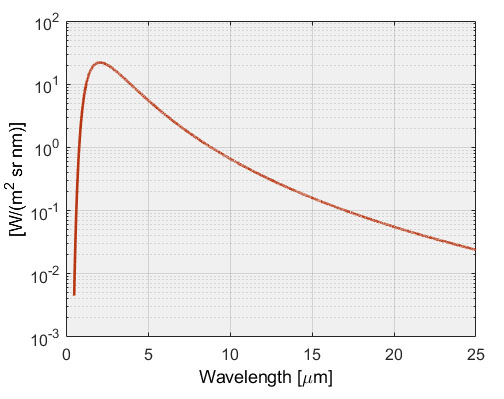

MIR


We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-AR01-MIR
Spectral range：0.4-4 µm,Rated lifetime：4000 hours 		4-6week $3116.74
LL-AR01-NIR
Spectral range：1-25 µm,Rated lifetime：10000 hours 		4-6week $2226.24

LL-AR01-NIR - Parameter

LL-AR01-MIR - Parameter

LL-AR01-NIR - Download

LL-AR01-MIR - Download
