IR Matrix Array Cameras

Infrared Cameras for Non-contact Measurement of Temperature Distributions

SIMTRUM, working together with our partners at DIAS Infrared offers a range of infrared cameras. Covering a wider temperature range and spectral range as well as being adapted to a wide range of applications, use the model overview below to find a suitable camera.

All Models come in two versions: Protected and Compact.


SIMTRUM offers setup, consultation and system integration to ensure your process goals are acheived. Visit our Services Page or Contact us


Model   Number

Description

Spectral   Range

Temperature   Range

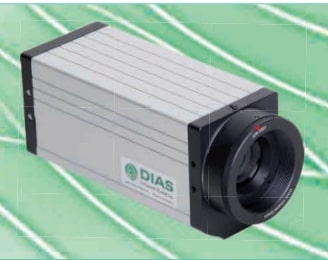

PYROVIEW   320L

Uncooled   infrared camera with optimal price-performance   ratio

8 µm to 14 µm

–20 °C to 120 °C, 50 °C to 500 °C

PYROVIEW 380L

High-performance infrared cameras – powerful   in industrial continuous operation

8 µm to 14 µm

–20 °C to 120 °C, 50 °C to 500 °C

PYROVIEW 640L

High-resolution   infrared camera – powerful in industrial   continuous operation

8 µm to 14 µm

–20 °C to 120 °C, 50 °C to 500 °C

PYROVIEW 640M

High-resolution infrared camera for measurement   in middle temperature range

3µm to 5 µm

200  °C to 500 °C

PYROVIEW 640G

High-resolution   infrared camera for application in glass   industry

4.8 µm to 5.2 µm

300 °C to 700 °C

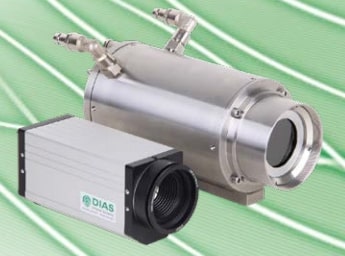

PYROVIEW 640F

High-resolution infrared cameras for   temperature measurement through flames

3.9 µm

600 °C to 1250 °C

PYROVIEW 320N

Infrared   camera for high-temperature measurement from 300 °C to 1200 °C

1.4 µm to 1.6 µm

300 °C to 750 °C or 350 °C to 1200 °C

PYROVIEW 512N

Infrared camera for high-temperature   measurement up to 3000 °C

0.8 µm to 1.1 µm

600 °C to 1500 °C or 1400 °C to 3000 °C

PYROVIEW 768N

High-resolution   infrared camera for temperature measurement up to 3000 °C

0.8 µm to 1.1 µm

600 °C to 1500 °C or 1400 °C to 3000 °C
