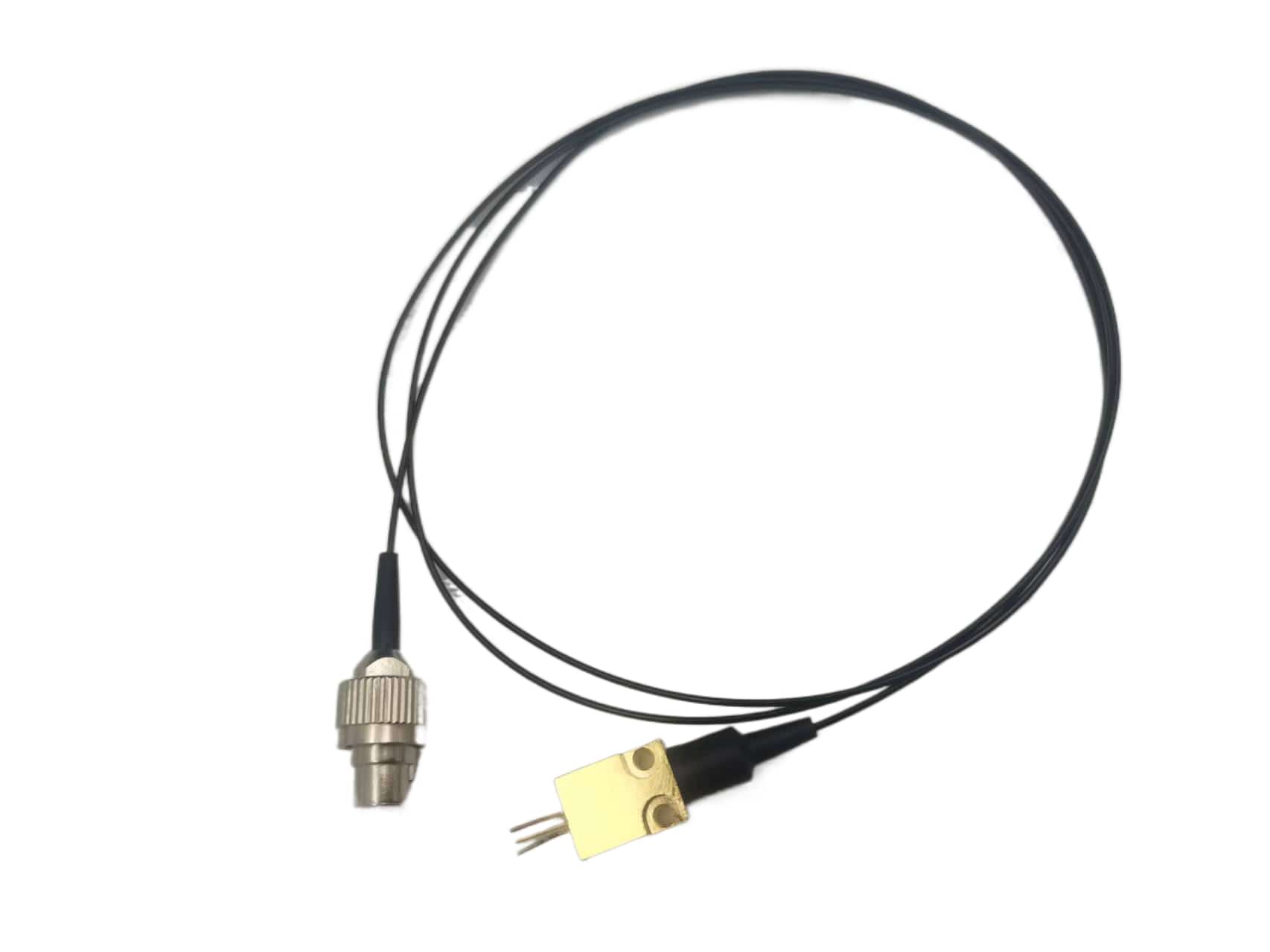

Pigtailed Laser Diodes

SIMTRUM offers and extensive selection of pigtailed laser diodes. Our TO-packaged are standard Ø3.8 mm to Ø5.6 mm, with wavelengths from 405 nm to 1550 nm, FC/PC or FC/APC connector. Each unit is tested prior to shipment for maximum coupling efficiency.

Characteristics

- Visible to IR wavelengths

- FC/PC or FC/APC Connector

- Single Mode or Multi Mode

Product specifications and Brochures

Product Brochure Link:

Model		405nm	405nm	520nm	635/ 640nm	640nm	660nm	780nm	1060/ 1064nm	DFB 1550nm
Wavelength (nm)		405	405	520	635/640	640	660	780	1060	1550
Light Output (mW)	CW	30	400	10	10	40	40	50	10	10
Light Output (mW)	Pulse	40	450	15	12	45	45	60	15	15
Push Width		0.1μs, Duty50%
Mode		Single Mode	Multi Mode	Single Mode	Single Mode	Single Mode	Single Mode	Single Mode	Single Mode	Single Mode
LD/PD		LD	LD	LD & PD	LD & PD	LD	LD	LD & PD	LD & PD	LD & PD
Fiber Connector		FC/PC FC/APC
Reverse Voltage		2V
Package		TO38	TO56	TO56	TO38	TO38	TO56	TO56	TO56	TO56
Threshold Current (mA)	Min	35	100	25	-	35	40	25	10	10
	Typ	40	120	30	45	45	45	30	15	15
	Max	50	140	40	55	50	50	40	20	20
Operating Current (mA)	Min	180	450	90	90	110	100	100	60	70
	Typ	190	500	100	100	120	110	110	80	75
	Max	210	550	110	110	130	120	130	100	80
Operating Voltage (V)	Min	-	-	6	-	-	-	1.8	-	-
	Typ	5	4.5	6.5	0.15	2.3	2.5	2	1.7	1.3
	Max	5.5	5	7	0.2	3	3	2.2	1.8	1.5
Slope Efficiency (mW/mA)	Min	-	0.9	-	-	-	-	-	-	-
	Typ	0.2	1	0.15	0.15	0.55	0.6	0.6	0.15	0.14
	Max	0.25	1.1	-	0.2	0.6	0.65	0.65	0.2	0.18
Lasing Wavelength (nm)	Min	400	400	400	635	637	655	775	1050	1545
	Typ	405	405	405	640	640	660	780	1060	1550
	Max	410	410	410	645	645	670	785	1070	1560
Core Dimaeter (μm)		3/125	105/125	3/125	4/125	4/125	4/125	5.5/125	9/125	9
Core NA		0.13	0.22	0.13	0.13	0.13	0.13	0.13	0.12	0.12
Operating Temperature		-10 to +70℃	-10 to +50℃	-10 to +70℃	-10 to +70℃	-10 to +70℃	-10 to +70℃	-10 to +70℃	-10 to +70℃	-10 to +70℃
Storage Temperature		-40 to +80℃
Test Temperature		25℃
Test Conditions (mW)		P_o=30	P_o=400	P_o=10	P_o=10	P_o=40	P_o=40	P_o=50	P_o=10	P_o=10

405 nm 30 mW

405 nm 400 mW

520 nm 10 mW

635-640 nm 10 mW

640 nm 40 mW

660 nm 40 mW

780 nm 50 mW

1060-1064 nm 10 mW

DFB 1550 nm 10 mW

Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.

Email Quotations

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 1 working days.

Local Same Day Service

-Singapore Main office: Call us at +65 6996 0391 Office Hours: 9am - 6pm (+8GMT)
-China Shanghai Main office：Call us at +86 1500085 3620. Office Hours: 9am - 6pm (+8GMT)
For Other Internation sales office click here.

Spectroscopy & Microscopy Solution

Check our solution page Spectroscopy Solutions | Microscopy Solutions

	Availability	Reference Price (USD)
PLD-405-30 405 nm Pigtail Laser Diodes, Wavelength 405 nm, Light Output CW 30mW, Single Mode, Package TO38	4-6 Weeks	$579.00
PLD-405-400 405 nm Pigtail Laser Diodes, Wavelength 405 nm, Light Output CW 400mW, Multi Mode, Package TO56	4-6 Weeks	$523.00
PLD-520-10 520 nm Pigtail Laser Diodes, Wavelength 520 nm, Light Output CW 10mW, Single Mode, Package TO56	4-6 Weeks	$653.00
PLD-635/640-10 635/640 nm Pigtail Laser Diodes, Wavelength 635/640 nm, Light Output CW 10mW, Single Mode, Package TO38	4-6 Weeks	$392.00
PLD-640-40 640 nm Pigtail Laser Diodes, Wavelength 640 nm, Light Output CW 40mW, Single Mode, Package TO38	4-6 Weeks	$448.00
PLD-660-40 660 nm Pigtail Laser Diodes, Wavelength 660 nm, Light Output CW 40mW, Single Mode, Package TO56	4-6 Weeks	$448.00
PLD-780-50 780 nm Pigtail Laser Diodes, Wavelength 780 nm, Light Output CW 50mW, Single Mode, Package TO56	4-6 Weeks	$653.00
PLD-1060/1064-10 1060/1064 nm Pigtail Laser Diodes, Wavelength 1060 nm, Light Output CW 10mW, Single Mode, Package TO56	4-6 Weeks	$579.00
PLD-1550-10 DFB 1550 nm Pigtail Laser Diodes, Wavelength 1550 nm, Light Output CW 10mW, Single Mode, Package TO56	4-6 Weeks	$653.00
