STED Super-Resolution Microscope —— Breaking the Diffraction Limit for Live-Cell Dynamic Imaging

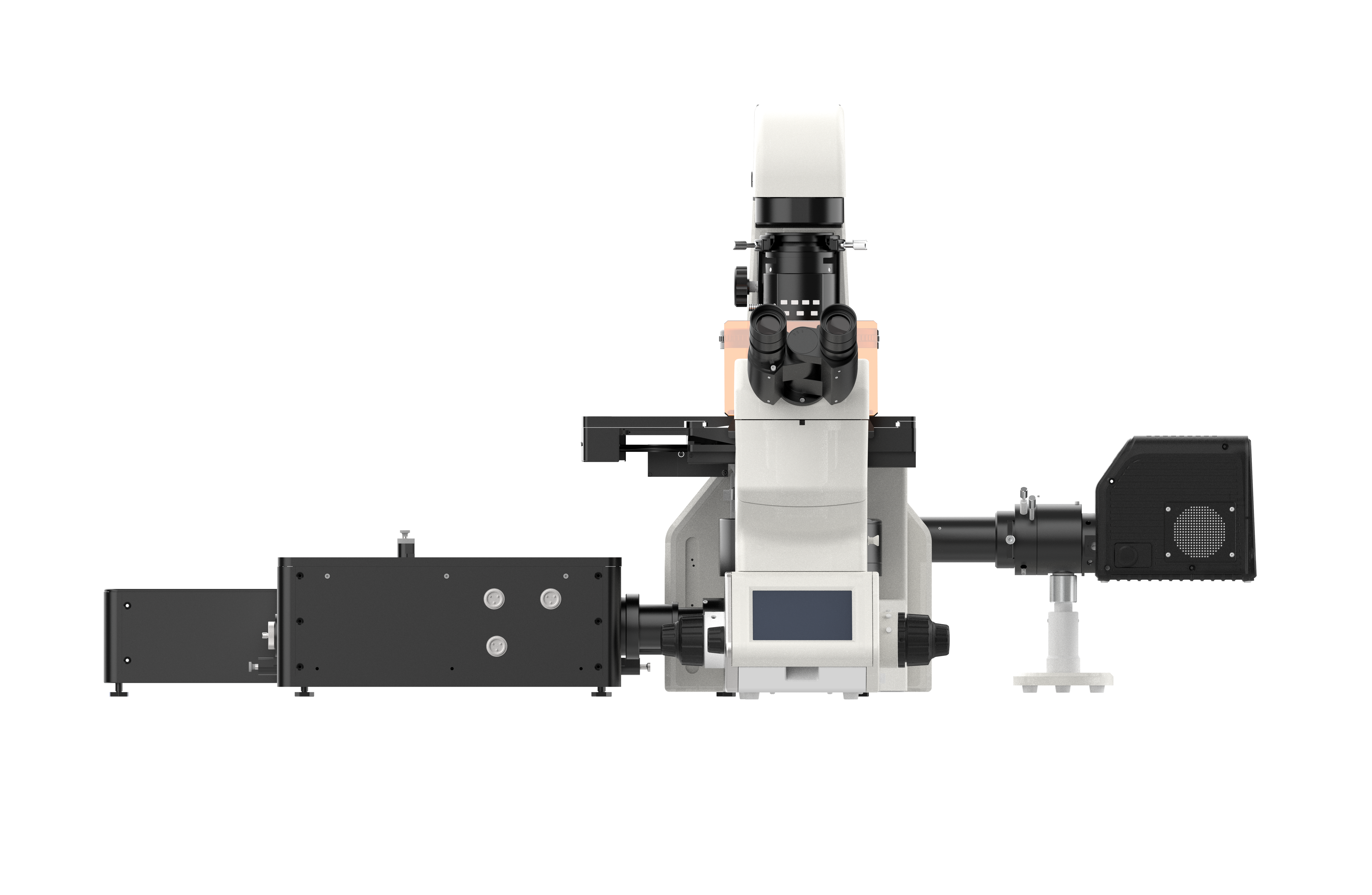

A Stimulated Emission Depletion (STED) super-resolution microscopy system engineered for cutting-edge biomedical and advanced materials research. Driven by a pure physical super-resolution mechanism and integrated with high-speed resonant scanning and broadband excitation/depletion optical paths, it overcomes the optical diffraction limit. It achieves direct dynamic imaging of nanoscale architectures in living specimens without algorithmic reconstruction, delivering high-fidelity, artifact-free, nanoscale spatial resolution paired with high-speed acquisition.
Unlike computational super-resolution techniques that rely heavily on mathematical reconstruction (e.g., STORM, SIM, LFM), the detector directly records raw photon events. Free from post-processing models or synthetic assumptions, it provides authentic, artifact-free imaging while preserving strict signal linearity.
Featuring a detection range spanning 450–1000 nm with high broadband sensitivity and rapid temporal response to resolve ultra-weak signals. Operates with an ultra-low dark count rate (less than 50 Hz / <100 counts/s).
Utilizes time-gated detection to achieve elevated spatial resolution at substantially lower laser powers. Reduces required STED depletion power by 30%–50% for equivalent resolution, effectively minimizing photobleaching and cell damage for prolonged live-cell observation.
Equipped with high-performance XY galvo scanners delivering small-signal step response times of 1 ms and sinusoidal response times of 0.5 μs. Achieves scanning velocities over 10 times faster than conventional piezo translation stages.
All-in-one optical architecture combining excitation and detection paths for superior mechanical and thermal stability. Built-in automated alignment modules instantly verify and calibrate optical coaxiality.
Investigate photophysical mechanisms and energy transfer dynamics in upconversion nanoparticles (UCNPs), quantum dots, and perovskites at the single-particle scale.
Monitor nanoscale morphing (contraction and expansion) of dendritic spine necks in real time during synaptic plasticity or learning protocols; ideal for high-resolution 2D and 3D imaging of intricate intracellular membrane systems.
Perform time-resolved nanoscale kinetic analysis across solid-liquid or liquid-liquid interfaces, including tracking the nucleation, growth, collapse, and coalescence of surface nanobubbles.
Principles of STED Super-Resolution Microscopy: An Overview
Fundamental Principles and System Configuration of Stimulated Emission Depletion Microscopy
The resolving power of conventional optical microscopy is fundamentally restricted by diffraction. According to Ernst Abbe's diffraction theory, a point object imaged through an optical system forms a diffraction spot of finite size; when two point objects are closer than a certain critical distance, their diffraction patterns overlap and cannot be distinguished. Typically, conventional optical microscopes provide a lateral resolution of approximately 200 nm and an axial resolution of approximately 500 nm, making it challenging to resolve nanoscale structures essential in biomedical sciences and materials research.
In 1994, Stefan W. Hell and Jan Wichmann proposed Stimulated Emission Depletion (STED) microscopy, theoretically establishing a viable approach to surpass the diffraction barrier. Over three decades of development, STED has matured into one of the most widely adopted super-resolution optical imaging modalities.

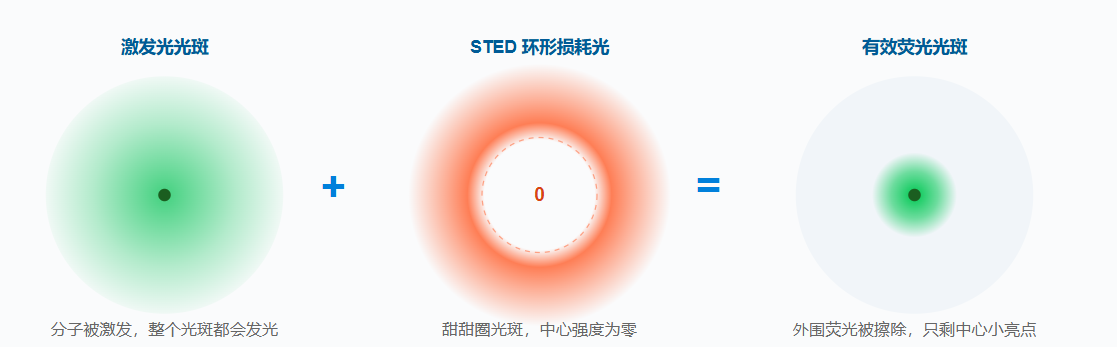

STED microscopy utilizes two spatially co-aligned laser beams focused onto the specimen:
When excited molecules in the periphery are illuminated by the doughnut-shaped STED beam, they undergo stimulated emission and transition instantly back to the ground state, quenching spontaneous fluorescence in that region through fluorescence depletion. Conversely, fluorophores located at the central intensity null remain unaffected and emit spontaneous fluorescence normally. Consequently, effective fluorescence emission is spatially confined to a sub-diffraction central spot, effectively engineering and narrowing the system's effective Point Spread Function (PSF) to achieve super-resolution imaging.
The lateral resolution of a STED system is defined by the modified Abbe equation:
d = λ2·NA·√( 1 + ISTED / Is )
As demonstrated by the formula, spatial resolution scales inversely with increasing STED beam intensity ISTED; theoretically, resolution can be continuously enhanced by elevating the depletion power. In practice, however, achievable resolution is constrained by photobleaching of dyes and phototoxicity in biological specimens, demanding a careful balance between depletion intensity and sample viability. In 2007, Willig et al. achieved a resolution of 29 nm using continuous-wave lasers, roughly one-tenth of the diffraction limit.
A standard point-scanning STED microscope consists of four functional modules:
Early STED systems used pulsed laser sources requiring precise temporal alignment, leading to high system complexity, elevated costs, and elevated peak power levels prone to damaging live cells. Studies subsequently demonstrated that when the stimulated emission rate induced by the depletion beam substantially exceeds the spontaneous decay rate, excited fluorophores are rapidly driven back to the ground state without necessitating rigid temporal pulse synchronization.
Capitalizing on this mechanism, Willig et al. demonstrated Continuous-Wave STED (CW-STED) super-resolution imaging in 2007, reaching a resolution of 29 nm. Key advantages include:
While higher depletion intensities improve STED resolution, high irradiance accelerates photobleaching and phototoxic damage. Preserving high resolution while significantly curtailing depletion laser power represents a central research frontier. Primary strategies include:
