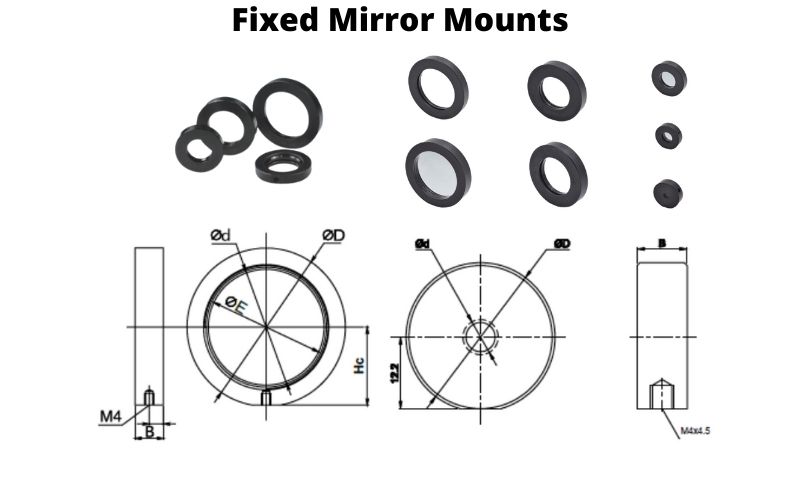

Fixed Mirror Mounts
Fixed Position Lens Mounts.jpg


  Fixed Position mounts for different optic diameters

  M4 tapped hole for mounting to other mechanical components



Lens


12.7mm Optical Post Holders

12.7mm Optical Post Holders.jpg



Simtrum Part No.

Optic Diameter (mm)Outer Diameter (mm)ØEHole/Thread SizeThickness (mm)
SLM-6-M4625.45M48
SLM-10-M41025.48.5M48
SLM-12.7-M412.725.411M48
SLM-20-M4203618M48
SLM-25.4-M425.441.523.5M48
SLM-30-M4304628M48
SLM-40-M4405638M48
SLM-50.8-M450.86749M412


The information in the chart above is a general guide to choosing the suitable fixed mirror mounts for your optomechanical setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.








Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Technical Assistance and Email Quotations (Recommended for Custom Orders, inquiries)

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


Local Same Day Service

SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.


International Inquiries

SIMTRUM provides worldwide shipping and inquiry management. Please contact us for more information.


Optic Diameter (mm)


Search Reset
Compare Model Drawings & Specs Thickness (mm) Hole size (mm) Outer Diameter Optic Diameter (mm) Availability Price
(USD)
SLM-10-M4

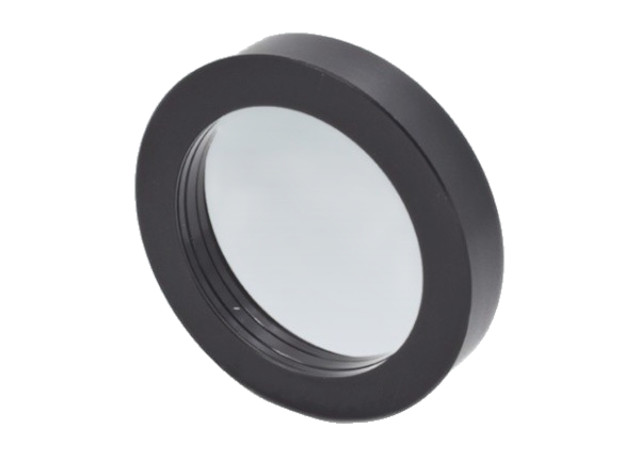

Fixed Lens/Mirror Mount for ⌀10mm Optics,M4 Tap
8M425.410 4-6 Weeks $10.50
SLM-12.7-M4
Fixed Lens/Mirror Mount for ⌀12.7mm Optics,M4 Tap
8M425.412.7 4-6 Weeks $10.50
SLM-20-M4
Fixed Lens/Mirror Mount for ⌀20mm Optics,M4 Tap
8M43620 4-6 Weeks $10.50
SLM-25.4-M4
Fixed Lens/Mirror Mount for ⌀25.4mm Optics,M4 Tap
8M441.525.4 4-6 Weeks $10.50
SLM-30-M4
Fixed Lens/Mirror Mount for ⌀30mm Optics,M4 Tap
8M44630 4-6 Weeks $10.50
SLM-40-M4
Fixed Lens/Mirror Mount for ⌀40mm Optics,M4 Tap
8M45640 4-6 Weeks $10.50
SLM-50.8-M4
Fixed Lens/Mirror Mount for ⌀50.8mm Optics,M4 Tap
12M46750.8 4-6 Weeks $13.00
SLM-6-M4
Fixed Lens/Mirror Mount for ⌀6mm Optics,M4 Tap
8M425.46 4-6 Weeks $10.50

SLM-6-M4 - Parameter

Thickness (mm)
8

Weight (g)
11

Hole size (mm)
M4

Outer Diameter
25.4

Optic Diameter (mm)
6

E
5

SLM-50.8-M4 - Parameter

Thickness (mm)
12

Weight (g)
50

Hole size (mm)
M4

Outer Diameter
67

Optic Diameter (mm)
50.8

E
49

SLM-40-M4 - Parameter

Thickness (mm)
8

Weight (g)
28

Hole size (mm)
M4

Outer Diameter
56

Optic Diameter (mm)
40

E
38

SLM-30-M4 - Parameter

Thickness (mm)
8

Weight (g)
22

Hole size (mm)
M4

Outer Diameter
46

Optic Diameter (mm)
30

E
28

SLM-25.4-M4 - Parameter

Thickness (mm)
8

Weight (g)
20

Hole size (mm)
M4

Outer Diameter
41.5

Optic Diameter (mm)
25.4

E
23.5

SLM-20-M4 - Parameter

Thickness (mm)
8

Weight (g)
16

Hole size (mm)
M4

Outer Diameter
36

Optic Diameter (mm)
20

E
18

SLM-12.7-M4 - Parameter

Thickness (mm)
8

Weight (g)
10

Hole size (mm)
M4

Outer Diameter
25.4

Optic Diameter (mm)
12.7

E
11

SLM-10-M4 - Parameter

Thickness (mm)
8

Weight (g)
10

Hole size (mm)
M4

Outer Diameter
25.4

Optic Diameter (mm)
10

E
8.5
