Transimpedance Amplifiers (Gated)

SIMTRUM offers a wide range of transimpedance Amplifers which employs precision differential or single ended transimpedance input stages to provide for low offset and high linearity throughout the full dynamic range. The single ended input stage is required for applications where the current source is inherently grounded externally. These ranges of transimpedance amplifiers are particularly useful for the measurement of current from photodiodes. Use the table below to find a device that matches your needs. Accessories, software, and drivers are available - complete your purchase with a packaged solution that meets your needs.


Input

TZA 200

TZA 400

TZA 500

Rise Time

35ns (10mHz)

1µs (G5x105)

45µs

Interfaces

DB9 (analogue outputs)

Hardwire interface (DB25)

USB & control interface (DB25)

Noise Equivalent Current

1µA (RMS)

500pA (RMS)

30pA (RMS)

Gain Control

No

Optionally 4 or 16 stages

6 gain stages

Bandwidth Control

No

4 Bandwidths

Polarity Control

No

Yes

Auto-null Function

No

Yes

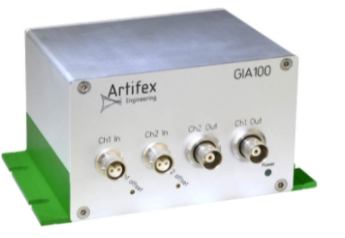

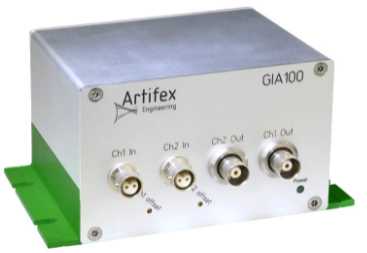

The Gated Integrated Amplifier GIA 100

Product Brochure:

Gated Integrating AmplifierGIA100 Minimum Pulse Timing


employs dual monolithic switched integrators. When paired with a photodiode, the boxcar amplifier measures the energy of single optical pulses. The GIA100 design results in very low leakage error, charge injection error and pickup. The precision input stage may be configured for current or voltage inputs. It is also useful for signal processing in a wide range of applications such as photodiode monitoring and time domain signal analysis as the output is a voltage linearly proportional to the integral of the input during a period set by a TTL-compatible gate. The fast response time at high signal-noise-ratio makes the GIA series particularly useful in systems control feedback loops and online production control.



Characteristics

- Output: linear analogue proportional to integral of input

- Interfaces: DB37 (hardwire control and analogue outputs)

- Switching time: 1µs

- Gain control: 4 gain stages




Applications

- System control feedback loops

- Online production control

- Industrial Sector

- OEMs


Input



Range (Min = noise equivalent input, Max = full scale)

1nA – 100µA

10µV – 1V

Connectors

BNC or BR2 (Adapters for other connector systems available)

BNC or BR2 (Adapters for other connector systems available)

Output



Range (full scale)

10V (Max)

10V (Max)

Function

Linear analogue: Vout = factorscale ⁄ 100 pF ∫ Iin dt

Linear analogue: Vout = faktorscale ⁄ 1µs ∫ Vin dt

Output scale

1, 2, 5, 10 (typ.)

1, 2, 5, 10 (typ.)

Connectors

BNC and DB9 (Adapters   for other connector systems available)

BNC and DB9 (Adapters for other connector systems available)

Max. repetition rate

285 kHz

285 kHz

Accuracy

± 3% (min)

± 3% (min)

Linearity

± 0,1% FSR (max)

± 0,1% FSR (max)

Output impedance

1 Ω (max)

1 Ω (max)

Logic



Switching time (integrate, hold, reset, gain)

1 µs (max)

1 µs (max)

Power supply



Type

Wall plug (supplied)

Wall plug (supplied)

Dimensions

30 mm x 50 mm x 60 mm

30 mm x 50 mm x 60 mm

Dimensions



2 channels

130 mm x 66 mm x 120 mm (w x h x l)

130 mm x 66 mm x 120 mm (w x h x l)

4 channels

130 mm x 106 mm x 120 mm (w x h x l)

130 mm x 106 mm x 120 mm (w x h x l)

> 4 channels

19″-rack, 3U

19″-rack, 3U

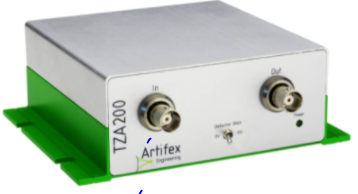

TZA 200 Transimpedance Amplifier

Product Brochure: TZA200englRevC1 | TZA200_engl_prospekt

The TZA200 is designed for precise, high speed measurement of current in the µA to mA range. The output is a

voltage linearly proportional to the input current to provide for low offset and high linearity throughout the full

dynamic range. The single ended input stage is required for applications where the current source is inherently

grounded externally.


Characteristics

-Receptacles: BNC (input and output)

-Rise time: 35ns (10MHz)

-Noise equivalent current: 1 µA(RMS)

-Gain control: None


Applications

- Industrial

-OEMs



Input

Input range (full scale)




4.5

mA

Noise equivalent current (NEIRMS)




1

µA

Connectors



BNC (Adapters for other connector systems available.)



Output

Function



Linear analogue : Vout = scale factor x Iin



Output range (full scale)

High-Z termination

4


4.5

V

50Ω termination

2

2.25

V

Connectors



BNC (Adapters for other connector systems available.)



Output scale

High Z-termination


1


V/mA

50Ω termination

0.5

V/mA

Rise /Fall time (10% – 90%)

Source capacitance < 100pF



35

ns

Setting time (1%)

Source capacitance < 100pF



100

ns

Accuracy


± 1



%

Output impedance




50

Ω

Power supply

Type



Wall plug (supplied)



Dimensions


1 channel

102 x 45 x 116 (w x h x l)

mm


4 channels

102 x 106 x 116 (w x h x l)

mm


19“ rack modules

3U

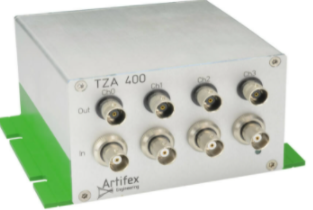

TZA 400 Transimpedance Amplifier

Product Brochures: tza400englrevb | tza400_engl_web

The TZA400 is designed for precise measurement of current, from pA to mA. The output is a voltage linearly proportional

to the input current. The gain of the TZA400 is controlled via a hard-wire interface on the back panel.


Characteristics

-Interface: Hard-wire (DB25)

-Rise time: 1µs (G≤5×105); 4µs (higher gains)

-Noise equivalent current: 500 p(ARMS)

-Gain control: 16 gain ranges in 1-2-5 pattern or 4 gain ranges in decade spacing


Applications

- Industrial

-OEMs


Input

Current ranges (full scale)

Maximum range


3.7


mA


Minimum range


37


nA

Noise equivalent current (NEPRMS)

Range: 3.7mA



2.5

µA


Range: 37nA



500

pA

Connectors



BNC (Adapters for other connector systems available)



Output


0


3.7

V

Function



Linear analogue : Vout = scale factor x Iin



Connectors



BNC (Adapters   for other connector systems available) und DB25



Output scale with 16 range option, range:

3.7mA


1


V / mA

1.85mA

2

V / mA

740µA

5

V / mA

370µA

0.01

V / µA

185µA

0.02

V / µA

74µA

0.05

V / µA

37µA

0.1

V / µA

18.5µA

0.2

V / µA

7.4µA

0.5

V / µA

3.7µA

1

V / µA

1.85µA

2

V / µA

740nA

5

V / µA

370nA

0.01

V / nA

185nA

0.02

V / nA

74nA

0.05

V / nA

37nA

0.1

V / nA

Output scale with 4 range option, range:

3.7mA


1


V / mA

370µA

0.01

V / µA

37µA

0.1

V / µA

3.7µA

1

V / µA

Output range (full scale)




10

V

Rise / Fall time (10% – 90%)

Source capacitance < 100pF



1

µs

Setting time (1%)

Source capacitance < 100pF



2

µs

Accuracy


±   1



%

Output impedance




50

Ω

Logic

Current required for switching

HI = 5V

-100

5

100

nA

LO = 0V

0

Dead time during change of range




2 (Limited by setting time. The logical switch is complete within 20ns.)

µs

Power supply

Type


Wall plug (supplied)


Dimensions


1 channel

103 x 45 x 116 (w x h x l)

mm


4 channels

103 x 106 x 116 (w x h x l)

mm


19″- rack modules

3U

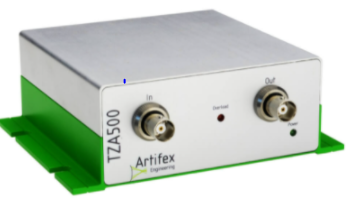

TZA 500 Transimpedance Amplifier

Product Brochure: tza500engl_revd | TZA500_engl

The TZA500 is designed for precise measurement of current, from pA to mA. The output is a voltage linearly proportional to the input current. The TZA500 is very flexible with USB and hard-wire interface control of gain, bandwidth, and polarity. A graphical user interface is delivered with the amplifier.


Characteristics

-Interfaces: USB and hard-wire (DB25)

-Rise time: 45µs

-Noise equivalent current: 30 p(ARMS)

-Gain, bandwidth, and polarity control: 6 gain ranges; 4 bandwidths; polarity inversion

-Auto-null function: up to 10V offset nulling


Applications

- Industrial

-OEMs



Input

Current ranges (full scale)

Maximum range


3.7


mA


Minimum range


37


nA

Noise equivalent current (NEPRMS)

Range: 3.7mA



2.5

µA


Range: 37nA



500

pA

Connectors



BNC (Adapters for other connector systems available)



Output


0


3.7

V

Function



Linear analogue : Vout = scale factor x Iin



Connectors



BNC (Adapters   for other connector systems available) und DB25



Output scale with 16 range option, range:

3.7mA


1


V / mA

1.85mA

2

V / mA

740µA

5

V / mA

370µA

0.01

V / µA

185µA

0.02

V / µA

74µA

0.05

V / µA

37µA

0.1

V / µA

18.5µA

0.2

V / µA

7.4µA

0.5

V / µA

3.7µA

1

V / µA

1.85µA

2

V / µA

740nA

5

V / µA

370nA

0.01

V / nA

185nA

0.02

V / nA

74nA

0.05

V / nA

37nA

0.1

V / nA

Output scale with 4 range option, range:

3.7mA


1


V / mA

370µA

0.01

V / µA

37µA

0.1

V / µA

3.7µA

1

V / µA

Output range (full scale)




10

V

Rise / Fall time (10% – 90%)

Source capacitance < 100pF



1

µs

Setting time (1%)

Source capacitance < 100pF



2

µs

Accuracy


±   1



%

Output impedance




50

Ω

Logic

Current required for switching

HI = 5V

-100

5

100

nA

LO = 0V

0

Dead time during change of range




2 (Limited by setting time. The logical switch is complete within 20ns.)

µs

Power supply

Type


Wall plug (supplied)


Dimensions


1 channel

103 x 45 x 116 (w x h x l)

mm


4 channels

103 x 106 x 116 (w x h x l)

mm


19″- rack modules

3U
