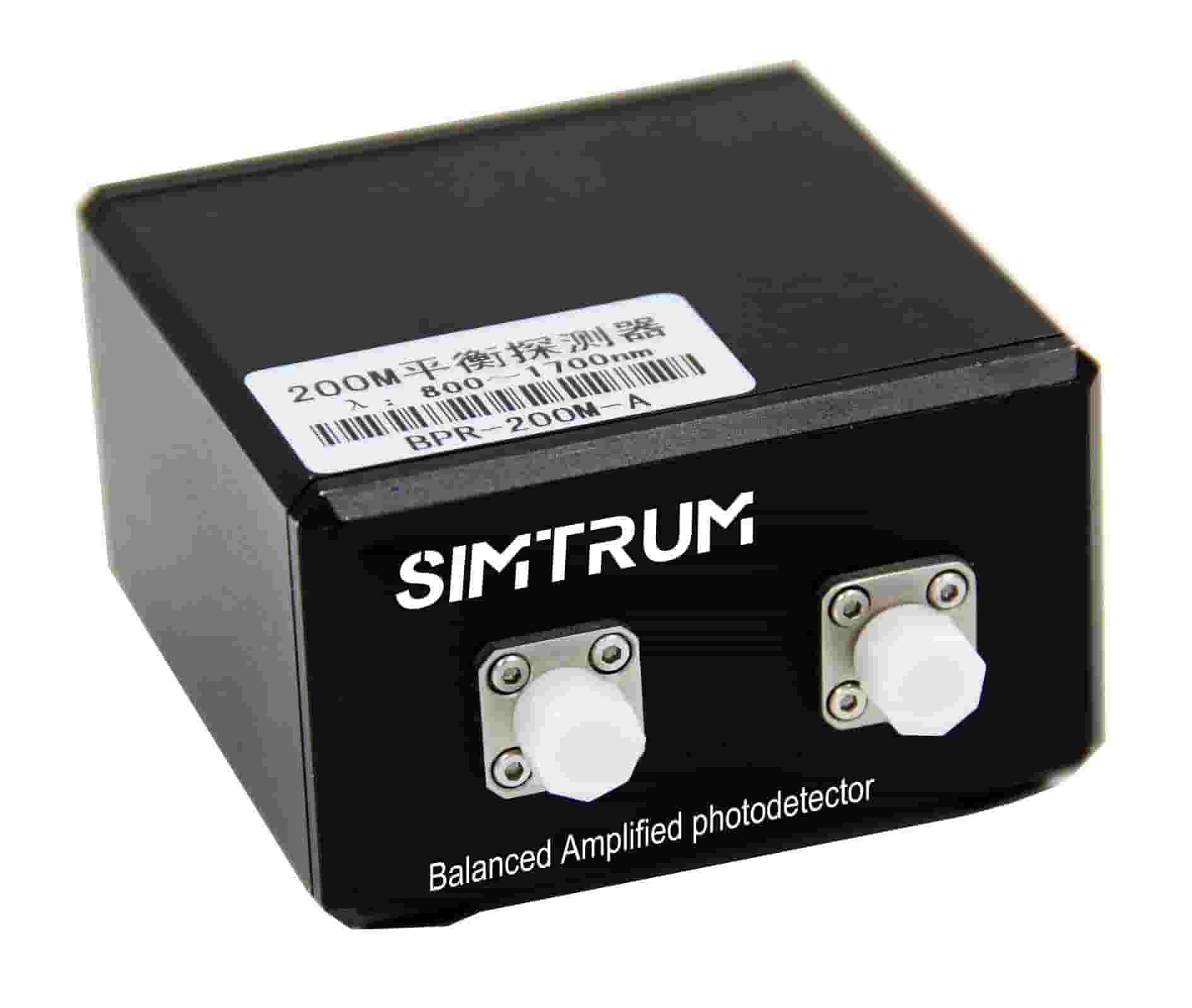

Balanced Amplified Photodetector
Overview & Specifications Related Products Order Now！
SIMTRUM's balanced amplified optical detection module integrates two matching photodiodes and an ultra-low noise transimpedance amplifier, which effectively reduces laser noise and common mode noise, improves the system's signal-to-noise ratio, and has a variety of spectral response options, low noise, high gain, and easy to use. It is mainly used in spectroscopy, heterodyne detection, optical time-lapse measurement, optical coherence tomography and other fields.

Features

  • Operating Wavelength: 1064, 1310,1550nm (900-1700nm)
  • 3dB bandwidth: 200M, 350M, 400M,1G, 1.6GHz
  • High CMRR and low noise
  • High conversion gain

Applications

  • Coherent detection
  • Optical Tomography (OCT)
  • Doppler laser radar




Product specifications

200/350MHz balanced photodetector



Model type
 LA-CQ01-BPR-200M-A-H
 LA-CQ01-BPR-200M-A
 LA-CQ01-BPR-350M-A
  Wavelength range 1310/1550nm(900-1700nm)
  Responsivity 0.95A/W@1550nm
  -3dB bandwidth DC-200MHz DC-200MHz DC-350MHz
  Common mode rejection >25dB（30dB typ.） >25dB（30dB typ.） >25dB （30dB typ.）
  Conversion Gain (High-Z) 38×10^3V/W 20×10^3V/W 14×10^3V/W
  Output voltage noise ＜20mVRMS ＜10mVRMS ＜10mVRMS
  Sensitivity -26dBm -33dBm -33dBm
  Saturation power（CW） 9dBm -12dBm -5dBm
  RF output amplitude 3.5Vpp 3.5Vpp 3.5Vpp
  PD damage threshold 10mW
  Operating temperature 0 ~ +60 ℃
  Supply voltage DC ±15V （100mA）
  Optical input connector FC
  RF output connector SMA
  Output impedance 50Ω
  Output coupling DC or AC coupling option
  Dimensions（mm） 78.5mm×71.5mm×20mm





400MHz/1GHz/1.6GHz balanced photodetector



Model LA-CQ01-BPR-400M-A LA-CQ01-BPR-1G-A LA-CQ01-BPR-1.6G-A LA-CQ01-BPR-400M-B LA-CQ01-BPR-1G-B LA-CQ01-BPR-1.6G-B
  Operating Wavelength 1064nm （900-1400 nm） 1310/1550nm (1200-1700 nm)
  Responsivity 0.7A/W@1064nm 0.9A/W@1550nm
  -3dB bandwidth DC-400MHz 500K-1GHz 500K-1.6GHz DC-400MHz 500K-1GHz 500K-1.6GHz
  Common mode rejection >25dB(30dB typ.)
  Conversion Gain (High-Z) 7×10^3V/W 28×10^3V/W
 22×10^3V/W
 10×10^3V/W
 36×10^3V/W
 28×10^3V/W
  Output voltage noise ＜5mVRMS ＜8mVRMS ＜10mVRMS ＜5mVRMS ＜8mVRMS ＜10mVRMS
  Saturation power（CW） 800μW 500μW 1mW 400μW 380μW 800μW
  RF output amplitude 5Vpp 3.5Vpp 3Vpp 5Vpp 3.5Vpp 3Vpp
  PD damage threshold 10mW
  Operating temperature 0 ~ +60 ℃
  Supply voltage DC ±12V （350mA）
  Optical input connector FC/APC (HI1060 fiber inside) FC/APC (SMF28e fiber inside)
  RF output connector SMA
  Output impedance 50Ω
  Output coupling DC or AC option AC only DC or AC option AC only
  Dimensions（mm） 78.5mm×71mm×25.7mm





Frequency response curve

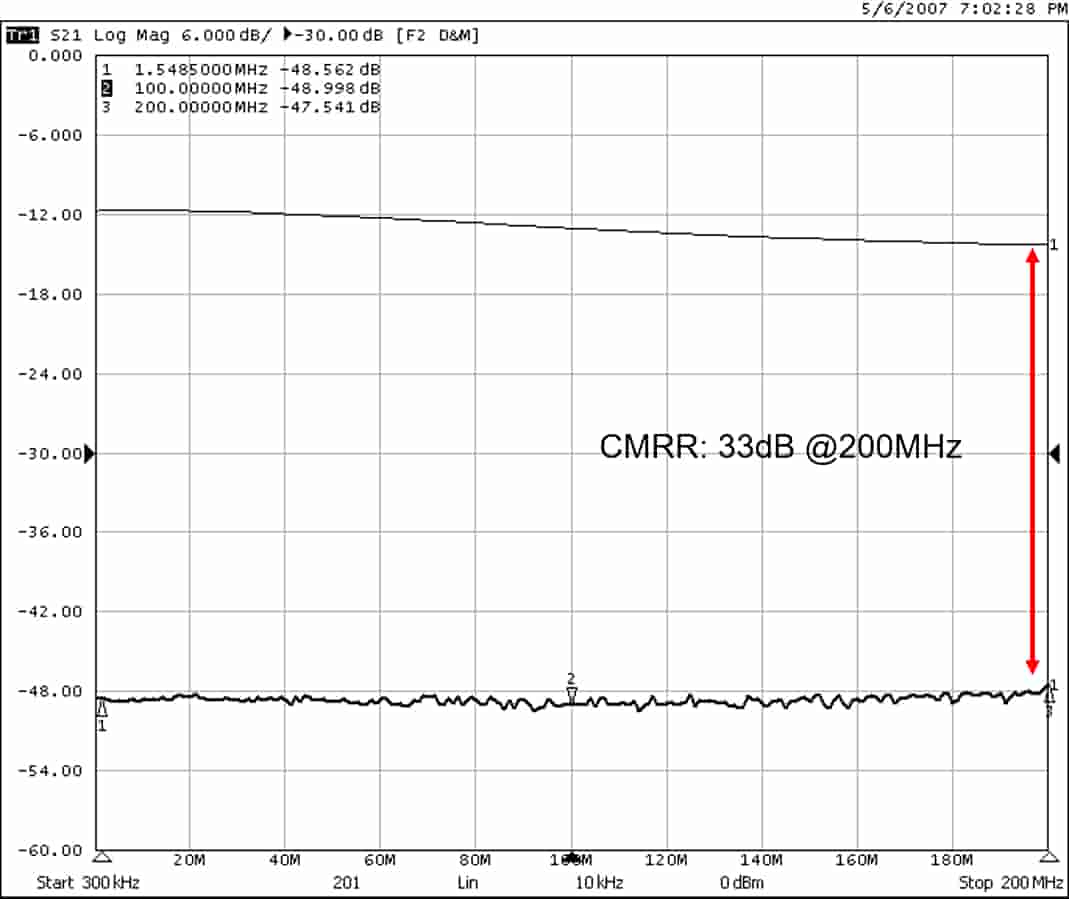

(a)LA-CQ01-BPR-200M

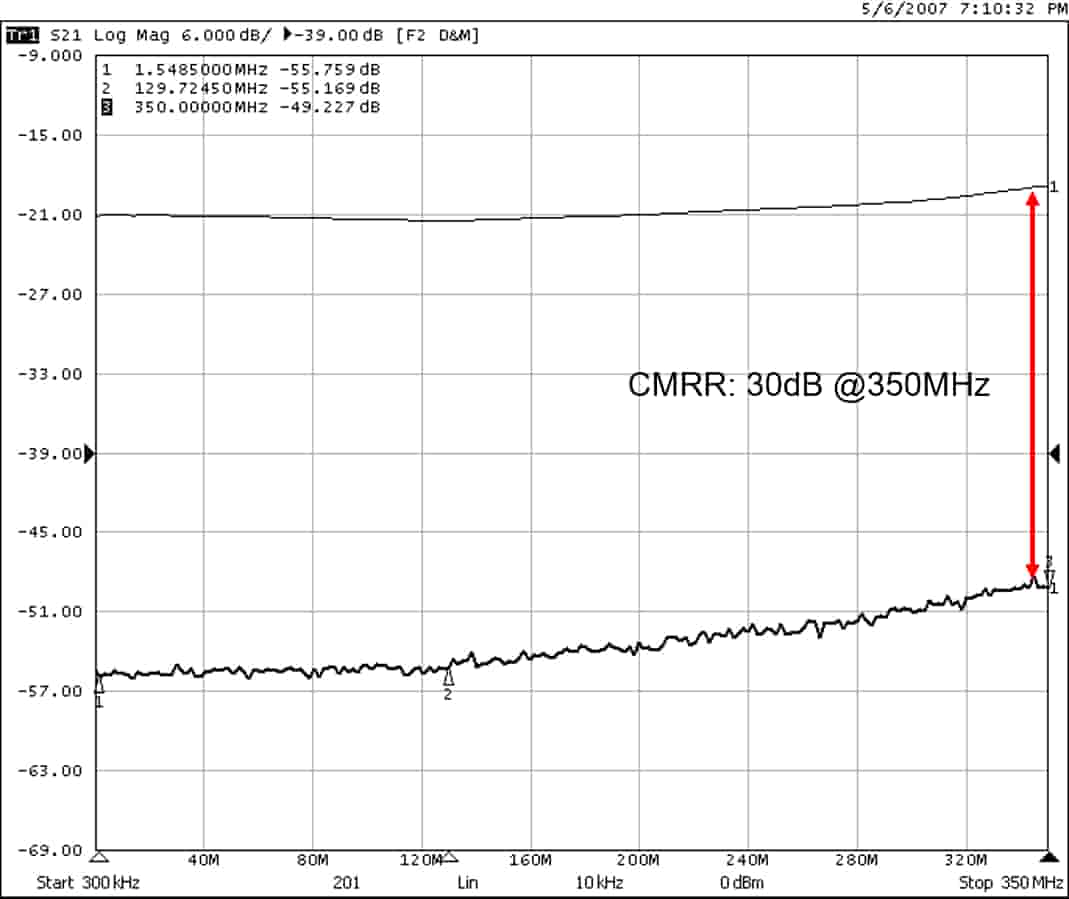

(b)LA-CQ01-BPR-350M

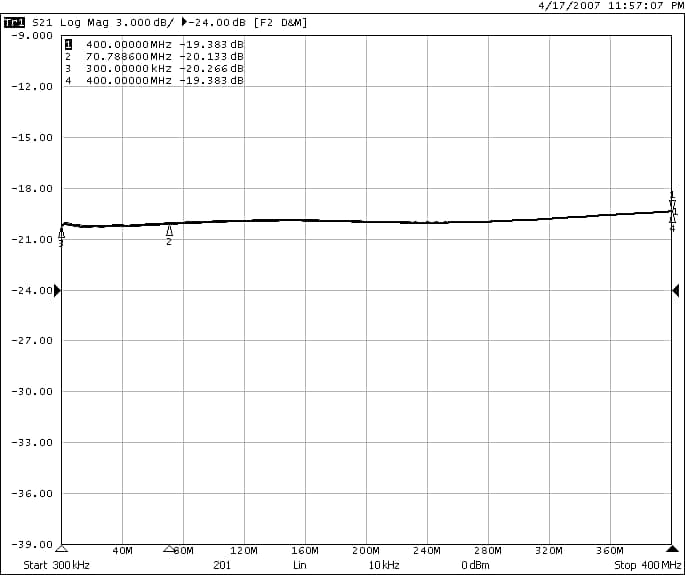

(C)LA-CQ01-BPR-400M

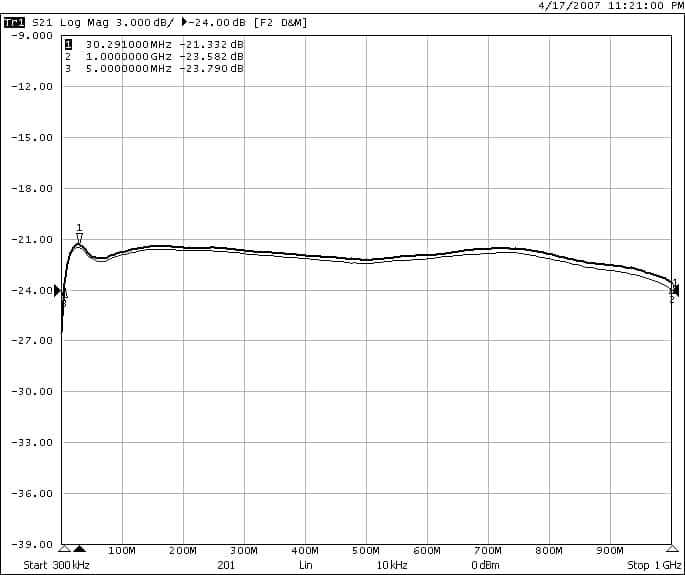

(d)LA-CQ01-BPR-1G

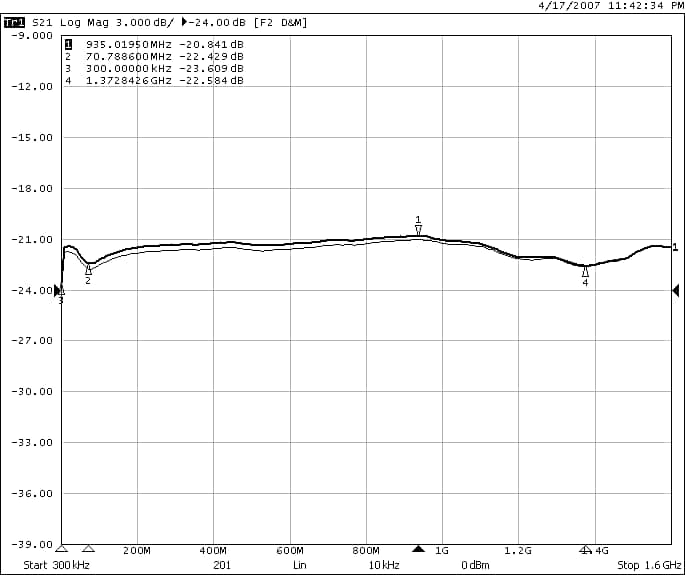

(e)LA-CQ01-BPR-1.6G

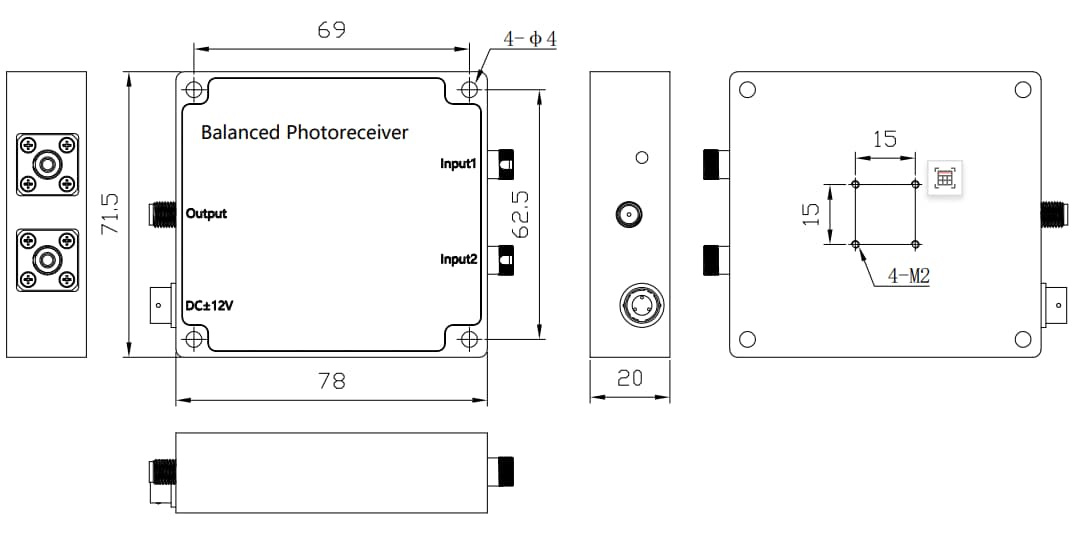

Mechanical Diagram (mm)
