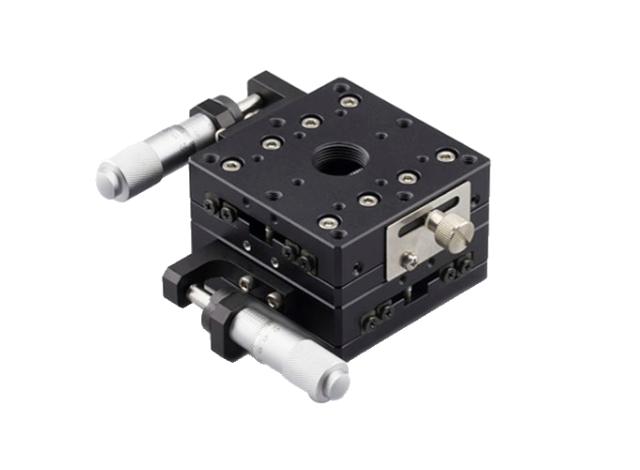

2-Axis Stages

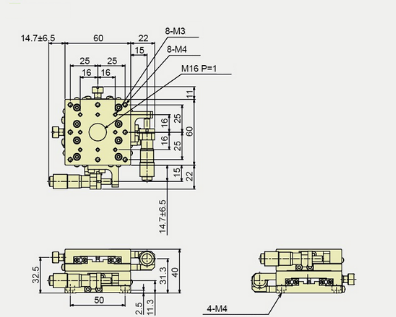

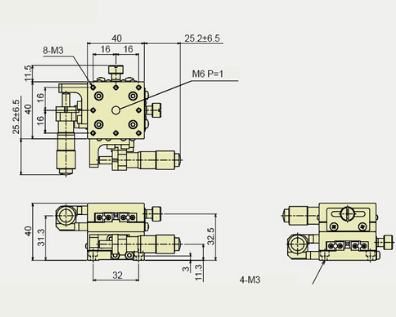

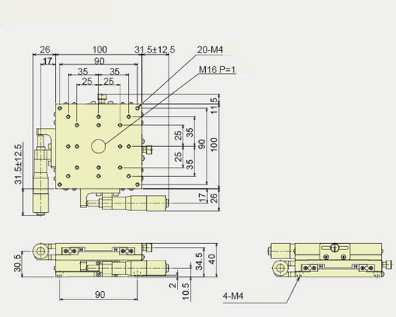

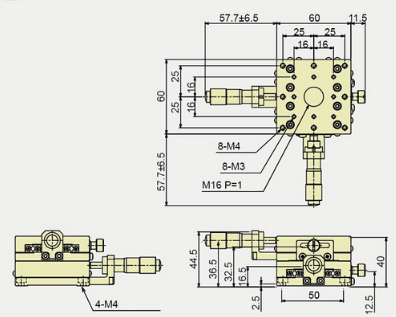

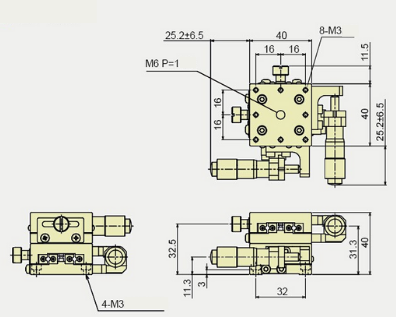

13mm 13mm Drawings 25mm 25mm Drawings Related Products Order Now!



• 13mm travel distance in the X,Y direction enabled by micrometers

• Crossed Roller Bearings enable superior angular deviation and load capacity

• Combination of single-axis linear stages found under 13mm Crossed Roller Bearing Aluminium Stages category.



Selection Guide

Simtrum Part No. Combination Bearing Type Drive Direction

Axes

of

Travel

 Travel(mm) Hole Type Platform dimensions(mm) Maximum load(N)
13LXC4040

2x

13LSCR4040

 Crossed Roller Guide Center X,Y 13

Top:M3,M6

Bottom:

Counterbore

holes for M3

Cap Screws

 40x40 19.6
13LXR4040

2x

13LSR4040

 Crossed Roller Guide Right X,Y 13

Top:M3,M6

Bottom:

Counterbore

holes for M3

Cap Screws

 40x40 19.6
13LXL4040

2x

13LSL4040

 Crossed Roller Guide Left X,Y 13

Top:M3,M6

Bottom:

Counterbore

holes for M3

Cap Screws

 40x40 19.6
13LXC6060

2x

13LSCR6060

 Crossed Roller Guide Center  X,Y 13

Top: M3, M4,M16

 Bottom:

Counterbore

holes for M4

Cap Screws

 60x60 49
13LXR6060

2x

13LSR6060

 Crossed Roller Guide Right X,Y 13

Top: M3, M4, M16

Bottom:

Counterbore

holes for M4

Cap Screws

 60x60 49
13LXL6060

2x

13LSL6060

 Crossed Roller Guide Left X,Y 13

Top: M3, M4, M16

Bottom:

Counterbore

holes for M4

Cap Screws

 60x60 49

 The information in the chart above is a general guide to choosing the suitable 13mm crossed roller bearing XY translation stages for your motion setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

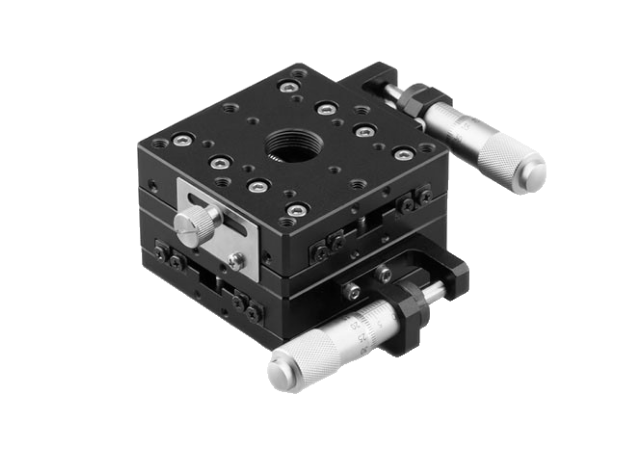

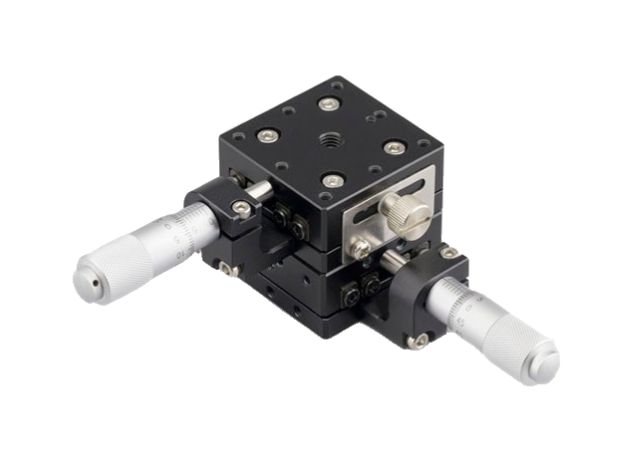

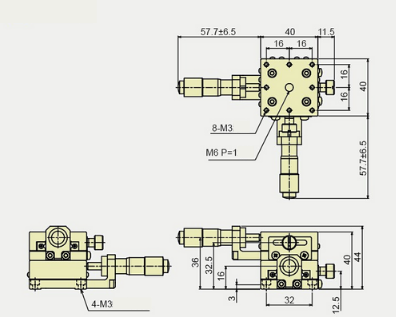

13LXC4040

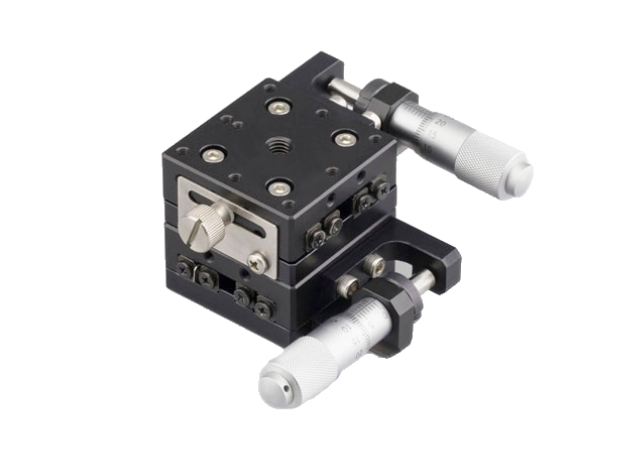

13LXR4040





13LXL4040







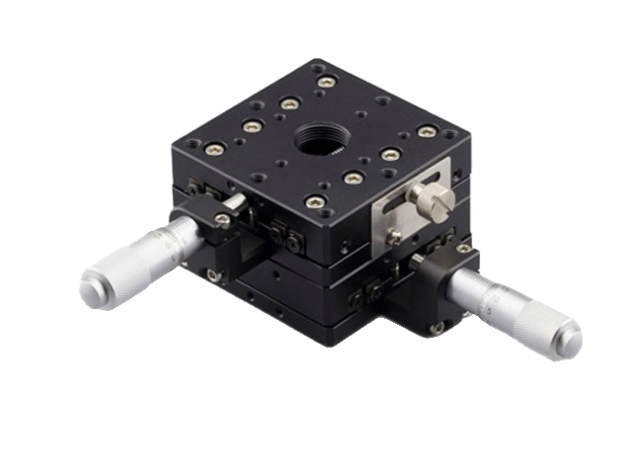

13LXC6060



13LXR6060





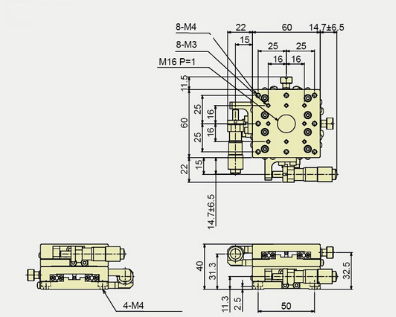

13LXL6060












• 25 mm travel distance in the X,Y direction enabled by micrometers

• Crossed Roller Bearings enable superior angular deviation and load capacity

• Combination of single-axis linear stages found under 25mm Crossed Roller Bearing Aluminium Stages category



Selection Guide

Simtrum

Part No.

 Combination Bearing Type Drive Direction Axes of Travel Travel(mm) Hole Type Platform dimensions(mm) Maximum load(N)
25LXC8080

2x

25LSCR8080

 Crossed Roller Guide  Center X,Y 25

Top: M4, M16

 Bottom:

Counterbore

holes for M4

Cap Screws

 80x80 98
25LXR8080

2x

25LSR8080

 Crossed Roller Guide  Right X,Y 25

Top: M4, M16

 Bottom:

Counterbore

holes for M4

Cap Screws

 80x80 98
25LXL8080

2x

25LSL8080

 Crossed Roller Guide  Left X,Y 25

Top: M4, M16

 Bottom:

Counterbore

holes for M4

Cap Screws

 80x80 98
25LXC100100

2x

25LSCR100100

 Crossed Roller Guide  Center X,Y 25

Top: M4, M16

 Bottom:

Counterbore

holes for M4

Cap Screws

 100x100 147
25LXR100100

2x

25LSR100100

 Crossed Roller Guide  Right X,Y 25

Top: M4, M16

 Bottom:

Counterbore

holes for M4

Cap Screws

 100x100 147
25LXL100100

2x

25LSL100100

 Crossed Roller Guide  Left X,Y 25

Top: M4, M16

 Bottom:

Counterbore

holes for M4

Cap Screws

 100x100 147
25LXR125125

2x

25LSR100100

 Crossed Roller Guide  Right X,Y 25 Top: M4 Bottom: Counterbore holes for M4 Cap Screws 125x125 196
25LXL125125

2x

25LSL125125

 Crossed Roller Guide  Left X,Y 25 Top: M4 Bottom: Counterbore holes for M4 Cap Screws 125x125 196

The information in the chart above is a general guide to choosing the suitable 25mm Crossed Roller Bearing XY translation stages for your motion setup.

 Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

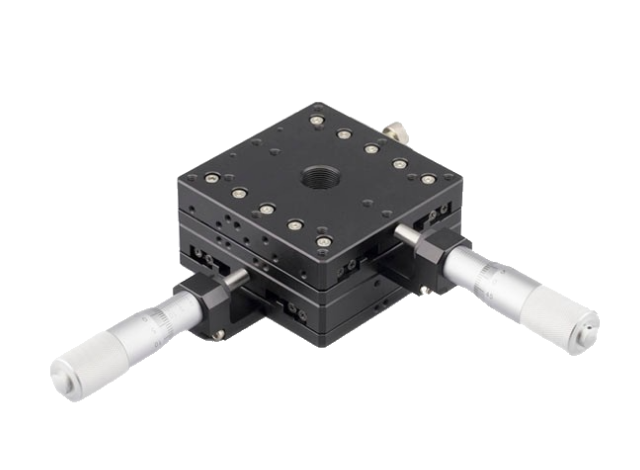

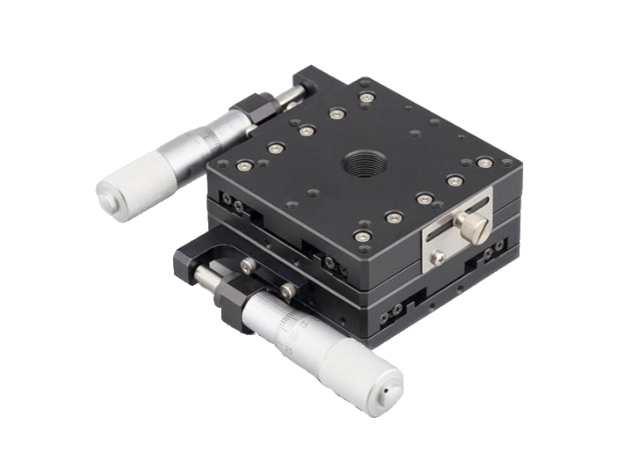

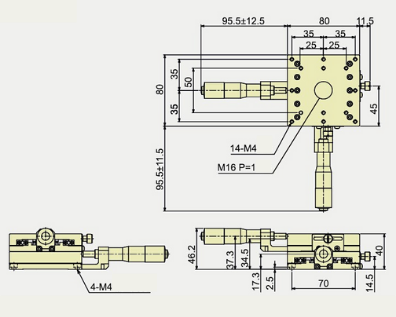

25LXC8080

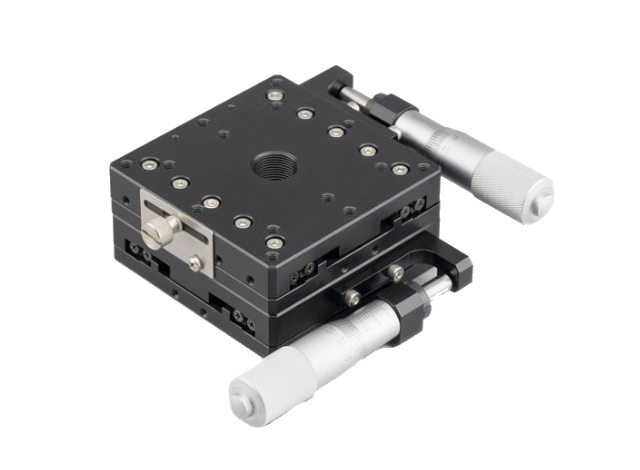

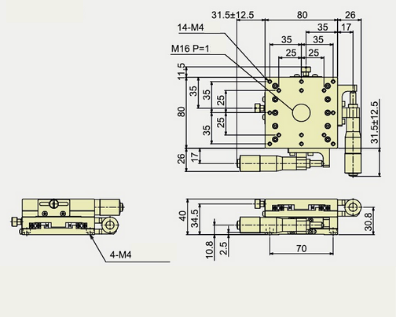

25LXR8080



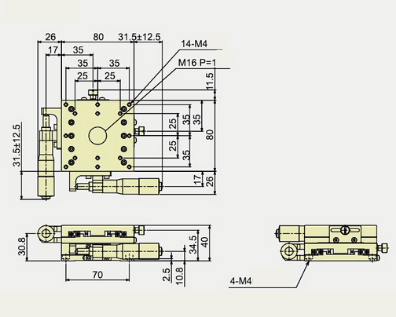

25LXL8080

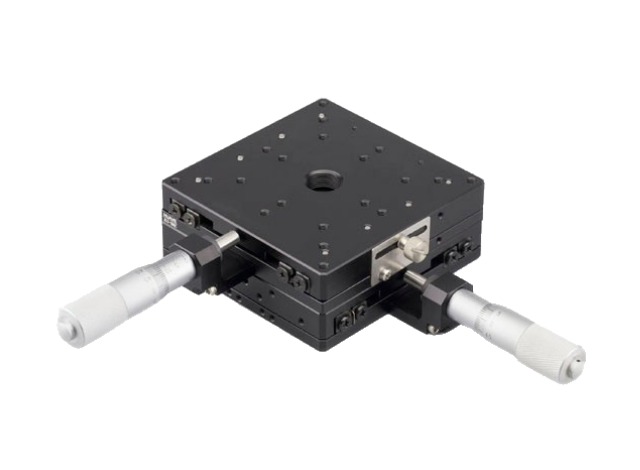

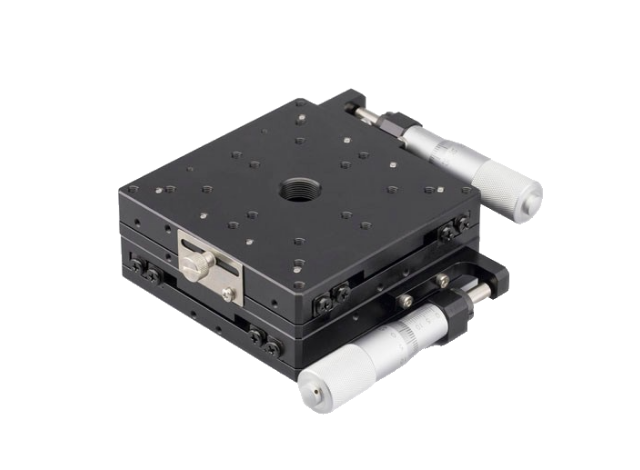

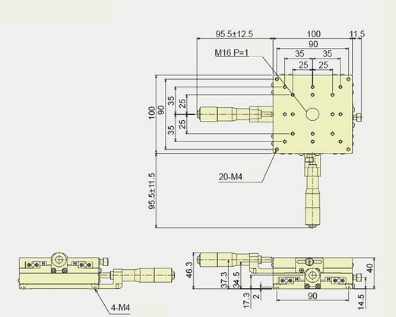

25LXC100100

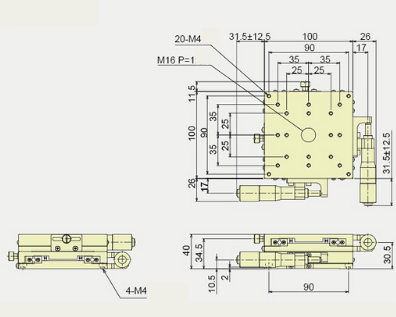

25LXR100100





25LXL100100

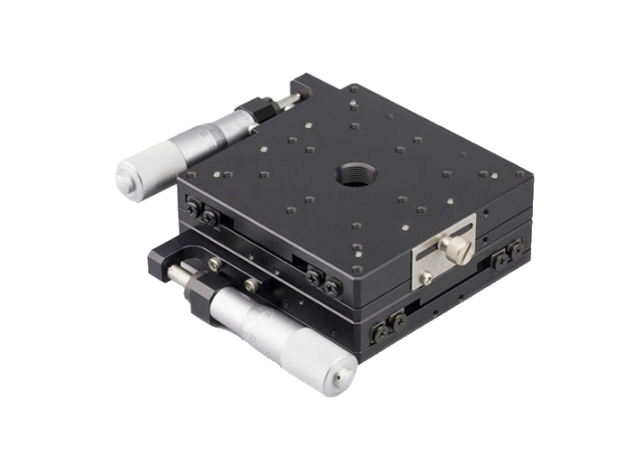

WB 25LXL100100.png

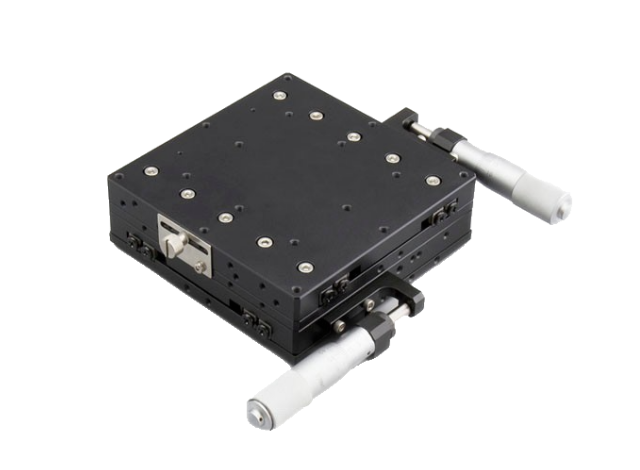

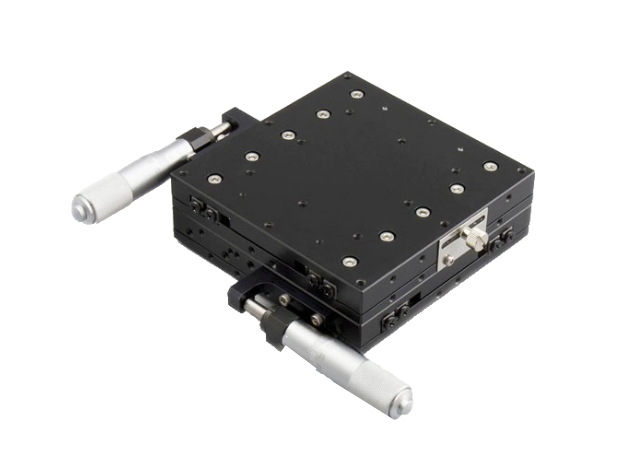

25LXL125125





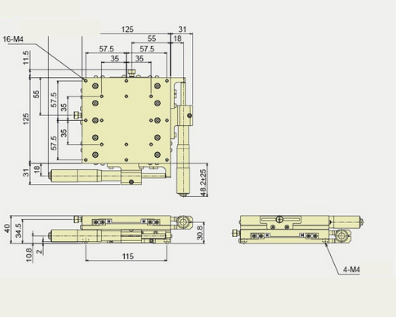

25LXR125125








13mm Linear Stages

Optomechanics






We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Drive Direction

Platform dimensions (mm)


Search Reset
Compare Model Drawings & Specs Platform dimensions (mm) Hole Type Drive Direction Maximum Load (N) Availability Reference Price
(USD)
13LXC4040
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=40mmx40mm, Center Drive 		40x40Top:M3,M6 Bottom:Counterbore holes for M3 Cap ScrewsCenter19.6 4-6 Weeks $238.81
13LXR4040
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=40mmx40mm, Right Side Drive 		40x40Top:M3,M6 Bottom:Counterbore holes for M3 Cap ScrewsRight19.6 4-6 Weeks $238.81
13LXL4040
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=40mmx40mm, Left Side Drive 		40x40Top:M3,M6 Bottom:Counterbore holes for M3 Cap ScrewsLeft19.6 4-6 Weeks $238.81
13LXC6060
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=60mmx60mm, Center Drive 		60x60Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap ScrewsCenter49 4-6 Weeks $253.73
13LXR6060
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=60mmx60mm, Right Side Drive 		60x60Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap ScrewsRight49 4-6 Weeks $253.73
13LXL6060
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=60mmx60mm, Left Side Drive 		60x60Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap ScrewsLeft49 4-6 Weeks $253.73
25LXC8080
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=80mmx80mm, Center Drive 		80x80Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsCenter98 4-6 Weeks $364.18
25LXR8080
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=80mmx80mm, Right Side Drive 		80x80Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsRight98 4-6 Weeks $364.18
25LXL8080
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=80mmx80mm, Left Side Drive 		80x80Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsLeft98 4-6 Weeks $364.18
25LXC100100
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=100mmx100mm, Center Drive 		100x100Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsCenter147 4-6 Weeks $450.00
25LXR100100
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=80mmx80mm, Right Side Drive 		100x100Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsRight147 4-6 Weeks $450.00
25LXL100100
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=100mmx100mm, Left Side Drive 		100x100Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsLeft147 4-6 Weeks $450.00
25LXR125125
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=125mmx125mm, Right Side Drive 		125x125Top: M4 Bottom: Counterbore holes for M4 cap screwsRight196 4-6 Weeks $469.40
25LXL125125
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=125mmx125mm, Left Side Drive 		125x125Top: M4 Bottom: Counterbore holes for M4 cap screwsLeft196 4-6 Weeks $469.40

25LXL125125 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
125x125

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Left

Maximum Load (N)
196

25LXR125125 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
125x125

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Right

Maximum Load (N)
196

25LXL100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Left

Maximum Load (N)
147

25LXR100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Right

Maximum Load (N)
147

25LXC100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Center

Maximum Load (N)
147

25LXL8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Left

Maximum Load (N)
98

25LXR8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Right

Maximum Load (N)
98

25LXC8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Center

Maximum Load (N)
98

13LXL6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Drive Direction
Left

Maximum Load (N)
49

13LXR6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Drive Direction
Right

Maximum Load (N)
49

13LXC6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Drive Direction
Center

Maximum Load (N)
49

13LXL4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom:Counterbore holes for M3 Cap Screws

Drive Direction
Left

Maximum Load (N)
19.6

13LXR4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom:Counterbore holes for M3 Cap Screws

Drive Direction
Right

Maximum Load (N)
19.6

13LXC4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom:Counterbore holes for M3 Cap Screws

Drive Direction
Center

Maximum Load (N)
19.6

25LXL125125 - Download

25LXR125125 - Download

25LXL100100 - Download

25LXR100100 - Download

25LXC100100 - Download

25LXL8080 - Download

25LXR8080 - Download

25LXC8080 - Download

13LXL6060 - Download

13LXR6060 - Download

13LXC6060 - Download

13LXL4040 - Download

13LXR4040 - Download

13LXC4040 - Download
