TPX / HDPE Terahertz Plano Convex Lens

There are two types of metamaterials with good terahertz transmittance mainly include high-molecular-weight materials and high-resistance silicon, Among them, the refractive index of high-resistance silicon (HRFZ-Si) is high. This material is more suitable for making lens.


Among the high-resolution materials, polymethylpentene (TPX) has the best transmission performance in terahertz, but for optical-grade TPX materials due to High shrinkage ratio and low yield during injection molding result in high prices. Therefor terahertz window materials are generally using polytetrafluoroethylene (Teflon), high-density polyethylene (HDPE), TPX, high-resistance silicon, these materials are the main materials for terahertz lenses.


There are many types of terahertz lenses. Commonly seen are mainly plano-convex non-spherical lenses, cone lens (used to produce Bessel beam), spiral phase plate, cylindrical lens, multi-hemispherical lens, Fresnel lens to reduce the thickness, etc. Terahertz lens was use in terahertz spectrometers and terahertx imagers for collimation and focus, or reverse use.


Standard Specificatoin Choice

Customized size and focal length is available please Contact Us

  General Spec.Diameter

1 inch

(25.4mm)

1.5 inch

(38.1mm)

2 inch

(50.8mm)

  NA > 90%


  Surface Quality: 80/50


  FL Tolerance: +/- 1%


  Diameter Tolerance: +/- 0.2mm


  Radius Curvature Tolerance: +/- 0.2mm

Focal Length (mm)10--
25--
32.5--
35--
505050
65--
757575
100100100
120--
150150150
200200200
240-400



HDPE is a light elastic crystalline material. It can be heated to 110°C or cooled to -45 ~ -120°C. PE has good dielectric properties, corrosion resistance, and radiation resistance. At 23°C, the density is 0.91-0.925 g/cm3, the tensile flow limit is 8-13 MPa, the elastic modulus is 118-350 MPa, and the refractive index is about 1.54 in a wide spectral range. Usually, HDPE also comes as a component material. In addition to thick lenses and windows, thin HDPE can also be used as THz polarizers.


It should be noted that the THz transmission of HDPE is independent of temperature, thus allowing the use of HDPE windows in cryostats. Its temperature coefficient of refractive index is 6.2 × 10-4 K-1 (range 8-120 K).


The frequency range covers terahertz to far-infrared 7um-3mm (100GHz-43THz), with high transmittance in the terahertz frequency range, relatively stable physical and chemical properties, highly polarized, and fast response.

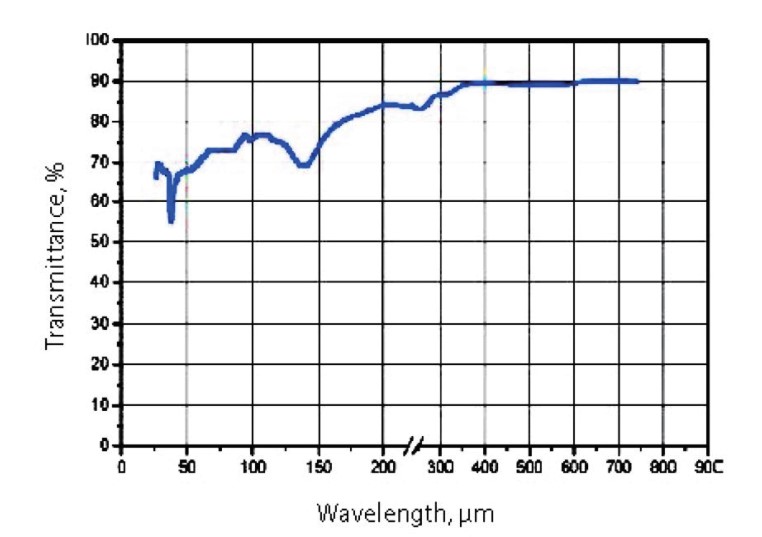

Transmission of 2mm-thick HDPE sample, THz eegion.



Standard Specificatoin Choice

Customized size and focal length is available please Contact Us

Diameter1 inch
(25.4mm)
1.5 inch
(38.1mm)
2 inch
(50.8mm)
2.5 inch
(76.2mm)
3 inch
(101.6mm)
Focal Length (mm)
25----
505050--
-75---
100100100100100
150150150--
200200200200200
----400


Model
Product

  Terahertz Quantum Cascade Lasers

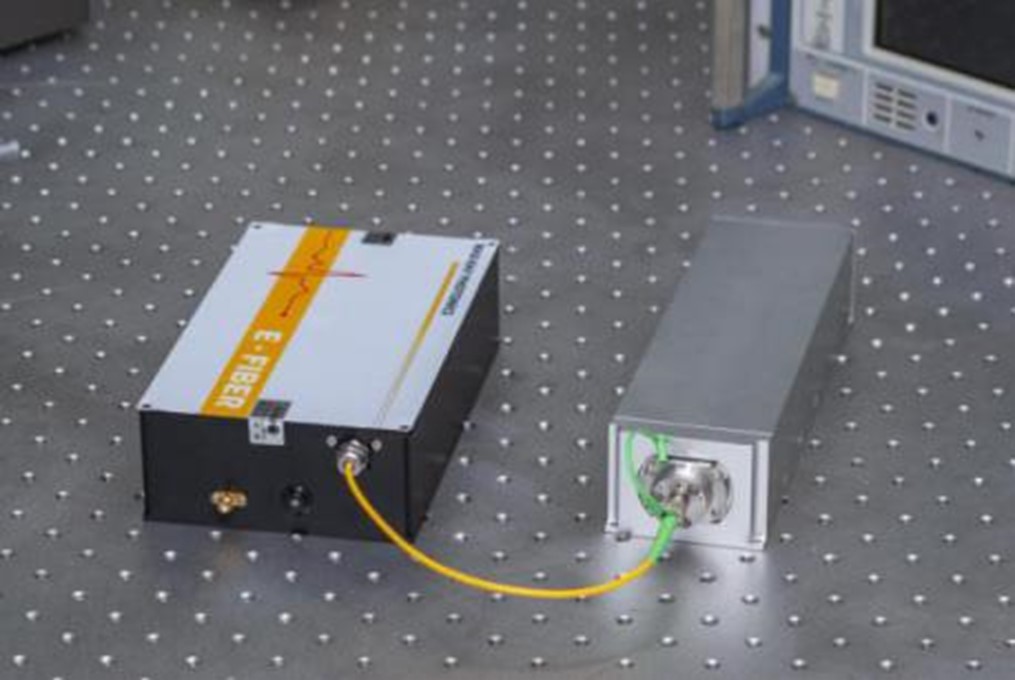

  780nm Femtosecond Laser for Terahertz

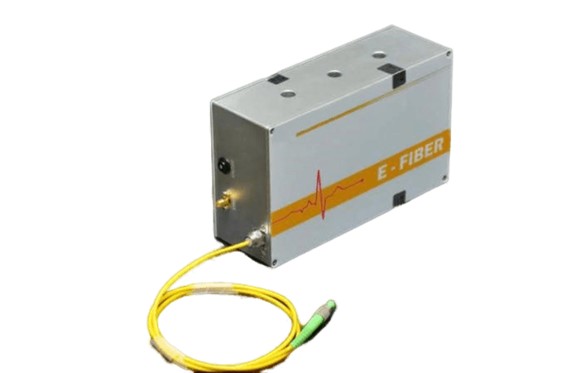

  1560nm Femtosecond Laser for Terahertz

  TPX / HDPE Terahertz Plano Convex Lens

  Size choice : 1 to 2 inch (customizable)

  Focal length: 10mm to 240mm (customizable)

  Material: TPX / HDPE

  Off-Axis Parabolic Mirrors

  Size choice : 1 to 2 inch (customizable)

  Angle: 90 degree and 15/45/60 degree

  Focal length: 12.7mm to 254mm (customizable)

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL

  Through Hole: Yes

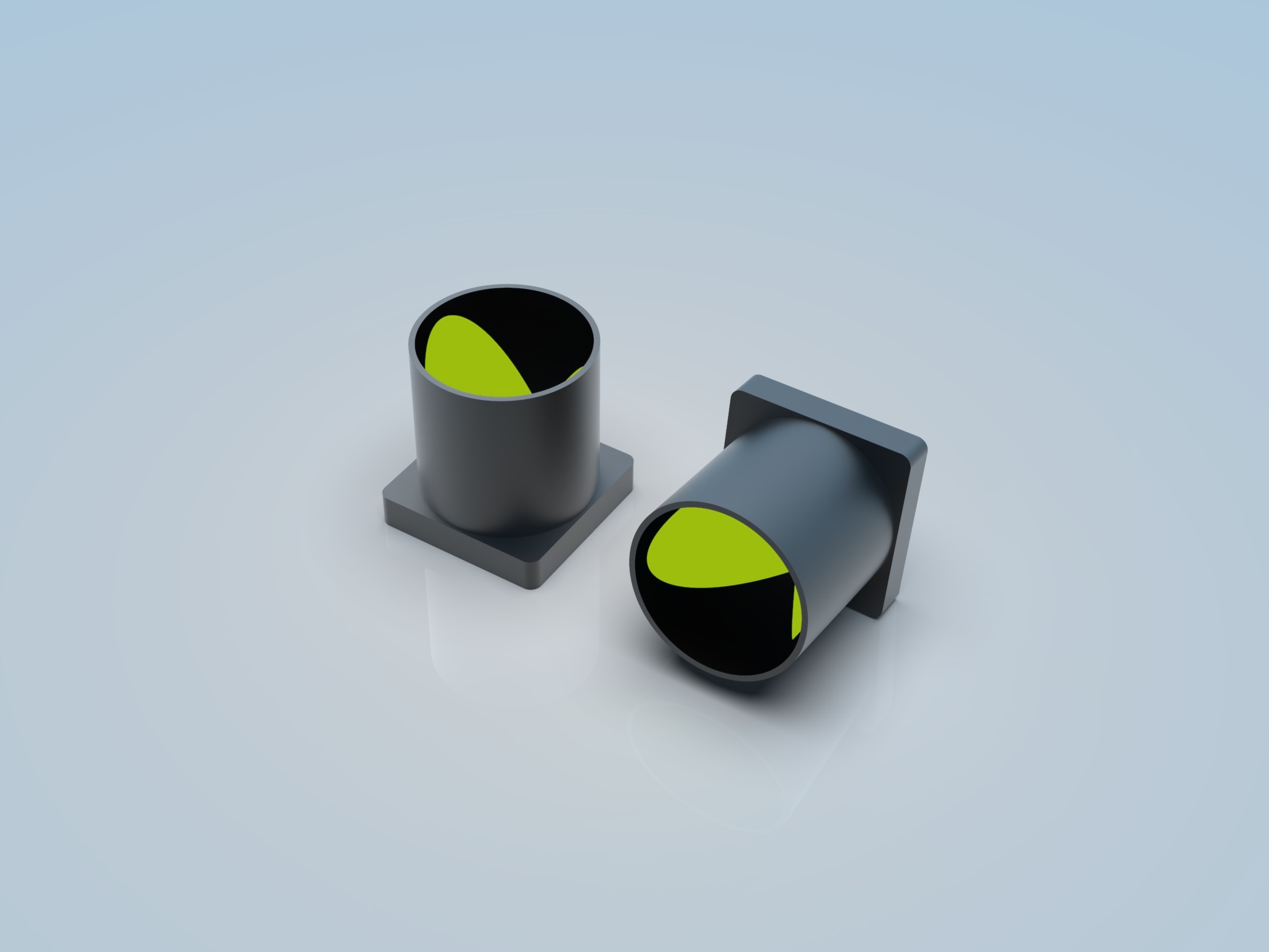

  Terahertz Hollow Retro Reflector

  Size choice : 25.4mm to 63.5mm(customizable)

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL


  Terahertz Metallic Mirrors

  Size choice : 25.4mm to 76.2mm(customizable)

  Thickness: 3 to 6mm(customizable)

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL


  Terahertz ZnTe Crystals

  Size choice : 10mm * 10mm * (0.1 to 2mm) (customizable)

  Terahertz Beam Expander Reflection

  Output diameter: 40mm

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL

  Terahertz Polarizers

  Size choice : 25.4mm and 50.8mm (customizable)


  THz High Resistivity Silicon Beam Splitter

  Size choice : 1 to 3 inch (customizable)

  Thickness 0.5 to 3mm

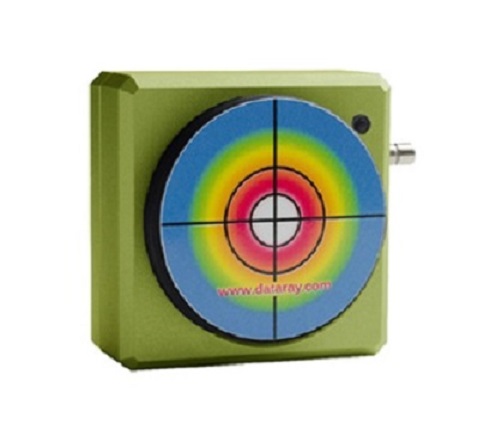

  Terahertz Beam Profiler (1-18 THz)




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Diameter (mm)

Focal Length (mm)

Material


Search Reset
Compare Model Drawings & Specs Material Focal Length (mm) Diameter (mm) Availability Reference Price
(USD)
TPX-10-25.4-U
TPX, Terahertz Lens, EFL=10mm, Ø=25.4mm, Uncoated
TPX25.4 2-3 Weeks $262.00
TPX-25-25.4-U
TPX, Terahertz Lens, EFL=25.4mm, Ø=25.4mm, Uncoated
TPX2525.4 2-3 Weeks $262.00
TPX-32.5-25.4-U
TPX, Terahertz Lens, EFL=32.5mm, Ø=25.4mm, Uncoated
TPX25.4 2-3 Weeks $262.00
TPX-35-25.4-U
TPX, Terahertz Lens, EFL=35mm, Ø=25.4mm, Uncoated
TPX3525.4 2-3 Weeks $262.00
TPX-50-25.4-U
TPX, Terahertz Lens, EFL=50mm, Ø=25.4mm, Uncoated
TPX5025.4 2-3 Weeks $262.00
TPX-65-25.4-U
TPX, Terahertz Lens, EFL=65mm, Ø=25.4mm, Uncoated
TPX25.4 2-3 Weeks $262.00
TPX-75-25.4-U
TPX, Terahertz Lens, EFL=75mm, Ø=25.4mm, Uncoated
TPX7525.4 2-3 Weeks $262.00
TPX-100-25.4-U
TPX, Terahertz Lens, EFL=100mm, Ø=25.4mm, Uncoated
TPX10025.4 2-3 Weeks $262.00
TPX-120-25.4-U
TPX, Terahertz Lens, EFL=120mm, Ø=25.4mm, Uncoated
TPX25.4 2-3 Weeks $262.00
TPX-150-25.4-U
TPX, Terahertz Lens, EFL=150mm, Ø=25.4mm, Uncoated
TPX10025.4 2-3 Weeks $262.00
TPX-200-25.4-U
TPX, Terahertz Lens, EFL=200mm, Ø=25.4mm, Uncoated
TPX20025.4 2-3 Weeks $262.00
TPX-240-25.4-U
TPX, Terahertz Lens, EFL=240mm, Ø=25.4mm, Uncoated
TPX25.4 2-3 Weeks $262.00
TPX-50-38.1-U
TPX, Terahertz Lens, EFL=50mm, Ø=38.1mm, Uncoated
TPX5038.1 2-3 Weeks $304.00
TPX-75-38.1-U
TPX, Terahertz Lens, EFL=75mm, Ø=38.1mm, Uncoated
TPX7538.1 2-3 Weeks $304.00
TPX-100-38.1-U
TPX, Terahertz Lens, EFL=100mm, Ø=38.1mm, Uncoated
TPX10038.1 2-3 Weeks $304.00
TPX-150-38.1-U
TPX, Terahertz Lens, EFL=150mm, Ø=38.1mm, Uncoated
TPX15038.1 2-3 Weeks $304.00
TPX-200-38.1-U
TPX, Terahertz Lens, EFL=200mm, Ø=38.1mm, Uncoated
TPX20038.1 2-3 Weeks $304.00
TPX-50-50.8-U
TPX, Terahertz Lens, EFL=50mm, Ø=50.8mm, Uncoated
TPX5050.8 2-3 Weeks $349.00
TPX-75-50.8-U
TPX, Terahertz Lens, EFL=75mm, Ø=50.8mm, Uncoated
TPX7550.8 2-3 Weeks $349.00
TPX-100-50.8-U
TPX, Terahertz Lens, EFL=100mm, Ø=50.8mm, Uncoated
TPX10050.8 2-3 Weeks $349.00
TPX-150-50.8-U
TPX, Terahertz Lens, EFL=150mm, Ø=50.8mm, Uncoated
TPX15050.8 2-3 Weeks $349.00
TPX-200-50.8-U
TPX, Terahertz Lens, EFL=200mm, Ø=50.8mm, Uncoated
TPX20050.8 2-3 Weeks $349.00
TPX-400-50.8-U
TPX, Terahertz Lens, EFL=400mm, Ø=50.8mm, Uncoated
TPX50.8 2-3 Weeks $349.00
HDPE-25-25.4
HDPE, Terahertz Lens, EFL=25mm, Ø=25.4mm
HDPE2525.4 2-3 Weeks $97.00
HDPE-50-25.4
HDPE, Terahertz Lens, EFL=50mm, Ø=25.4mm
HDPE5025.4 2-3 Weeks $97.00
HDPE-100-25.4
HDPE, Terahertz Lens, EFL=100mm, Ø=25.4mm
HDPE10025.4 2-3 Weeks $97.00
HDPE-150-25.4
HDPE, Terahertz Lens, EFL=150mm, Ø=25.4mm
HDPE15025.4 2-3 Weeks $97.00
HDPE-200-25.4
HDPE, Terahertz Lens, EFL=200mm, Ø=25.4mm
HDPE20025.4 2-3 Weeks $97.00
HDPE-50-38.1
HDPE, Terahertz Lens, EFL=50mm, Ø=38.1mm
HDPE5038.1 2-3 Weeks $106.00
HDPE-75-38.1
HDPE, Terahertz Lens, EFL=75mm, Ø=38.1mm
HDPE7538.1 2-3 Weeks $106.00
HDPE-100-38.1
HDPE, Terahertz Lens, EFL=100mm, Ø=38.1mm
HDPE10038.1 2-3 Weeks $106.00
HDPE-150-38.1
HDPE, Terahertz Lens, EFL=150mm, Ø=38.1mm
HDPE15038.1 2-3 Weeks $106.00
HDPE-200-38.1
HDPE, Terahertz Lens, EFL=200mm, Ø=38.1mm
HDPE20038.1 2-3 Weeks $106.00
HDPE-50-50.8
HDPE, Terahertz Lens, EFL=50mm, Ø=50.8mm
HDPE5050.8 2-3 Weeks $127.00
HDPE-100-50.8
HDPE, Terahertz Lens, EFL=100mm, Ø=50.8mm
HDPE10050.8 2-3 Weeks $127.00
HDPE-150-50.8
HDPE, Terahertz Lens, EFL=150mm, Ø=50.8mm
HDPE15050.8 2-3 Weeks $127.00
HDPE-200-50.8
HDPE, Terahertz Lens, EFL=200mm, Ø=50.8mm
HDPE20050.8 2-3 Weeks $127.00
HDPE-100-76.2
HDPE, Terahertz Lens, EFL=100mm, Ø=76.2mm
HDPE100 2-3 Weeks $177.00
HDPE-200-76.2
HDPE, Terahertz Lens, EFL=200mm, Ø=76.2mm
HDPE200 2-3 Weeks $177.00
HDPE-100-101.6
HDPE, Terahertz Lens, EFL=100mm, Ø=101.6mm
HDPE100101.6 2-3 Weeks $265.00
HDPE-200-101.6
HDPE, Terahertz Lens, EFL=200mm, Ø=101.6mm
HDPE200101.6 2-3 Weeks $265.00
HDPE-400-101.6
HDPE, Terahertz Lens, EFL=400mm, Ø=101.6mm
HDPE101.6 2-3 Weeks $265.00
