Monochromators & Spectrographs

SIMTRUM can provide a variety of monochromators and spectrometers suitable for various experimental scenarios, including single grating, double grating, triple grating monochromators and vacuum ultraviolet spectrometers.
Model Spectral Range Resolution Accuracy Repeatability Focal length F/# Slit Width
Standard Single Grating Monochromator 330~1000 nm up to 0.5 nm up to 0.5 nm up to 0.25 nm 100 mm F/3 300μm
High Resolution Single Grating Monochromator 330~1000 nm up to 0.1 nm up to 0.2 nm up to 0.1 nm 300 mm F/4.8 10μm~3mm
Double Grating Scanning Monochromator 200~2000 nm up to 0.2 nm up to 0.13 nm up to 0.05 nm 150mm F/4.5 10μm~3mm
Triple Grating Scanning Monochromator 200~2500 nm up to 0.05 nm up to 0.1 nm up to 0.05 nm 300 mm F/4.8 10μm~3mm
High Resolution Triple Grating Monochromator 200~2500 nm up to 0.03 nm up to 0.1 nm up to 0.05 nm 500 mm F/8 10μm~3mm

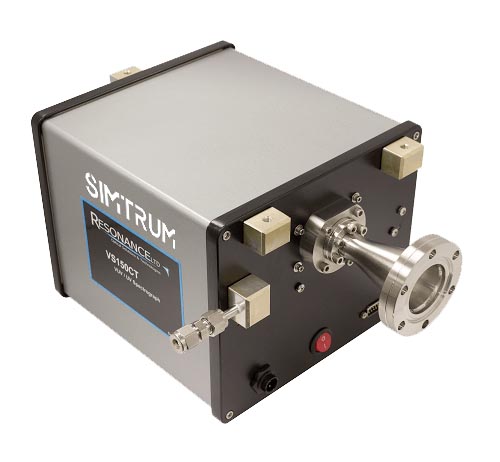

VUV/UV Spectrograph 115-1100 nm Ave 0.04 mm ±0.1 nm / 151-153 mm F/5.2-F/10.4 selectable software selectable


Technical Support Available: Contact us  You can download our full Product Line Card Click Here
