25mm Linear Stages
Stainless Steel Stainless Steel Drawing AL AL Drawing Related Products Order Now!









• 25mm travel enabled by micrometers

• Crossed roller guides enable strong load capacity and good wear

  resistance

• Platforms differ based on platform dimensions and micrometer

  position

• Main material is stainless steel



Selection Guide

Simtrum Part No. Drive Direction Minimum reading (µm) Platform dimensions (mm) Travel (mm) Bearing Type  Maximum Load (N) Straight Line Accuracy (µm) Material
25SSCR8080

Center/

Right

 10 80 x 80 25 Cross Roller Guide 98 3 Stainless Steel
25SSCL8080

Center/

Left

 10 80 x 80 25 Cross Roller Guide 98 3 Stainless Steel
25SSR8080 Right  10 80 x 80 25 Cross Roller Guide 98 3 Stainless Steel
25SSL8080 Left  10 80 x 80 25 Cross Roller Guide 98 3 Stainless Steel
25SSR100100 Right  10 100 x 100 25 Cross Roller Guide  68.6  3 Stainless Steel
25SSL100100 Left  10 100 x 100 25 Cross Roller Guide  68.6  3 Stainless Steel

The information in the chart above is a general guide to choosing the suitable 25mm crossed roller bearing  stainless steel stages for your motion setup.

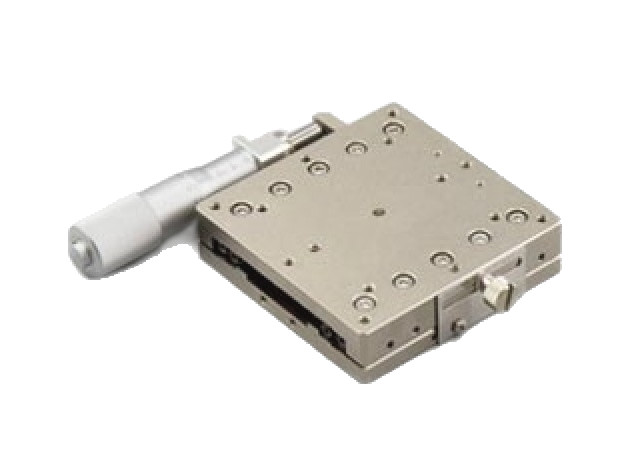

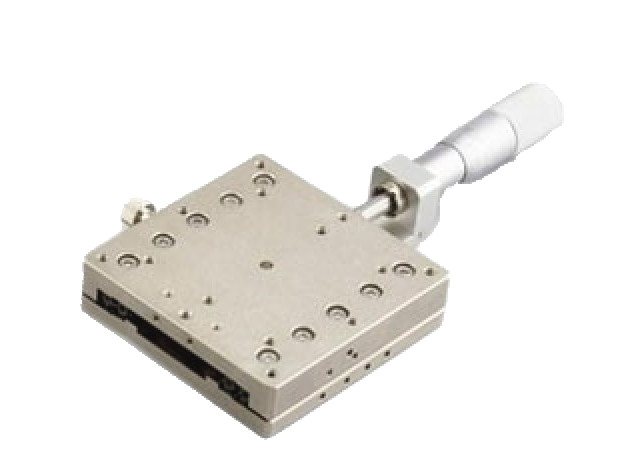

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

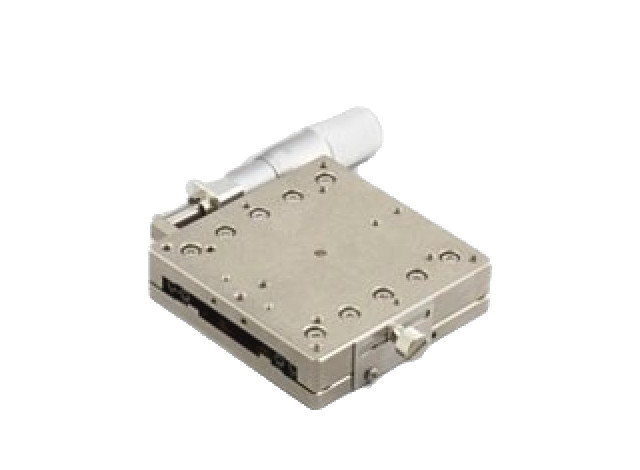

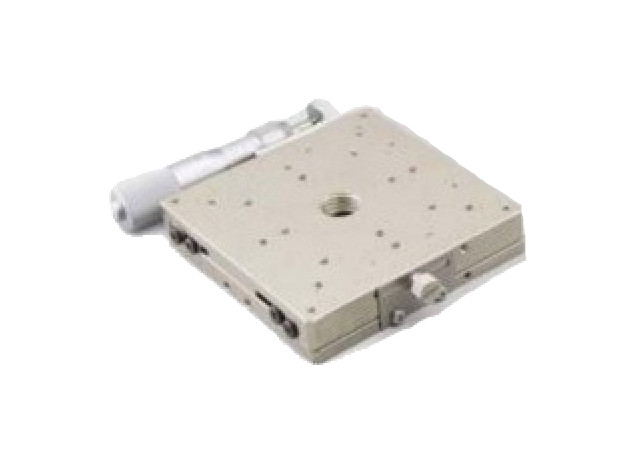

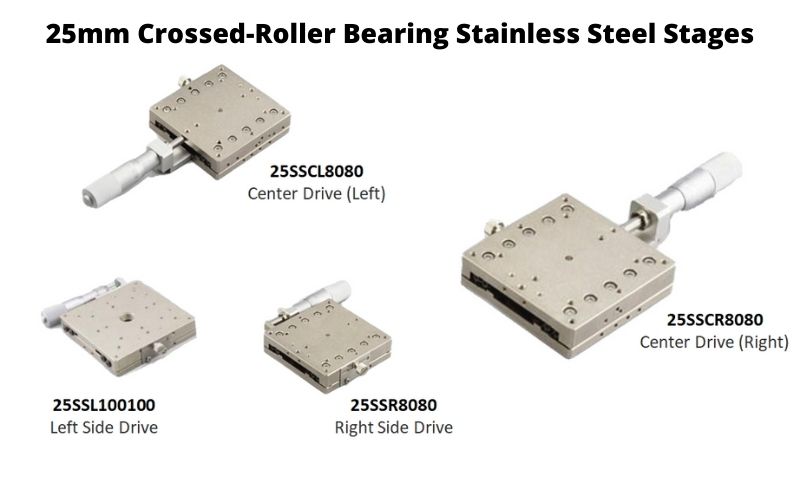

25SSCR8080

25SSCL8080

25SSR8080

25SSL8080







• 25mm travel enabled by micrometers



• Crossed-roller guides enable strong load capacity and good wear resistance



• Single-axis and double-axis version available



• Products differ based on platform size and micrometer position



• Main material is aluminium, which is a lightweight material that does not rust,

  corrode easily



Selection Guide

Simtrum Part No. Bearing Type Drive Direction Travel(mm) Hole Type Platform dimensions(mm) Maximum load(N) Straight Line Accuracy(μm) Material Minimum reading(μm)
25LSCR8080 Crossed Roller Guide

Center

/Right

 25

Top: M4,M16

 Bottom:

Counterbore

holes for M4

Cap Screws

 80x80 49 3 Aluminium 10
25LSR8080 Crossed Roller Guide Right 25

Top:M4,M16

Bottom:

 Counterbore

holes for M4

Cap Screws

 80x80 49 3 Aluminium 10
25LSL8080 Crossed Roller Guide Left 25

Top:M4,M16

Bottom:

 Counterbore

holes for M4

Cap Screws

 80x80 49 3 Aluminium 10
25LSCR100100 Crossed Roller Guide

Center

/Right

 25

Top:M4,M16

 Bottom:

Counterbore

holes for M4

Cap Screws

 100x100 68.6 3 Aluminium 10
25LSR100100 Crossed Roller Guide Right 25

Top:M4,M16

Bottom:

 Counterbore

holes for M4

Cap Screws

 100x100 68.6 3 Aluminium 10
25LSL100100 Crossed Roller Guide Left 25

Top:M4,M16

 Bottom:

Counterbore

holes for M4

Cap Screws

 100x100 68.6 3 Aluminium 10
25LSR125125 Crossed Roller Guide Right 25

Top: M4

 Bottom:

Counterbore

holes for M4

Cap Screws

 125x125 196 3 Aluminium 10
25LSL125125 Crossed Roller Guide Left 25

Top: M4

 Bottom:

Counterbore

holes for M4

Cap Screws

 125x125 196 3 Aluminium 10

The information in the chart above is a general guide to choosing the suitable 25mm crossed roller bearing  aluminium stages for your motion setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

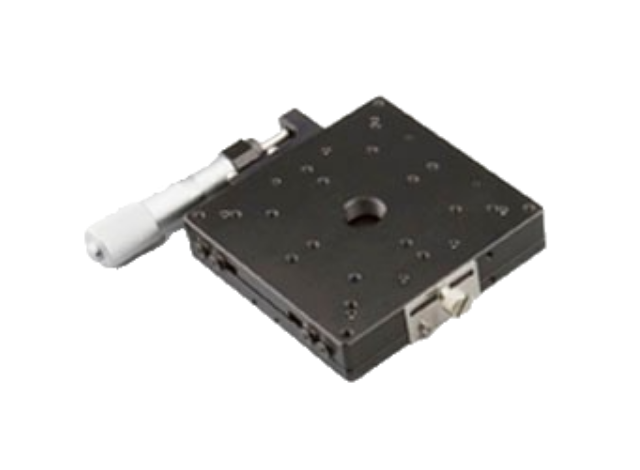

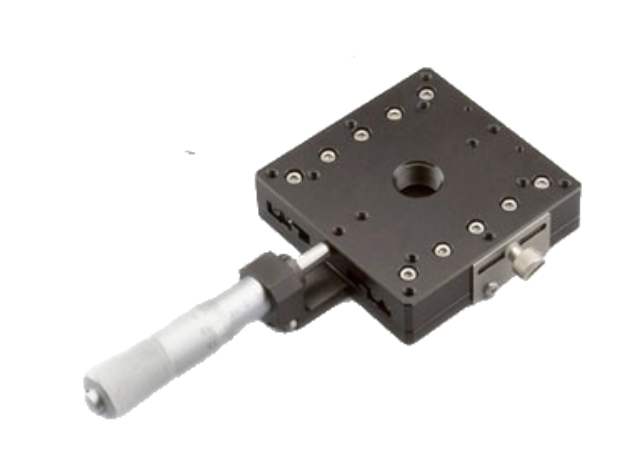

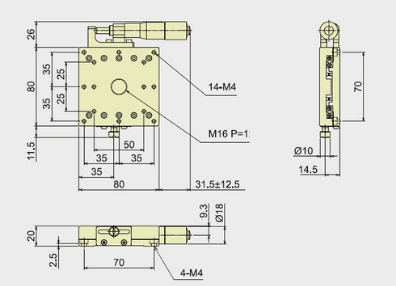

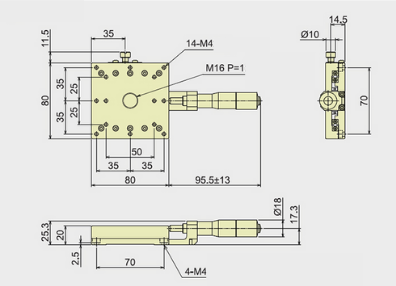

25LSCR8080

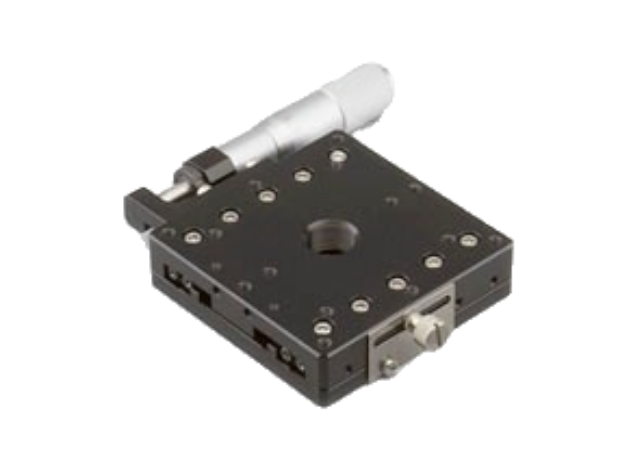

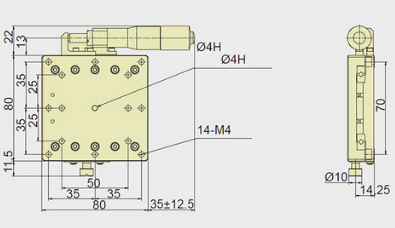

25LSR8080

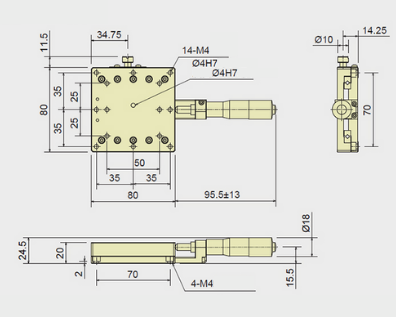

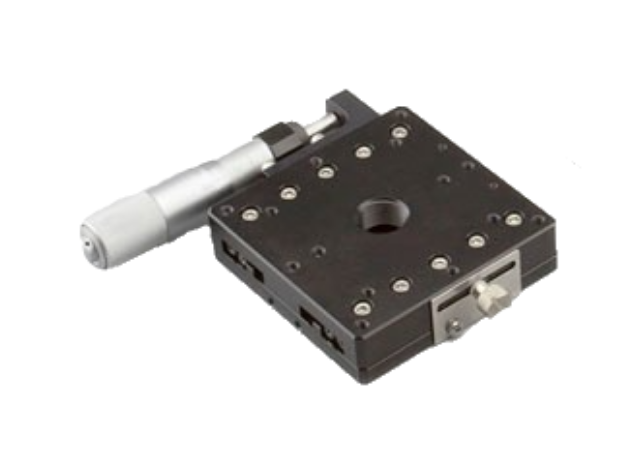

25LSL8080

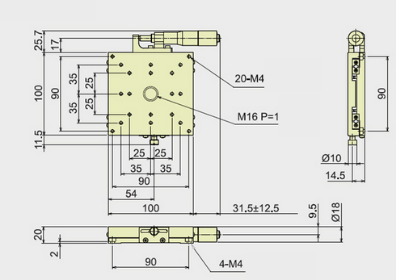

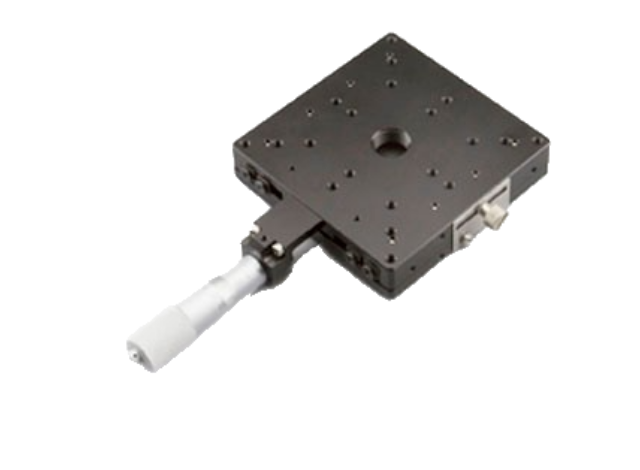

25LSCR100100

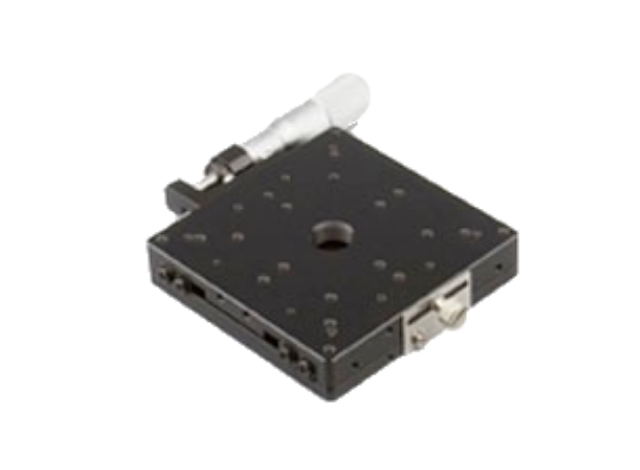

25LSR100100

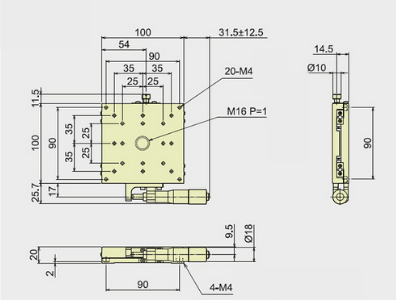

25LSL100100

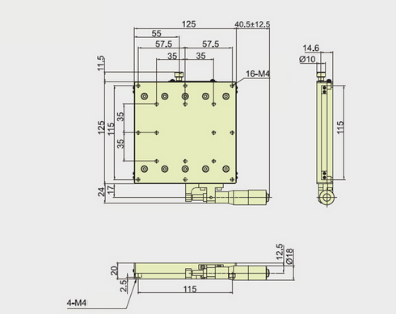

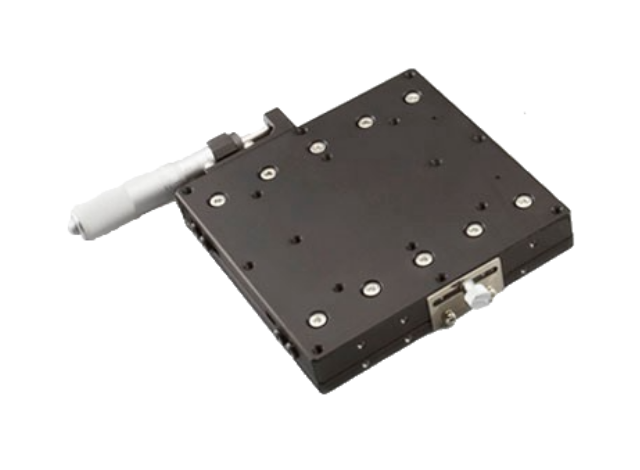

25LSL125125

WB 25LSL125125.png

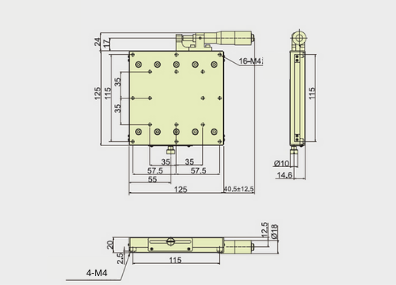

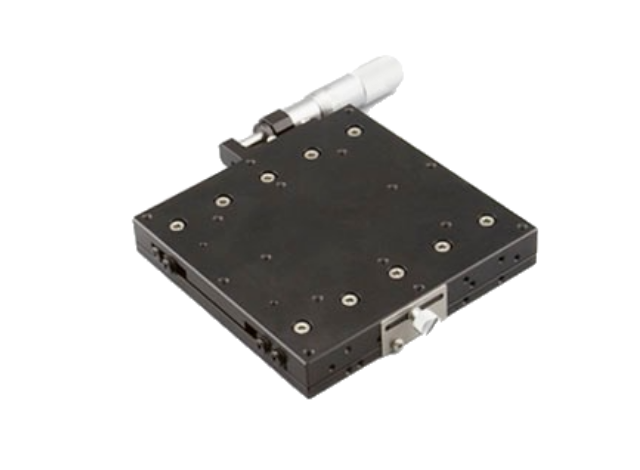

25LSR125125




13mm Linear Stages

 Rotation and Tilt StagesRotation and Tilt Stages.jpg OptomechanicsOptomechanics.jpg Vertical Axis StagesVertical Axis Stage.jpg




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Platform dimensions (mm)


Search Reset
Compare Model Drawings & Specs Travel (mm) Platform dimensions (mm) Drive Direction Maximum Load (N) Availability Reference Price
(USD)
25SSCR8080
25 mm Stainless Steel Translation Stage, Platform dimensions = 80 x 80 mm, Center Drive (Right) 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $395.22
25SSCL8080
25 mm Stainless Steel Translation Stage, Platform dimensions = 80 x 80 mm, Center Drive (Left) 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $395.22
25SSR8080
25 mm Stainless Steel Translation Stage, Platform dimensions = 80 x 80 mm, Right Side Drive 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $395.22
25SSL8080
25 mm Stainless Steel Translation Stage, Platform dimensions = 80 x 80 mm, Left Side Drive 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $395.22
25SSR100100
25 mm Stainless Steel Translation Stage, Platform dimension = 100 x 100 mm, Right Side Drive 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $551.64
25SSL100100
25 mm Stainless Steel Translation Stage, Platform dimension = 100 x 100 mm, Left Side Drive 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $551.64
25LSCR8080
25mm Linear Stage, Platform dimensions=80mmx80mm, Center Drive 		2580x8049 4-6 Weeks $208.10
25LSR8080
25mm Linear Stage, Platform dimensions=80mmx80mm, Right Side Drive 		2580x80Right49 4-6 Weeks $208.10
25LSL8080
25mm Linear Stage, Platform dimensions=80mmx80mm, Left Side Drive 		2580x80Left49 4-6 Weeks $208.10
25LSCR100100
25mm Linear Stage, Platform dimensions=100mmx100mm, Left Side Drive 		25100x10068.6 4-6 Weeks $257.14
25LSR100100
25mm Linear Stage, Platform dimensions=100mmx100mm, Left Side Drive 		25100x100Right68.6 4-6 Weeks $257.14
25LSL100100
25mm Linear Stage, Platform dimensions=100mmx100mm, Left Side Drive 		25100x100Left68.6 4-6 Weeks $257.14
25LSR125125
25mm Linear Stage, Platform dimensions=125mmx125mm, Right Side Drive 		25125x125Right196 4-6 Weeks $268.23
25LSL125125
25mm Linear Stage, Platform dimensions=100mmx100mm, Left Side Drive 		25125x125Left196 4-6 Weeks $268.23

25LSL125125 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
125x125

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
196

25LSR125125 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
125x125

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
196

25LSL100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
68.6

25LSR100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
68.6

25LSCR100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
68.6

25LSL8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
49

25LSR8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
49

25LSCR8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
49

25SSL100100 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25SSR100100 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25SSL8080 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25SSR8080 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25SSCL8080 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25SSCR8080 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25LSL125125 - Download

25LSR125125 - Download

25LSL100100 - Download

25LSR100100 - Download

25LSCR100100 - Download

25LSL8080 - Download

25LSR8080 - Download

25LSCR8080 - Download

25SSL100100 - Download

25SSR100100 - Download

25SSL8080 - Download

25SSR8080 - Download

25SSCL8080 - Download

25SSCR8080 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
