Single Photon Detector | SIMTRUM Photonics Store

Products / Light Analysis / Photodetectors / Single Photon Detector (SPD)(200-1700nm) /

Single Photon Detector (SPD)(200-1700nm)

SIMTRUM offers avalanche photodiodes (APDs), superconducting nanolinear single photon detectors (SNSPD), and can cover both visible (200-1060nm) and near-infrared (900-1700nm) wavelength ranges with quantum efficiency up to 80%.

Model Wavelength Range Timing Resolution/Jitter QE  Dark Count Rate
Silicon APD Detector 200 -1060nm  / 65%@700nm，2%@200nm <200cps to <500cps

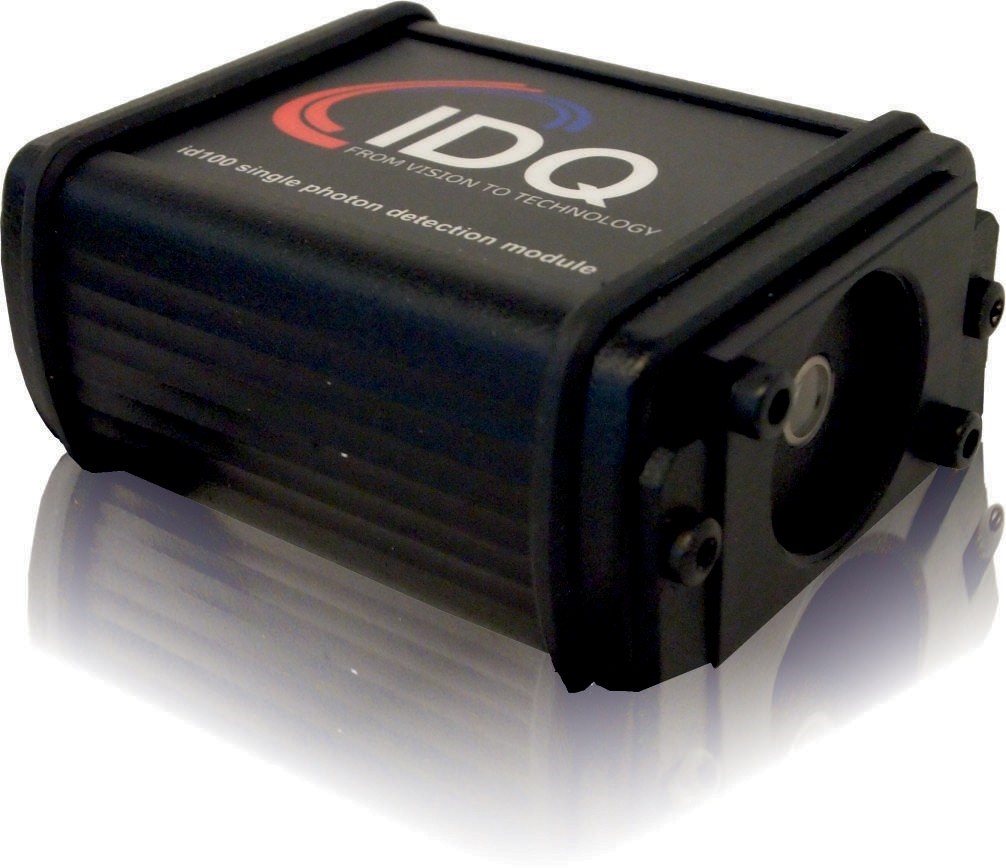

Visible SPD (Peak QE~500nm) 350 - 1000nm <40ps 35%@500nm, 25%@600nm <7Hz  to <250Hz
Visible SPD (Peak QE~800nm) 350 - 1000nm <200ps 60%@640nm, 80%@800nm <300Hz to <1000Hz

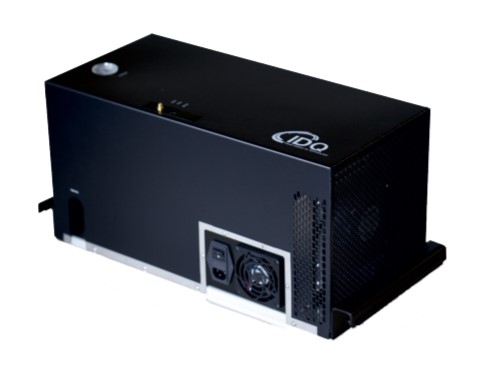

NIR SPD (900-1700nm) 900 - 1700nm     ≤2e-6/gate @10% SPDE
NIR SPD (Dual Channels) 900-1700nm <100ps    ≤2e-6/gate @10% SPDE
NIR SPD Low Dark Count 900 - 1700nm <150ps 25% 50 t0 200 Hz

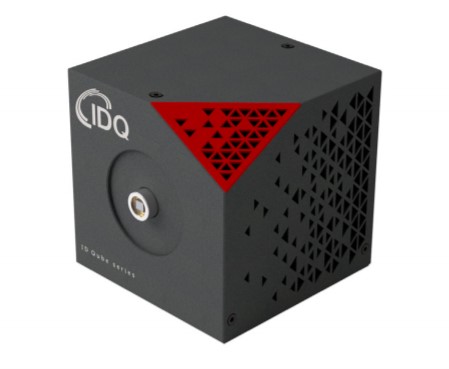

NIR SPD Free Running/Gated 900 - 1700nm <150ps up to 35% 0.8 to 6 Khz

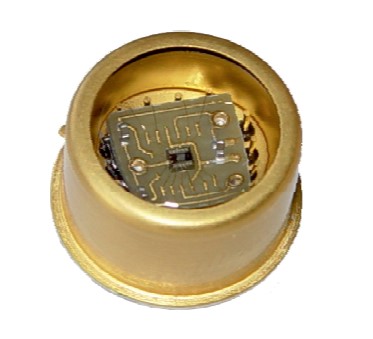

Visible Photon Counter OEM 350 - 900nm 40 -60ps 35%@500nm，4%@900nm <30Hz to <300Hz

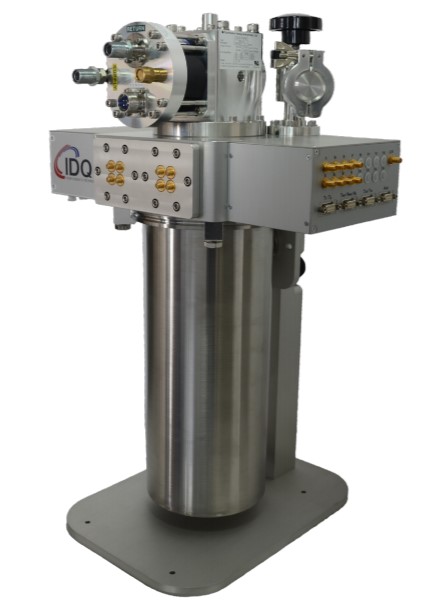

Super Conducting Nanowire System 780 - 1625nm 20- 40ps >80% over min 100nm <1Hz  to <100Hz

Technical Support Available: Contact us  | You can download our full Product Line Card Click Here
