Ytterbium Doped Fiber Amplifier

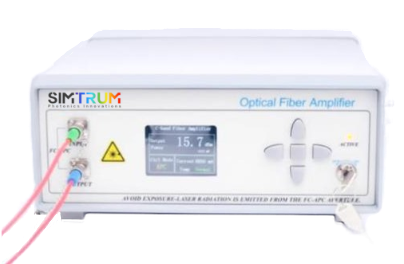

Ytterbium-doped Fiber Amplifier

Ytterbium-doped fiber amplifier (YDFA) generates gain by pumping ytterbium-doped fiber with a semiconductor laser, used to amplify laser signals in the 1030~1100nm band, Hi1060 single-mode fiber or PM980 polarization-maintaining fiber output, the output power is continuously adjustable, with high gain and low the advantage of noise. The desktop YDFA is convenient for experimental operation, and the user can adjust the pump current and output power through the buttons on the front panel. A more compact modular YDFA is also available, which is convenient for users' system integration. Both desktop YDFA and modular YDFA can support PC software control and serial command control.

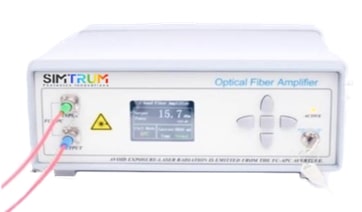

YDFA 1030nm - 1100nm picture 1

Characteristics

- Wide wavelength range

- High output power

- Low Noise

Applications

- Optical Fiber Communication

- Fiber Sensing

- Fiber Laser

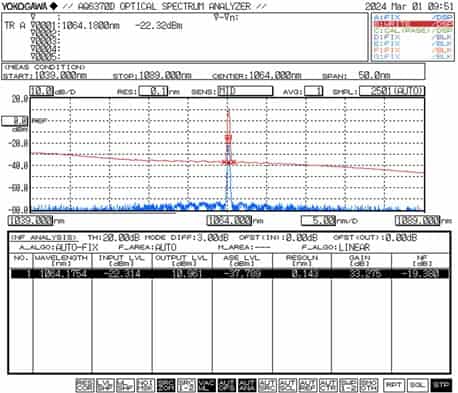

YDFA 1030nm - 1100nm picture 2


Product specifications and Brochures

Product Brochure Link:


Optical ParametersUnitTypical Value

SM

PM
Operating Wavelengthnm1030~1100
Input Signal Power dBm0~10
Saturation Output PowerdBm17/20/23/25/26/27/30/33/37/40 @0dBm input
Noise FiguredB5
Polarization
Random
Linear
Polarization dependent GaindB<0.3-
Polarization Extinction RatiodB-20
Input/output IsolationdB>35
Optical Power Monitoring-Output Power
Optical Fiber -Hi 1060 PM980
Fiber Connectors -FC/APC
Control Mode
 ACC/APC


General ParametersDesktopModule
Control FunctionKeystrokeRS232 serial   Communication

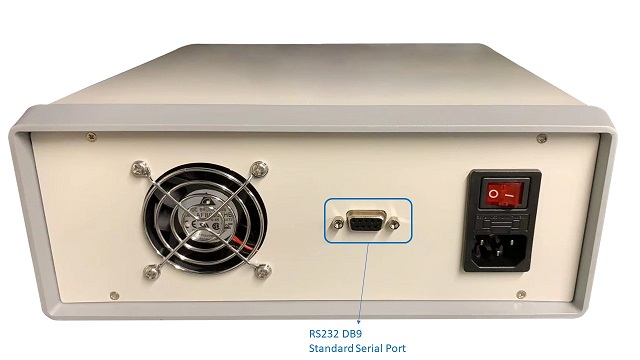

Remote control PortOptionalDB9 Female
Power SupplyAC100~240V,   <30WDC5V, <15W
Size17~27dBm260(W)×320(D)×120(H)mm125(W)×150(D)×30(H)mm
30~40dBm360(W)×350(D)×120(H)mm139(W)×235(D)×70(H)mm
Operation Temperature-5~+35°C
Operation Humidity0~70%


Ordering Information/ Product   Code
YDFASaturation Output Power(dBm)FiberPackaging

17/20/23/25/26/27/30/33/37/40

SM= HI 1060

PM= PM 980

M=module
 B=Desktop



1, Single wavelength EDFA is divided into pre-amplifier PA, power amplifier BA, and line amplifier LA. What are the differences?


Erbium-doped fiber small-signal amplifier (PA, Pre-Amplifier) is dedicated to amplifying weak optical signals in the range of -45dBm ~ -25dBm, the typical small-signal gain is as high as 35~45 dB, and it has a low noise figure. Usually, this is used to pre-amplify the signal before the photodetector improves its ability to detect weak light signals, so, it is also called a pre-amplifier. For example, in the figure below, the input optical power is -35dBm. After being amplified by the PA35 amplifier, it provides an effective gain of more than 35dB for the signal in the spectrum, and the amplified signal-to-background noise ratio is still higher than 30dB. If you replace it with a BA amplifier, although the total power can also be amplified to the same level, the signal-to-background ratio is only about 10dB or lower. The focus of PA-type amplifiers is to pursue a high gain factor and maintain a good signal-to-background ratio.



The Erbium-doped fiber power amplifier (BA, Booster-Amplifier) is to further improve the emission power of the light source on the basis that the light source has a certain power. It is usually used to boost the power of optical signals in the range of -6dBm~+3dBm or higher. The maximum output power of ordinary single-model models can reach 26dBm (400mW), and the high-power single-model models can reach up to 40dBm (10W). It is usually used to improve the emission power of laser light sources, focusing on the pursuit of high output power. The 10-watt high-power 1550nm single-mode single-wavelength laser of SIMTRUM Optoelectronics contains a 40dBm optical power amplifier inside.


Erbium-doped fiber line amplifier (LA, In-Line Amplifier) is an optical power amplifier product specially used for line relay in fiber laser or fiber communication systems. It combines the advantages of a PA amplifier and BA amplifier and can provide high gain for small signals. Amplification can also transmit higher laser power, with the advantages of high gain, high transmit power, and relatively low noise, used between fiber segments to increase the relay length or corresponding single point to multipoint in the optical access network part to compensate for branch losses. A simple understanding can be considered as a combination of PA and BA.


2, The structure and withstand the power of the optical fiber connector are recommended for use.


The Light is incident on this interface when free-space coupling or using an optical splice to match two fibers. If the light intensity is high, it will reduce the suitability of the power and cause permanent damage to the fiber. Commonly used FC-type fiber optic connectors Use epoxy to fasten the connector ceramic ferrule to the silica fiberThe heat generated by the high-intensity light will melt the epoxy resin, which will leave a residue in the center of the fiber connector surface, which will cause the fiber connector end face to be easily damagedAnd when there is pollution or dust on the end face, it is more likely to be damaged.



Estimated Optical Power Densities on Air / Glass Interface

* All values below are for unconnected (bare) silica fiber for free-space coupling to clean fiber end-faces

TypeTheoretical   Damage ThresholdPractical Safe   Level
CW (Average   Power)~1 MW/cm2~250 kW/cm2
10ns Pulsed (Peak   Power)~5 GW/cm2~1 GW/cm2


To estimate the applicable power level on the fiber end face, multiply the power density by the effective area. Note that this calculation assumes that the beam has a uniform intensity distribution, but most laser beams in single-mode fibers are Gaussian, making the center of the beam denser than at the edges, so these calculations will be slightly Power above the damage threshold or the actual safe level. Assuming a continuous light source, from the estimated power density, the corresponding power level can be determined.


SMF-28 Ultra Single Mode Fiber:

8.66 x 10-7 cm2 x 1 MW/cm2 = 8.7 x 10-7 MW = 870 mW (Theoretical damage threshold)

8.66 x 10-7 cm2 x 250 kW/cm2 = 2.1 x 10-4 kW = 210 mW (Actual safety level)



Specifically for our single-mode fiber lasers and amplifiers, we recommend that for lasers and amplifiers with an output power of 23dBm (200mW) and below, the output fiber can be docked with other single-mode fiber jumpers of the same type through the flange, as shown in the figure below. The connection of the FC-type fiber optic connector through the flange is shown. However, before connecting the optical fiber connector, it should be cleaned with a special fiber cleaning box, and carefully observed with the fiber end face detector to confirm that there is no dust and pollution before connecting through the flange, otherwise, the optical fiber connection may be burned when the laser is turned on. head end face. When connecting the flange, make sure that the output light of the laser is turned off. When not in use, please cover the dust cap of the fiber optic connector. Try to avoid frequent plugging and unplugging of the fiber optic connector on the front panel, so as not to be contaminated with dust and burn the end face of the fiber optic connection.


The output pigtails of high-power laser light sources above 200mW (or amplifiers with power above EDFA-BA-23) also have FC/APC connectors by default, but this connector is only used for power testing by users (easy to connect to a device with an FC interface). Optical power meter), as shown in the figure below.



Or if the user requires the output of the pigtail with a collimating lens, the exact parameters of the output spot (spot size, working distance, divergence angle) can be put forward, and we can match the laser with a customized fiber collimating lens accordingly. But need to increase the cost. As shown in the figure below, the Collimator and Adapter with FC/APC interface collimate the laser and output it to free space, as shown in the figure below (image source Thorlabs website).



It is necessary to emphasize to users that if the optical fiber connector outputs a laser with a power of more than 200mW, it is absolutely forbidden to use the optical fiber connector to connect with any other type of optical fiber connector, otherwise there is a great risk of damaging the optical fiber connector and the light source. If you need to connect other optical fibers, the only option is to use a fiber fusion splicer to connect by thermal fusion, as shown in the figure below.




3, What are the ACC and APC modes of EDFA?


ACC mode - automatic current control: the EDFA pumping current is set by the user, and the EDFA automatically locks it to keep the pumping current constant. Even if the input optical power fluctuates, the pump current will not change in response, so the output power will also fluctuate. The EDFA does not interfere with this power fluctuation and the ACC mode is available for all EDFA models. Small signal EDFA amplifier, only ACC mode.


APC mode-automatic power control: The signal optical output power of the EDFA is set by the user, the PD automatically monitors and feedbacks the output power, and the EDFA controls and adaptively adjusts the pump to achieve the stability of the output signal. The advantage of APC mode is that when the input optical power fluctuates, the EDFA will reduce the fluctuation of the output power as much as possible, which is suitable for power type and line type EDFA.


Ease of understanding with the help of the following diagram




4, There are many types of EDFA erbium-doped fiber amplifiers on the website, for example, single-wavelength EDFA, multi-wavelength EDFA, and pulsed EDFA, what is the difference between them? What are the advantages of pulsed EDFA over single wavelength EDFA?


Single-wavelength EDFA, multi-wavelength EDFA, and pulsed EDFA, although the principle is the same, are all laser-pumped erbium-doped fibers in the 980nm band to generate an optical gain in the C-band and L-band, optimized design and processing.


Single wavelength EDFA The main design of the product considers only a single wavelength signal input at the same time in the C-band or L-band and does not consider the application of simultaneous amplification of multiple wavelengths; in fact, multiple wavelengths can also be input to the amplifier at the same time, but the gain of different wavelengths in the C-band, the maximum may reach 3dB.


Multiwavelength EDFA The main design of the gain flat type product considers the simultaneous input of multiple wavelengths in the C-band at the same time, and the gain flatness of the simultaneous amplification of multiple wavelengths needs to be considered. The optimal gain flatness can be within 1.5dB by optimizing the design. However, it should be noted that the best flatness can be achieved when both the input optical power and the output optical power need to be fixed values; for example, for a certain model of multi-wavelength gain flat EDFA, the designed input optical power is -20dBm, and the input optical power is 20dBm, the gain flatness is ≤1.5dB; when the input optical power deviates from -20dBm or the output optical power deviates from 20dBm, the gain flatness may become larger;


Pulse EDFA Mainly for low repetition frequency (<1MHz), and narrow pulse width signal (<10ns), because such a pulse signal is easy to generate a high pulse when amplifying and exciting various nonlinear effects, resulting in spectral deterioration and pulse distortion, so the amplifier is in the While satisfying the power amplification, the optical nonlinear effect in the EDFA amplification process is minimized, the pulse distortion is reduced, and the signal-to-background ratio on the amplified signal spectrum is improved.


Click Here for more Single wavelength EDFA info.


5, Can a pulse-type amplifier amplify a square wave pulse and keep the pulse shape unchanged?


Although the pulsed amplifier is optimized for the pulsed laser signal, when amplifying the square-wave pulsed laser (pulse width>50ns) signal with a wider pulse width, due to the characteristics of the gain fiber, the leading edge of the signal pulse is given priority to gain the gain Amplification, the gain obtained in the middle and tail of the pulse is gradually reduced, so a square wave pulse with a flat top, after being amplified by EDFA, tends to appear in the shape of an upturned front of the pulse and a gradually reduced middle tail. This phenomenon cannot be eliminated, and the pulse The wider the width, the more obvious this phenomenon is (it can be understood that the upper-level ions consumed by the signal at the front of the pulse are not replenished in time, and the signal at the back of the pulse has already arrived, so the gain at the back of the pulse is gradually reduced). As shown in the following figure, the pulse waveform after 500ns pulse amplification and the pulse waveform after 40us pulse amplification can be seen them have top distortion, and the distortion of 40us pulse amplification is more serious.



(Above the blue laser pulse before amplification, the pulse width is 40us, the top is flat; the yellow is the amplified laser pulse, and the top is obviously uneven)


6, What is a pump protector? How do you choose one?


We found that some customers' 980nm pump lasers encountered no light at the beginning of use or when the frequency of use was very low. During the repair, we found that part of the reason was that the end face of the output fiber was burnt (the fiber connector was plugged and unplugged when the laser was output, or the end face of the fiber had an It is caused by turning on the laser when it is dusty), and another part of the reason is that the return light enters the pump laser chip, causing irreversible damage to the chip. In view of the high frequency of this situation, it is recommended to use a pump protector. The pump protector is a fiber-coated filter element that is usually added between the pump laser and the user's WDM to prevent signals generated by rare earth fibers. A small part of the light is pumped back through the WDM, causing the pump laser to be damaged. For the convenience of use, our 980nm pump laser products can integrate a protector inside the chassis. The device transmits the pump wavelength bidirectionally (910~990nm), does not transmit the signal light of the erbium-doped fiber (anti-reflection wavelength 1500~1600nm) or does not transmit the signal light of the ytterbium-doped fiber (anti-reflection wavelength 1020~1120nm), thereby protecting the pump laser, but the protector will bring 10~15% power loss. It should be noted that the pump protector required for erbium-doped fiber and ytterbium-doped fiber is not universal, so when purchasing a pump laser, please confirm with us whether a protector is built in the pump module and the specific anti-reflection wavelength of the protector. In addition, the protector has no one-way isolation effect on the 980nm pump wavelength, that is, the 980nm laser reflected along the output fiber can still return to the pump laser through the pump protector. If the pump needs to be isolated in one direction, the 980nm isolation can be added device. The use of the pump protector is as follows:




TypeWavelengthInputOutput
EDFA Single Mode C-Band - Standard/ Booster1530 - 1565 nm-45 dBm to -25dBm
-6dBm to +3dBm
35@-35dBm / 45@-45dBm
15/17/20/23/25/26 dBm
EDFA Single Mode C-Band In-Line1530 - 1565 nm-25 dBm to +3 dBm13/17/23/25/26 dBm
EDFA Single Mode C-Band Gain Flattened1530 - 1565 nm-32 dBm to -10 dBm14/17/20/23 dBm
EDFA Single Mode C-Band High Power1530 - 1565 nm- 6 dBm to +10dBm 27/30/33/35/37/40 dBm
EDFA Single Mode C-Band PM - Low Power / High Power1530 - 1565 nm-30 dBm to +3 dBm
- 6 dBm to +10 dBm
14/17/20/23/26 dBm
30/33/37/40 dBm
EDFA Single Mode C-Band Pulsed1530 - 1565 nm1-10mw1-1000W
EDFA Single Mode L-Band1530 - 1603 nm- 6 dBm to +3 dBm15/17/20/23/25 dBm
EDFA Single Mode L-Band Low Power / High Power1530 - 1603 nm- 6 dBm to +10 dBm 27/30/33/37 dBm
EDFA Single Mode L-Band High Power Polarization Maintaining1530 - 1603 nm- 6 dBm to +10 dBm 30/33/37 dBm
YDFA Ytterbium Doped Fiber Amplifier
1030 - 1100 nm0 dBm to 10 dBm17/20/23/25/26/27/30/33/37/40  @0dBm
TDFA Low Power1800 - 2000 nm->100 mW
TDFA High Power
1900 - 2050 nm10 mW1/3/5 W
Fiber Raman Amplifier 1st Order
1528 - 1565 nmPump Wavelenth
1425 - 1465 nm
Total Pump Power
300/500/1000/1400 mW
Fiber Raman Amplifier 2nd Order
1425 - 1465 nm
Pump Wavelenth
1340 -1360 nm
Total Pump Power
300/500/1000/1400 mW

We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
YDFA-17-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 17dBm @0dBm
4-6 Weeks $1758.00
YDFA-20-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 20dBm @0dBm input
4-6 Weeks $2149.00
YDFA-23-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 23dBm @0dBm input
4-6 Weeks $2540.00
YDFA-25-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 25dBm @0dBm input
4-6 Weeks $2637.00
YDFA-26-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 26dBm @0dBm input
4-6 Weeks $2882.00
YDFA-27-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 27dBm @0dBm input
4-6 Weeks $3370.00
YDFA-30-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 30dBm @0dBm input
4-6 Weeks $3907.00
YDFA-33-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 33dBm @0dBm input
4-6 Weeks $4493.00
YDFA-35-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 35dBm @0dBm input
4-6 Weeks $4786.00
YDFA-37-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 37dBm @0dBm input
4-6 Weeks $5079.00
YDFA-40-SM
YDFA 1030nm -1100nm, SM=HI 1060, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 40dBm @0dBm input
4-6 Weeks $6056.00
YDFA-17-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 17dBm @0dBm input
4-6 Weeks $2735.00
YDFA-20-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 20dBm @0dBm input
4-6 Weeks $3126.00
YDFA-23-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 23dBm @0dBm input
4-6 Weeks $3419.00
YDFA-25-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 25dBm @0dBm input
4-6 Weeks $3614.00
YDFA-26-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 26dBm @0dBm input
4-6 Weeks $3712.00
YDFA-27-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 27dBm @0dBm input
4-6 Weeks $3907.00
YDFA-30-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 30dBm @0dBm input
4-6 Weeks $4738.00
YDFA-33-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 33dBm @0dBm input
4-6 Weeks $5079.00
YDFA-35-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 35dBm @0dBm input
4-6 Weeks $5351.00
YDFA-37-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 37dBm @0dBm input
4-6 Weeks $5624.00
YDFA-40-PM
YDFA 1030nm -1100nm, PM=PM980, Wavelength 1030-1100nm, Input Power 0 to 10dBm, Saturated Output Power 40dBm @0dBm input
4-6 Weeks $6531.00
