Digital Micromirror Device| SIMTRUM Photonics Store

Products / Opto-Electronics /Spatial Light Modulator（SLM） /Digital Micromirror SLM /
Digital Micromirror SLM
Overview Model Selection Specification Application Software Related Products Order Now！

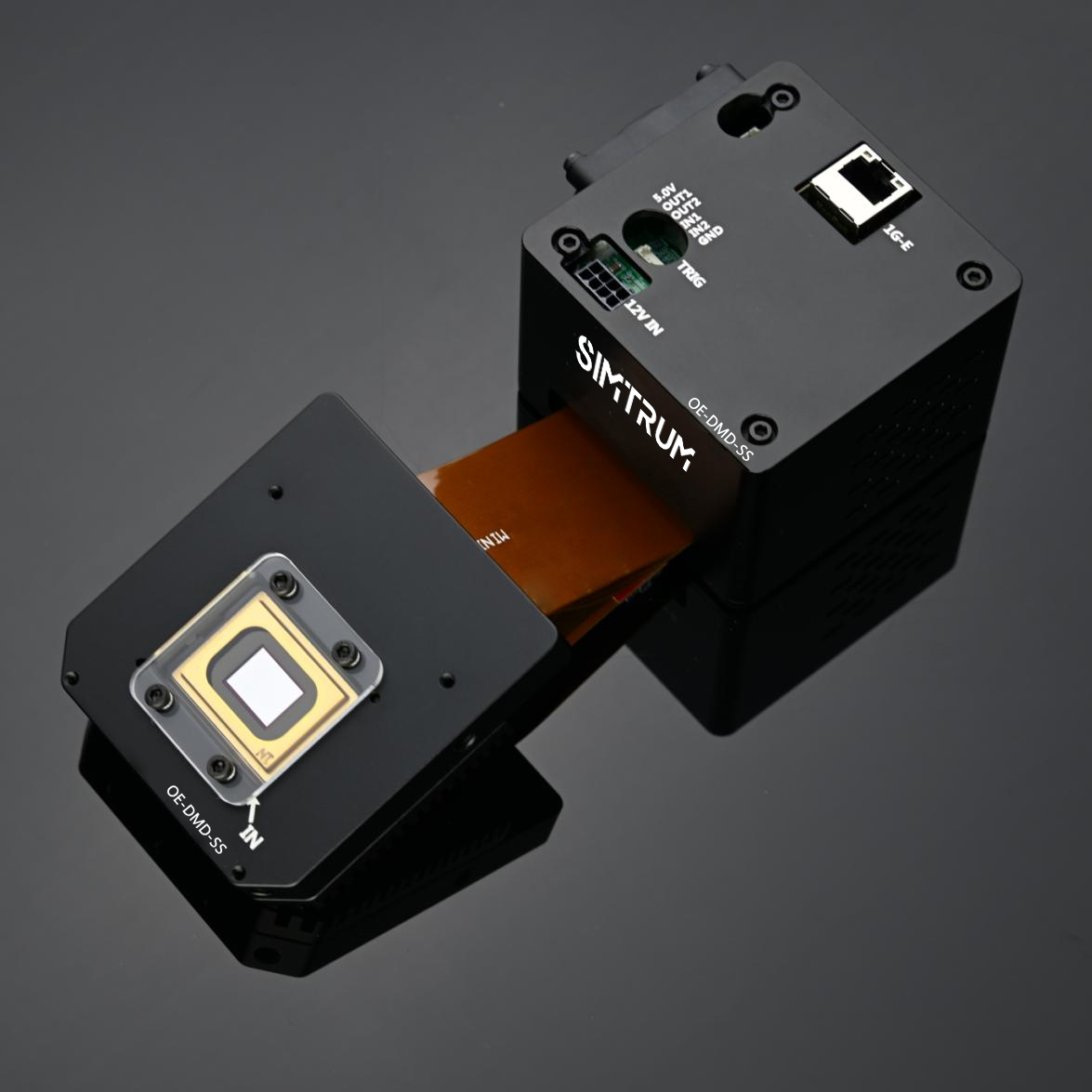

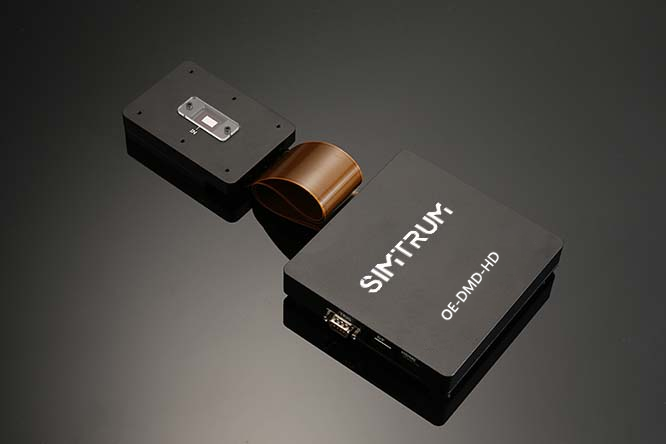

SIMTRUM's  Digital Micromirror Device is a type of spatial light modulator that modulates the amplitude, direction, and/or phase of incident light. A DMD is an array composed of multiple high-speed digital light reflectors, consisting of many small aluminum mirrors. The number of mirrors corresponds to the display resolution, with each micromirror representing a pixel, and the switching speed can reach several thousand times per second or higher.

Compared to TFT-LCDs, which have low transmittance and contrast, DMDs offer high reflectance and high contrast. By imaging an object onto the DMD and utilizing its pixel-level controllability along with its high flip frequency, each pixel can be sequentially scanned to a detector, enabling high-speed passive point scanning imaging of objects under visible light conditions during the day. When combined with light sources and optical components, DMDs can achieve speed, accuracy, and efficiency far surpassing other methods of spatial light modulation for binary graphics.

Each micromirror in the DMD can pivot individually around a hinge axis by +/- X° (with X typically being 12° nominally). The mirror’s deflection of +12° (on) and -12° (off) is controlled separately by changing the binary states of the underlying CMOS control circuit and the mirror reset signals. Light reflected from mirrors in the on state passes through the projection lens to the screen, and the image is modulated to grayscale by controlling the duration of the on and off states.

SIMTRUM offers a range of high-performance Digital Micromirror Devices , including the High definition digital micromirror device (HD-DMD) , Space saving digital micromirror device (SS-DMD), High speed digital micromirror device (HS-DMD), and High capacity digital micromirror device (HC-DMD). These devices cover a broad spectral range from deep ultraviolet (DUV) to long-wave infrared (LWIR), support high-definition resolutions, and provide diverse micromirror size options. Each series is tailored for specific performance requirements—from high-speed buffered frame rate processing to massive on-board storage capabilities—enabling applications in spectral analysis, industrial inspection, materials research, and advanced imaging techniques.

High definition series-HD
Space saving series -SS

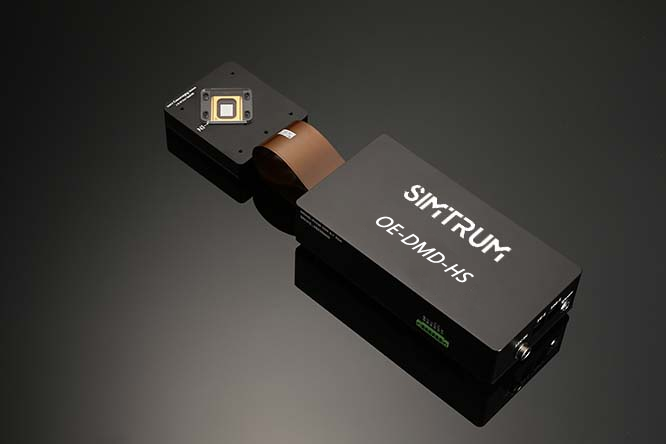

 High speed series -HS

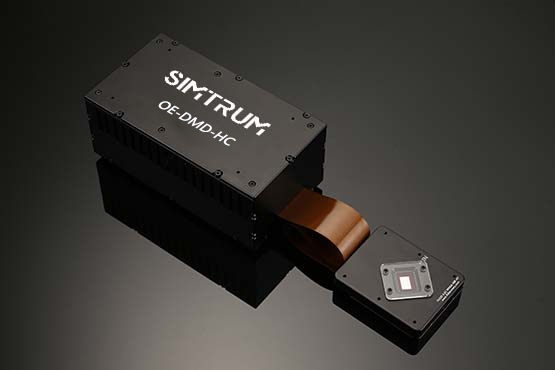

High capacity series -HC

Features

  • Two modes: image storage and real-time transmission
  • High contrast>2000:1
  • 120Hz real-time transmission rate

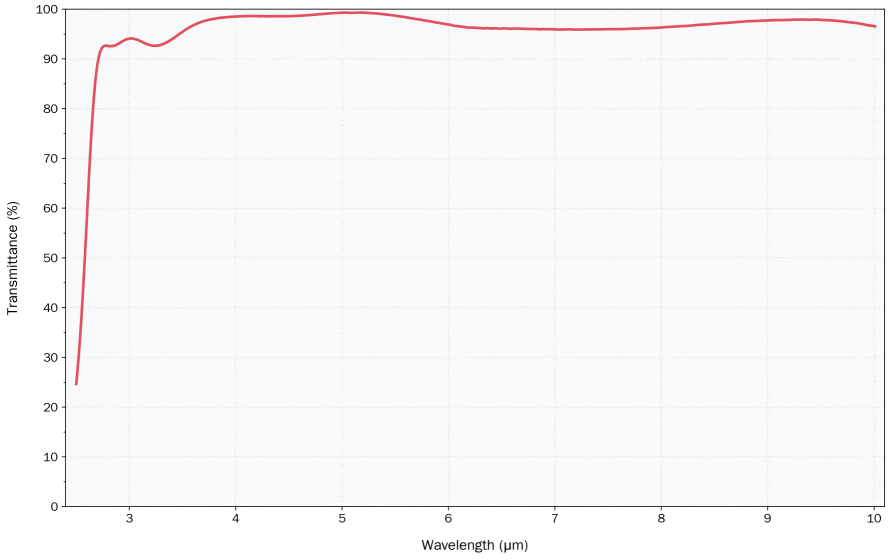

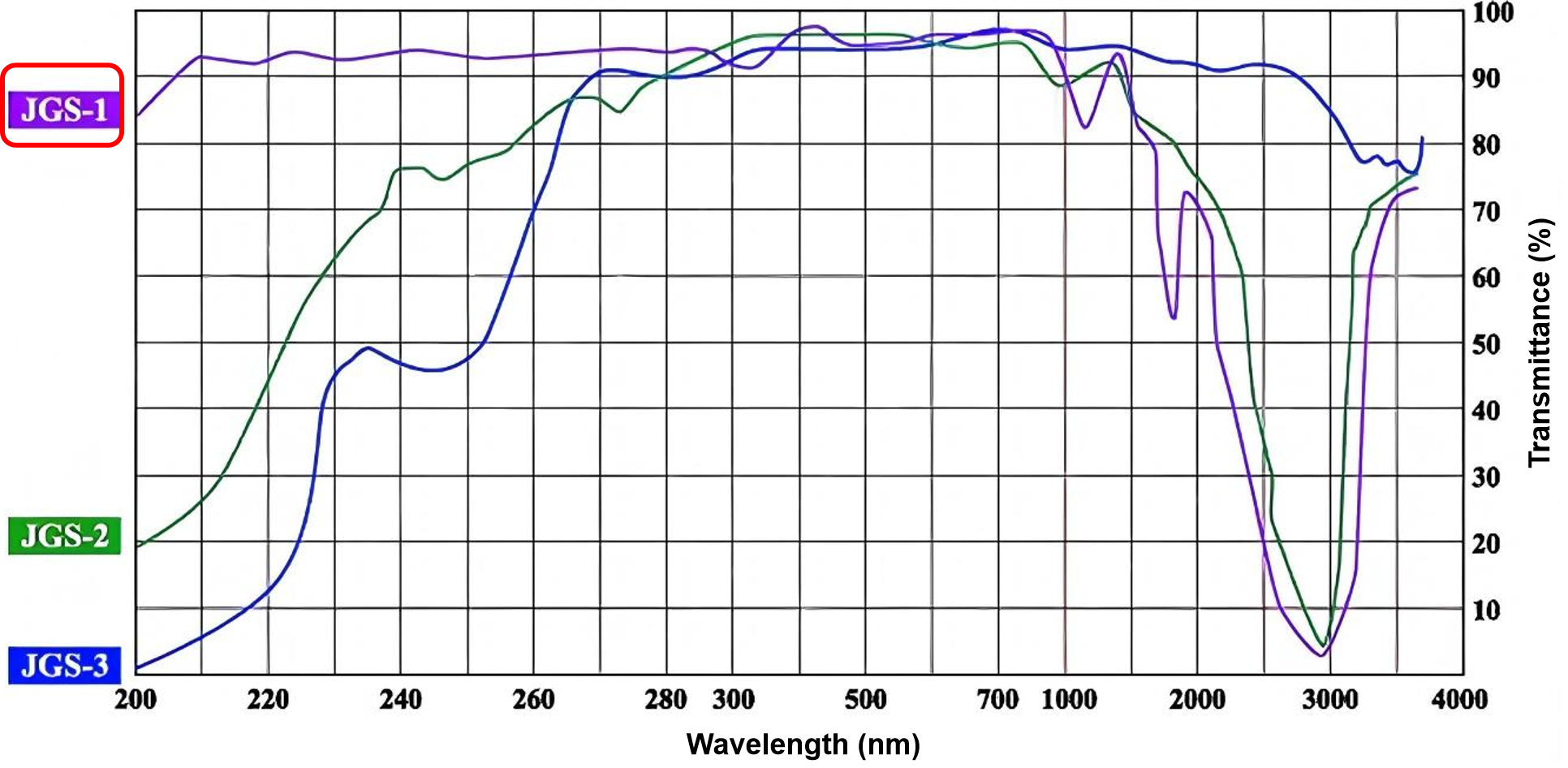

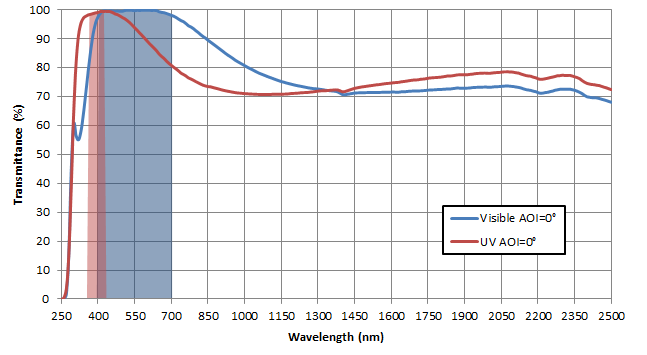

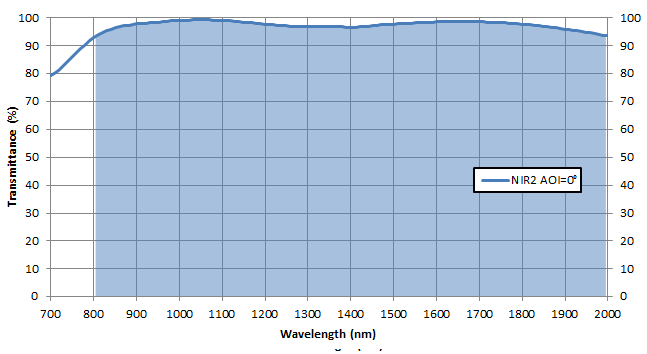

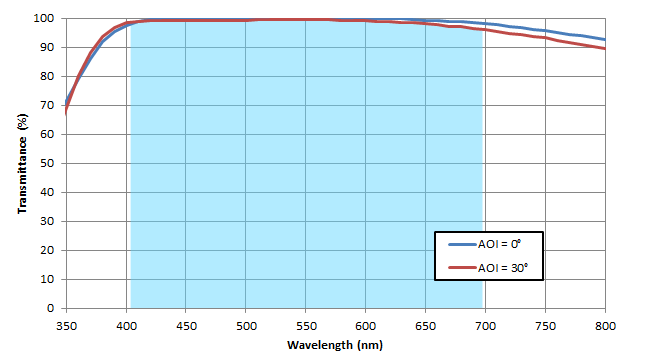

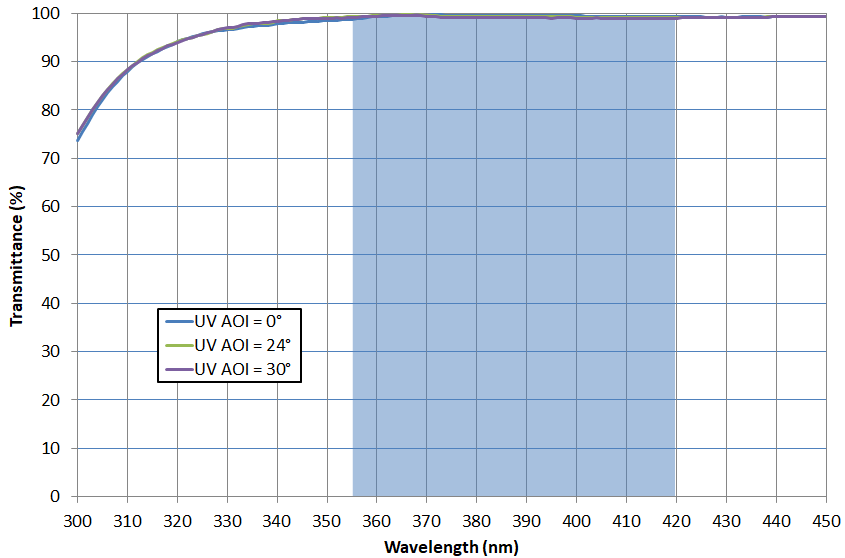

  • Wide spectral range(350-2500 nm)

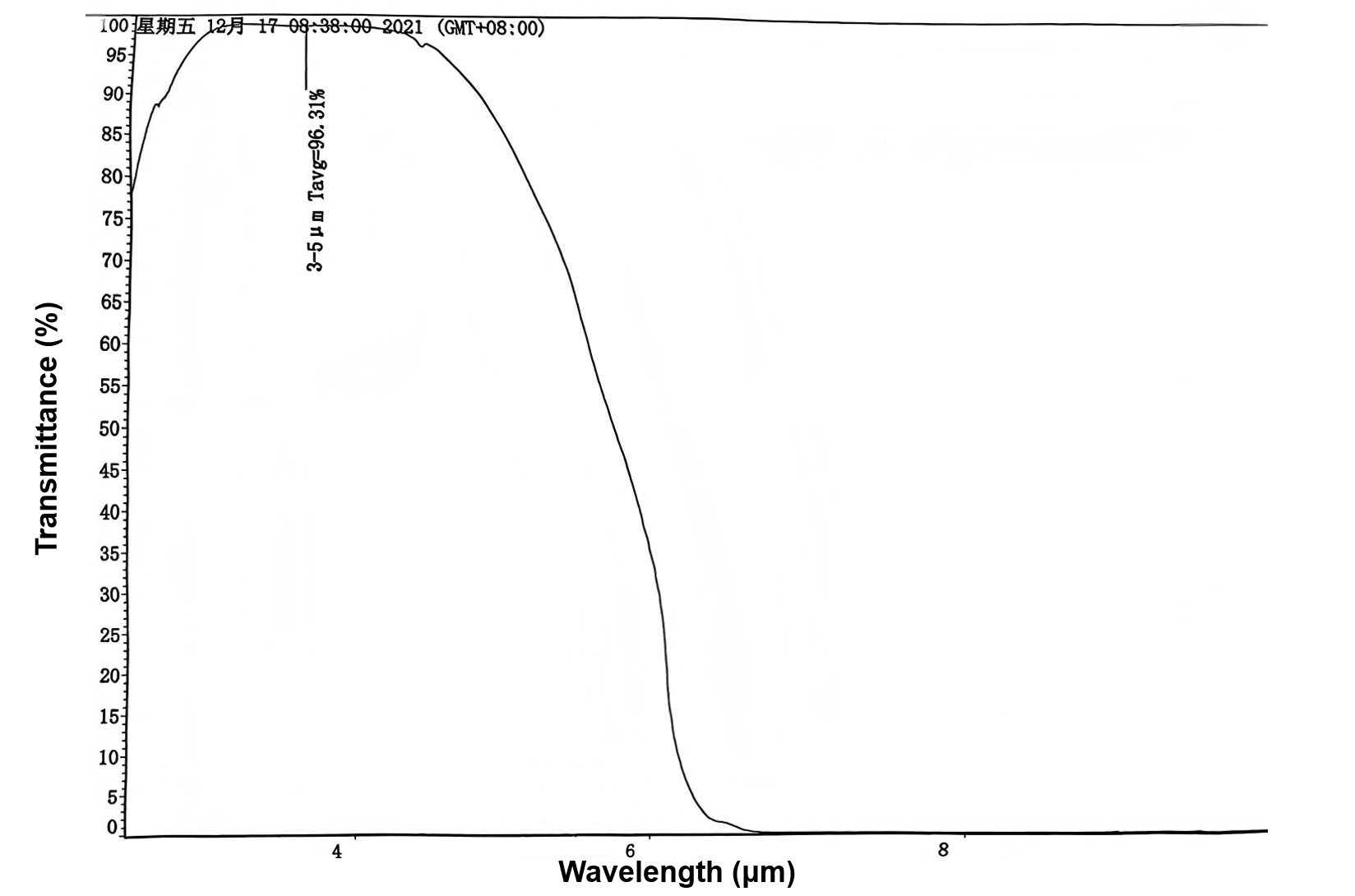

  • Applicable to mid-wave and long-wave infrared scenarios

Application

  • Laser imaging
  • Holographic imaging
  • Spectral analysis
  • Biological microscopy
  • Hyperspectral imaging





Find Your DMD Model

1. Select by Series
This chart organizes our product families by Wavelength and Resolution: Red: Large Micromirror Size (10.8/13.68 μm)  Green: Small Micromirror Size (5.4/7.56 μm)

Note: High Definition (HD), Space Saving (SS), High Speed (HS), High Capacity (HC)

2. View Model Details
Click on any product in the table below to see full specifications and order.

High Definition (HD) HD1 HD2 HD3 HD4 HD5 HD6
Space Saving (SS) SS1 SS2 SS3 SS4 SS5 SS6
High Speed (HS) HS1 HS2 HS3 HS4 HS5 HS6
High Capacity (HC) HC1 HC2 HC3 HC4 HC5 HC6









Product Specification

Model Wavelength Range Micromirror Size Physical Resolution Target Size Buffer Frame Rate Storage Capacity Deflection Angle Fill Factor Damage Threshold
OE-DMD-HD1-400-1080-1024-055 VIS: 400-700 nm 10.8 μm 1024×768 0.55 inch 1bit: 1063 Hz
8bit: 266 Hz		 128 Mb ±12° 92% >20W/cm²
OE-DMD-HD2-400-756-1920-065 VIS: 400-700 nm 7.56 μm 1920×1080 0.65 inch 1bit: 9523 Hz
8bit: 247 Hz		 128 Mb ±12° 92% >20W/cm²
OE-DMD-HD3-400-756-2560-090 VIS: 400-700 nm 7.56 μm 2560×1600 0.9 inch 1bit: 9523 Hz
8bit: 1031 Hz		 512 Mb ±12° 92% >20W/cm²
OE-DMD-HD4-420-540-2048-050 VIS: 420-700 nm 5.4 μm 2048×1200 0.5 inch 1bit: 16100 Hz
8bit: 2016 Hz
16bit: 1008 Hz		 512 Mb ±17.5° 93% >20W/cm²
OE-DMD-HD5-420-540-2716-067 VIS: 420-700 nm 5.4 μm 2716×1600 0.67 inch 1bit: 9523 Hz
8bit: 1190 Hz		 512 Mb ±17.5° 93% >20W/cm²
OE-DMD-HD6-420-540-1920-047 VIS: 420-700 nm 5.4 μm 1920×1080 0.47 inch 1bit: 2487 Hz
8bit: 437 Hz		 64 Mb ±17° 92% >20W/cm²
OE-DMD-SS1-420-1080-1280-065 VIS: 420-700 nm
NIR: 800-2000 nm		 10.8 μm 1280×800 0.65 inch 1bit: 11560 Hz
8bit: 1004 Hz		 64 Gb ±12° 94% 160W
OE-DMD-SS2-400-1368-1024-070 VIS: 400-700 nm 13.68 μm or 10.8 μm 1024×768 0.7 inch or 0.55 inch 1bit: 26867 Hz
8bit: 1683 Hz		 64 Gb ±12° 92% >20W/cm²
OE-DMD-SS3-400-1080-1920-095 VIS: 400-700 nm 10.8 μm 1920×1080 0.95 inch 1bit: 20120 Hz
8bit: 1422 Hz		 64 Gb ±12° 94% >20W/cm²
OE-DMD-SS4-400-1080-1920-096 VIS: 400-700 nm 10.8 μm 1920×1200 0.96 inch 1bit: 18384 Hz
8bit: 1348 Hz		 64 Gb ±12° 94% >20W/cm²
OE-DMD-SS5-400-756-1920-065 VIS: 400-700 nm 7.56 μm 1920×1080 0.65 inch 1bit: 17064 Hz
8bit: 940 Hz		 64 Gb ±12° 92% >20W/cm²
OE-DMD-SS6-363-756-2560-090 UV: 363-420 nm
VIS: 400-700 nm		 7.56 μm 2560×1600 0.9 inch 1bit: 11560 Hz
8bit: 997 Hz		 64 Gb ±12° 92% >20W/cm²
OE-DMD-HS1-420-1080-1280-065 VIS: 420-700 nm
NIR: 800-2000 nm		 10.8 μm 1280×800 0.65 inch 1bit: 11560 Hz
8bit: 1004 Hz		 128 Gb ±12° 94% 160W
OE-DMD-HS2-160-1368-1024-070 DUV: 160-280 nm
UV: 363-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 13.68 μm or 10.8 μm 1024×768 0.7 inch or 0.55 inch 1bit: 26867 Hz
8bit: 1683 Hz		 128 Gb ±12° 92% >20W/cm²
OE-DMD-HS3-160-1080-1920-095 DUV: 160-280 nm
UV: 363-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 10.8 μm 1920×1080 0.95 inch 1bit: 20120 Hz
8bit: 1422 Hz		 128 Gb ±12° 94% >20W/cm²
OE-DMD-HS4-160-1080-1920-096 DUV: 160-280 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 10.8 μm 1920×1200 0.96 inch 1bit: 18384 Hz
8bit: 1348 Hz		 128 Gb ±12° 94% >20W/cm²
OE-DMD-HS5-160-756-1920-065 DUV: 160-280 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 7.56 μm 1920×1080 0.65 inch 1bit: 17064 Hz
8bit: 940 Hz		 128 Gb ±12° 92% >20W/cm²
OE-DMD-HS6-160-756-2560-090 DUV: 160-280 nm
UV: 355-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 7.56 μm 2560×1600 0.9 inch 1bit: 11560 Hz
8bit: 997 Hz		 128 Gb ±12° 92% >20W/cm²
OE-DMD-HC1-160-1080-1280-065 DUV: 160-280 nm
VIS: 420-700 nm
NIR: 800-2000 nm		 10.8 μm 1280×800 0.65 inch 1bit: 11764 Hz
8bit: 522.19 Hz		 1T/2T/4T ±12° 94% 160W
OE-DMD-HC2-160-1368-1024-070 DUV: 160-280 nm
UV: 363-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 13.68 μm or 10.8 μm 1024×768 0.7 inch or 0.55 inch 1bit: 27995 Hz
8bit: 657.56 Hz		 2T/4T/8T ±12° 92% >20W/cm²
OE-DMD-HC3-160-1080-1920-095 DUV: 160-280 nm
UV: 363-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 10.8 μm 1920×1080 0.95 inch 1bit: 20746 Hz
8bit: 617.05 Hz		 3T/6T/12T ±12° 94% >20W/cm²
OE-DMD-HC4-160-1080-1920-096 DUV: 160-280 nm
UV: 363-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 10.8 μm 1920×1200 0.96 inch 1bit: 18518 Hz
8bit: 585.82 Hz		 3T/6T/12T ±12° 94% >20W/cm²
OE-DMD-HC5-160-756-1920-065 DUV: 160-280 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 7.56 μm 1920×1080 0.65 inch 1bit: 10941 Hz
8bit: 508.54 Hz		 2T/4T/8T ±12° 92% >20W/cm²
OE-DMD-HC6-160-756-2560-090 DUV: 160-280 nm
UV: 355-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 7.56 μm 2560×1600 0.9 inch 1bit: 11764 Hz
8bit: 522.19 Hz		 2.5T/5T/10T ±12° 92% >20W/cm²




Incoherent holographic 3D imaging

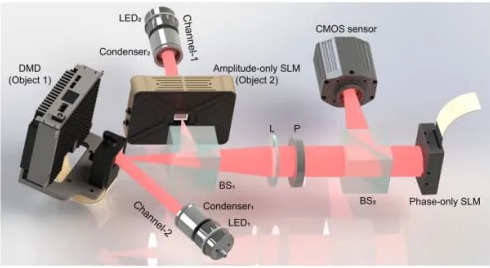

Diagram of the system installation



The system consists of two target channels in different axial planes, where a digital micromirror device (DMD) is used as target 1 in channel 1 and an amplitude-type spatial light modulator is used as target 2 in channel 2. The light from the spatial incoherent light-emitting diode (LED) is collected by a concentrator to illuminate the object, and then the diffracted object light within the two channels is combined through a beam-splitting prism (BS1) and collimated by lens L. The polariser P aligns the polarisation direction of the object light with the modulation axis direction of the pure phase SLM. Finally, the light waves modulated by the pure phase SLM are recorded by a CMOS sensor. Pure phase SLM loads holograms synthesised by the GSA algorithm.

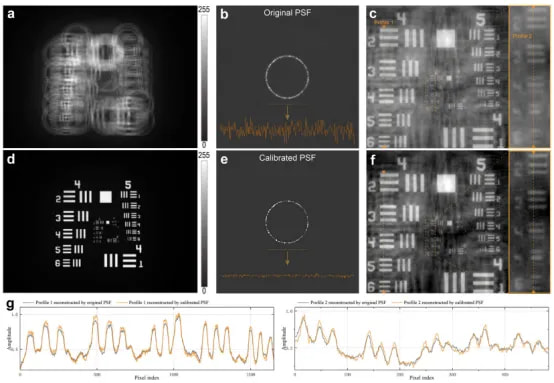

Calibration results of SC-RUN for PSF. a) Holograms, b) original PSF, c) results of nonlinear reconstruction using original PSF, d) known objects, e) calibrated PSF, f) results of nonlinear reconstruction using calibrated PSF.

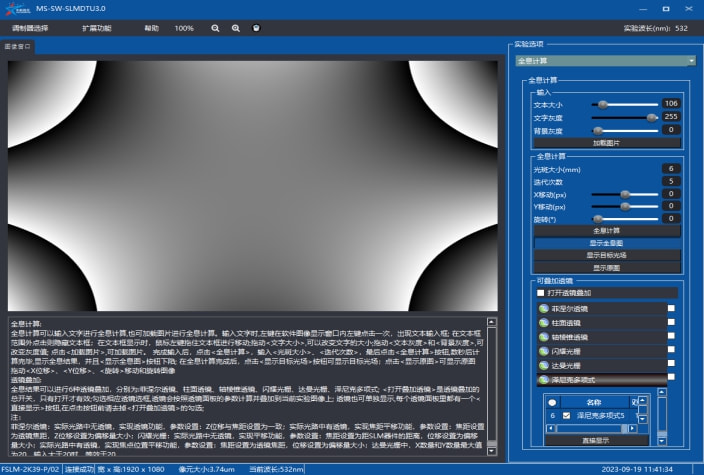

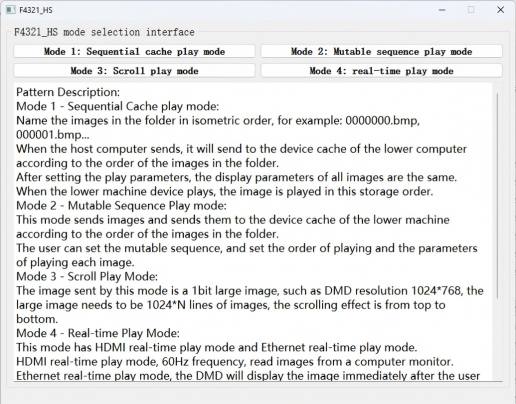

Software interface

Key features of the software include:

1. Integrate various specific light field control functions: including diffraction light field, non-diffraction light field, structured light field, etc.

2. Integrate more than 20 experimental projects, 35 Zenick polynomials, and support superposition between phase maps;

3. Real-time online adjustment and control of various light field parameters;

4. Quickly correct wavefront aberration according to actual needs;

5. It can be expanded independently, and it can be dynamically displayed in external input mode;

6. Independently select the playback mode to achieve high-speed refresh playback;

7. Open program interface, open the functional interface of the image processing part in the form of SDK, and support a variety of development languages, including Labview, C/C++, etc.


CW Laser Diode Module (375-785nm)

Type Wavelength  Output Power Fiber output
　UV Laser Diode Module 375, 395, 405, 415, 420nm upto 200mW SM/MM
　Blue Laser Diode Module 445, 473, 488nm upto 200mW SM/MM
　Green Laser Diode Module 505, 515, 532, 561nm upto 200mW SM/MM
　Red Laser Diode Module 633, 639, 640, 642, 647, 660, 685nm upto 200mW SM/MM
　NIR Laser Diode Module 705, 730, 785nm upto 200mW SM/MM
　Multiple Wavelength Laser Diode Module 375 to 785nm upto 200mW SM/MM



CW Fiber Laser System (405nm - 2um)

Type Wavelength Wavelength Accuracy Spectral Linewidth Output Power
　405-940 CW Single Mode Fiber Laser 405-940 nm ±5 nm - 5/10/20/100mW
　793/808/915/976nm CW Multi Mode High Power Fiber Laser 793/ 808/ 915/ 976 nm ±3 nm / ±10 nm 3nm / 6nm 5/10/25W
　974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm ±1 nm - 200 - 1000mW　　
　1030/1064 CW Single Mode Fiber Laser
 1064 nm ±2 nm < 0.1nm 100mW - 10W
　1120nm CW Single Mode Fiber Laser 1120±1 nm -  ≤ 0.1nm 1/2/5W
　1310 CW Single Mode Fiber Laser 1310 nm ±2 nm ≤ 3nm 10/20/30/40mW
　1450/1480 CW Single Mode Fiber Laser 1425/ 1435/ 1455/ 1465/ 1480 nm ±3 nm / ±10 nm - 200 - 800mW
　1550 CW Single Mode Fiber Laser 1550 nm ±0.5 nm ≤ 3nm 10mW - 20W
　1570 CW Single Mode Fiber Laser 1570 nm ±1 ±0.5 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
　2000 High Power CW Fiber Laser 1900-2050 nm - < 1nm  > 30 W



In-line Polarizer/PBC/PBS

Parameters Center Wavelength(nm) Operating Wavelength(nm) Insertion Loss @23(dB) Extinction Ratio @23(dB)
　532nm/633nm In-line Polarizer 532/633 ±10 1.3-1.5 22-24
　780-2050nm In-line Polarizer 780/850/980/1064/1310/1550/2000 ±10-±50 0.3-1 25-30
　532nm/633nm a Beam Splitter/Combiner 532/633 ±10 1.3-1.5 18
　780-2050nm Polarization Beam Splitter/Combiner 780/808/850/980/1030/1064/1310/1480/1550/1950/2020/2050 ±10-±40 0.4-1.5 18-22



Optical Circulator　

Parameter Port Type Center Wavelength(nm) Isolation @23 (dB) Insertion Loss @23(dB)
　532nm/633nm Optical Fiber Circulator  3  532/633 20-22 1.5-2
　1030nm PM Fiber Circulator (Faraday Based, 50mW)  3  1030 20-23 3.2-3.5
　1064nm PM Fiber Circulator (Faraday Based, 300mW)  ３－４ 1064 25-30 1.8-2.1
　780-1080nm High Power Optical Circulator (up to 30W)  - 1064/1030/980/850/808/780 22-25 1-1.3
　980-1080nm High Power Optical Circulator (up to 100W)  - 1064/1030/980 25 1-2２
　980-1080nm Multi-mode Optical Circulator (up to 20W)  - 1064/1030/980 18-20 1-１８
　1310-2050nm Polarization Maintaining Fiber Circulator  ３－４ 2050/2000/1950/1550/1480/1310 16-46 0.6-1.9　
　1310/1480/1550nm High Power Fiber Circulator (up to 20W)  3 1550/1480/1310 25-40 0.6-0.9　　　
　2000nm High Power Optical Circulator (up to 20W)  3 1950/2000/2050 16 1.6



Scientific CCD Cameras

  Series
 Wavelength
 Pixel
 Application
　Full Frame CCD Camera for UV-NIR ELSEs 160 - 1100nm 1024 * (127,255) , 2048 * (264,512) Spectroscopy
ELSEi 1024 * 1024, 2048 * 2048, 4096 * 4112 Imaging
　Full Frame CCD Camera for VUV EUV X-Ray ALEXs 5 eV - 20 keV 1024 * 255, 2048 * 512 Spectroscopy
ALEXi 1024 * 1024, 2048 * 2048, 4096 * 4096 Imaging
　Full Frame In-vacuum CCD Cameras LOTTEs 5 eV - 20 keV 1024 * 255, 2048 * 512 Spectroscopy
LOTTEi 1024 * 1024, 2048 * 2048, 4096 * 4096 Imaging
　Large Format In-vacuum CCD Cameras   5 eV - 20 keV   OEM



Scientific CMOS Cameras

  Wavelength Type QE Resolution Pixel size Frame Rate
　X-RAY sCMOS Camera  80-1000eV BSI sCMOS ~100% full range 2048 * 2048 22.5um or 13.3um  48　　
　XUV/VUV CCD Camera 1-350nm  BSI/FSI CCD  Refer to brochure 1024 * 255 26um -
　VIS-NIR sCMOS Camera 200-1100nm BSI/FSI sCMOS 58-95%  4MP,16MP,36MP  11um, 13.3um, 22.5um  up to 100
　Intensified CMOS Camera 200-1100nm Intensified CMOS - 1MP , 2MP 6um, 10um, up to 7500



Microscope Systems

Parameters Basic P Series Advance P Series Basic L Series Advance L Series SpinDisk Basic SpinDisk Advance SIM Basic SpinDisk SIM
　Image Frame Rate 4fps@512x512 8-12fps@512x512 12fps@1024x1024 50fps@1024x1024 100fps@2048x2048 100fps@2048x2048 13fps@1024x1024 13fps@1024x1024
　Resolution ~230 nm  ~230 nm  ~230 nm  150-200nm ~230 nm  ~230 nm  ~100 nm  ~100 nm
　Image Depth <100µm <100µm <100µm <600µm <200µm <200µm <50µm <200µm
　No. of Laser  1 4 1 4 4 4 4 4
　Wavelength  Available Choice 405 / 445 / 488 / 525 / 561 / 640(nm)  | Customized Wavelength available
　Detectors Detector Detector CMOS Camera sCMOS Camera sCMOS Camera Dual sCMOS Camera sCMOS Camera Dual sCMOS Camera
　Microscope  Inverted (Upright Customizeable) Inverted (Upright Customizeable) Inverted (Upright Customizeable) Inverted (Upright Customizeable) Inverted or Upright  Inverted or Upright  Inverted or Upright  Inverted
　Stages Z Motorized XY Manual XYZ Motorized  Z Motorized
XY Manual		 XYZ Motorized  XYZ Motorized  XYZ Motorized  XYZ Motorized  XYZ Motorized
　image contrast Medium High Medium High High High High High




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
OE-DMD-HD1-400-1080-1024-055
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 10.8 μm, Physical Resolution: 1024×768, Target Size: 0.55 inch, Buffer Frame Rate: "1bit: 1063 Hz 8bit: 266 Hz", Storage Capacity: 128 Mb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HD2-400-756-1920-065
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 7.56 μm, Physical Resolution: 1920×1080, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 9523 Hz 8bit: 247 Hz", Storage Capacity: 128 Mb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HD3-400-756-2560-090
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 7.56 μm, Physical Resolution: 2560×1600, Target Size: 0.9 inch, Buffer Frame Rate: "1bit: 9523 Hz 8bit: 1031 Hz", Storage Capacity: 512 Mb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HD4-420-540-2048-050
Wavelength Range: VIS: 420-700 nm, Micromirror Size: 5.4 μm, Physical Resolution: 2048×1200, Target Size: 0.5 inch, Buffer Frame Rate: "1bit: 16100 Hz 8bit: 2016 Hz 16bit: 1008 Hz", Storage Capacity: 512 Mb, Deflection Angle: ±17.5°, Fill Factor: 93%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HD5-420-540-2716-067
Wavelength Range: VIS: 420-700 nm, Micromirror Size: 5.4 μm, Physical Resolution: 2716×1600, Target Size: 0.67 inch, Buffer Frame Rate: "1bit: 9523 Hz 8bit: 1190 Hz", Storage Capacity: 512 Mb, Deflection Angle: ±17.5°, Fill Factor: 93%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HD6-420-540-1920-047
Wavelength Range: VIS: 420-700 nm, Micromirror Size: 5.4 μm, Physical Resolution: 1920×1080, Target Size: 0.47 inch, Buffer Frame Rate: "1bit: 2487 Hz 8bit: 437 Hz", Storage Capacity: 64 Mb, Deflection Angle: ±17°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-SS1-420-1080-1280-065
Wavelength Range: "VIS: 420-700 nm NIR: 800-2000 nm", Micromirror Size: 10.8 μm, Physical Resolution: 1280×800, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 11560 Hz 8bit: 1004 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: 160W 		4-6week Request for quote
OE-DMD-SS2-400-1368-1024-070
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 13.68 μm or 10.8 μm, Physical Resolution: 1024×768, Target Size: 0.7 inch or 0.55 inch, Buffer Frame Rate: "1bit: 26867 Hz 8bit: 1683 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-SS3-400-1080-1920-095
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 10.8 μm, Physical Resolution: 1920×1080, Target Size: 0.95 inch, Buffer Frame Rate: "1bit: 20120 Hz 8bit: 1422 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-SS4-400-1080-1920-096
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 10.8 μm, Physical Resolution: 1920×1200, Target Size: 0.96 inch, Buffer Frame Rate: "1bit: 18384 Hz 8bit: 1348 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-SS5-400-756-1920-065
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 7.56 μm, Physical Resolution: 1920×1080, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 17064 Hz 8bit: 940 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-SS6-363-756-2560-090
Wavelength Range: "UV: 363-420 nm VIS: 400-700 nm", Micromirror Size: 7.56 μm, Physical Resolution: 2560×1600, Target Size: 0.9 inch, Buffer Frame Rate: "1bit: 11560 Hz 8bit: 997 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HS1-420-1080-1280-065
Wavelength Range: "VIS: 420-700 nm NIR: 800-2000 nm", Micromirror Size: 10.8 μm, Physical Resolution: 1280×800, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 11560 Hz 8bit: 1004 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: 160W 		In Stock Request for quote
OE-DMD-HS2-160-1368-1024-070
Wavelength Range: "DUV: 160-280 nm UV: 363-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 13.68 μm or 10.8 μm, Physical Resolution: 1024×768, Target Size: 0.7 inch or 0.55 inch, Buffer Frame Rate: "1bit: 26867 Hz 8bit: 1683 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HS3-160-1080-1920-095
Wavelength Range: "DUV: 160-280 nm UV: 363-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 10.8 μm, Physical Resolution: 1920×1080, Target Size: 0.95 inch, Buffer Frame Rate: "1bit: 20120 Hz 8bit: 1422 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HS4-160-1080-1920-096
Wavelength Range: "DUV: 160-280 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 10.8 μm, Physical Resolution: 1920×1200, Target Size: 0.96 inch, Buffer Frame Rate: "1bit: 18384 Hz 8bit: 1348 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HS5-160-756-1920-065
Wavelength Range: "DUV: 160-280 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 7.56 μm, Physical Resolution: 1920×1080, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 17064 Hz 8bit: 940 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HS6-160-756-2560-090
Wavelength Range: "DUV: 160-280 nm UV: 355-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 7.56 μm, Physical Resolution: 2560×1600, Target Size: 0.9 inch, Buffer Frame Rate: "1bit: 11560 Hz 8bit: 997 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HC1-160-1080-1280-065
Wavelength Range: "DUV: 160-280 nm VIS: 420-700 nm NIR: 800-2000 nm", Micromirror Size: 10.8 μm, Physical Resolution: 1280×800, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 11764 Hz 8bit: 522.19 Hz", Storage Capacity: 1T/2T/4T, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: 160W 		4-6week Request for quote
OE-DMD-HC2-160-1368-1024-070
Wavelength Range: "DUV: 160-280 nm UV: 363-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 13.68 μm or 10.8 μm, Physical Resolution: 1024×768, Target Size: 0.7 inch or 0.55 inch, Buffer Frame Rate: "1bit: 27995 Hz 8bit: 657.56 Hz", Storage Capacity: 2T/4T/8T, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HC3-160-1080-1920-095
Wavelength Range: "DUV: 160-280 nm UV: 363-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 10.8 μm, Physical Resolution: 1920×1080, Target Size: 0.95 inch, Buffer Frame Rate: "1bit: 20746 Hz 8bit: 617.05 Hz", Storage Capacity: 3T/6T/12T, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HC4-160-1080-1920-096
Wavelength Range: "DUV: 160-280 nm UV: 363-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 10.8 μm, Physical Resolution: 1920×1200, Target Size: 0.96 inch, Buffer Frame Rate: "1bit: 18518 Hz 8bit: 585.82 Hz", Storage Capacity: 3T/6T/12T, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HC5-160-756-1920-065
Wavelength Range: "DUV: 160-280 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 7.56 μm, Physical Resolution: 1920×1080, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 10941 Hz 8bit: 508.54 Hz", Storage Capacity: 2T/4T/8T, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HC6-160-756-2560-090
Wavelength Range: "DUV: 160-280 nm UV: 355-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 7.56 μm, Physical Resolution: 2560×1600, Target Size: 0.9 inch, Buffer Frame Rate: "1bit: 11764 Hz 8bit: 522.19 Hz", Storage Capacity: 2.5T/5T/10T, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote

OE-DMD-HC6-160-756-2560-090 - Parameter

OE-DMD-HC5-160-756-1920-065 - Parameter

OE-DMD-HC4-160-1080-1920-096 - Parameter

OE-DMD-HC3-160-1080-1920-095 - Parameter

OE-DMD-HC2-160-1368-1024-070 - Parameter

OE-DMD-HC1-160-1080-1280-065 - Parameter

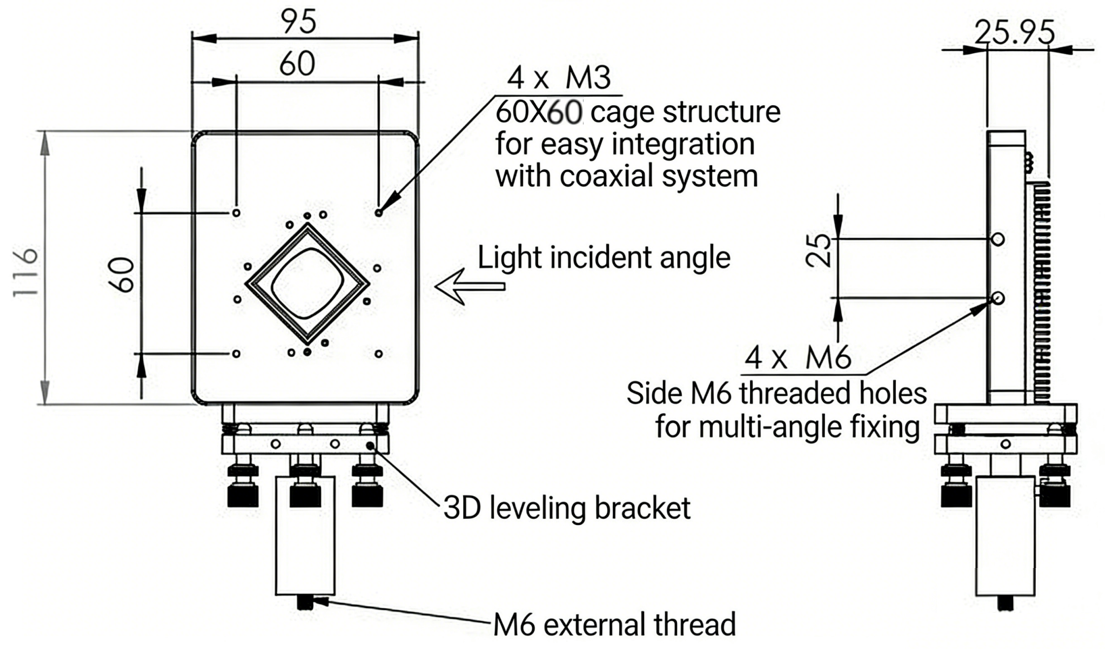

OE-DMD-HS6-160-756-2560-090 - Parameter

OE-DMD-HS5-160-756-1920-065 - Parameter

OE-DMD-HS4-160-1080-1920-096 - Parameter

OE-DMD-HS3-160-1080-1920-095 - Parameter

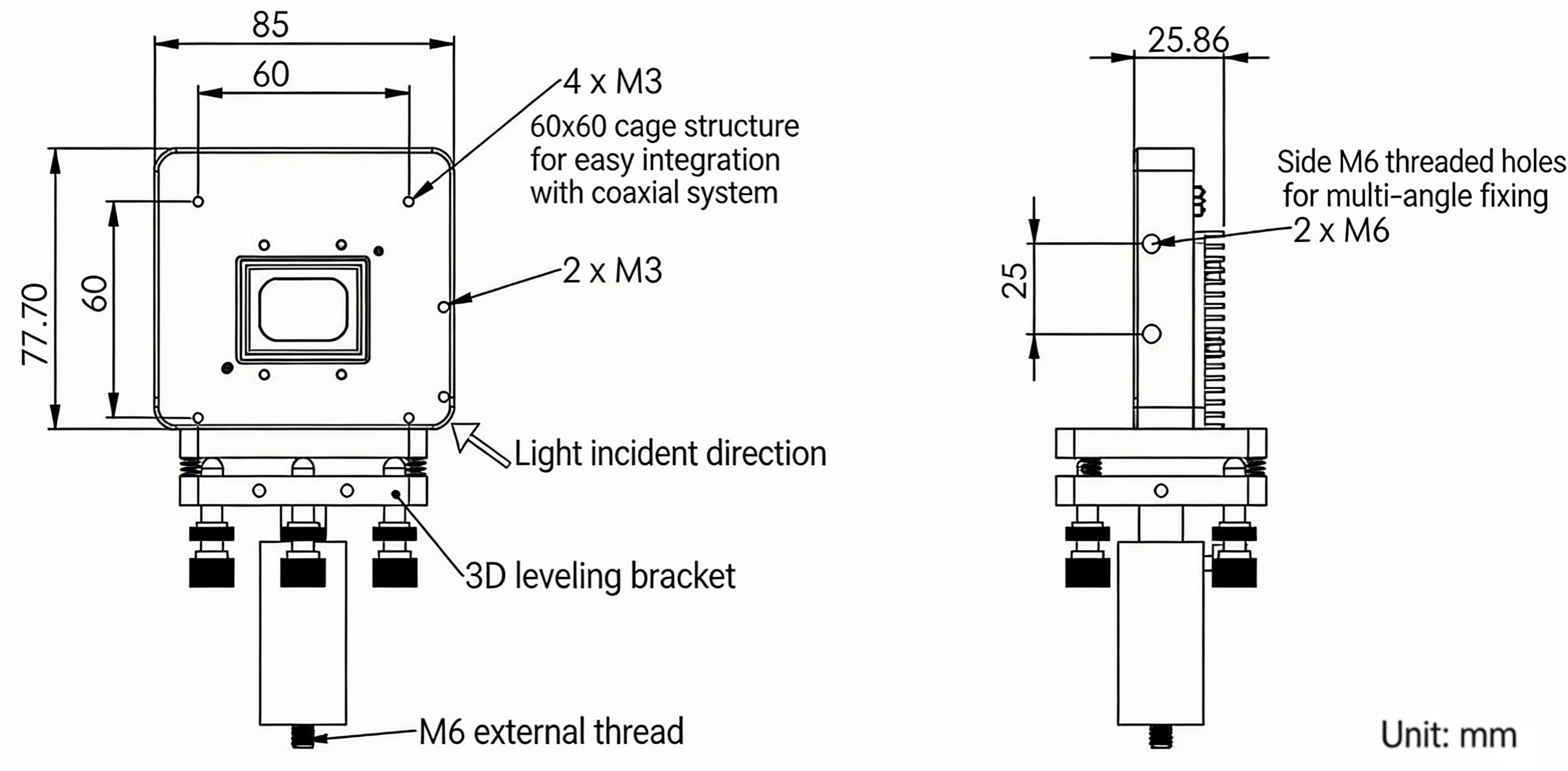

OE-DMD-HS2-160-1368-1024-070 - Parameter

OE-DMD-HS1-420-1080-1280-065 - Parameter

OE-DMD-SS6-363-756-2560-090 - Parameter

OE-DMD-SS5-400-756-1920-065 - Parameter

OE-DMD-SS4-400-1080-1920-096 - Parameter

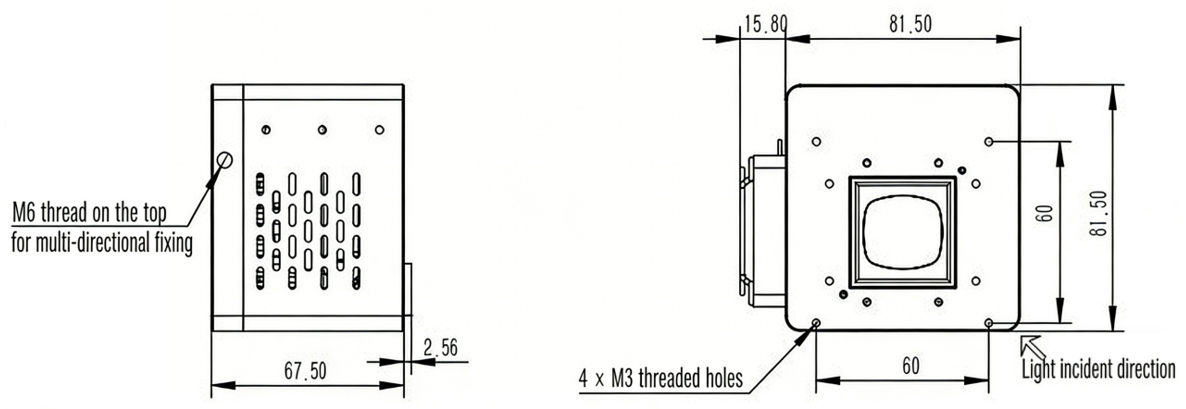

OE-DMD-SS3-400-1080-1920-095 - Parameter

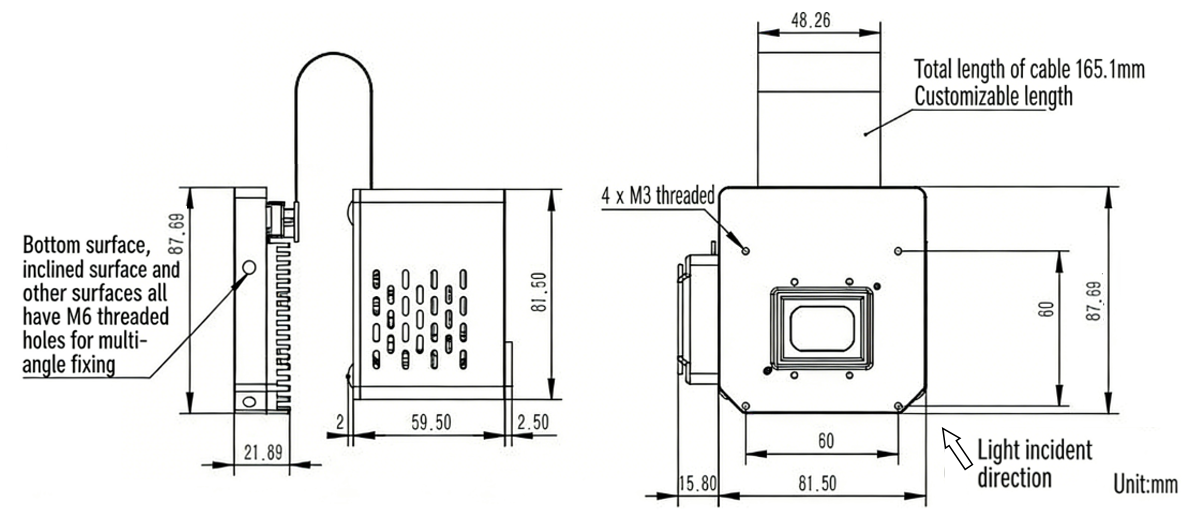

OE-DMD-SS2-400-1368-1024-070 - Parameter

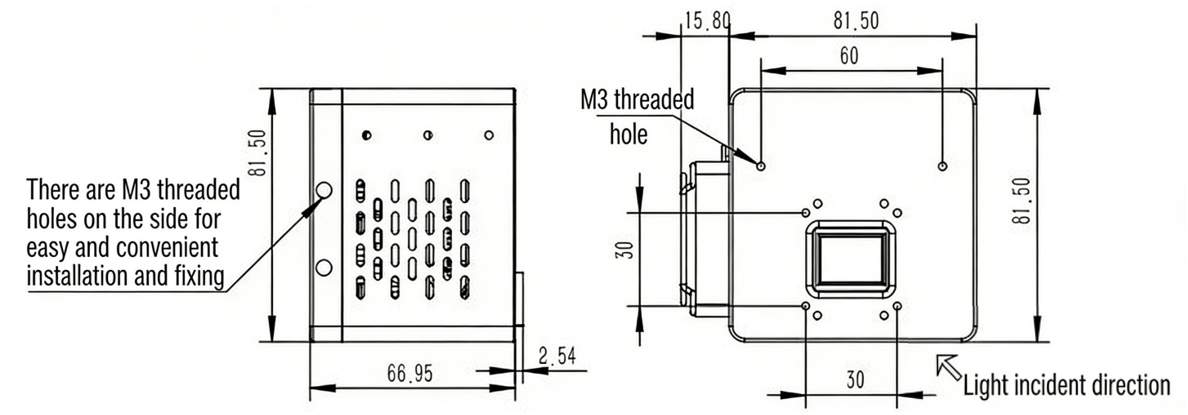

OE-DMD-SS1-420-1080-1280-065 - Parameter

OE-DMD-HD6-420-540-1920-047 - Parameter

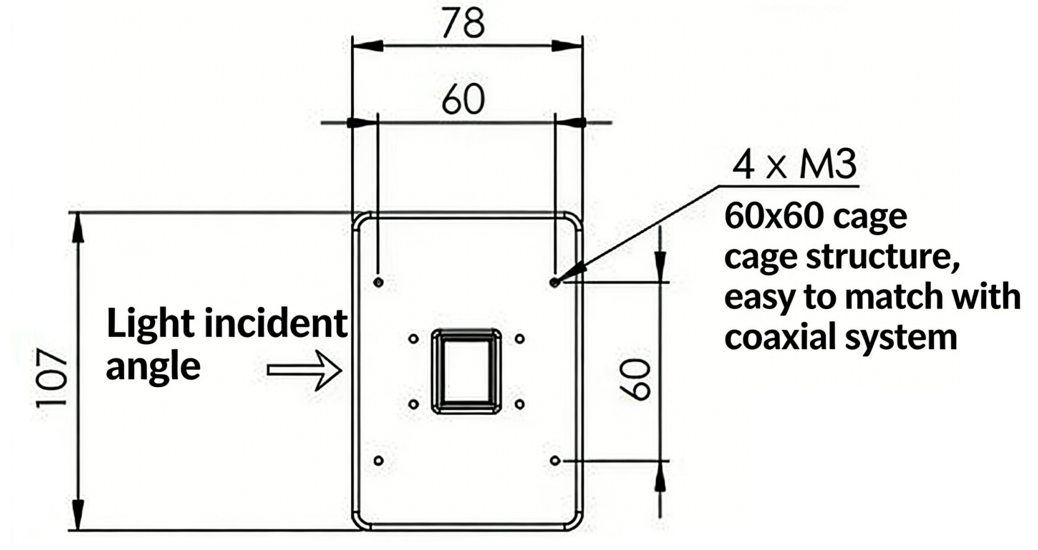

OE-DMD-HD5-420-540-2716-067 - Parameter

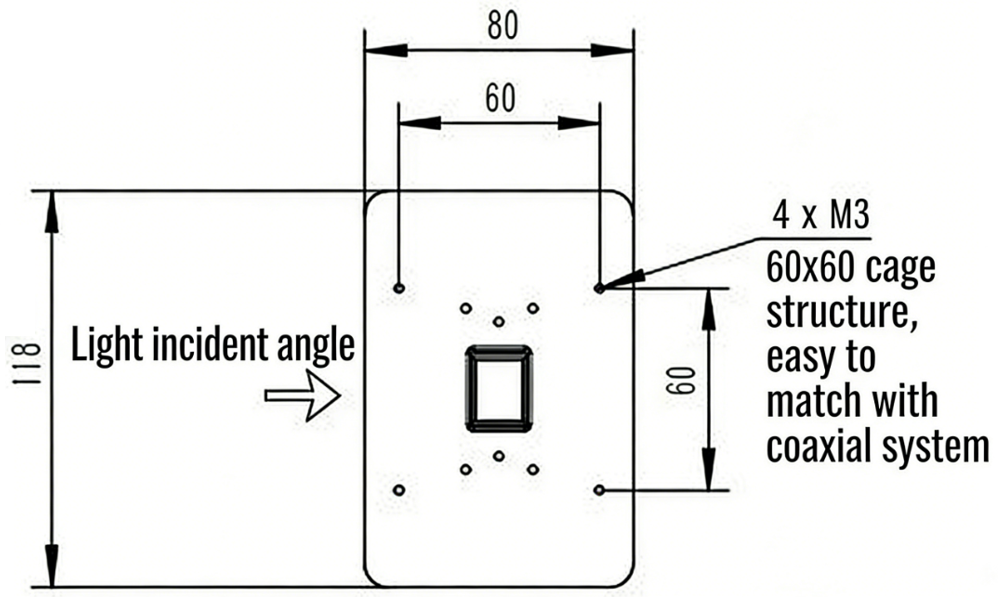

OE-DMD-HD4-420-540-2048-050 - Parameter

OE-DMD-HD3-400-756-2560-090 - Parameter

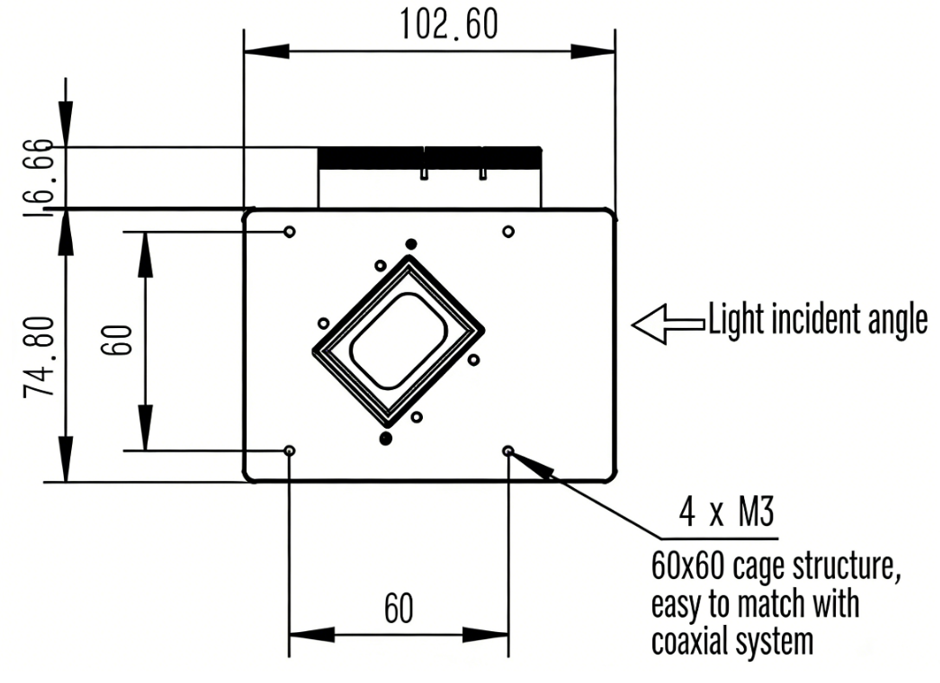

OE-DMD-HD2-400-756-1920-065 - Parameter

OE-DMD-HD1-400-1080-1024-055 - Parameter

OE-DMD-HC6-160-756-2560-090 - Download

OE-DMD-HC5-160-756-1920-065 - Download

OE-DMD-HC4-160-1080-1920-096 - Download

OE-DMD-HC3-160-1080-1920-095 - Download

OE-DMD-HC2-160-1368-1024-070 - Download

OE-DMD-HC1-160-1080-1280-065 - Download

OE-DMD-HS6-160-756-2560-090 - Download

OE-DMD-HS5-160-756-1920-065 - Download

OE-DMD-HS4-160-1080-1920-096 - Download

OE-DMD-HS3-160-1080-1920-095 - Download

OE-DMD-HS2-160-1368-1024-070 - Download

OE-DMD-HS1-420-1080-1280-065 - Download

OE-DMD-SS6-363-756-2560-090 - Download

OE-DMD-SS5-400-756-1920-065 - Download

OE-DMD-SS4-400-1080-1920-096 - Download

OE-DMD-SS3-400-1080-1920-095 - Download

OE-DMD-SS2-400-1368-1024-070 - Download

OE-DMD-SS1-420-1080-1280-065 - Download

OE-DMD-HD6-420-540-1920-047 - Download

OE-DMD-HD5-420-540-2716-067 - Download

OE-DMD-HD4-420-540-2048-050 - Download

OE-DMD-HD3-400-756-2560-090 - Download

OE-DMD-HD2-400-756-1920-065 - Download

OE-DMD-HD1-400-1080-1024-055 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
